Bedrock Attachments Long Reach Arm and Boom | Model ELEC300-18 | Reach 59' Ft | Machine Size 25-30 Tons | For Excavators Volvo EC300
Bedrock Attachments Long Reach Arm and Boom | Model ELEC300-18 | Reach 59' Ft | Machine Size 25-30 Tons | For Excavators Volvo EC300
Regular price
$43,108.00
Regular price
Sale price
$43,108.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

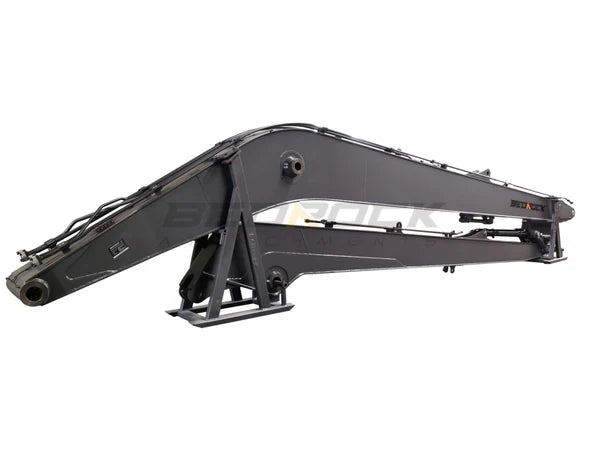

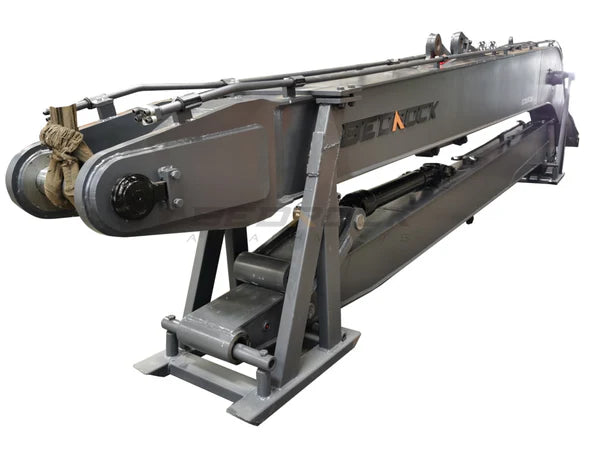

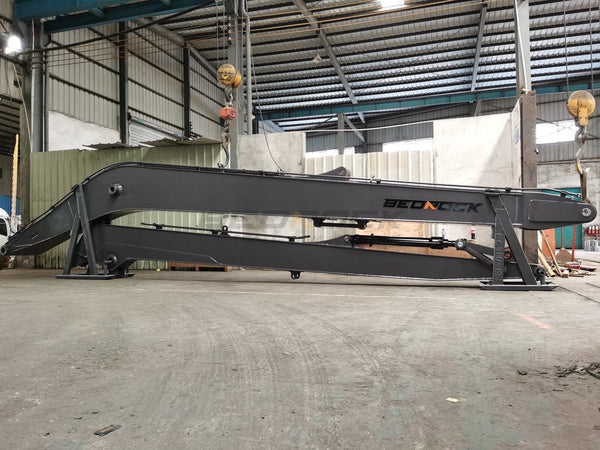

Bedrock Attachments Long Reach Arm and Boom | Model ELEC300-18 | Reach 59' Ft | Machine Size 25-30 Tons | For Excavators Volvo EC300
DESCRIPTION
The Bedrock Attachments Long Reach Arm and Boom is engineered to extend the capabilities of Volvo EC300 Excavators, making it perfect for deep excavation, dredging, and heavy-duty material handling. With a total reach of 18 meters, this attachment is structurally reinforced, hydraulically optimized, and precisely manufactured to ensure superior performance even in the most demanding conditions. The supporting structure simplifies transportation and packing, making logistics more efficient.
Key Features
- Extended Reach: 18m total reach with 10m boom and 8m stick, ideal for deeper excavation.
- High-Efficiency Bucket: 0.8m³ capacity, ensuring smooth material handling.
- Precision Engineering: Computerized stress distribution analysis optimizes durability and strength.
- Advanced Manufacturing: Large-scale milling equipment improves welding precision.
- Premium Hydraulic System: Cold-rolled precision steel pipes, finished with phosphoric acid washing, ensuring smooth oil flow and reducing hydraulic circuit contamination.
- Top-Tier Welding: Robotic ultrasonic-tested welding guarantees maximum structural integrity.
- Pin Hole Accuracy: High-quality boring machine ensures parallelism, ensuring flawless pin alignment.
- Surface Treatment: Fully sandblasted finish, delivering a clean and polished appearance.
- Reliable Cylinders: Equipped with high-quality hydraulic cylinders for optimal efficiency.
- Robust Linkage: Strengthened linkage system for stable and precise operation.
-
CE Certified: Meets strict European safety standards, ensuring reliability and efficiency.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | ELEC300-18 |
| Total Reach | 18m (59 ft) |
| Boom Length | 10m |
| Stick Length | 8m |
| Bucket Capacity | 0.8m³ |
| Pin Count | 6 |
| Hydraulic System | Cold-rolled precision steel pipes with phosphoric acid treatment |
| Welding Method | Robotic welding with ultrasonic non-destructive testing |
| Surface Treatment | Sandblasted for smooth finish |
| Transport Support | Supporting structure included for easier packing and shipment |
| Cylinder Type | High-quality hydraulic cylinder |
| Certification | CE Marked |
