Product Description
Bedrock Attachments Long Reach Arm and Boom | Model ELJD270-18 | Reach 59' Ft | Machine Size 26-30 Tons | For Excavators John Deere 270/Hitachi 270
DESCRIPTION
The Bedrock Attachments Long Reach Arm and Boom is designed to maximize the efficiency of John Deere 270 and Hitachi 270 excavators, enabling deep excavation, dredging, and material handling with greater reach and precision. With an 18-meter total reach, this attachment is built with high-quality materials, advanced engineering, and robotic welding, ensuring exceptional durability and seamless hydraulic performance. The included supporting structure makes packing and transportation simpler and more convenient.
Key Features
- Extended Reach: 18m total reach with 9.7m boom and 8.3m stick, perfect for deeper excavation.
- High-Efficiency Bucket: 0.65m³ capacity, designed for precise material handling and dredging.
- Precision Engineering: Computerized stress distribution analysis optimizes structural durability.
- Advanced Manufacturing: Large-scale milling equipment enhances welding precision.
- Premium Hydraulic System: Cold-rolled precision steel pipes, finished with phosphoric acid washing, reducing oil flow resistance and hydraulic circuit contamination.
- Top-Tier Welding: Robotic ultrasonic-tested welding ensures maximum strength and longevity.
- Pin Hole Accuracy: High-quality boring machine maintains parallelism, ensuring flawless pin alignment.
- Surface Treatment: Fully sandblasted finish, offering a polished and clean appearance.
- Reliable Cylinders: Equipped with high-performance hydraulic cylinders for optimal efficiency.
- Robust Linkage: Strengthened linkage system enhances stability and performance.
-
CE Certified: Meets strict European safety standards, ensuring reliability and operational safety.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | ELJD270-18 |
| Total Reach | 18m (59 ft) |
| Boom Length | 9.7m |
| Stick Length | 8.3m |
| Bucket Capacity | 0.65m³ |
| Pin Count | 6 |
| Hydraulic System | Cold-rolled precision steel pipes with phosphoric acid treatment |
| Welding Method | Robotic welding with ultrasonic non-destructive testing |
| Surface Treatment | Sandblasted for smooth finish |

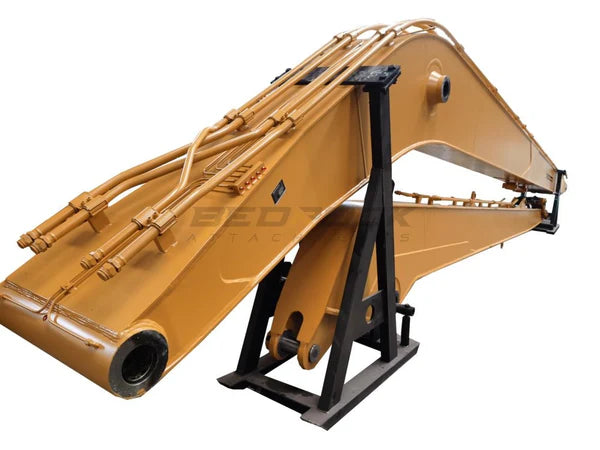

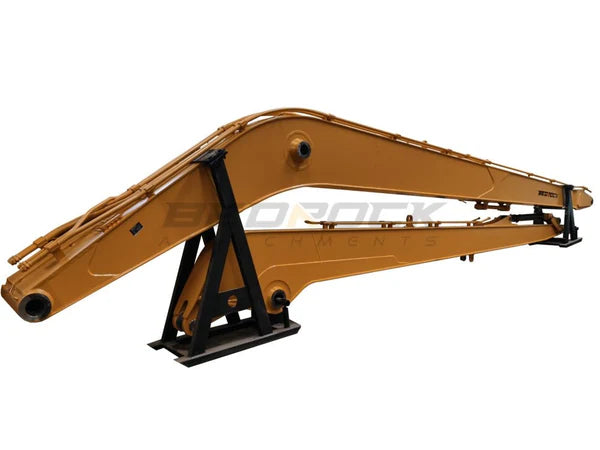

| Transport Support | Supporting structure included for easier packing and shipment |
| Cylinder Type | High-performance hydraulic cylinder |
| Certification | CE Marked |
