Bedrock Attachments Pin Grabber Thumb | Model ET80-PG2T48 | Width 46.1" | Pin Size 80mm | 2 Teeth | Machine Size 20-24 Ton | For Excavators
DESCRIPTION

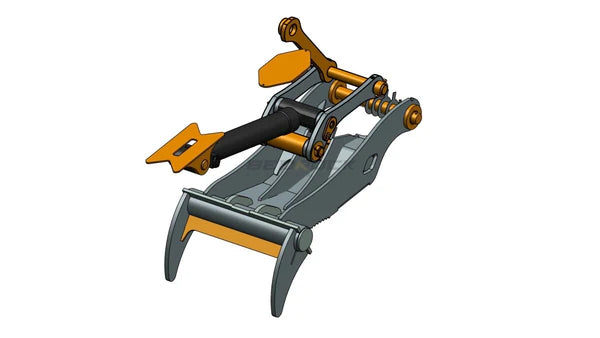

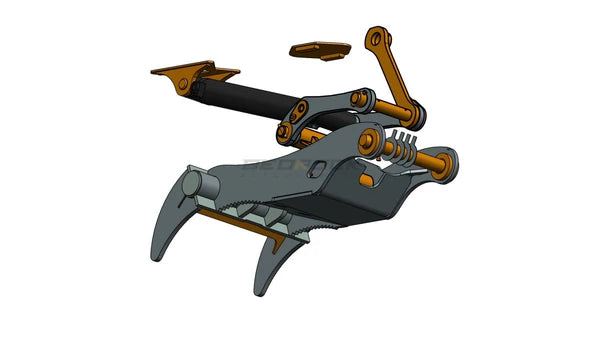

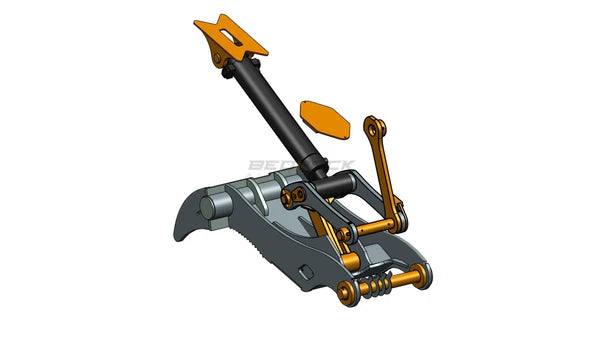

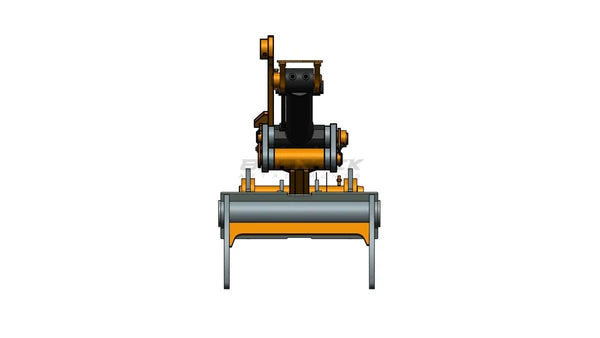

The Bedrock Attachments Pin Grabber Excavator Thumb is engineered for CAT 320D, 320E, and Next Gen excavators, delivering full rotation capability, reinforced gripping strength, and heavy-duty durability for superior material handling. Optimized for 48-inch buckets, this attachment ensures secure grip, operational flexibility, and seamless compatibility with OEM components, making it an essential tool for construction, demolition, and excavation projects.
Key Features
- Progressive Full Rotation Thumb – Provides maximum flexibility and handling control.
- 2 Teeth Configuration – Optimized for lifting, sorting, and securing materials with precision.
- Optimized Bucket Compatibility – Designed for 48-inch excavator buckets.
- OEM-Compatible Design – Accepts OEM-style parts, including cylinders and seal kits.
- Heavy-Duty Construction – Guarantees long-lasting durability and wear resistance.
- 80mm Main Pin System – Ensures secure attachment and operational stability.
- Pin Grabber Design – Enables secure installation and improved performance.
- Complete Thumb Set Included – Comes with thumb structure, one hydraulic cylinder, 2 teeth, mounting bracket, and complete installation hardware.
- Painted to Match OEM Equipment Yellow – Ensures seamless aesthetic integration with CAT machinery.
- Machine Size Compatibility – Optimized for 20-24 ton excavators.
-
CE Certified – Meets European safety standards, ensuring quality and reliability.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | ET80-PG2T48 |
| Compatible Excavators | CAT 320D, 320E, Next Gen |
| Thumb Type | Progressive Thumb, Full Rotation |
| Teeth Count | 2 |
| Bucket Compatibility | Fits 48-inch Buckets |
| Main Pin Size | 80mm |
| Included Components | Thumb structure, one hydraulic cylinder, 2 teeth, mounting bracket, complete hardware |
| Machine Size | 20-24 Tons |
| Width | 1171 mm (46.1 in) |
| Overall Length | 1917 mm (75.47 in) |
| Height | 670.56 mm (26.4 in) |
| Total Weight | 955 kg |
| Certification | CE Marked |
