Bedrock Attachments Severe Rock Bucket | Width 36" | Capacity 0.62 CU M | Machine Size 14-18 Tons | For Excavators CAT 315D, 316E/F, 318D2/F
Bedrock Attachments Severe Rock Bucket | Width 36" | Capacity 0.62 CU M | Machine Size 14-18 Tons | For Excavators CAT 315D, 316E/F, 318D2/F
Regular price
$3,813.00
Regular price
Sale price
$3,813.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Bedrock Attachments Severe Rock Bucket | Width 36" | Capacity 0.62 CU M | Machine Size 14-18 Tons | For Excavators CAT 315D, 316E/F, 318D2/F
DESCRIPTION

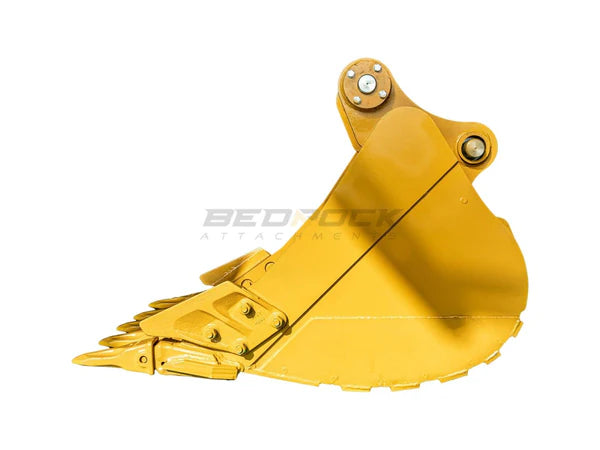

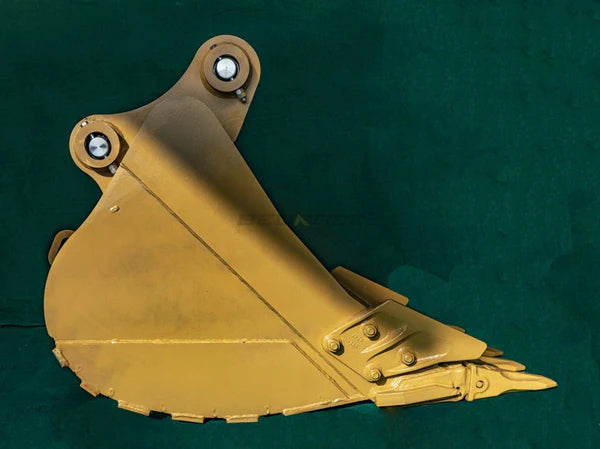

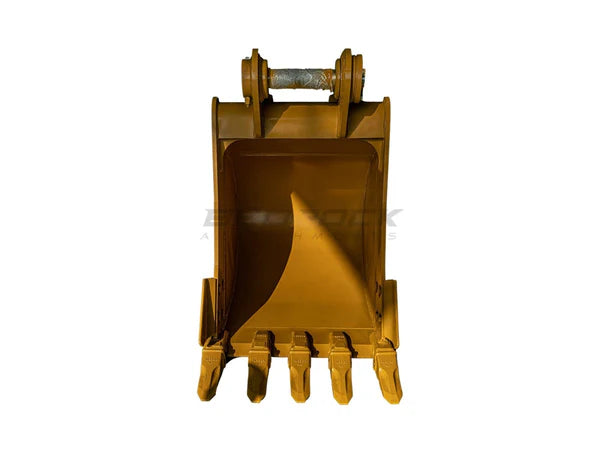

The Bedrock Attachments Severe Rock Bucket is designed for CAT 315D, 316E/F, and 318D2/F excavators, delivering maximum durability, reinforced strength, and optimized rock excavation performance. Manufactured with high-strength steel and precision reinforcement, this bucket ensures superior wear resistance, structural reliability, and enhanced digging power in extreme excavation conditions. Featuring a 36-inch width, 5 toughened teeth, and secure pin compatibility, this attachment provides exceptional excavation efficiency for heavy-duty rock handling applications.
Key Features
- Severe Rock Excavation Design: Engineered for rock excavation, quarrying, and high-impact material transport.
- Optimized Capacity: 0.62 CU M (0.81 CU YD) ensuring efficient rock and material movement.
- Reinforced Teeth: 5 hardened teeth, providing superior wear resistance and long-term durability.
- Precision Pin System: Includes 2 x 70mm Pins, ensuring secure attachment.
- Compact Excavation Reach: 36-inch (900mm) bucket width, improving digging precision.
- Machine Compatibility: Fits CAT 315D, 316E/F, 318D2/F excavators within the 14-18 ton size range.
-
CE Certified: Meets strict European safety standards, ensuring quality and reliability.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | EB316SD-36-0.62 |
| Bucket Width | 900mm (36 in) |
| Bucket Capacity | 0.62 CU M (0.81 CU YD) |
| Pin Type | 2 x 70mm Pins |
| Teeth Count | 5 |
| Ear-to-Ear Width | 351 mm (13.82 in) |
| Center-to-Center Width | 463.1 mm (18.23 in) |
| Total Weight | 690 kg (1518 lbs) |
| Machine Size | 14-18 Tons |
| Certification | CE Marked |
