Product Description
Bedrock Attachments Severe Rock Bucket | Width 48-Inch | Capacity 0.91 CU M | Machine Size 14-18 Tons | For Excavators CAT 315D, 316E/F, 318D2/E/F
DESCRIPTION

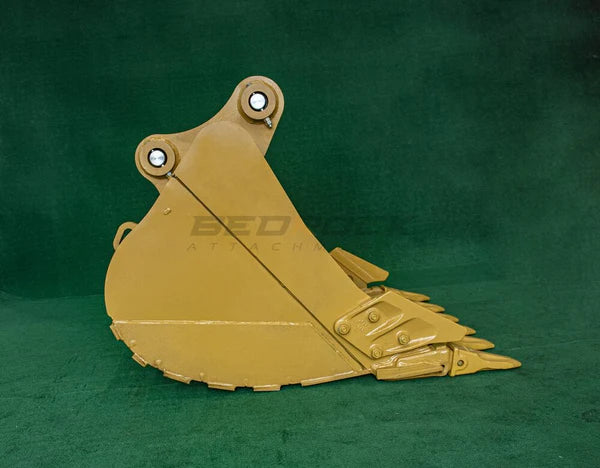

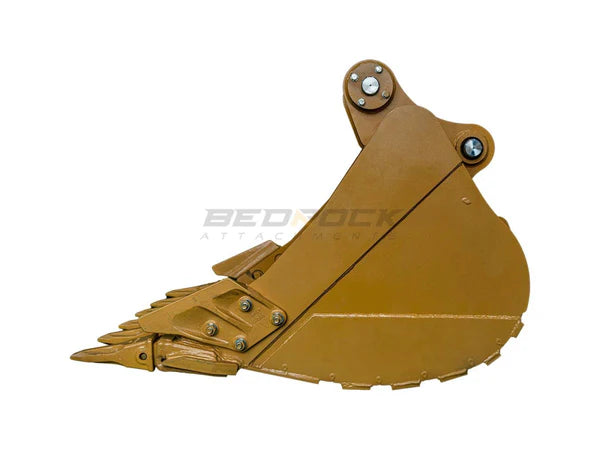

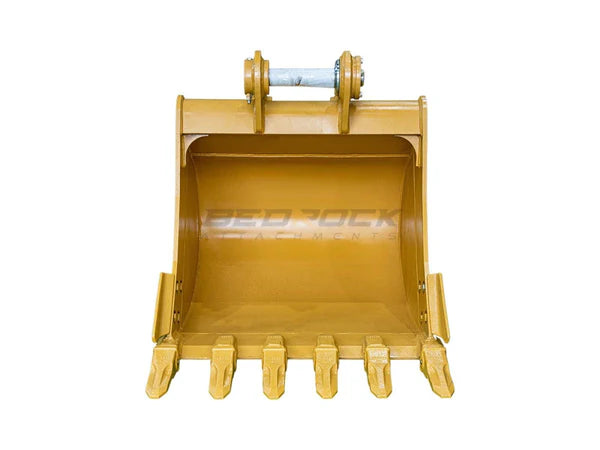

The Bedrock Attachments Severe Rock Bucket is designed for CAT 315D, 316E/F, and 318D2/E/F excavators, offering reinforced durability, optimized strength, and superior excavation performance in extreme digging environments. Constructed with high-strength steel and advanced reinforcement, this bucket ensures maximum wear resistance, reliable material transport, and enhanced digging precision. Featuring a 48-inch width, 6 toughened teeth, and optimized pin compatibility, this attachment delivers exceptional excavation efficiency for heavy-duty rock handling applications.
Key Features
- Severe Rock Excavation Design: Engineered for quarrying, trenching, and high-impact material transport.
- Optimized Capacity: 0.91 CU M (1 CU YD) ensuring efficient rock and material movement.
- Reinforced Teeth: 6 hardened teeth, providing superior wear resistance and long-term durability.
- Precision Pin System: Includes 2 x 70mm Pins, ensuring secure attachment.
- Compact Excavation Reach: 48-inch (1200mm) bucket width, improving digging precision.
- Machine Compatibility: Fits CAT 315D, 316E/F, 318D2/E/F excavators within the 14-18 ton size range.
-
CE Certified: Meets strict European safety standards, ensuring quality and reliability.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | EB316SD-48-0.91 |
| Bucket Width | 1200mm (48 in) |
| Bucket Capacity | 0.91 CU M (1 CU YD) |
| Pin Type | 2 x 70mm Pins |
| Teeth Count | 6 |
| Ear-to-Ear Width | 351 mm (13.82 in) |
| Center-to-Center Width | 463.1 mm (18.23 in) |
| Total Weight | 810 kg (1782 lbs) |
| Machine Size | 14-18 Tons |
| Certification | CE Marked |
