Bedrock Attachments Skeleton Bucket | Model EB336DBS-60-2.1 | Width 60-Inch | Capacity 2.1 CU M | Machine Size 30-40 Tons | For Excavators CAT 336
Bedrock Attachments Skeleton Bucket | Model EB336DBS-60-2.1 | Width 60-Inch | Capacity 2.1 CU M | Machine Size 30-40 Tons | For Excavators CAT 336
Regular price
$12,860.00
Regular price
Sale price
$12,860.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Bedrock Attachments Skeleton Bucket | Model EB336DBS-60-2.1 | Width 60-Inch | Capacity 2.1 CU M | Machine Size 30-40 Tons | For Excavators CAT 336
DESCRIPTION

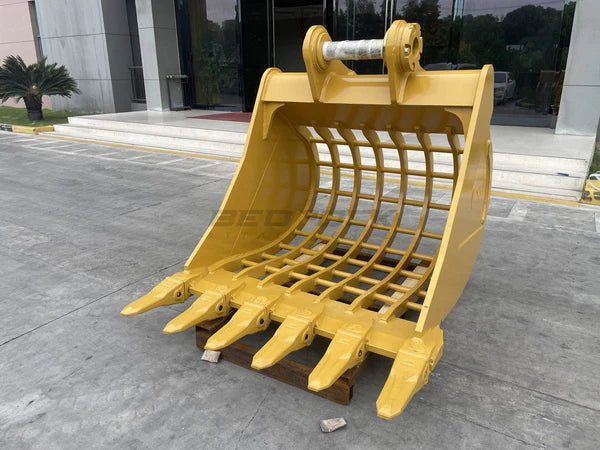

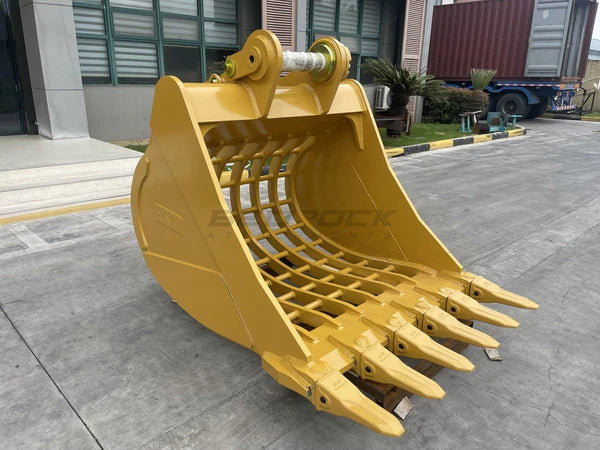

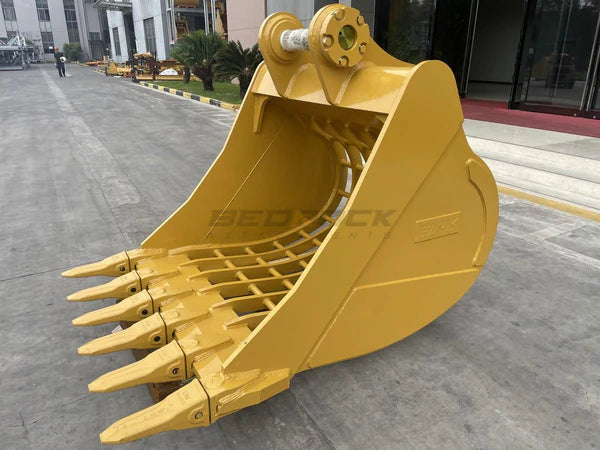

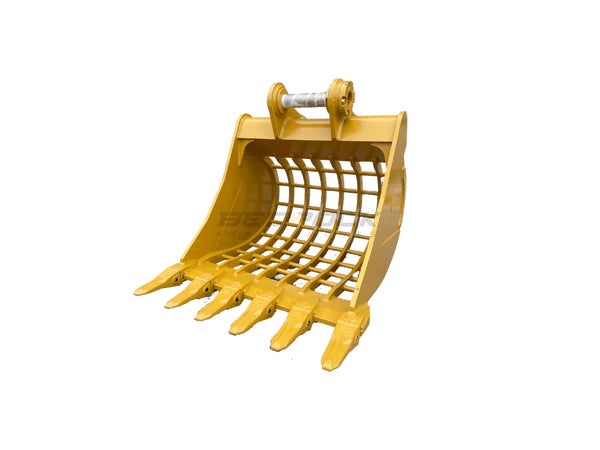

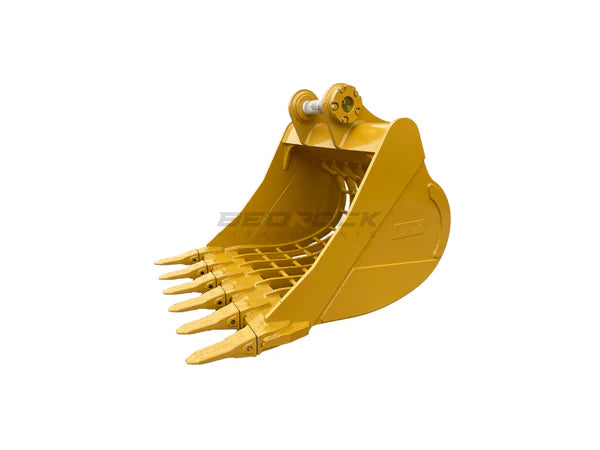

The Bedrock Attachments Skeleton Bucket is purpose-built for CAT 336 excavators, providing precision sorting, sifting, and material separation for quarrying, demolition, and earthmoving tasks. Engineered with reinforced steel and optimized structural design, this bucket efficiently filters debris while ensuring maximum durability and operational efficiency. Featuring a 60-inch width, 6 reinforced teeth, and precise ear-to-ear and center-to-center spacing, this attachment enhances productivity in challenging job environments
Key Features
- Optimized Sorting & Sifting: Designed for handling rock, debris, and aggregate materials.
- Heavy-Duty Build: Manufactured for high-strength applications, ensuring reliability.
- Efficient Capacity: 2.1 CU M, allowing quick material separation and transport.
- Reinforced Teeth: 6 toughened teeth, improving excavation performance.
- Precision Pin System: Includes S Pin (100mm) & L Pin (90mm) for secure attachment.
- Accurate Fitment: Ear-to-Ear width: 385mm (15.16 in) and Center-to-Center spacing: 500mm (19.65 in).
- Machine Compatibility: Fits CAT 336 excavators within the 30-40 ton size range.
-
CE Certified: Meets strict European safety standards, ensuring operational safety.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | EB336DBS-60-2.1 |
| Bucket Width | 60 in (1524 mm) |
| Bucket Capacity | 2.1 CU M |
| Pin Type | S Pin (100mm) & L Pin (90mm) |
| Teeth Count | 6 |
| Ear-to-Ear Width | 385 mm (15.16 in) |
| Center-to-Center Width | 500 mm (19.65 in) |
| Total Weight | 1625 kg (3582.51 lbs) |
| Machine Size | 30-40 Tons |
| Certification | CE Marked |
