Bedrock Attachment

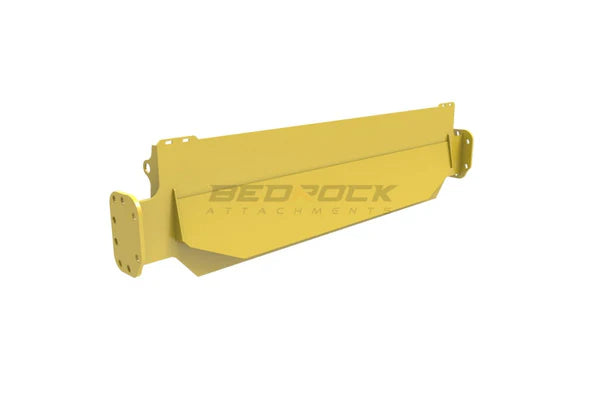

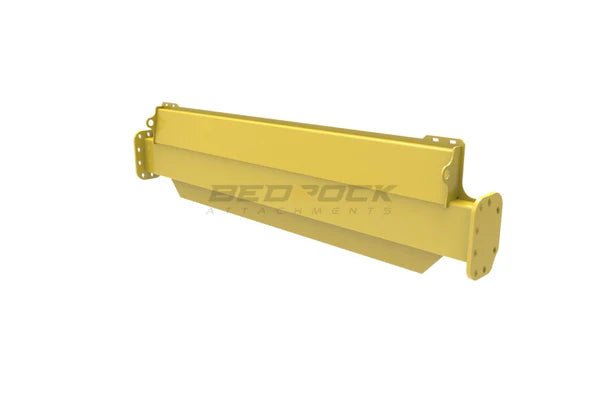

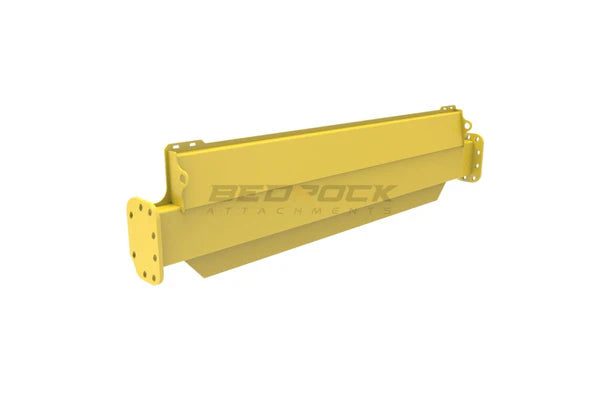

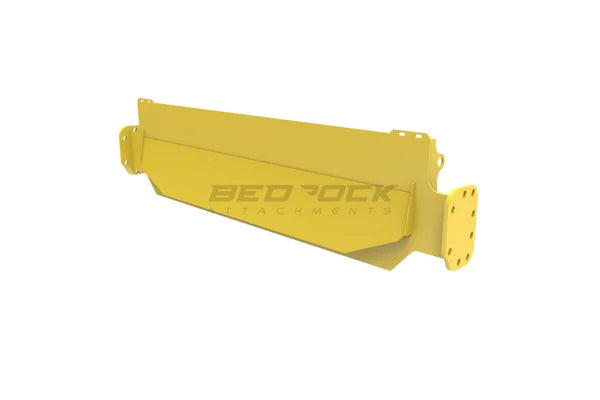

Bedrock Attachments Tailgate Rear Plate | Width 85" To 93" | Machine Size 25-50 Tons | For Articulated Trucks

Bedrock Attachments Tailgate Rear Plate | Width 85" To 93" | Machine Size 25-50 Tons | For Articulated Trucks

Regular price $3,130.00
Regular price Sale price $3,130.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Working Width 85" to 93" inches
  • Machine Size 25-50 Tons For Articulated Trucks
  • Original Tailgate Rear Plate Design – Matches the factory style to ensure proper fitting and performance.
  • OEM Compatibility – Designed to accept OEM parts, guaranteeing effortless integration.
  • Perfect Fit for Original Tailgate – Specifically engineered to match the original tailgate for seamless installation.
View full details

Product Description

Bedrock Attachments Tailgate Rear Plate | Width 85" To 93" | Machine Size 25-50 Tons | For Articulated Trucks

DESCRIPTION

Bedrock Attachments offers a wide range of heavy-duty rear plates designed to fit articulated truck tailgates across major OEM brands like CAT, Volvo, John Deere, Bell, Komatsu, and more. Engineered for durability and OEM-style compatibility, these rear plates ensure proper tailgate sealing, enhanced load retention, and reduced spillage during operation.

Key Features

  • OEM Compatibility: Rear plates are designed to match OEM tailgate configurations, ensuring a perfect fit and functionality.
  • Heavy-Duty Construction: Built from premium-grade steel to withstand high-impact loading and rugged site conditions.
  • Corrosion Resistant: Coated with high-performance yellow paint to match OEM finish and provide protection against rust and corrosion.
  • Complete Assembly: Ships with required mounting hardware for quick and easy installation.
  • Application Versatility: Available for a wide range of articulated truck models from multiple brands.

Detailed Specifications

Rear Plate Fitment & Dimensions (John Deere, Volvo, Bell)

SKU

Truck

Model

Machine Size

(Tons)

Dimensions

(W × L × H)

John Deere
ATJ250R 250D 25 ~86" x ~23" x ~11
ATJ300R 300D 30 ~86"x ~23" x ~11
ATJ410R 410E 41 ~91"x ~25" x ~12
ATJ460R 460E 46 ~92"x ~26" x ~13
Volvo
ATV25-01R A25D/E/F/G 25 ~85" x ~23" x ~11
ATV30-01R A30D/E/F 30 ~87" x ~24" x ~12
ATV35-01R A35D/E/F 35 ~89" x ~25" x ~12
ATV40-02R A40D 40 ~90" x ~25" x ~12
ATV40-01R A40E / A40F 40 ~90" x ~25" x ~12
Bell
ATB25ER B25E 25 ~85" x ~23" x ~11
ATB30ER B30E 30 ~86" x ~24" x ~12
ATB40DR B40D 40 ~89" x ~25" x ~12
ATB45ER B45E 45 ~91" x ~25" x ~12
ATB50DR B50D 50 ~93" x ~26" x ~13
