Product Description

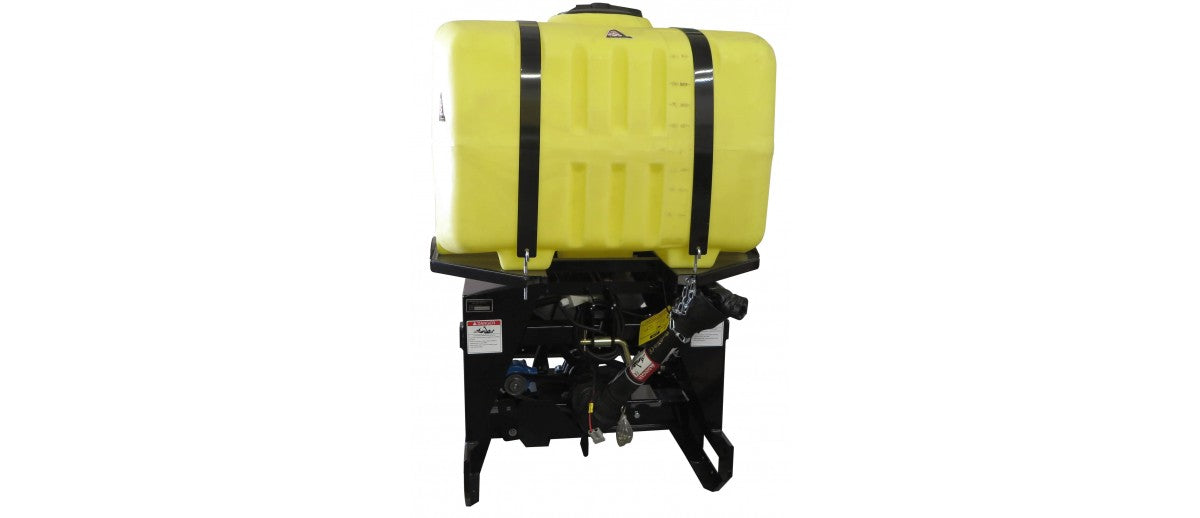

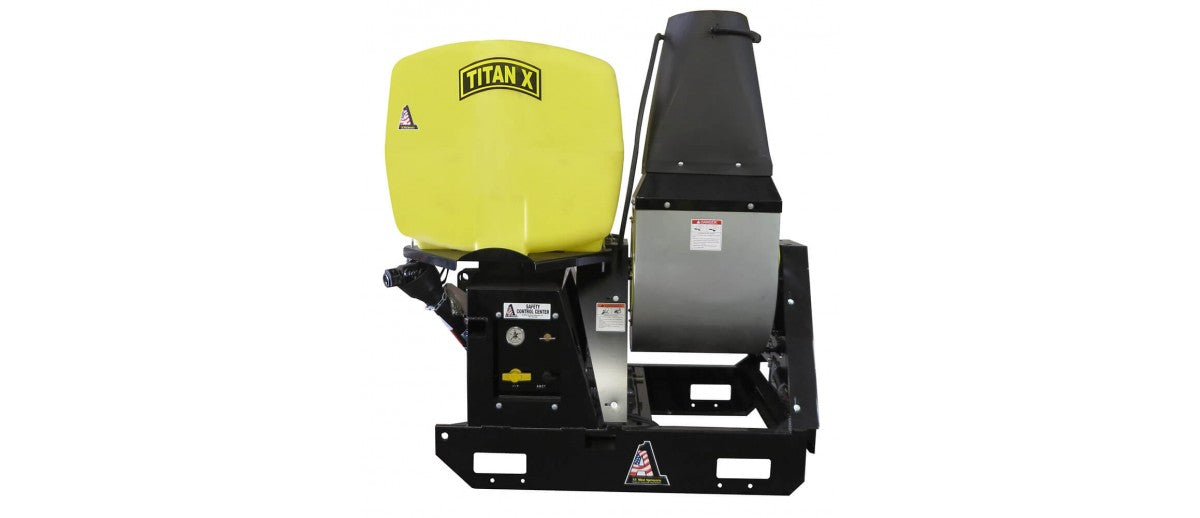

Bestway Ag 100 Gallon 3 Point PTO Titan X Mist Sprayer - Commercial Super Duty with 210 Degree Rotating Fan - Hypro Pump and Wireless Remote Control

DESCRIPTION

Take control of your pest and weed management with the 100 Gallon 3 Point PTO Titan X Mist Sprayer. Engineered for commercial-grade performance, this super duty mist sprayer features a 210-degree electric rotating fan capable of misting up to 100 feet vertically and 160 feet horizontally. The A1 exclusive four-nozzle cannon volute ensures optimal coverage, while the belt-driven cast iron Hypro 6-roller pump efficiently handles soluble powders, emulsions, herbicides, pesticides, and fertilizers. Powered by a robust 20.0HP Honda GX 630 twin-cylinder electric engine, this sprayer maintains peak performance in all conditions. Complete with a wireless remote for adjusting throttle speed, fan rotation, and liquid on/off controls, it offers unparalleled convenience. Ideal for mounting on trucks or trailers, the heavy-duty steel frame with forklift holes ensures easy lifting and transport.

Key Features

• 4 Nozzle Volute Cannon: A1 exclusive 4-nozzle volute with a cone-shaped pattern for extensive coverage.
• 210 Degree Fan: 19.5” huck riveted, 210-degree rotating electric fan for superior misting range.
• 12V Rotary Motor: Heavy-duty 12V rotary motor for fan rotation without the need for hydraulic hoses.
• Safety Control Center: Side-mounted safety control center with an easy-to-clean back flush system.
• Heavy-Duty Frame: Extra heavy-duty 3-point frame with a stump jumper design, powder coat painted, and pre-punched forklift compatible frame for lifting from all sides.
• Category Compatibility: Compatible with Category I, II, and III narrow quick hitches.
• PTO Shaft: 540 RPM PTO shaft requiring a 30 hp gasoline or 15 hp diesel engine minimum.
• Belt Driven Pump: 6-roller cast iron pump delivering up to 22 GPM (75 LPM), perfect for a variety of agricultural applications.
• Complete Plumbing Accessories: Includes a line strainer, pressure regulator, and glycerin-filled pressure gauge for accurate pressure readings.
• Electric Liquid Flow Control: Features an electric liquid flow on/off solenoid valve, switch, and wiring harness.
• Class III Fans with Safety Rings: Extends fan life by 3-5 years, equipped with cannon volute.
• Hydraulic Cylinder: 2" x 8" hydraulic cylinder for 210-degree fan/volute rotation (hydraulic hoses not included).

Detailed Specifications

In Pacakge

• 100 Gallon 3 Point PTO Titan X Mist Sprayer
• 4 Nozzle Volute Cannon
• 19.5” Huck Riveted, 210 Degree Rotating Electric Fan
• Heavy-duty 12V Rotary Motor
• Side-mounted Safety Control Center
• Belt-driven Cast Iron Hypro 6-Roller Pump
• Complete Plumbing Accessories (line strainer, pressure regulator, glycerin-filled pressure gauge)
• Electric Liquid Flow On/Off Solenoid Valve, Switch, and Wiring Harness
• Class III Fans with Safety Rings
• 2" x 8" Hydraulic Cylinder for Fan/Volute Rotation (Hydraulic Hoses NOT included)
• Heavy-duty Steel Frame with Forklift Holes

General Use

• Cranberries
• Filbert
• Forestry
• Pastures
• Rangeland
• Fence Rows
• Road Ditches
• Right of Way & Margin Areas
• Spraying Livestock
• Fruits/Vegetables
• Vineyards
• Orchards
• Groves
• Golf Courses
• Nurseries/Greenhouses
• Windbreaks
• Nut Trees
• Tree Farms
• Crops
• Insects (Flies, Mosquitoes, Ticks)
• Livestock Confinements (Dairy Barns, Dry Lots, Feedlots, Hogs, Poultry)
