Killbros SeedVeyor Bulk Box Seed Tender | Model 102 | Efficient Bulk Seed Delivery with Auger or Conveyor Options
Killbros SeedVeyor Bulk Box Seed Tender | Model 102 | Efficient Bulk Seed Delivery with Auger or Conveyor Options
Couldn't load pickup availability
Killbros SeedVeyor Bulk Box Seed Tender | Model 102 | Efficient Bulk Seed Delivery with Auger or Conveyor Options
***
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
***
Description

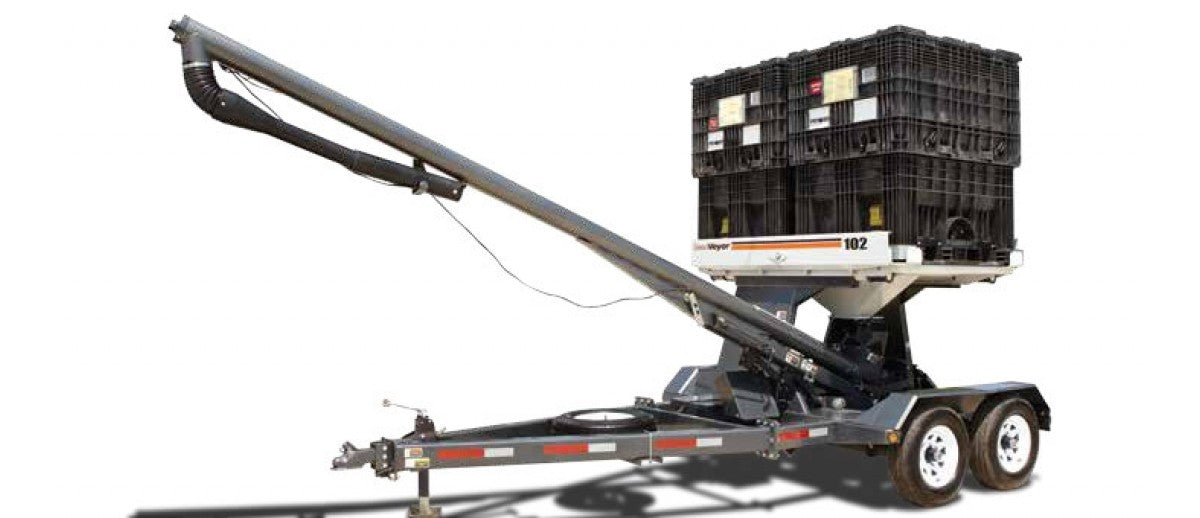

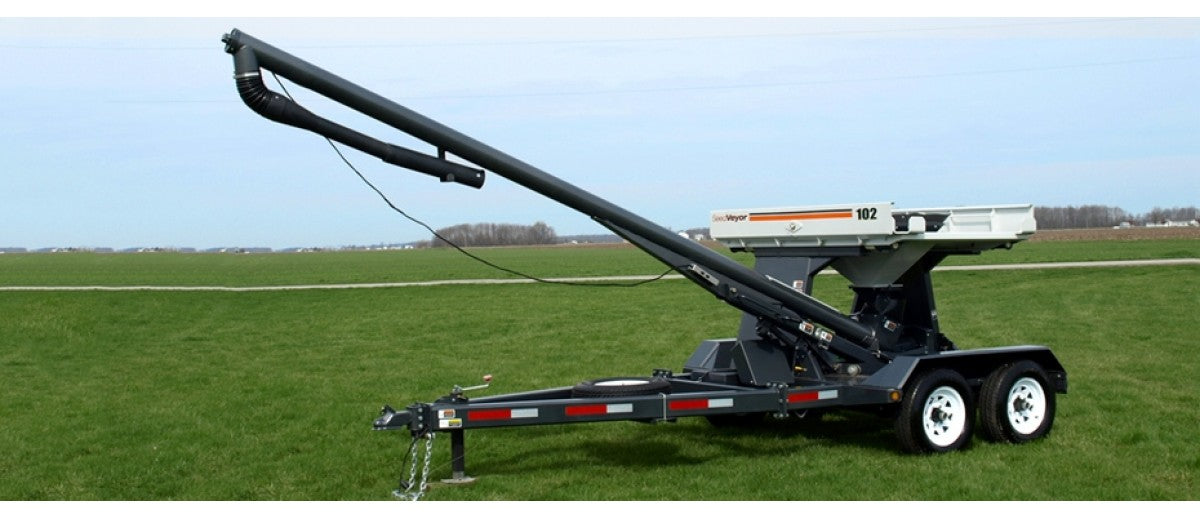

Enhance your planting efficiency with the Killbros SeedVeyor Bulk Box Seed Tender Model 102. This advanced seed tender is designed to save you valuable time and money by delivering bulk box seed directly to the field and planter. Available with either an auger or conveyor, the Model 102 is perfect for any operation, ensuring gentle and efficient seed handling. With its robust construction, operator-friendly features, and safe transport design, the SeedVeyor Bulk Box Seed Tender is an essential tool for modern growers.
Features
- High Capacity: Carries up to 2 seed boxes, equal to approximately 100 seed units.
- Robust Construction: Heavy steel undercarriage with rubber-cushioned suspension, tandem axles with electric brakes, and highway-rated tires.
-
Convenient Operation:
- Standard on/off wired remote with magnetic mount.
- 18' long steel tube with 4'-6' telescoping downspout reaching up to 30'.
- Hinged bottom door for easy and complete cleanout.
- Winch-controlled height adjustment for unloading ease.
- Efficient Unloading: Dual unloading chutes for greater efficiency and protective lids to keep out moisture and debris.
- Powerful Engine: Powered by a 160 cc (4.8 HP) Honda® gas engine with electric start and centrifugal clutch direct-drive system.
- Safe Transport: L.E.D. running, hazard, and brake lights for safe road transport, 2 5/16" ball hitch, and transport chains.
- Durable Finish: Two-part urethane enamel finish with silicone-sealed seams for a long-lasting finish.
Conveyor and Auger Options
-
Conveyor:
- 8" belt inside a 6" tube.
- Gentle seed transport at speeds up to 12 bushels per minute.
- Patented brush seal prevents seed back-feeding.
-
Auger:
- Choice of 6" poly or steel auger flighting.
- Gentle seed transport at speeds up to 10 bushels per minute.
Specifications
| Description | Model 102 |
|---|---|
| Height — transport | 6' 10" |
| Approximate empty weight | 3,300 lbs. |
| Loaded tongue weight | 700 lbs. |
| Hitch type standard/optional | 2 5/16" ball/3" pintle |
| Lighting connector | 7-pin flat |
| Standard downspout reach (2-stage) | 30' (12-row planter) |
| Standard downspout reach (3-stage) | 40' (16-row planter) |
| A Overall length with bumper hitch | 20' 6" |
| B Overall width | 8' 6" |
| C Overall height | 5' 6" |
| D Overall load height | 10' 9" |
| E Platform length | 8' 2" |
| F Undercarriage length | 17' |
| G Overall length past the hitch | 3' 6" |
| H Undercarriage deck height | 1' 10" |
| I Undercarriage under-frame clearance | 1' 1" |
| Conveyor/Auger Specifications | |
| J Spout transport height | 8' 8" |
| K Overall transport height | 10' 9" |
| L Optional unload height (with electric lift) | 11' 2" |
| M Optional unload reach (with electric lift) | 12' |
| N Standard unload height | 10' 2" |
| O Standard unload reach | 13' |
- Transport Height: 6' 10"
- Approximate Empty Weight: 3,300 lbs.
- Loaded Tongue Weight: 700 lbs.
- Hitch Type: 2 5/16" ball (standard) / 3" pintle (optional)
- Lighting Connector: 7-pin flat
-
Downspout Reach:
- 30' (standard, 2-stage for 12-row planter)
- 40' (optional, 3-stage for 16-row planter)
-
Overall Dimensions:
- Length with bumper hitch: 20' 6"
- Width: 8' 6"
- Height: 5' 6"
- Load Height: 10' 9"
- Platform Length: 8' 2"
- Undercarriage Length: 17'
- Length past hitch: 3' 6"
- Deck Height: 1' 10"
- Under-frame Clearance: 1' 1"
- Spout Transport Height: 8' 8"
- Overall Transport Height: 10' 9"
- Optional Unload Height (with electric lift): 11' 2"
- Optional Unload Reach (with electric lift): 12'
- Standard Unload Height: 10' 2"
- Standard Unload Reach: 13'
What's Included
- Bulk box seed tender with 2 seed box carry capacity
- L.E.D. running, hazard, and brake lights
- Easy-opening 5" x 6" door with rubber funnel
- Dual unloading chutes with protective lids
- Standard on/off wired remote with magnetic mount
- Steel tube with telescoping downspout
- Hinged bottom door for easy cleanout
- Winch-controlled height adjustment
- 160 cc (4.8 HP) Honda® gas engine with electric start
- Choice of conveyor or auger system
- Heavy-duty undercarriage with rubber-cushioned suspension
- Highway-rated tires, lights, reflectors, ball hitch, and transport chains
Streamline your planting operations with the Killbros SeedVeyor Bulk Box Seed Tender Model 102. Experience unparalleled efficiency and convenience in bulk seed delivery. Order now and take your planting efficiency to the next level!
