Black Widow

Black Widow Black Ice Folding Snowmobile Trailer Ramp System | Models SNO-6054 Series | Size 54" Wide | Capacity 1,500 lb | Horsepower 4 To 90+ HP | For Snowmobiles & Trailers

Black Widow Black Ice Folding Snowmobile Trailer Ramp System | Models SNO-6054 Series | Size 54" Wide | Capacity 1,500 lb | Horsepower 4 To 90+ HP | For Snowmobiles & Trailers

Regular price $359.99
Regular price Sale price $359.99
Sale Sold out
Customizable
Fast
24/7 Support
  • Capacity: 1,500 lb Snowmobiles.
  • Ramp Width: 54" Trailer Loading.
  • Length: 60" or 121.5" w/ Extension.
  • Weight: 41–53 lb Aluminum Build.
  • Use: Snowmobile Trailer Ramps.
View full details

Product Description

Black Widow Black Ice Folding Snowmobile Trailer Ramp System | Models SNO-6054 Series | Size 54" Wide | Capacity 1,500 lb | Horsepower 4 To 90+ HP | For Snowmobiles & Trailers

DESCRIPTION

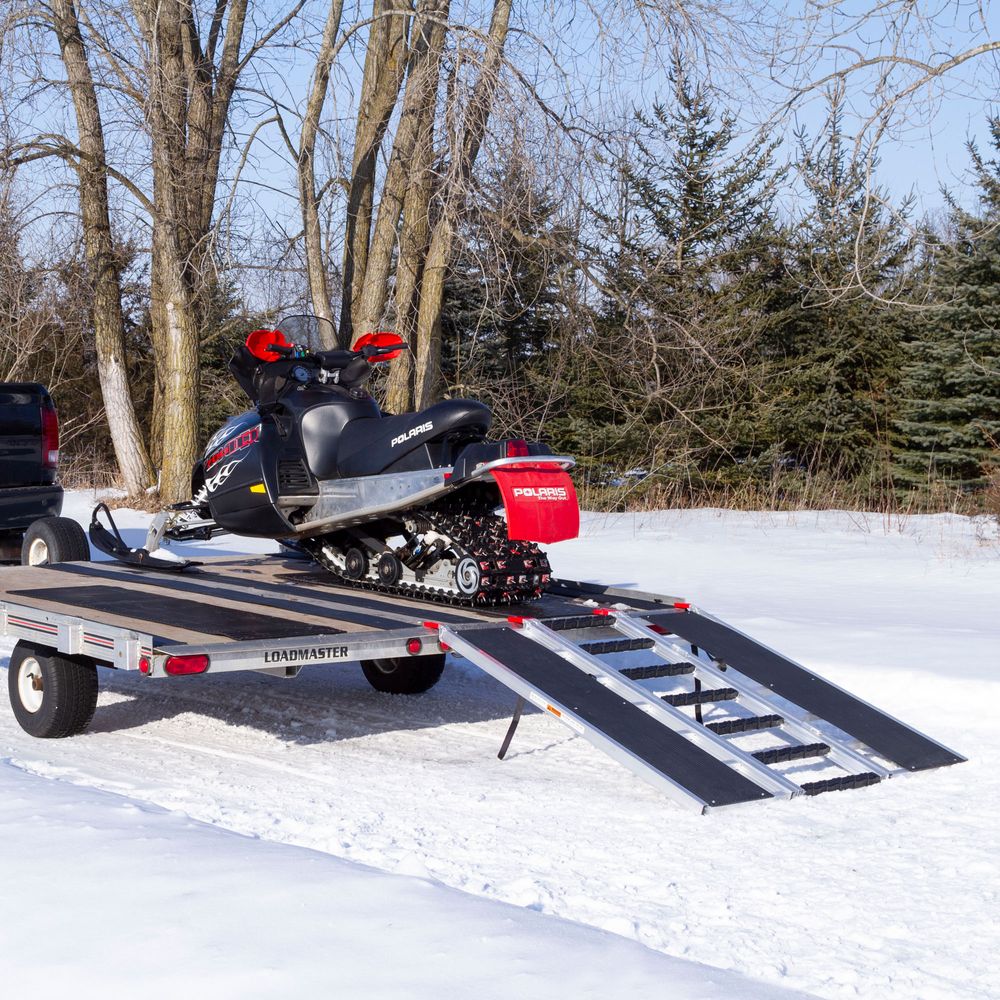

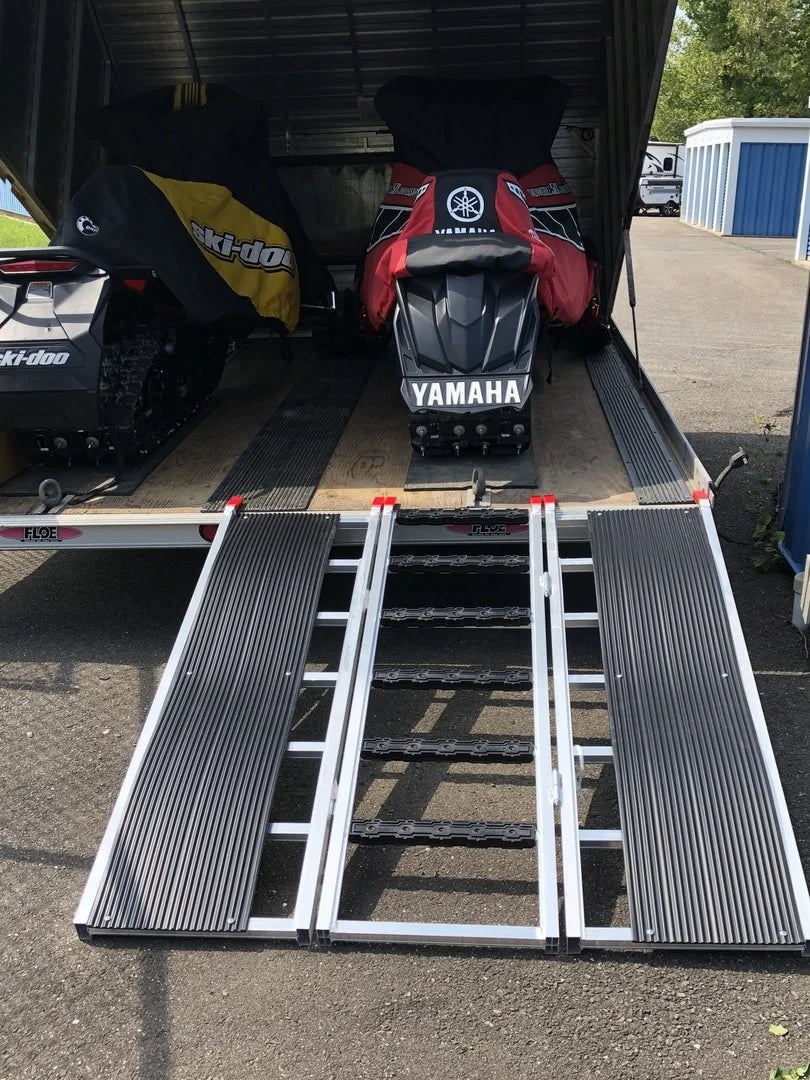

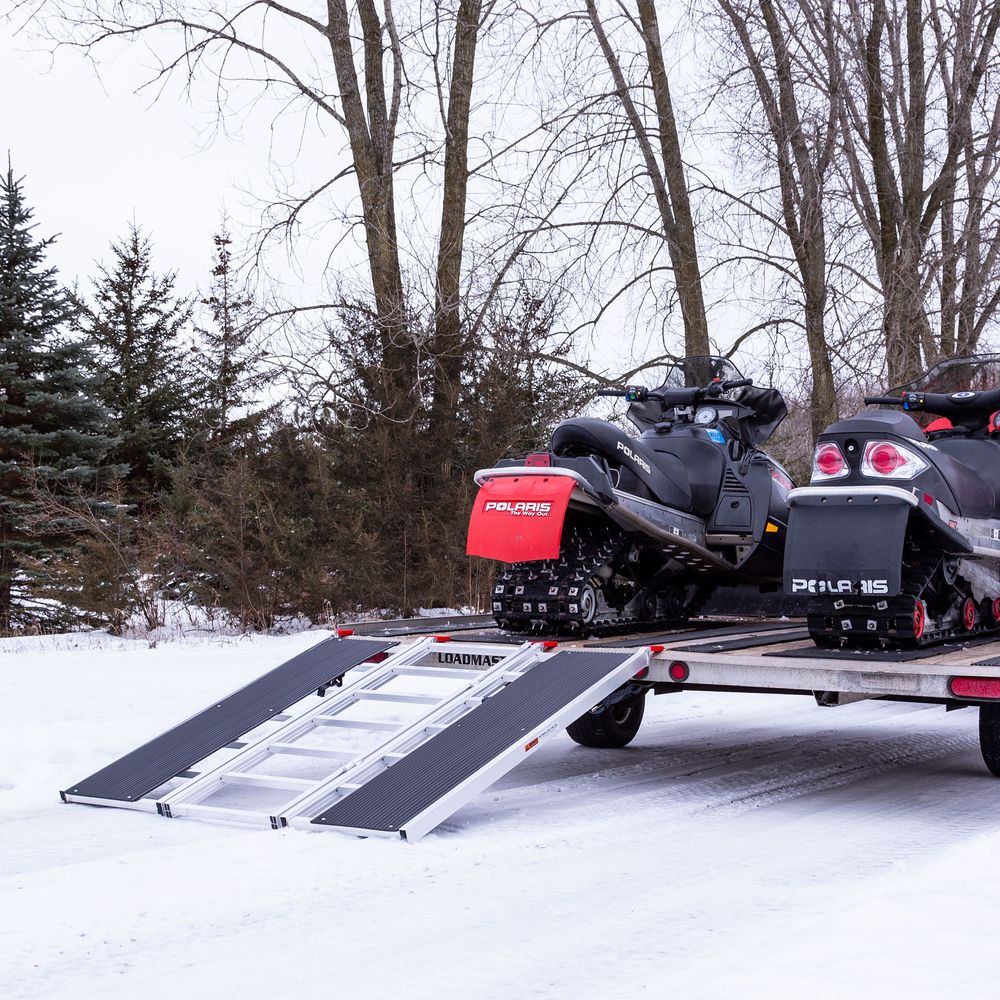

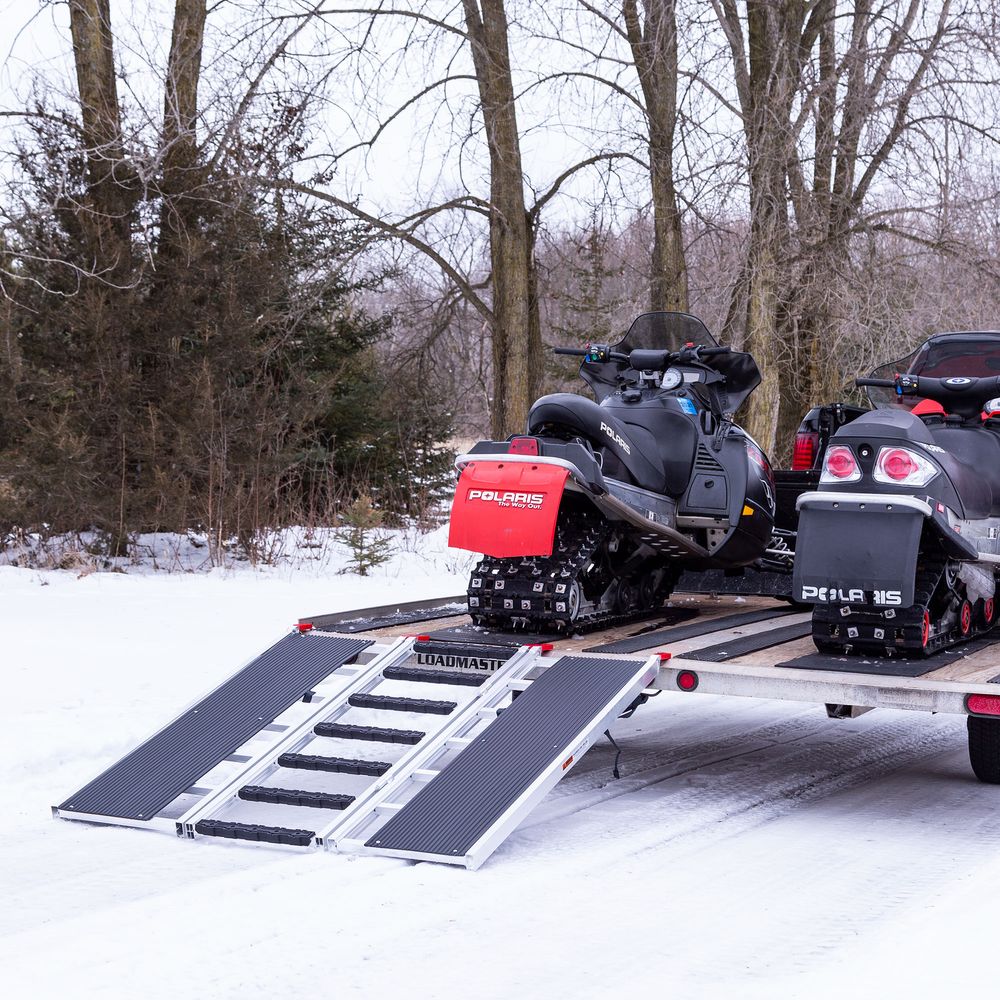

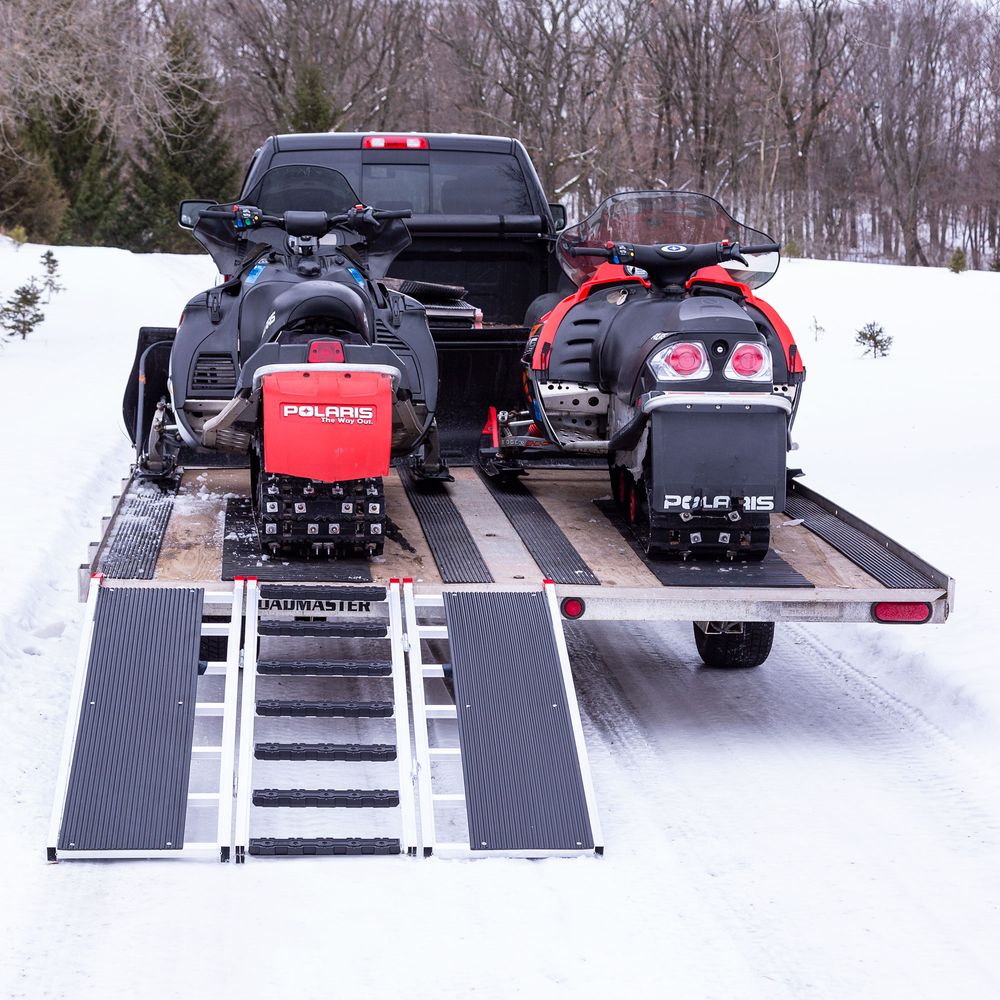

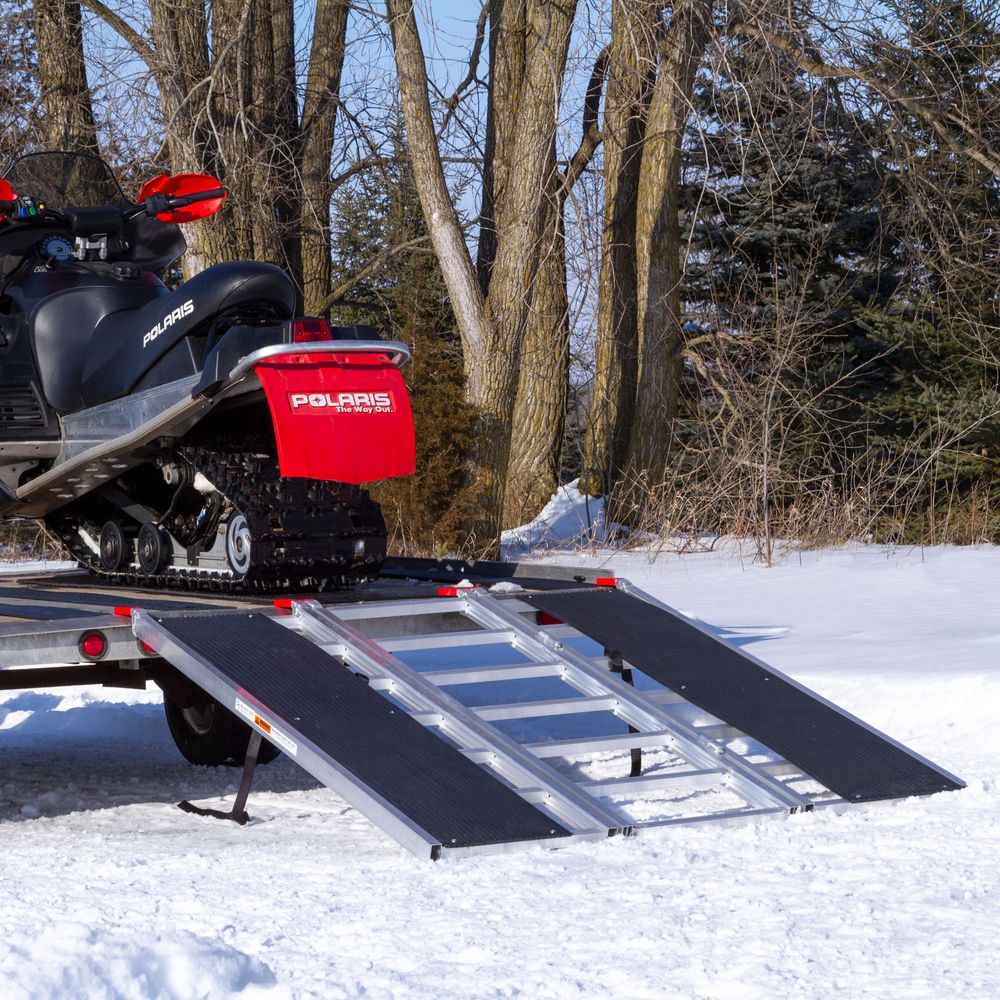

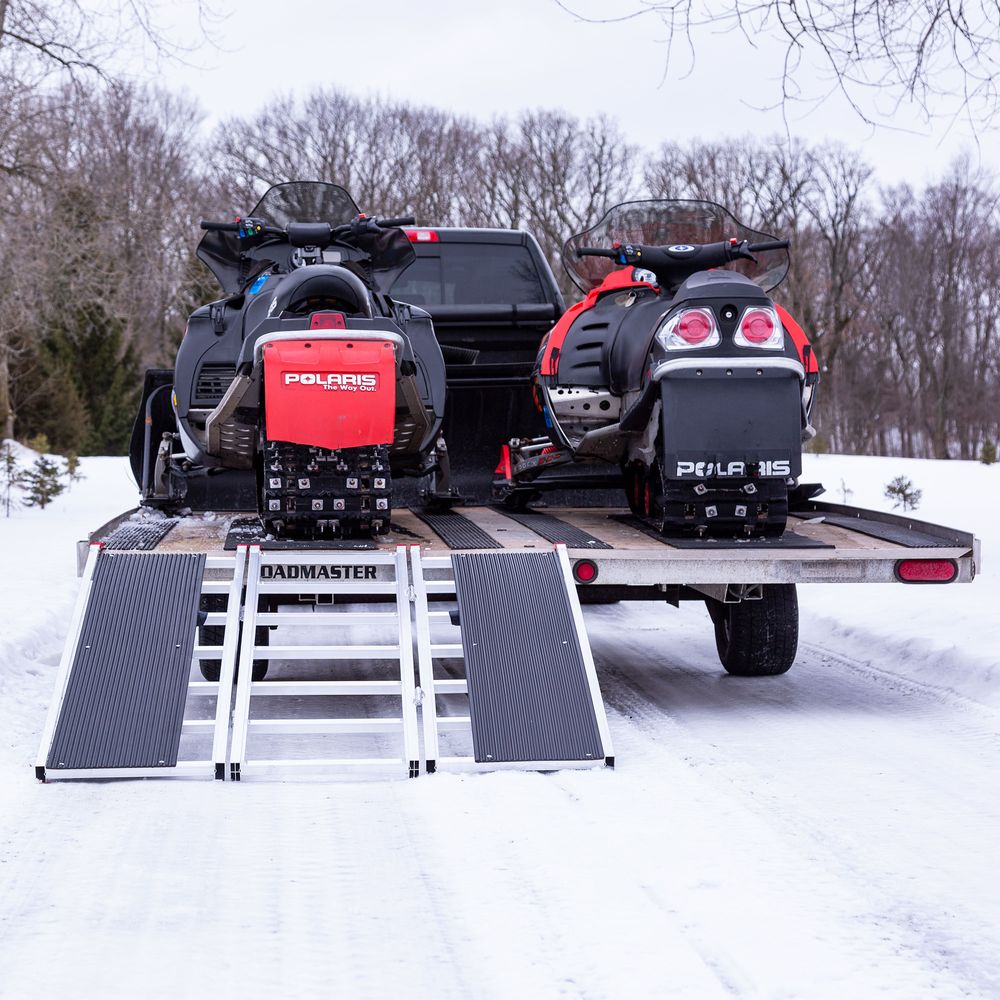

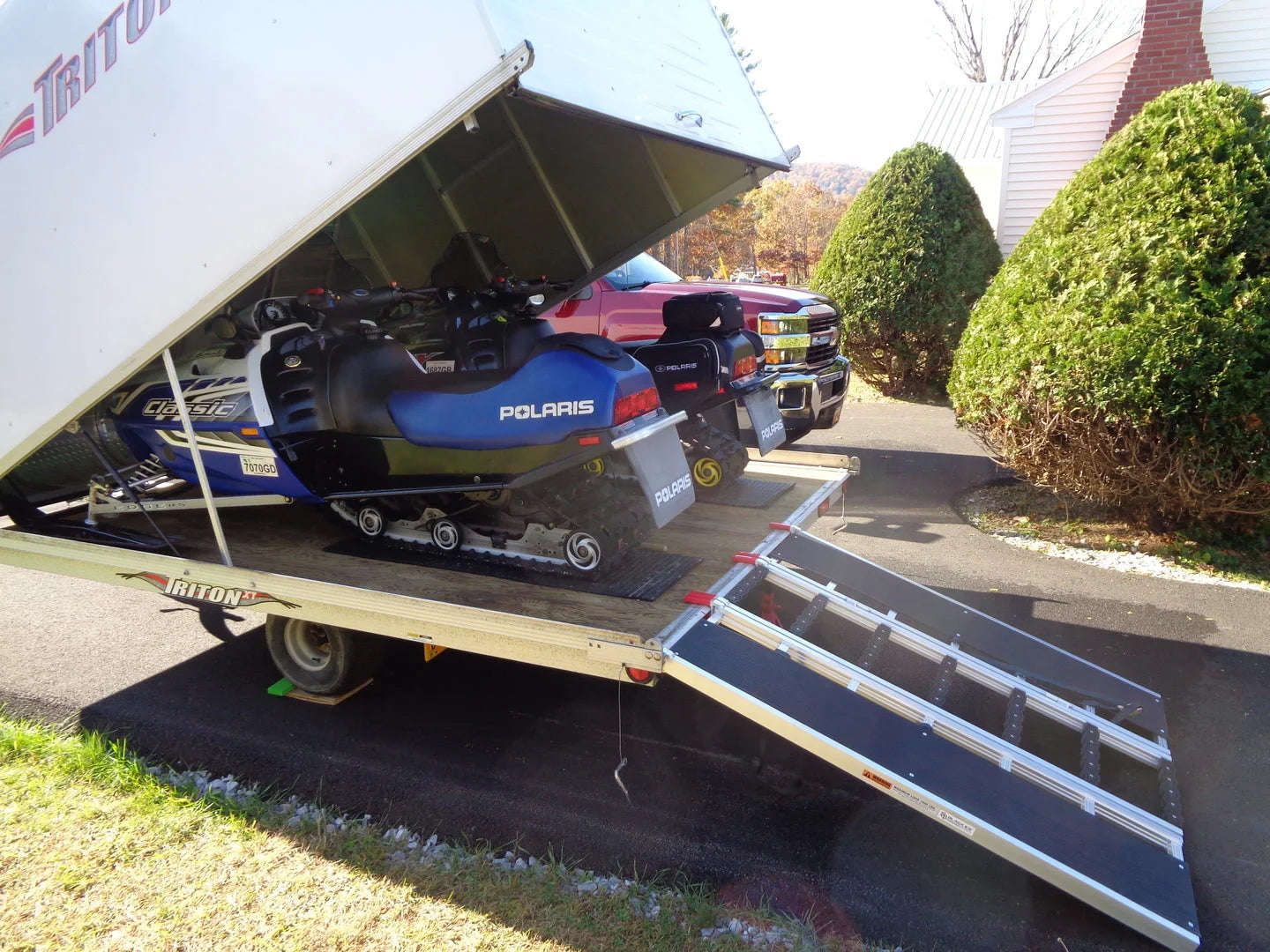

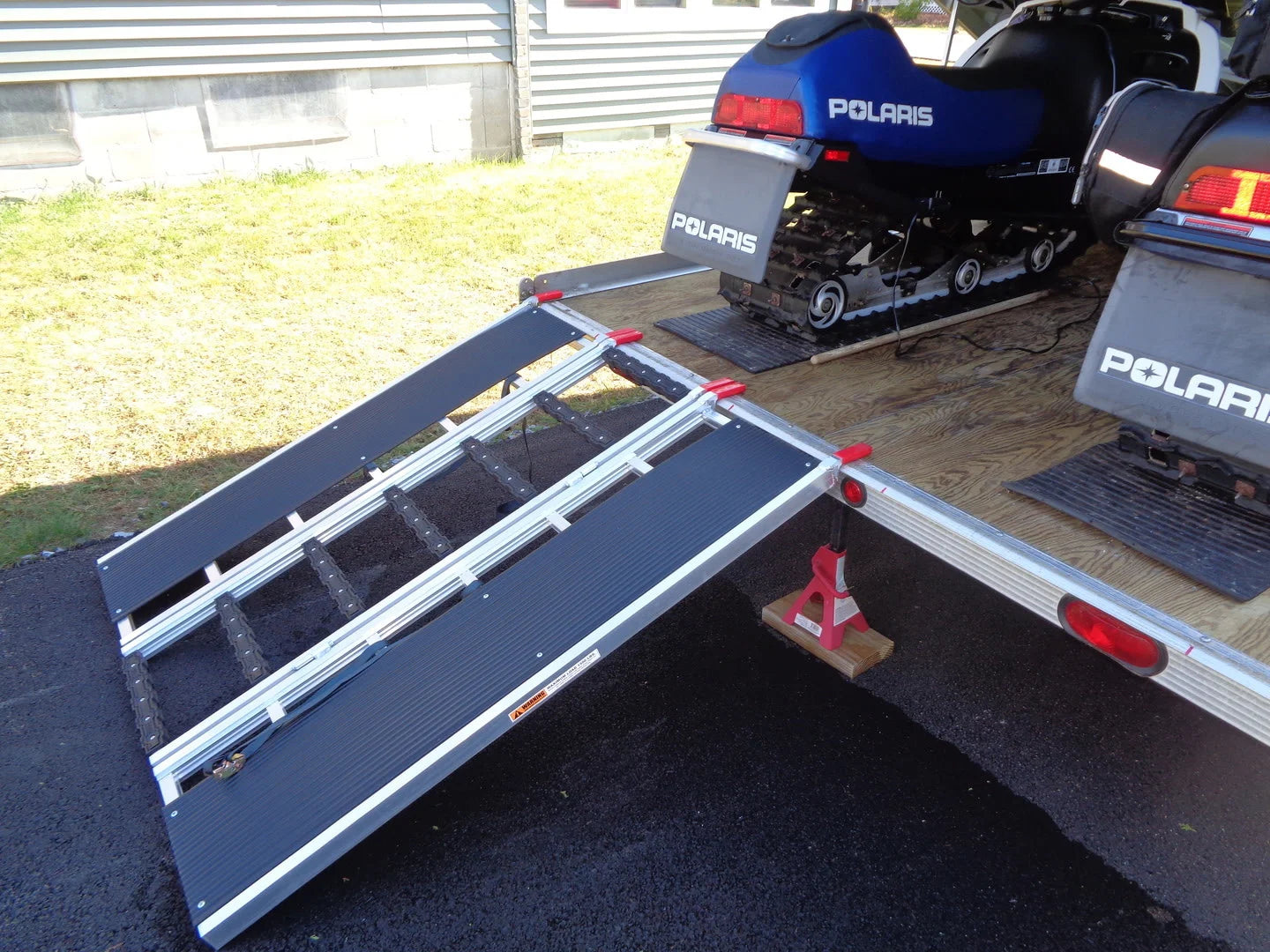

The Black Widow Black Ice 5' Folding Snowmobile Trailer Ramp System is a versatile, rider-built loading solution designed to adapt to how and where you ride. Available in four configurations standard ramp, ramp with extension, ramp with stud protectors, and ramp with both extension and stud protectors this system delivers maximum stability, traction, and loading confidence for modern snowmobiles.

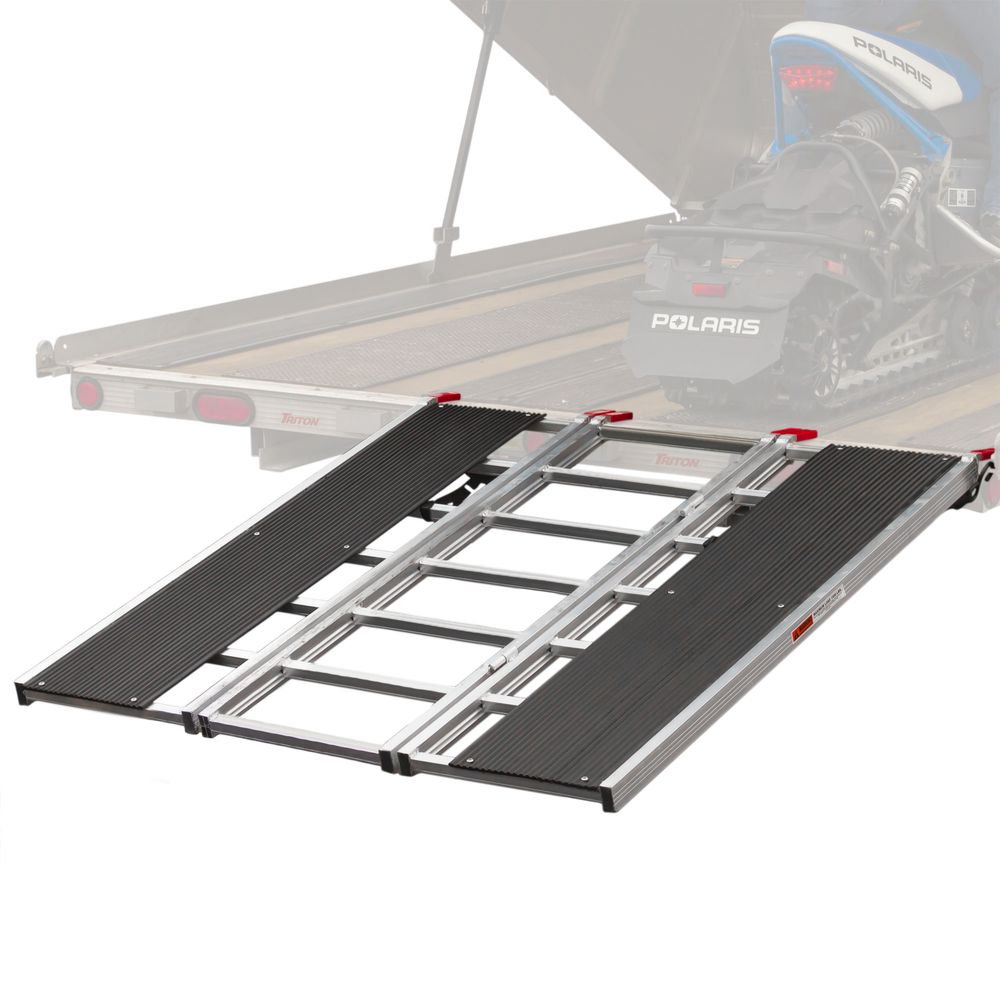

At the core of every setup is a 54-inch-wide, high-strength aluminum ramp rated for 1,500 lb, making it ideal for today’s larger performance and utility sleds. Polyethylene carbide-friendly ski guides reduce friction during loading, while wide-spaced center rungs provide dependable track traction in icy or snowy conditions. The ramp’s low-profile height creates a smoother approach angle, helping reduce stress on skis and suspension.

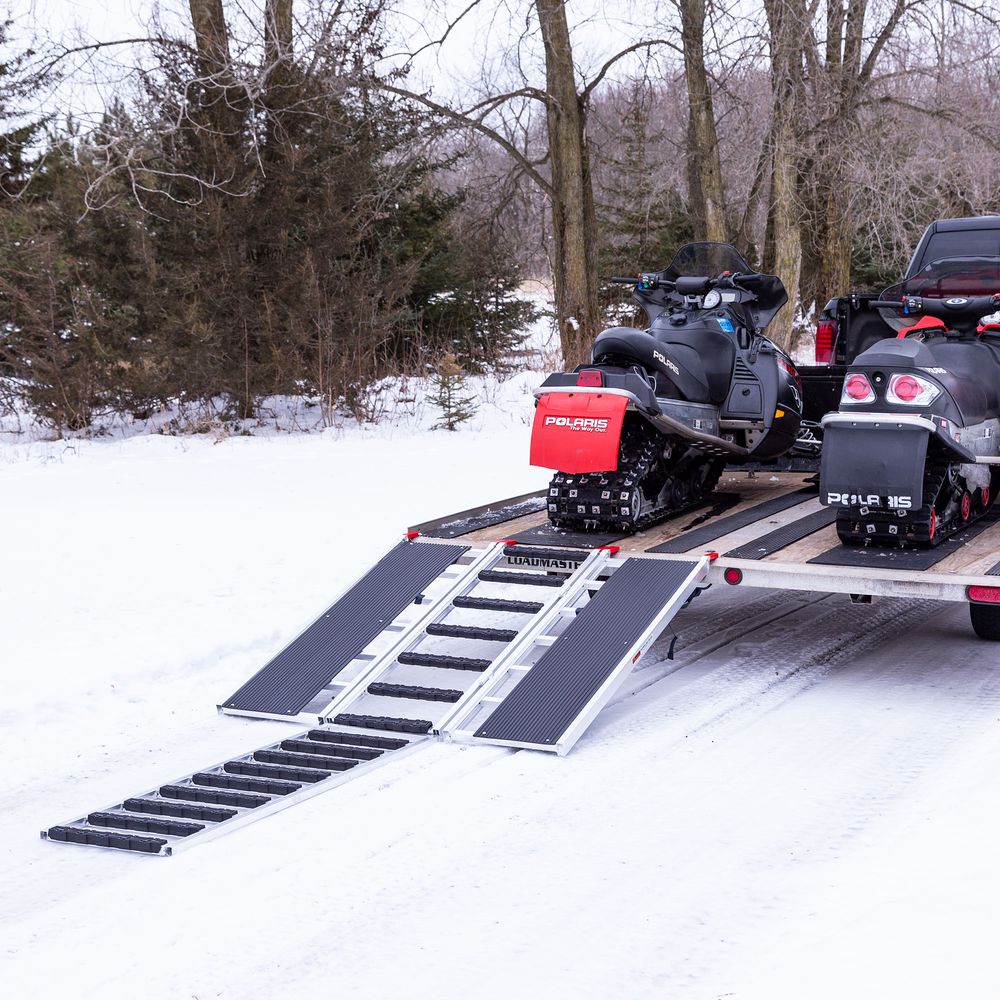

For added control, select models include a lay-flat extension that improves track grip at the base of the ramp perfect for steep approaches or slick ground. Riders with studded tracks can choose versions equipped with Caliber Ramp GRIPS stud protectors, helping prevent ramp damage while increasing traction.

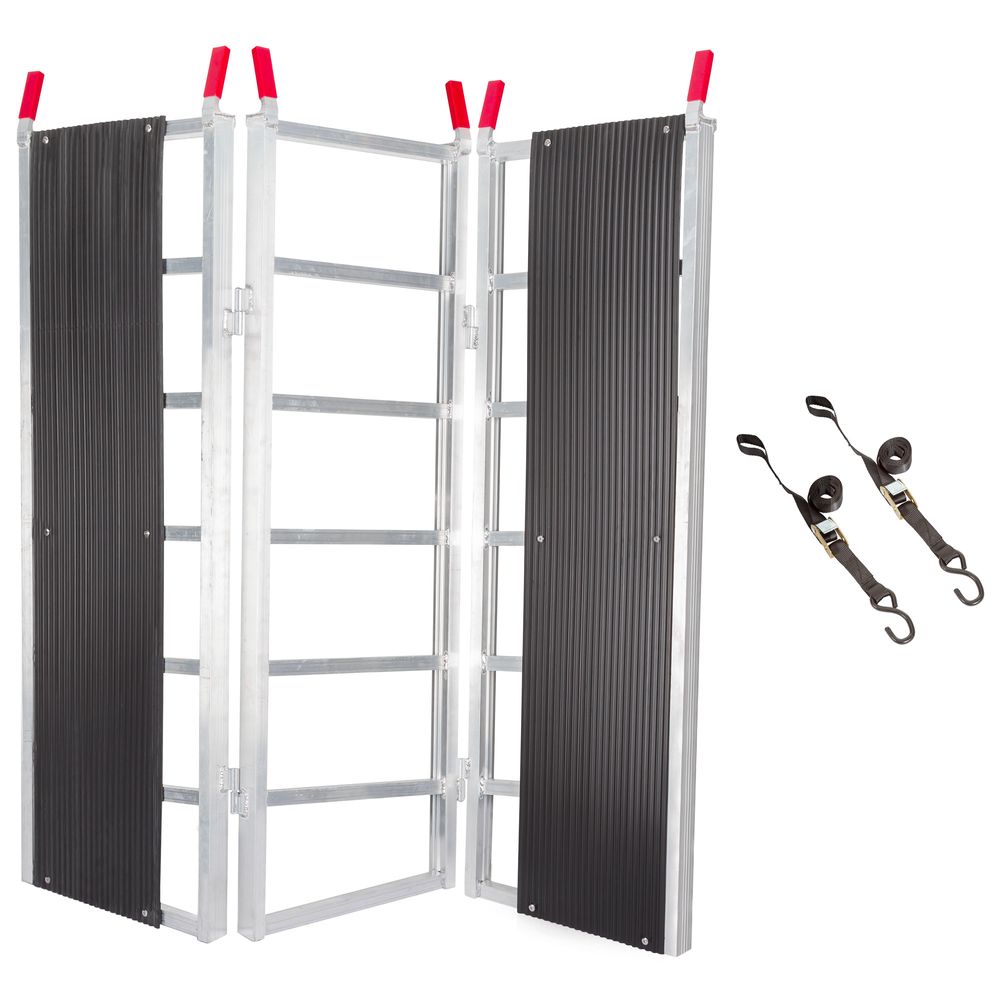

Every configuration folds down to just 17.5 inches wide for easy transport and storage, and features rubber-coated attachment points with cam buckle straps for secure trailer loading. Whether you want simplicity or maximum traction support, the Black Ice Ramp System lets you choose the setup that fits your riding style.

Key Features

  • Modular ramp system design allows riders to choose standard, extension, stud protector, or combo configurations to match trailer height, terrain, and snowmobile setup
  • Extra-wide 54-inch loading surface delivers superior balance and stability when loading snowmobiles, reducing tip risk and improving rider confidence
  • 1,500 lb load capacity supports most modern performance and utility snowmobiles without flex, making it ideal for frequent winter use

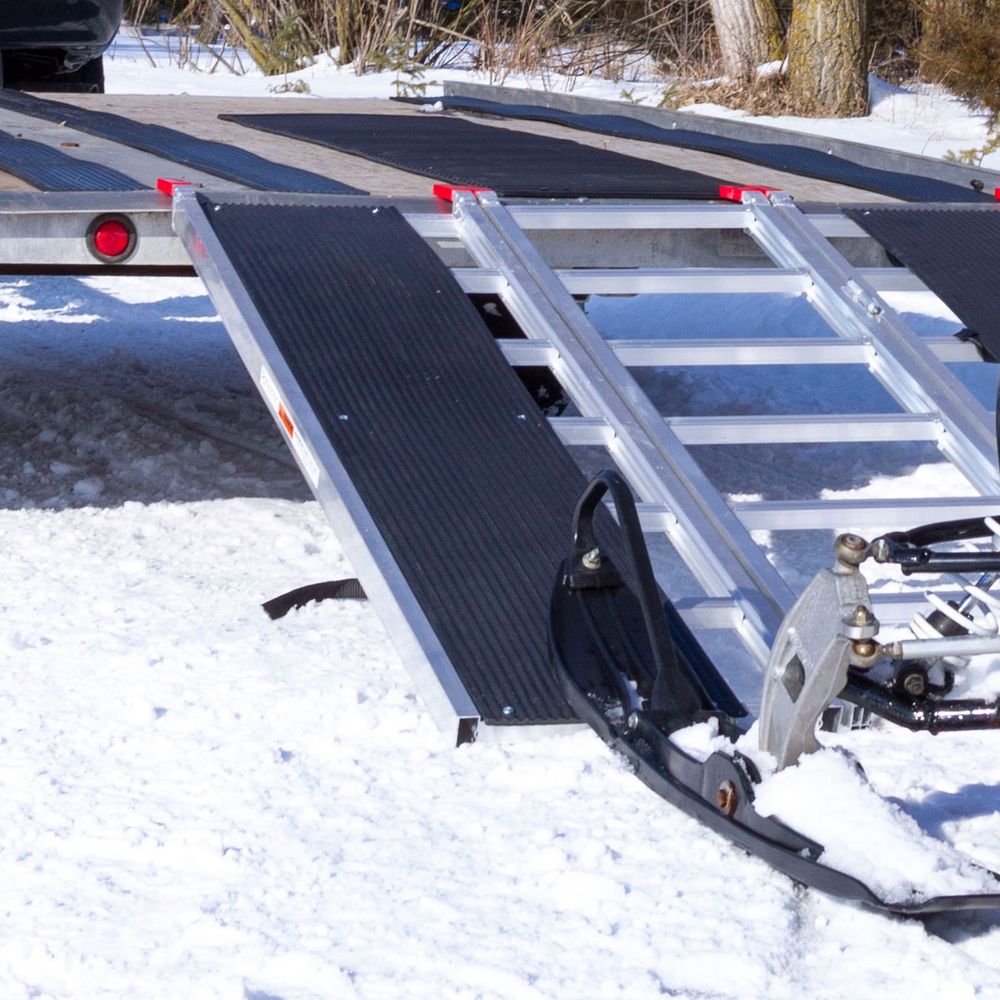

  • Polyethylene ski guide panels minimize friction for smooth glide loading with most carbide runners while reducing wear on skis
  • High-strength aluminum construction offers excellent durability and corrosion resistance while remaining lightweight and easy to handle

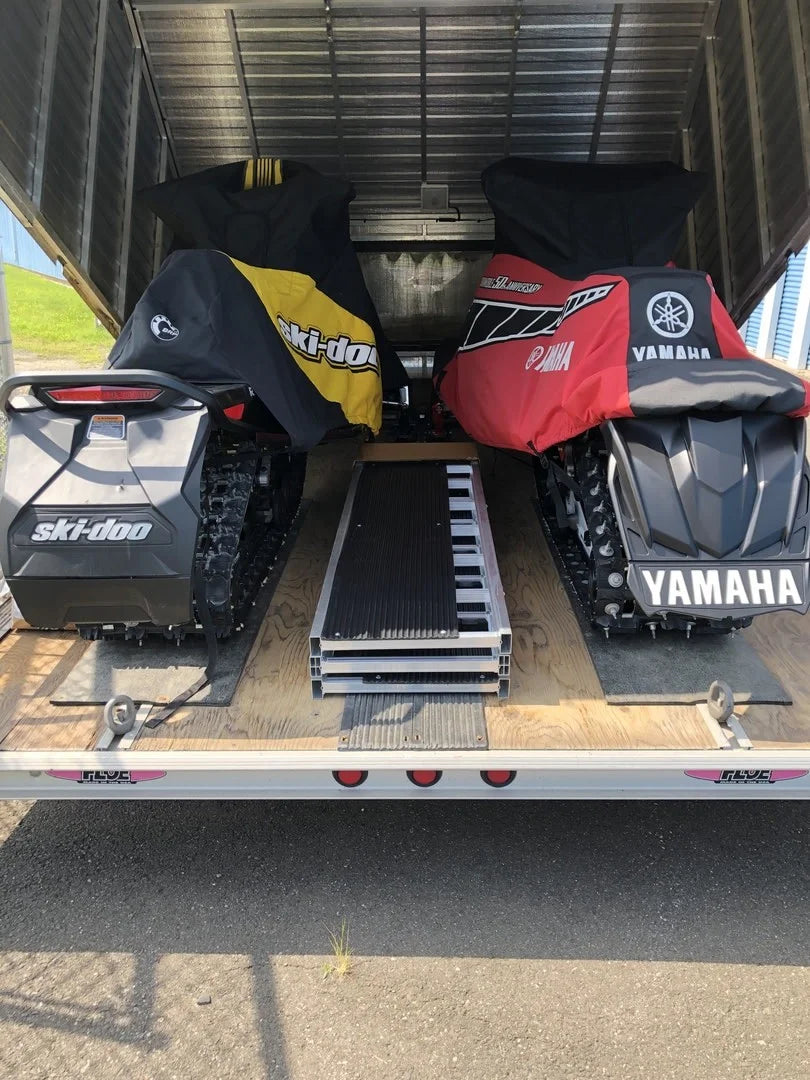

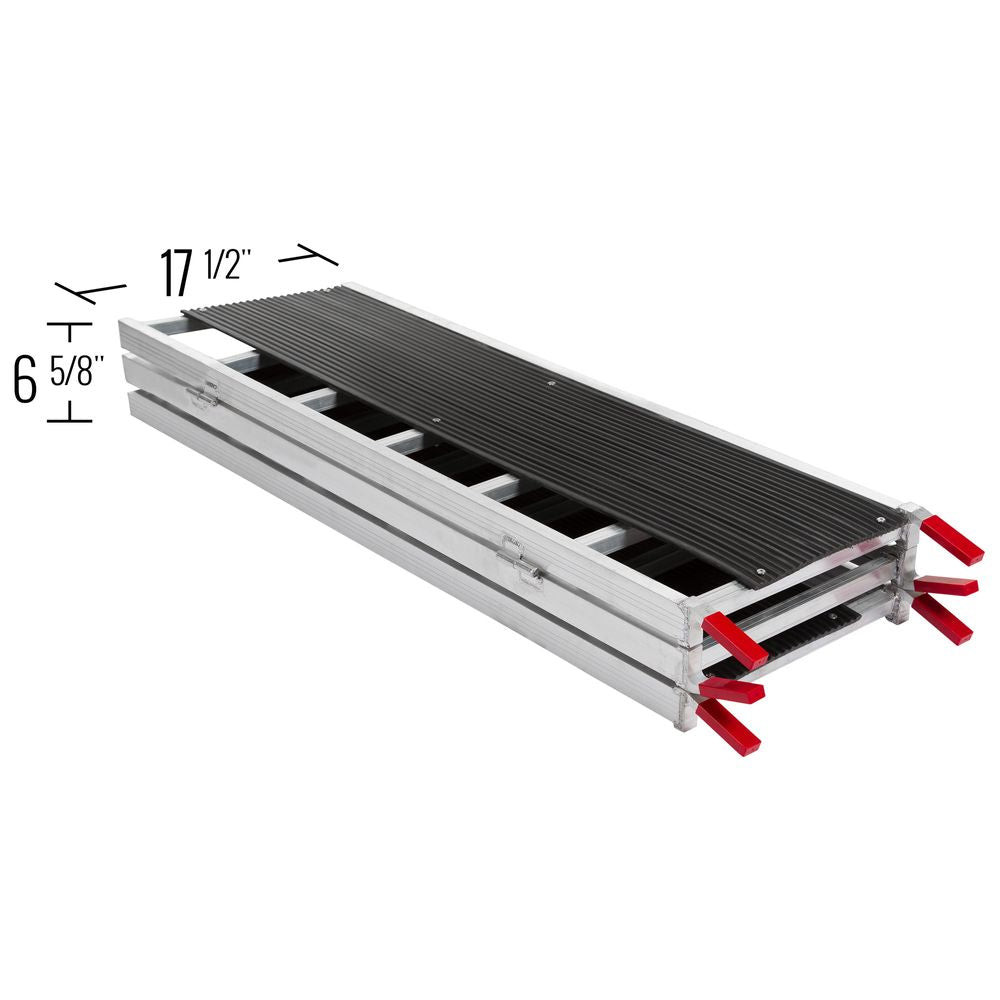

  • Folding compact storage design collapses to just 17.5 inches wide, fitting neatly in truck beds, enclosed trailers, or garages
  • Low-profile ramp height creates a smoother transition angle, reducing stress on skis, suspension, and undercarriage during loading
  • Wide-spaced center rungs improve traction for snowmobile tracks in snowy, icy, or wet conditions

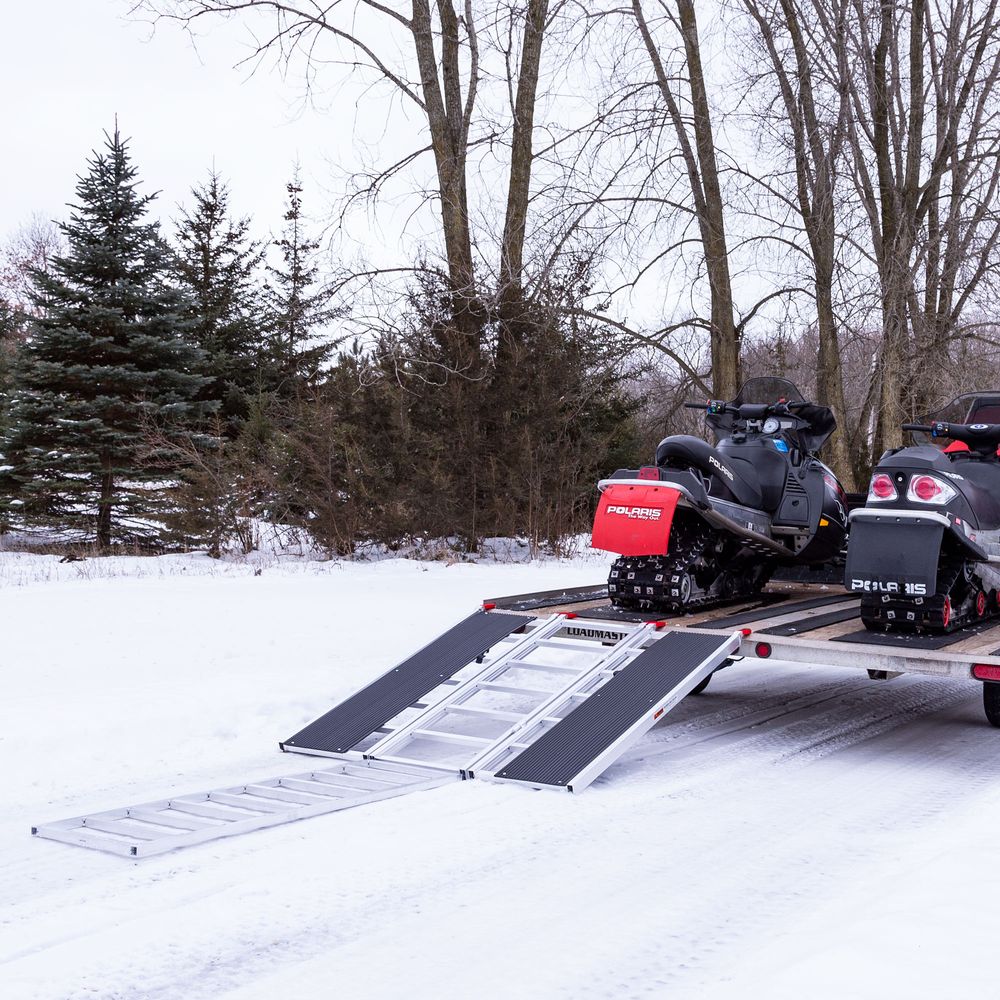

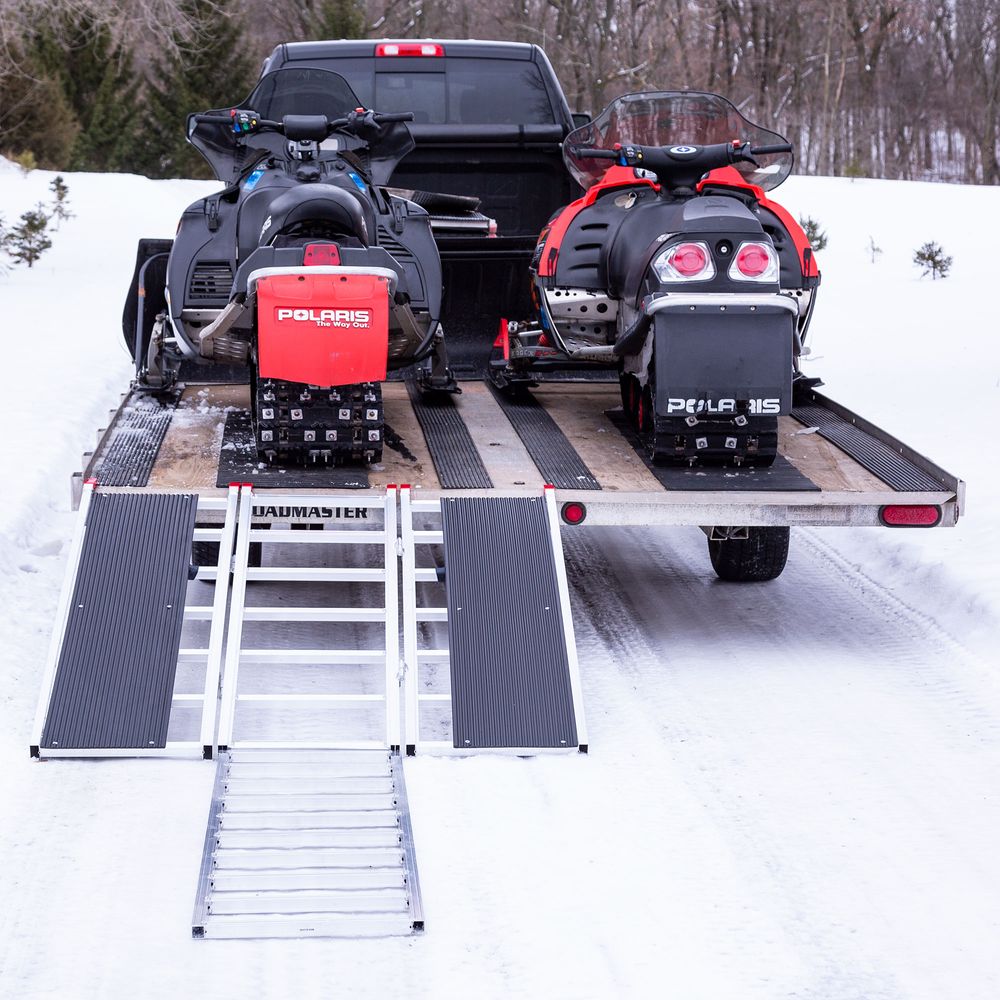

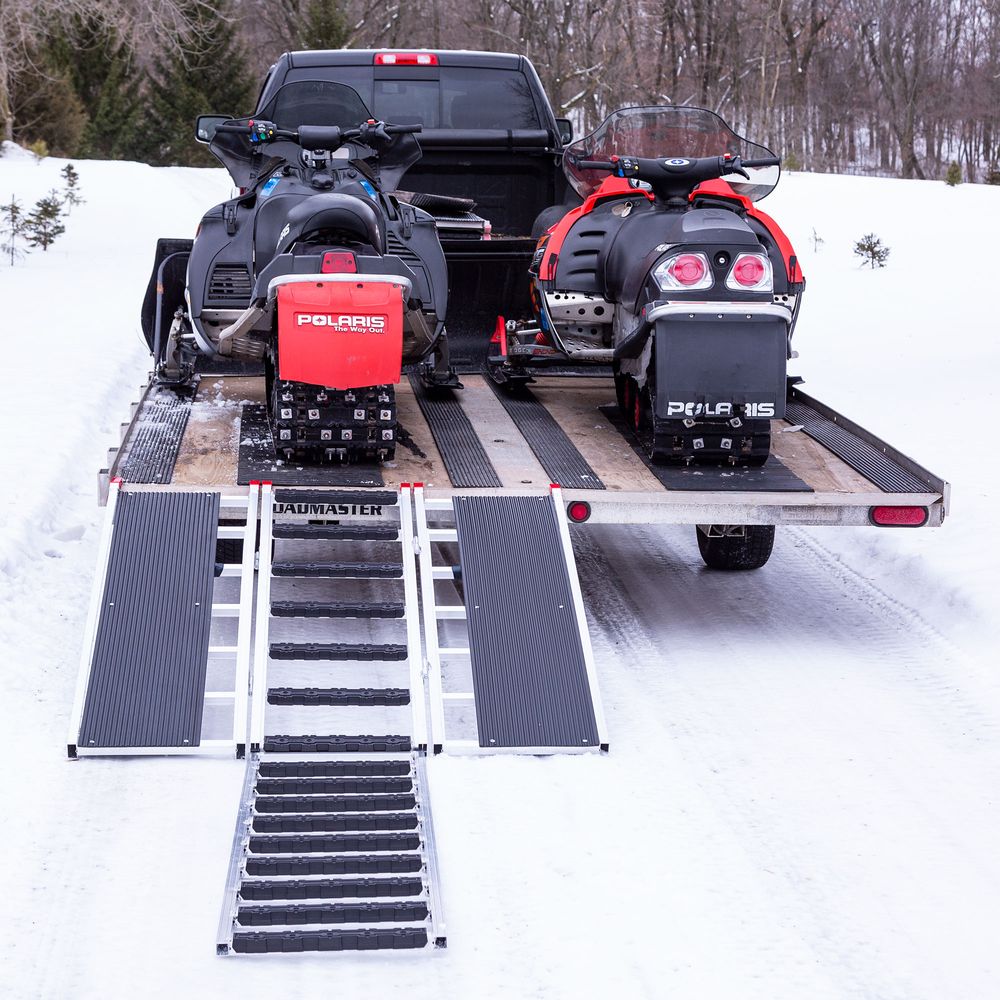

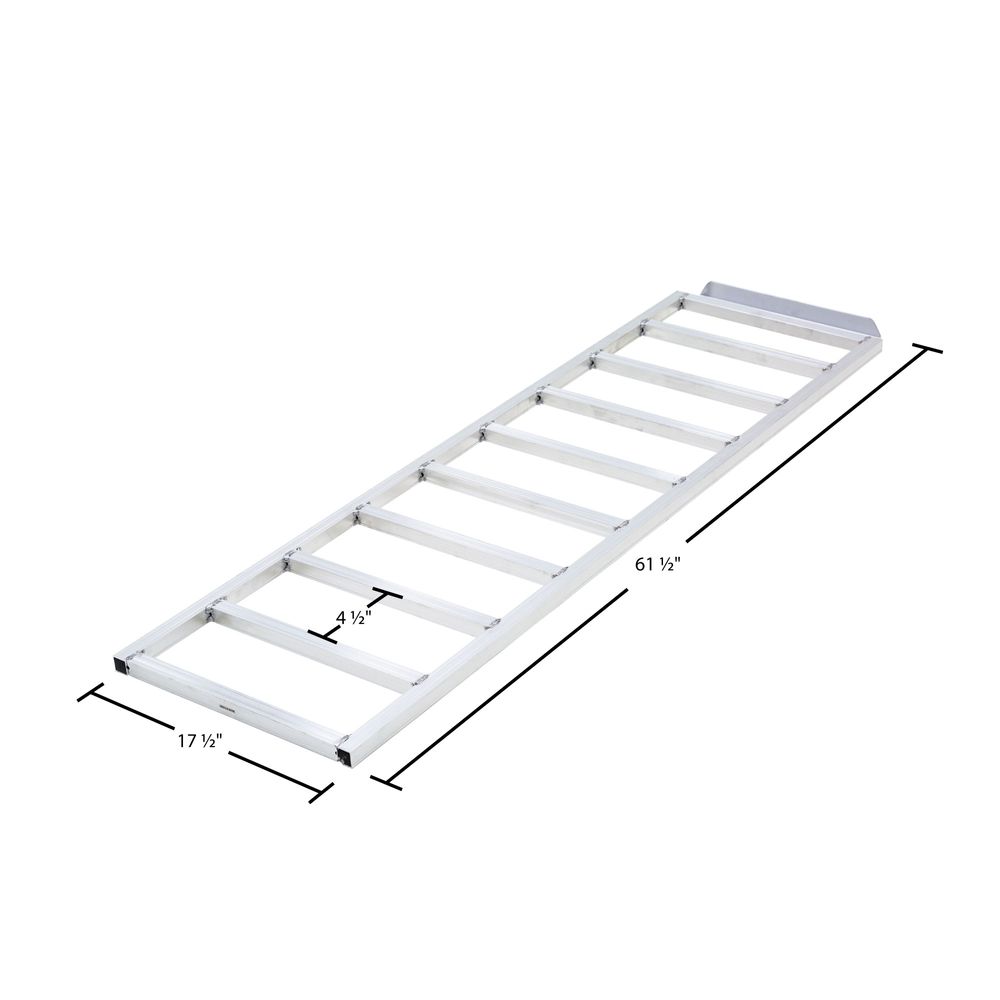

  • Optional lay-flat extension improves initial track grip on slick ground and assists with easier, safer loading

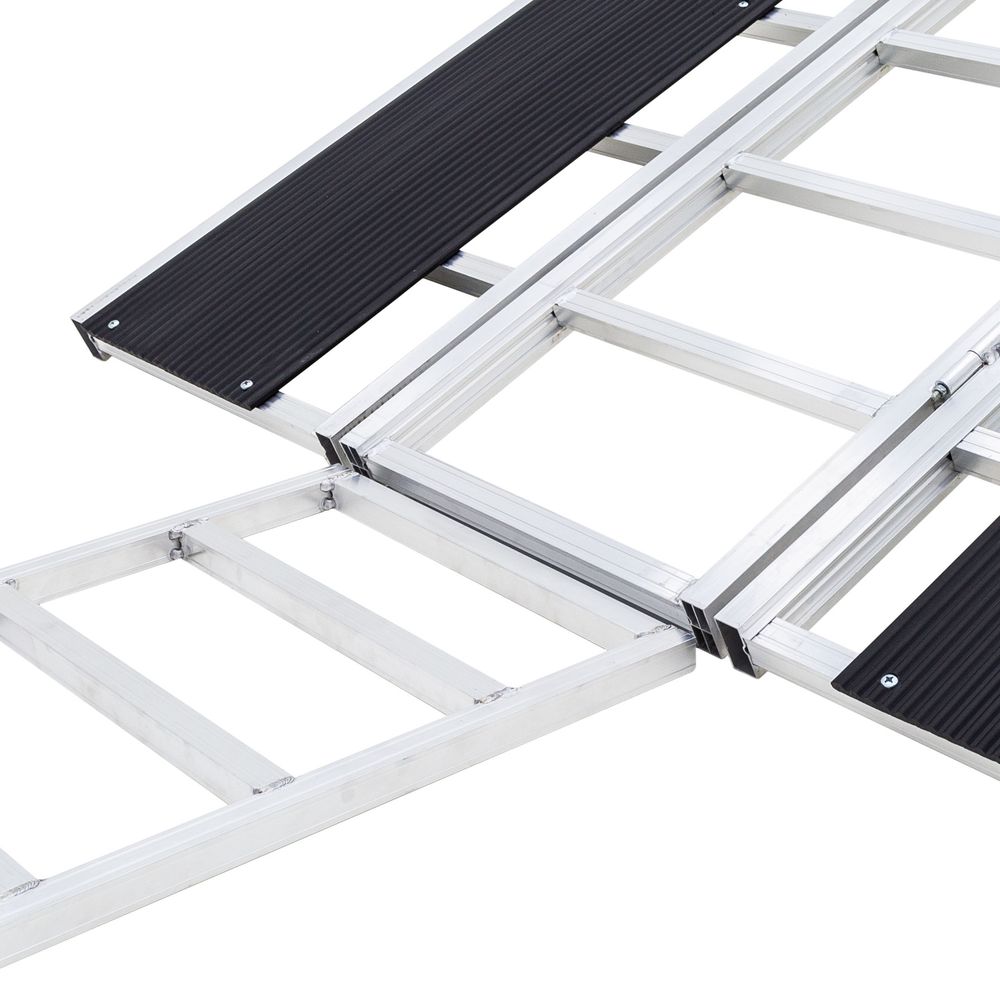

  • Extension hooks securely under the ramp’s first rung, staying in place without interfering with skis or track movement

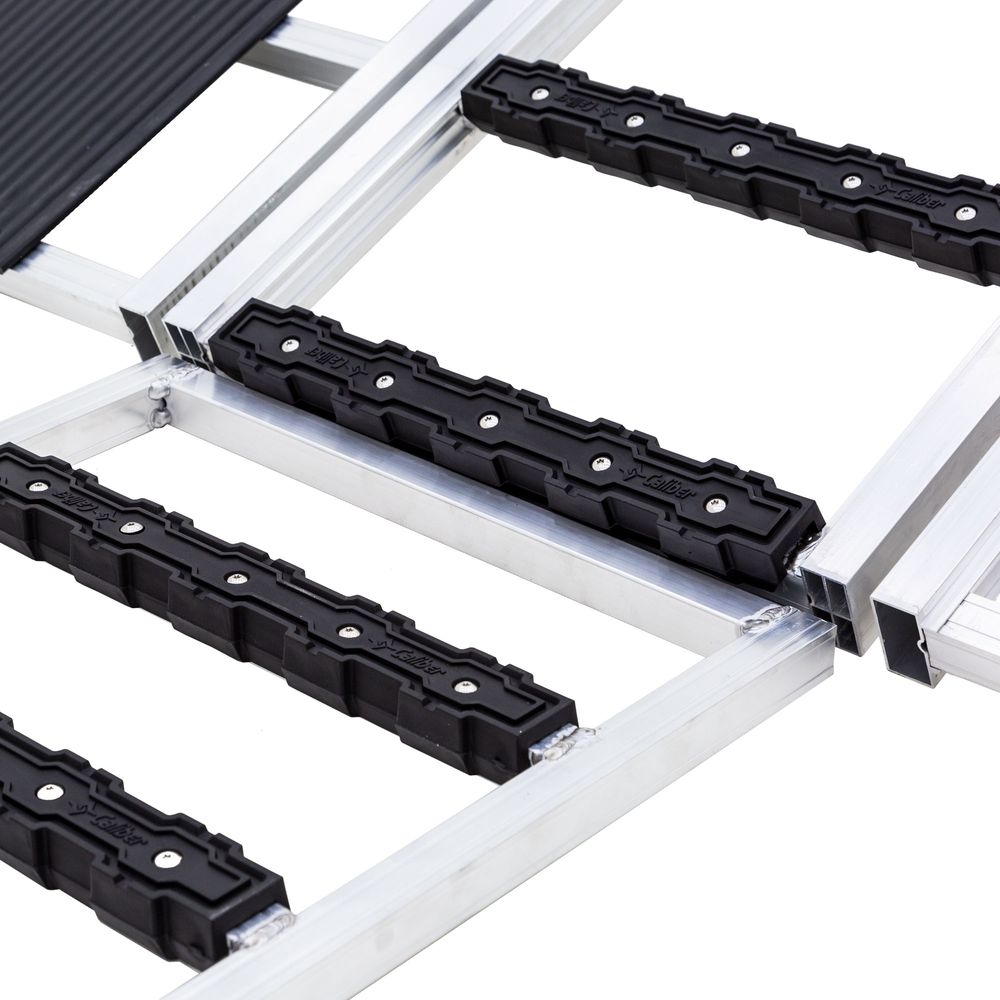

  • Optional stud protectors shield aluminum rungs from damage while increasing grip for studded tracks

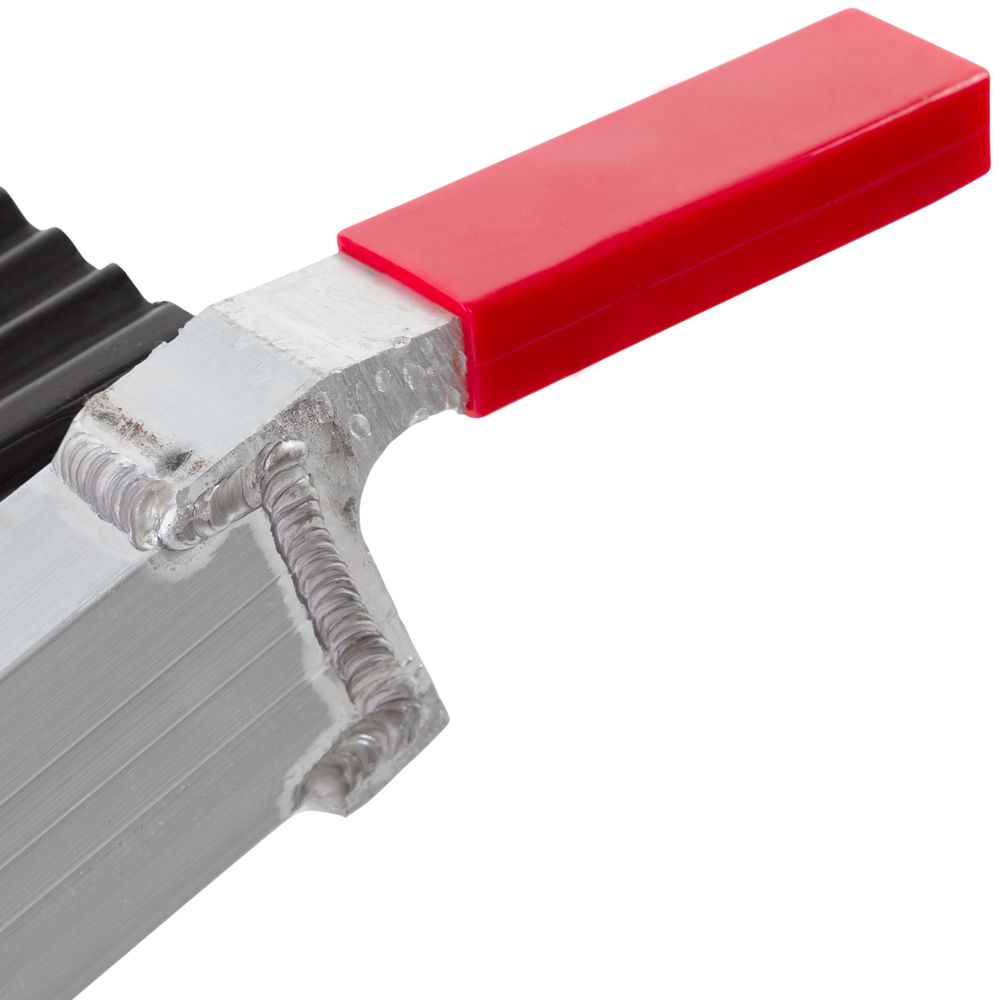

  • Rubber-coated attachment points protect trailer surfaces and help prevent slipping during loading
  • Included cam buckle straps secure the ramp firmly to the trailer for safer, more controlled use
  • Lightweight design allows quick setup and breakdown by one person without sacrificing strength
  • Built for trailer loading and trusted Black Widow engineering for season-after-season reliability

Detailed Specifications

Specification Standard Ramp Ramp w/ Extension
Brand Black Widow Black Widow
Series Black Ice Black Ice

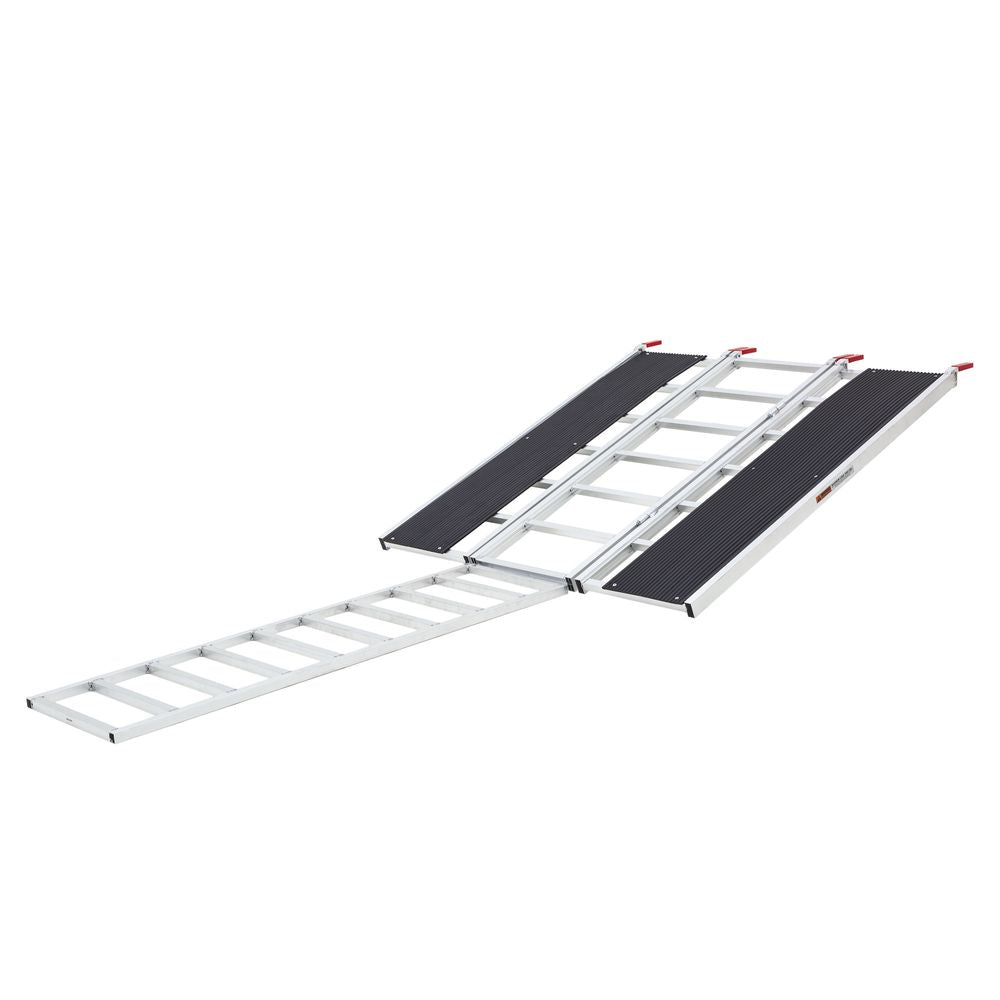

Model SNO-6054-HDXW SNO-6054-HDXW-EXT

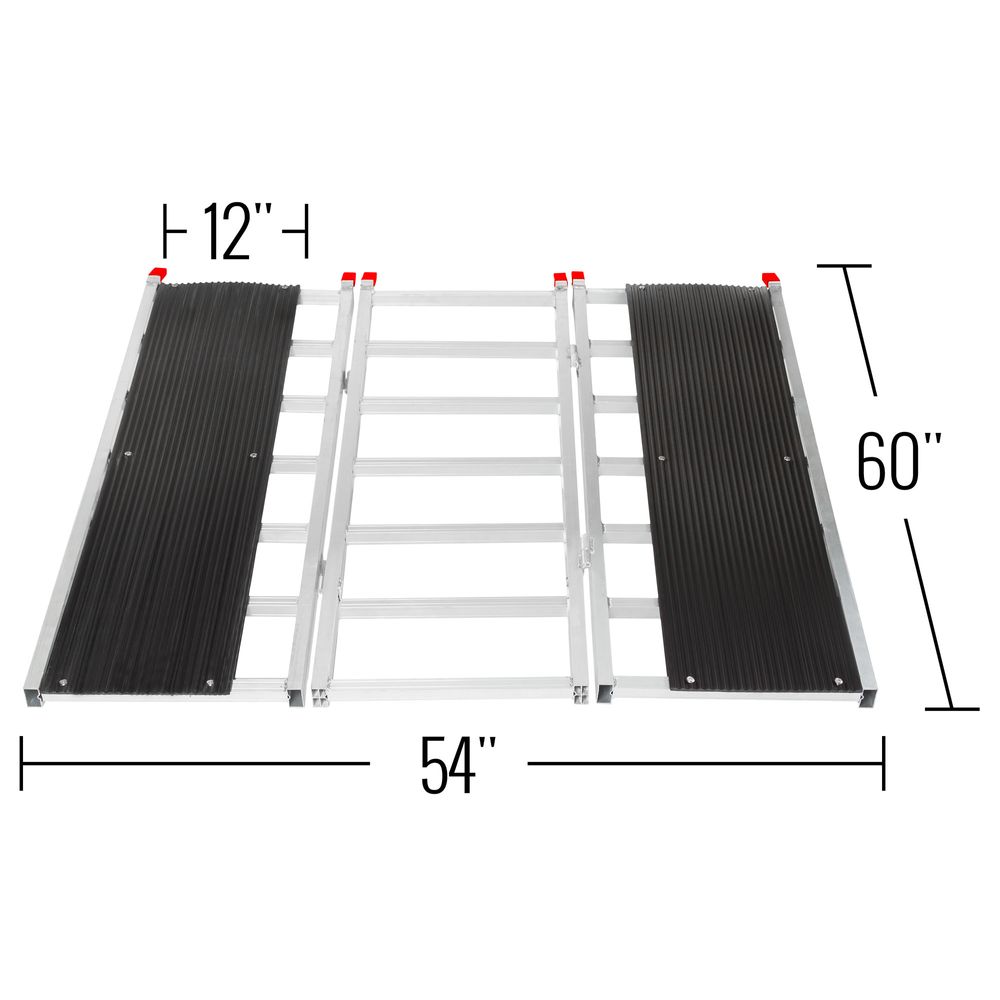

Unfolded Length 60 inches 121.5 inches
Ramp Width 54 inches 54 inches
Folded Width 17.5 inches 17.5 inches
Height 2 inches 3.75 inches
Maximum Capacity 1,500 lb 1,500 lb (Ramp) / 800 lb (Extension flat)
Product Weight 41 lb 48 lb
Material Aluminum Aluminum
Stud Protectors No No
Extension Included No Yes
Intended Use Snowmobile Trailer Loading Snowmobile Trailer Loading



Specification Ramp w/ Stud Protectors Ramp w/ Extension & Stud Protectors
Brand Black Widow Black Widow
Series Black Ice Black Ice

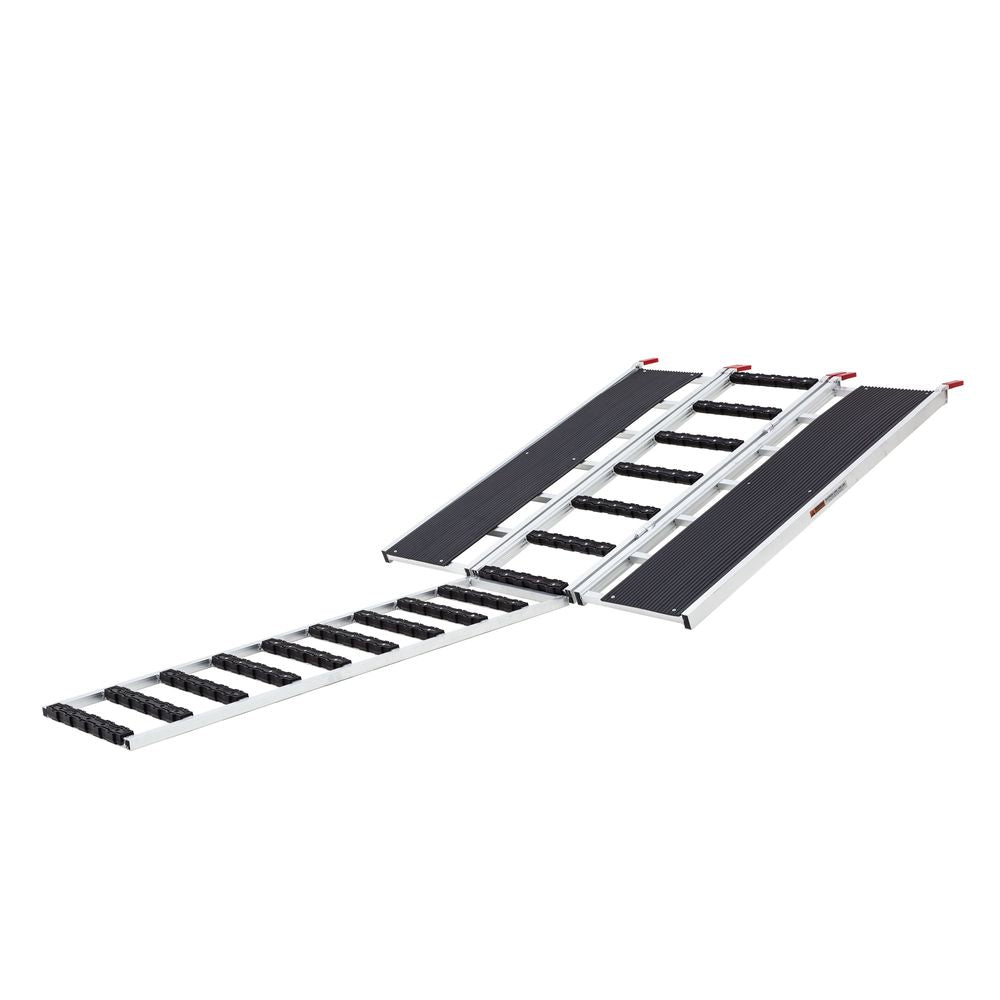

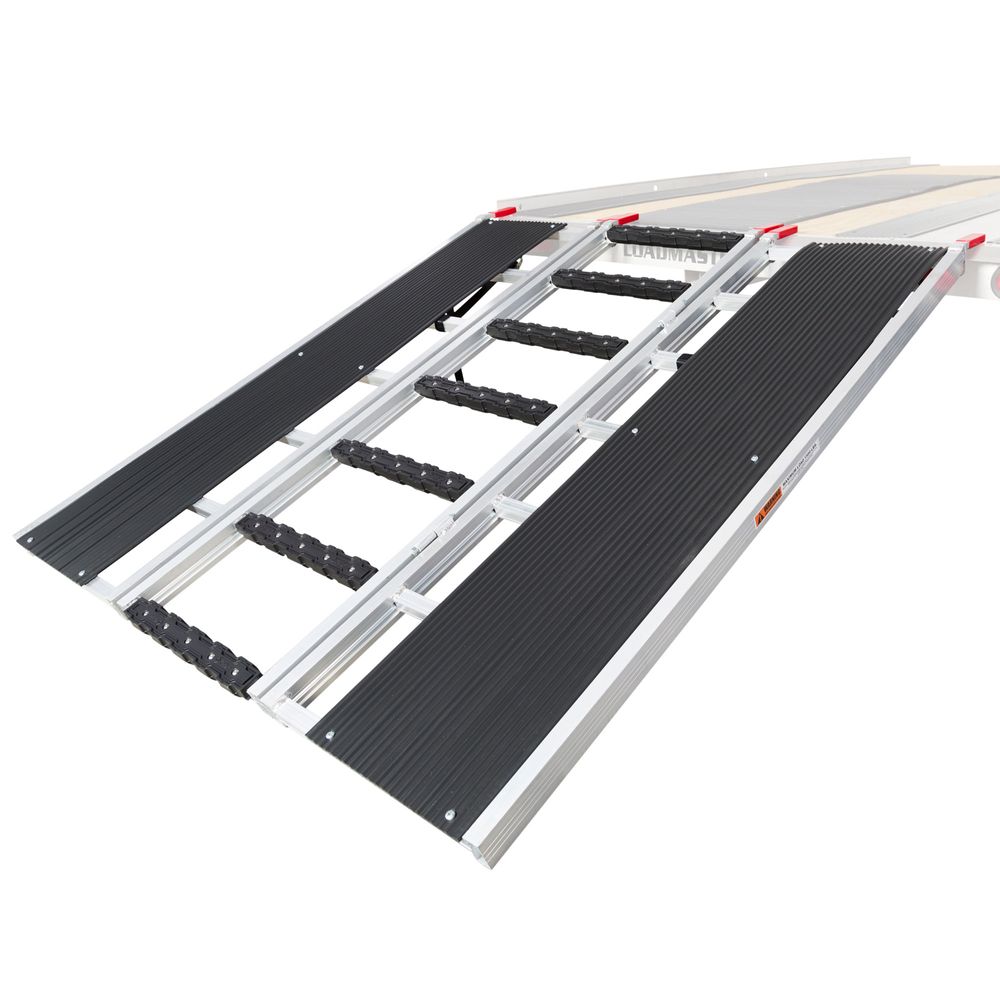

Model SNO-6054-HDXW-S SNO-6054-HDXW-EXT-S
Unfolded Length 60 inches 121.5 inches
Ramp Width 54 inches 54 inches
Folded Width 17.5 inches 17.5 inches
Height 3.25 inches 3.25 inches
Maximum Capacity 1,500 lb 1,500 lb (Ramp) / 800 lb (Extension flat)
Product Weight 46 lb 53 lb
Material Aluminum Aluminum
Stud Protectors Yes Yes
Extension Included No Yes
Intended Use Snowmobile Trailer Loading Snowmobile Trailer Loading
