Rinieri Boom Reach Mower BR-VIGNA | 32" Working Width | 28 Knives | 50-80HP for Tractor
Rinieri Boom Reach Mower BR-VIGNA | 32" Working Width | 28 Knives | 50-80HP for Tractor
Regular price
$18,930.00
Regular price
Sale price
$18,930.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Rinieri Boom Reach Mower BR-VIGNA | 32" Working Width | 28 Knives | 50-80HP for Tractor
Description

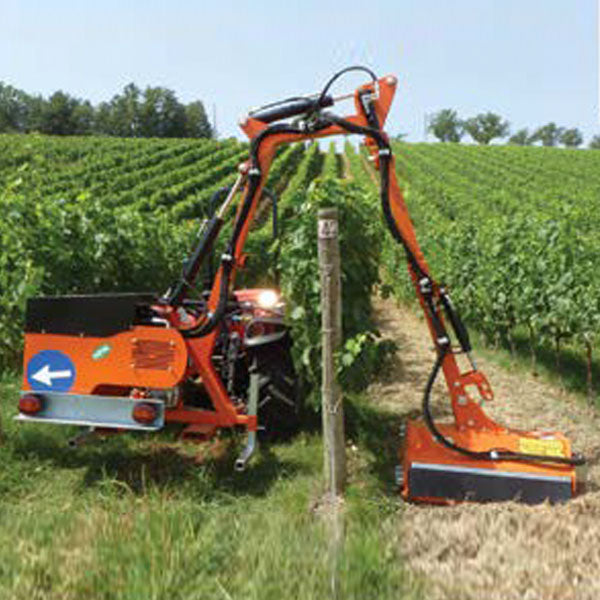

Introducing the BR-VIGNA Reach Mower, engineered to handle challenging terrains with ease. This innovative reach mower is designed with a unique geometrical shape to navigate and work over obstacles such as bushes, nets, or rows. Its telescopic arm provides superior adaptability to uneven ground, making it an essential tool for efficient and versatile mowing in diverse environments.
Features:
- Obstacle Navigation: Special geometrical design allows the mower to easily overcome and work over various obstacles like bushes and nets.
- Telescopic Arm: Adjustable telescopic arm enhances the mower’s ability to adapt to uneven ground surfaces.
- Efficient Cutting: Comes equipped with a 1-meter (39 inches) working head for effective grass and branch cutting.
- Hydraulic Kit: Includes a hydraulic kit with aluminum pumps (GR.2 40+13 liters) for robust performance.
- Remote Control: Features a distributor with cables and remote control for convenient operation.
- Reversible Rotor Rotation: Offers flexibility with reversible rotor rotation for varied cutting needs.
- Floating Head Device: Ensures consistent and smooth operation with a floating device on the head.
- Durable Build: Equipped with a 3-point hitch CAT.1 and a hydraulic shockproof device on the 3-point hitch for stability and durability.
- Cardan Joint: Includes a cardan joint for reliable power transmission and connection.
Specification

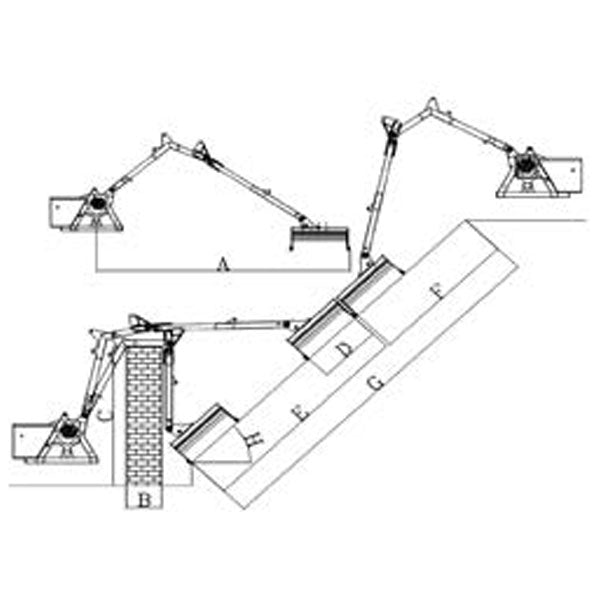

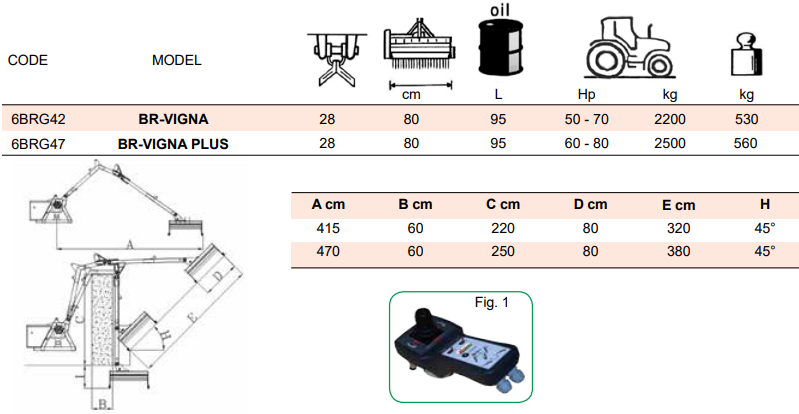

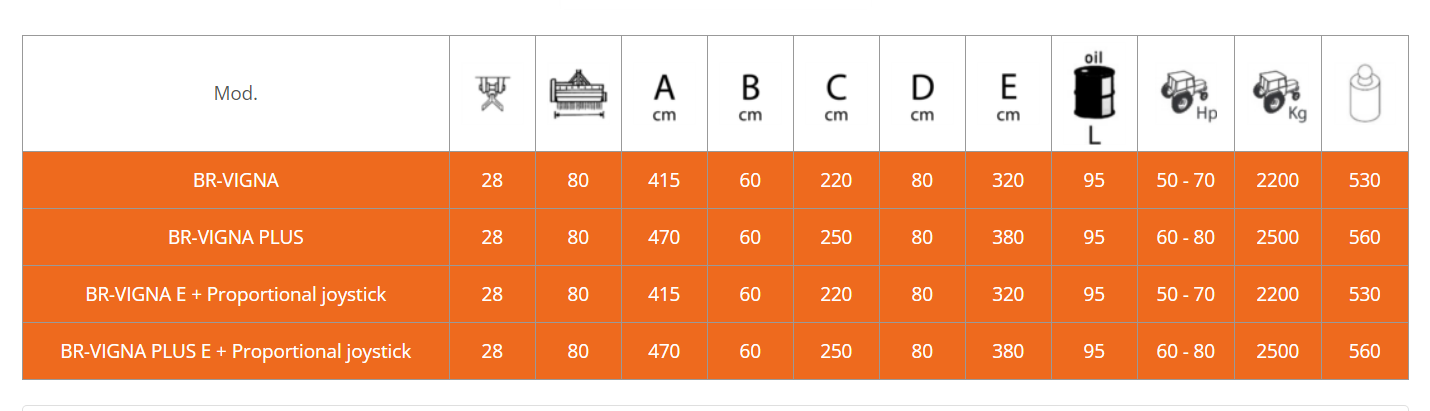

| Specs | BR-VIGNA | BR-VIGNA PLUS | BR-VIGNA E + Joystick | BR-VIGNA PLUS E + Joystick |
|---|---|---|---|---|
| Knives | 28 | 28 | 28 | 28 |
| Working Width | 31.5" | 31.5" | 31.5" | 31.5" |
| A | 16.3" | 18.5" | 16.3" | 18.5" |
| B | 2.4" | 2.4" | 2.4" | 2.4" |
| C | 8.7" | 9.8" | 8.7" | 9.8" |
| D | 3.1" | 3.1" | 3.1" | 3.1" |
| E | 12.6" | 15.0" | 12.6" | 15.0" |
| Liters of Oil | 95 | 95 | 95 | 95 |
| Required HP | 50 - 70 | 60 - 80 | 50 - 70 | 60 - 80 |
| Min Tractor Weight | 4850 lbs | 5510 lbs | 4850 lbs | 5510 lbs |
| Machine Weight | 1168 lbs | 1235 lbs | 1168 lbs | 1235 lbs |
What's Included
- BR-VIGNA Reach Mower Unit
- Hydraulic Kit with Aluminum Pumps
- Distributor with Cables and Remote Control
- Cardan Joint
- 3-Point Hitch CAT.1
- Hydraulic Shockproof Device
- Telescopic Arm
- Electrohydraulic Control with Proportional Joystick (for models with joystick)
- Detailed Installation and Operation Manual
Conquer obstacles and achieve superior mowing results with the BR-VIGNA Reach Mower. Order now to enhance your mowing efficiency and tackle challenging terrains with ease and precision!
Documents
