Rinieri Boom Reach Mower BRC 450-485-530 | 39" Working Width | 48 Knives | 60-90HP for Tractor
Rinieri Boom Reach Mower BRC 450-485-530 | 39" Working Width | 48 Knives | 60-90HP for Tractor
Couldn't load pickup availability
Couldn't load pickup availability
Rinieri Boom Reach Mower BRC 450-485-530 | 39" Working Width | 48 Knives | 60-90HP for Tractor
Description

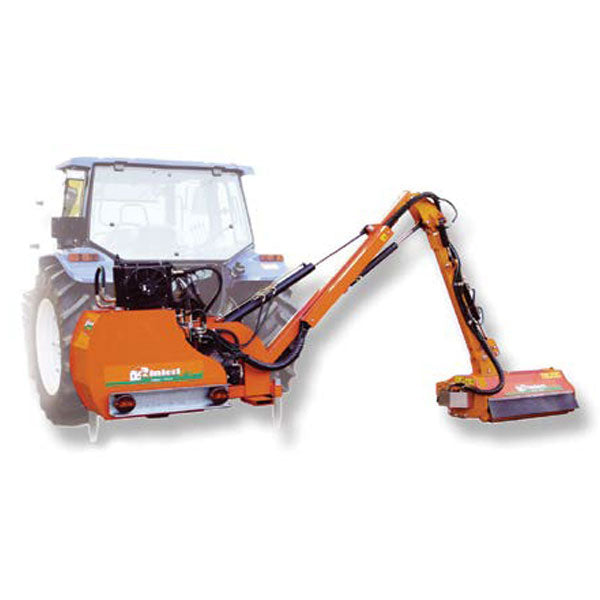

Introducing the BRC Reach Mower, engineered for high-performance mowing with medium power tractors (60-90 HP). Available in three models with impressive reach capabilities from 4.5 to 5.3 meters (15’ to 17’), this robust mower is ideal for large farms, businesses, and public green spaces. Designed for professional use, the BRC Reach Mower efficiently tackles grass and branches up to 6 cm (2.4 inches) in diameter, thanks to its powerful GR.3 pumps and integrated oil cooler.
Features
- Extended Reach: Choose from models with reach capabilities of 4.5 to 5.3 meters (15' to 17') for comprehensive coverage.
- Heavy-Duty Cutting: Designed for professional-grade performance, handling grass and branches up to 6 cm (2.4 inches) in diameter.
- Hydraulic Kit: Equipped with a high-performance hydraulic kit featuring aluminum pumps (GR.3 80+30 liters) and an oil cooler for optimal efficiency.
- Remote Control: Includes a distributor with cables and remote control for seamless operation from the tractor seat.
- Reversible Rotor Rotation: Offers flexibility with reversible rotor rotation to adapt to various cutting needs.
- Floating Head Device: Ensures smooth and consistent performance with a floating device on the head.
- Durable Build: Features a 3-point hitch CAT.2 and a hydraulic shockproof device for stability and rugged use.
- Stabilizer Bars: Includes stabilizer bars for enhanced stability during operation.
- Cardan Joint: Provides reliable connection and power transmission.
Specification

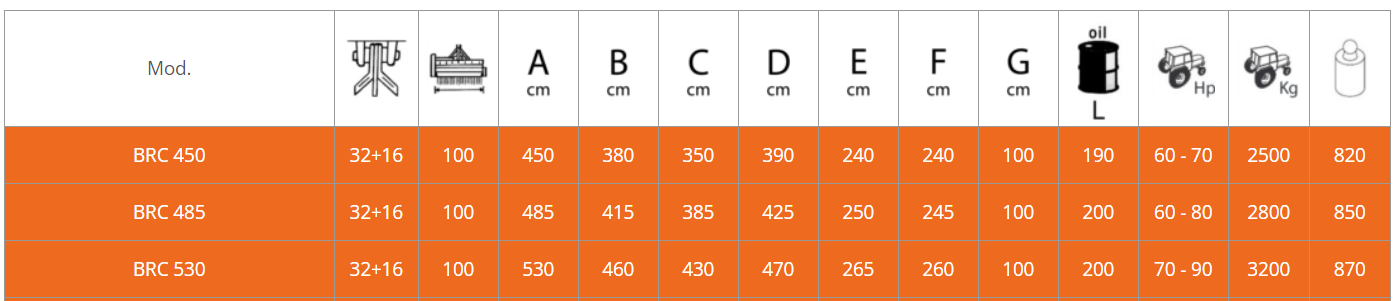

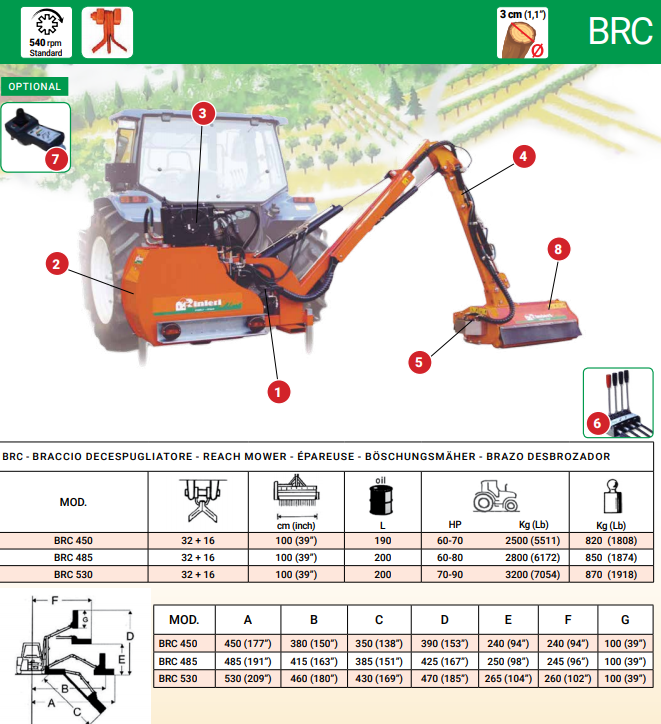

| Model | BRC 450 | BRC 485 | BRC 530 |
|---|---|---|---|
| Knives | 32+16 | 32+16 | 32+16 |
| Working Width | 100 cm (39 inches) | 100 cm (39 inches) | 100 cm (39 inches) |
| A | 450 mm (17.7 inches) | 485 mm (19 inches) | 530 mm (20.9 inches) |
| B | 380 mm (15 inches) | 415 mm (16.3 inches) | 460 mm (18.1 inches) |
| C | 350 mm (13.8 inches) | 385 mm (15.2 inches) | 430 mm (16.9 inches) |
| D | 390 mm (15.4 inches) | 425 mm (16.7 inches) | 470 mm (18.5 inches) |
| E | 240 mm (9.4 inches) | 250 mm (9.8 inches) | 265 mm (10.4 inches) |
| F | 240 mm (9.4 inches) | 245 mm (9.6 inches) | 260 mm (10.2 inches) |
| Litres of Oil | 100 liters (26.4 gallons) | 100 liters (26.4 gallons) | 100 liters (26.4 gallons) |
| Required HP | 60 - 70 | 60 - 80 | 70 - 90 |
| Min Tractor Weight | 2500 kg (5510 lbs) | 2800 kg (6173 lbs) | 3200 kg (7055 lbs) |
| Machine Weight | 820 kg (1808 lbs) | 850 kg (1874 lbs) | 870 kg (1918 lbs) |
What's Included
- BRC Reach Mower Unit
- Hydraulic Kit with Aluminum Pumps
- Oil Cooler
- Distributor with Cables and Remote Control
- Cardan Joint
- 3-Point Hitch CAT.2
- Hydraulic Shockproof Device
- Stabilizer Bars
- Detailed Installation and Operation Manual
Additional Parts:
- Electro-Hydraulic Control with Proportional Joystick
- Belt Drive
- Pneumatic First Arm Suspension
Elevate your mowing operations with the BRC Reach Mower, designed for durability and precision in professional settings. Order now to experience top-tier performance and handle even the toughest mowing tasks with ease!
