Brown Manufacturing

Brown Disc Harrow (3PT Tandem) | Model BDH Series | Cutting Widths 6'4" to 9'1" | Horsepower 55 to 85 HP | For 3PT Hitch Tractors

Brown Disc Harrow (3PT Tandem) | Model BDH Series | Cutting Widths 6'4" to 9'1" | Horsepower 55 to 85 HP | For 3PT Hitch Tractors

Regular price $3,978.95
Regular price Sale price $3,978.95
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Wide Range of Cutting Widths – Models available with cutting widths from 6'4" to 9'1", catering to different field sizes and applications.
  • Disc Configurations – Options include disc diameters ranging from 16" to 26" and spacing configurations of 9/9 or 9/7, providing flexibility for different soil conditions.
  • Model Series: BDH – Brown’s heavy‑duty 3‑Point Tandem Disc Harrow line, engineered for durability and high‑performance agricultural tillage.
  • Horsepower Requirements – Models require a minimum horsepower ranging from 55HP to 85HP, making them suitable for a variety of tractors.
  • Efficient Soil Preparation – Ideal for tilling, seedbed preparation, and breaking up soil clumps, enhancing productivity in the field.
View full details

Product Description

Brown Disc Harrow (3PT Tandem) | Model BDH Series | Cutting Widths 6'4" to 9'1" | Horsepower 55 to 85 HP | For 3PT Hitch Tractors

DESCRIPTION

The Brown Disc Harrow (3PT Tandem) is engineered to meet the rigorous demands of modern farming by delivering dependable and efficient soil preparation. Compatible with a wide range of 3-point hitch tractors, it offers cutting widths from 6'4" up to 9'1", adapting to diverse field sizes and farming operations. Designed for tractors with horsepower ratings between 55 and 85 HP, this harrow ensures optimal power utilization for consistent soil penetration and residue mixing. Its tandem disc setup features precisely spaced, heavy-duty steel discs that break up clods, level the soil surface, and prepare an ideal seedbed. The harrow’s robust construction supports heavy-duty tillage tasks while maintaining durability and longevity in challenging conditions. Multiple configurations are available to customize the implement for specific soil types and crop requirements, enhancing versatility and performance across different agricultural applications. This tool is indispensable for farmers aiming to improve soil aeration, moisture retention, and overall field productivity.

Key Features

  • Wide Range of Cutting Widths – Models available with cutting widths from 6'4" to 9'1", catering to different field sizes and applications.
  • Model Series: BDH – Brown’s heavy‑duty 3‑Point Tandem Disc Harrow line, engineered for durability and high‑performance agricultural tillage.
  • Heavy-Duty Construction – Built to withstand rigorous agricultural use, ensuring long-term durability and reliability.
  • Disc Configurations – Options include disc diameters ranging from 16" to 26" and spacing configurations of 9/9 or 9/7, providing flexibility for different soil conditions.
  • 3PT Hitch Compatibility – Designed for 3PT hitch tractors, ensuring easy attachment and operation.
  • Frame Sizes – BDH‑600 (6'4"), BDH‑750 (7'6"), BDH‑900 (9'1").
  • Disc Diameter Options – 16", 18", 20", 22", 24", 26".
  • Horsepower Requirements – Models require a minimum horsepower ranging from 55HP to 85HP, making them suitable for a variety of tractors.
  • Efficient Soil Preparation – Ideal for tilling, seedbed preparation, and breaking up soil clumps, enhancing productivity in the field.

Detailed Specifications

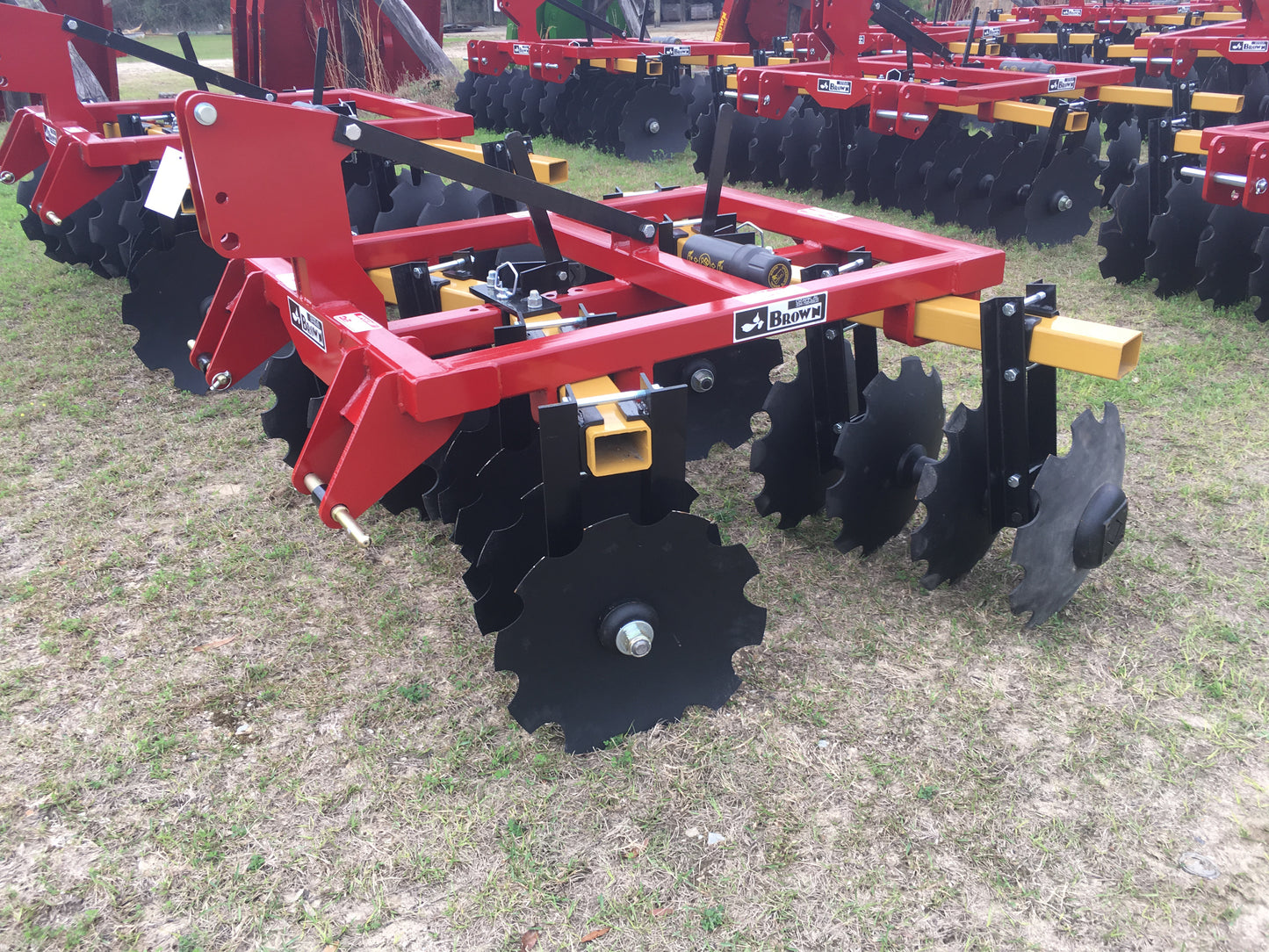

BDH‑600‑1620

Specification Details
Brand Brown
Model / Part # BDH‑600‑1620
Product Type Disc Harrow – 3PT Tandem
Disc Diameter (Front / Rear) 16" / 20"
Disc Spacing (Front / Rear) 9" / 9"
HP Requirement 55 HP minimum
Cutting Width 6'4"
Hitch Type 3‑Point
Weight ~1,095 lbs
Applications Light to medium tillage, seedbed prep

BDH‑600‑1622

Specification Details
Brand Brown
Model / Part # BDH‑600‑1622
Product Type Disc Harrow – 3PT Tandem
Disc Diameter (Front / Rear) 16" / 22"
Disc Spacing (Front / Rear) 9" / 9"
HP Requirement 55 HP minimum
Cutting Width 6'4"
Hitch Type 3‑Point
Weight ~1,135 lbs
Applications Light to medium tillage, slightly deeper rear cut

BDH‑600‑1820

Specification Details
Brand Brown
Model / Part # BDH‑600‑1820
Product Type Disc Harrow – 3PT Tandem
Disc Diameter (Front / Rear) 18" / 20"
Disc Spacing (Front / Rear) 9" / 7"
HP Requirement 55 HP minimum
Cutting Width 6'4"
Hitch Type 3‑Point
Weight ~1,125 lbs
Applications Medium tillage, improved soil penetration

BDH‑600‑1822

Specification Details
Brand Brown
Model / Part # BDH‑600‑1822
Product Type Disc Harrow – 3PT Tandem
Disc Diameter (Front / Rear) 18" / 22"
Disc Spacing (Front / Rear) 9" / 7"
HP Requirement 55 HP minimum
Cutting Width 6'4"
Hitch Type 3‑Point
Weight ~1,175 lbs
Applications Medium tillage, deeper rear penetration

BDH‑750‑2020

Specification Details
Brand Brown
Model / Part # BDH‑750‑2020
Product Type Disc Harrow – 3PT Tandem
Disc Diameter (Front / Rear) 20" / 20"
Disc Spacing (Front / Rear) 9" / 9"
HP Requirement 70 HP minimum
Cutting Width 7'6"
Hitch Type 3‑Point
Weight ~1,215 lbs
Applications Medium to heavy tillage

BDH‑750‑2022

Specification Details
Brand Brown
Model / Part # BDH‑750‑2022
Product Type Disc Harrow – 3PT Tandem
Disc Diameter (Front / Rear) 20" / 22"
Disc Spacing (Front / Rear) 9" / 9"
HP Requirement 70 HP minimum
Cutting Width 7'6"
Hitch Type 3‑Point
Weight ~1,275 lbs
Applications Medium to heavy tillage, deeper rear cut

BDH‑750‑2220

Specification Details
Brand Brown
Model / Part # BDH‑750‑2220
Product Type Disc Harrow – 3PT Tandem
Disc Diameter (Front / Rear) 22" / 20"
Disc Spacing (Front / Rear) 9" / 7"
HP Requirement 70 HP minimum
Cutting Width 7'6"
Hitch Type 3‑Point
Weight ~1,240 lbs
Applications Heavy tillage, aggressive front cut

BDH‑750‑2222

Specification Details
Brand Brown
Model / Part # BDH‑750‑2222
Product Type Disc Harrow – 3PT Tandem
Disc Diameter (Front / Rear) 22" / 22"
Disc Spacing (Front / Rear) 9" / 7"
HP Requirement 70 HP minimum
Cutting Width 7'6"
Hitch Type 3‑Point
Weight ~1,310 lbs
Applications Heavy tillage, deep uniform cut

BDH‑900‑2420

Specification Details
Brand Brown
Model / Part # BDH‑900‑2420
Product Type Disc Harrow – 3PT Tandem
Disc Diameter (Front / Rear) 24" / 20"
Disc Spacing (Front / Rear) 9" / 9"
HP Requirement 85 HP minimum
Cutting Width 9'1"
Hitch Type 3‑Point
Weight ~1,385 lbs
Applications Heavy tillage, large acreage

BDH‑900‑2422

Specification Details
Brand Brown
Model / Part # BDH‑900‑2422
Product Type Disc Harrow – 3PT Tandem
Disc Diameter (Front / Rear) 24" / 22"
Disc Spacing (Front / Rear) 9" / 9"
HP Requirement 85 HP minimum
Cutting Width 9'1"
Hitch Type 3‑Point
Weight ~1,455 lbs
Applications Heavy tillage, deeper rear penetration

BDH‑900‑2620

Specification Details
Brand Brown
Model / Part # BDH‑900‑2620
Product Type Disc Harrow – 3PT Tandem
Disc Diameter (Front / Rear) 26" / 20"
Disc Spacing (Front / Rear) 9" / 7"
HP Requirement 85 HP minimum
Cutting Width 9'1"
Hitch Type 3‑Point
Weight ~1,410 lbs
Applications Very heavy tillage, aggressive front cut

BDH‑900‑2622

Specification Details
Brand Brown
Model / Part # BDH‑900‑2622
Product Type Disc Harrow – 3PT Tandem
Disc Diameter (Front / Rear) 26" / 22"
Disc Spacing (Front / Rear) 9" / 7"
HP Requirement 85 HP minimum
Cutting Width 9'1"
Hitch Type 3‑Point
Weight ~1,480 lbs
Applications Maximum soil penetration, toughest conditions
