Product Description

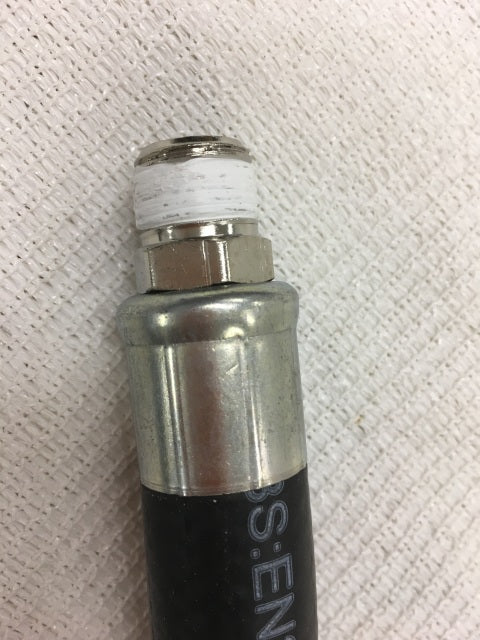

Brownie Third Lung Heat Transfer Hose | Model BTL-HTH | 19" Width | For E150, E250, C270, C390, CTD390 Compressor Systems
DESCRIPTION
The Brownie Third Lung Heat Transfer Hose is a vital component for divers relying on Brownie’s Third Lung systems. Designed with reinforced rubber, it ensures efficient dissipation of heat produced during air compression, delivering a safer and more comfortable diving experience.
Each hose comes equipped with an in-line particle filter to eliminate contaminants, guaranteeing clean air supply to divers. Hose lengths are optimized for specific systems:
-
5 ft: Suitable for E150 & VS/Battery systems.
-
7 ft: Designed for E250 & Floating systems.
-
10 ft: Best for C270, C390, and CTD390 systems.
For those with existing systems, the original in-line particle filter can be reused with this replacement hose. Please note that parts for older in-line particle filters are no longer available.
Key Features
-
Model-Specific Design: Identified as Model BTL-HTH, this hose is tailored for Brownie’s compressor systems with heat dissipation and filtration needs.
-
Heat Dissipation Functionality: Reinforced rubber construction helps dissipate heat generated during the compression process, protecting downstream components and divers.
-
In-Line Particle Filter Housing: Attached at the hose end to trap particles and prevent contamination in the air supply. Filter is removable and reusable.
-
Compressor-Specific Lengths: Available in 5 ft, 7 ft, and 10 ft lengths to match the airflow and thermal requirements of different Brownie’s compressor models.
-
Filter Reusability: Original in-line particle filters can be transferred to new hoses, reducing replacement costs and waste.
-
Legacy Filter Notice: Older filter assemblies are no longer supported—replacement parts are unavailable.
-
Multiple Hose Options: Choose between standard hose or hose with integrated filter: 5 ft / 5 ft w/filter, 7 ft / 7 ft w/filter, 10 ft / 10 ft w/filter.
-
Tailored Fit: Hose length options ensure compatibility with a range of compressor models.
-
Compatibility: Fully compatible with the following Brownie’s compressor systems: E150 (Electric, 1 diver), E250 (Electric, 2–3 divers), C270 (Gas-powered, higher output), C390 (Gas-powered, multi-diver) & CTD390 (Commercial twin-tank system).
-
Robust Design: Withstands the challenges of underwater environments.
-
Lightweight and Compact: Easy to handle and integrate into your diving setup.
Detailed Specifications
| Attribute |
Details |
| Model |
BTL-HTH |
| Vendor |
Brownie’s |
| Product Type |
Heat Transfer Hose with In-Line Filter |
| Material |
Reinforced Rubber |
| Filter Type |
In-Line Particle Filter (removable) |
| Compatibility |
E150, E250, C270, C390, CTD390 Compressor Systems |
| Available Lengths |
5 ft, 7 ft, 10 ft |
| Filter Options |
With or without filter housing |
| Weight |
3 lbs |
| Dimensions (L × W × H) |
19 × 20 × 12 in |
| Attachment Type |
In-Line Filter Housing |
| Hose Options |
5 ft, 5 ft w/filter, 7 ft, 7 ft w/filter, 10 ft, 10 ft w/filter |
Compatibility Chart
Electric Series Models
| Attribute |
E150 |
E250 |
| Type |
Electric Series |
Electric Series |
| Power Source |
1.0 HP Electric Motor |
Dual Head Electric |
| Diver Capacity |
1 diver (standard) |
2–3 divers (with kit) |
| Depth Range |
Up to 55 ft |
Up to 55 ft |
Gasoline Series Models
| Attribute |
C270 |
C390 |
| Type |
Gasoline Series |
Gasoline Series |
| Power Source |
Gas-powered |
Gas-powered |
| Diver Capacity |
Higher output |
Heavy-duty, multi-diver |
| Depth Range |
Typically deeper dives |
Extended runtime |
Commercial Series Model
| Attribute |
CTD390 |
| Type |
Commercial Series |
| Power Source |
Gas-powered (twin tank) |
| Diver Capacity |
Commercial-grade diving |
| Depth Range |
Designed for professional use |
