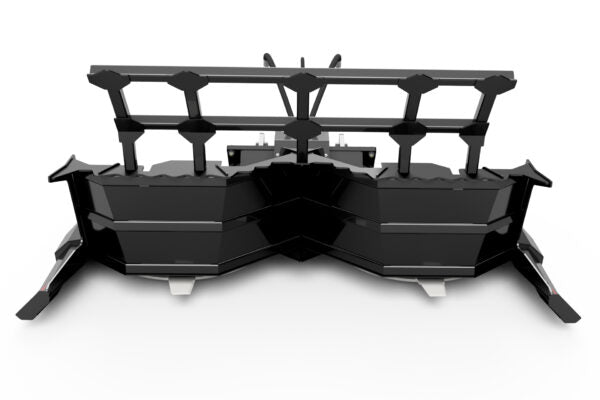

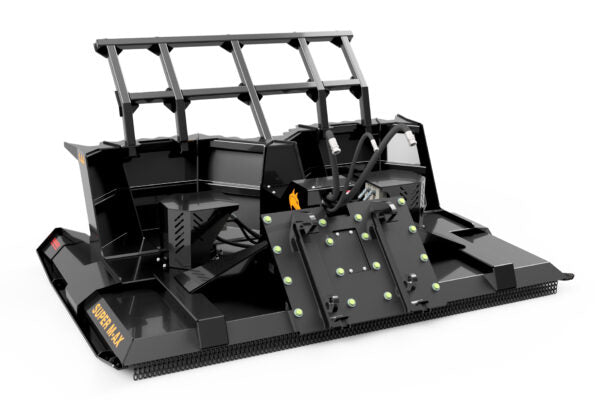

Brush Wolf Brush Cutter | Model 144 Super M-AX | Cutting Width 144" inches | For Tractors

Product Description

Brush Wolf Brush Cutter | Model  144 Super M-AX | Cutting Width 144" inches | For Tractors

Description

Key Features

Image	Description
	Reversible Blades (8) Hardox® 500 flat blades, non-updraft.
	Premium Hydraulic Motor We paired the top-of-the-line Eaton® Geroler-style hydraulic motor with the most dependable right-angle Omni® gearbox to achieve maximum torque and ideal blade tip speed. This easy-to-maintain and tried-and-true pairing will survive the years of abuse it will see in the field.
	Massive Bearing Housing We pair our direct-drive radial piston motor with a robust Eskridge® bearing housing that has a 3.75” shaft diameter and patented shaft retention system.
	Motor Protection Pressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown. Case Drain is included to relieve excess pressure build-up and protect the motor.
	Gearbox Seal Protection A welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox.
	Ultra-Rugged Deck Frame Here’s why our brush cutters last for life. We build each deck frame from a single piece of formed heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength.
	Seam Welding Unlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure.
	Reinforced Gussets We went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports.
	Powder-Coated Tough Protected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter.
	Blade Access Cover Easy access to the blade bolts for quick blade replacement.
	Plug + Play Ready Everything is ready to go upon delivery with the included quick-connect couplers, 90” hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination.
	Advanced Hose Routing System We took the time to devise a well-thought-out hose routing system based on real-life situations. Using guides and STAUFF clamps, our hydraulic lines can be routed to either side. So, you choose which side works best for your machine.
	Chain Curtain Optional, removable 5/16” safety chains to accommodate different cutting styles.
	Hood The vented hood fully encloses the motor and drive components to shield them from damaging impacts and debris. The hood is also hinged to allow easy motor access.
	Pilot Guard We took safety to the next level by welding a reinforced plate “pilot guard” to the underside of the cutter deck to protect you from flying objects.
	Choose Your Color Black, yellow, or make it your own custom color.

Detailed Specifications

• Number of Blades: Equipped with eight Hardox® 500 flat blades, non-updraft, designed for extreme cutting performance and durability.

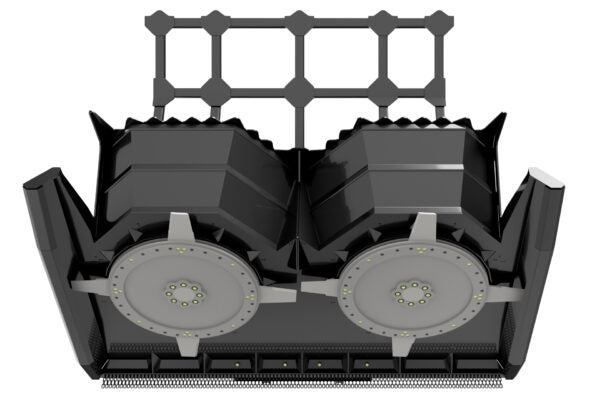

• Blade Carrier: Features two two-piece 5/8" steel discs. All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation, reducing vibrations and enhancing overall performance.
• Duty Rating: Extreme-Duty Built to handle the toughest land management projects with ease.
• Cutting Width: An impressive 144 inches, allowing you to cover large areas quickly and efficiently.
• Hydraulic Flow Range: Designed to operate within a range of 42-58 GPM, ensuring powerful and consistent cutting action.
• Max Cutting Diameter: Capable of cutting through brush and trees up to 8 inches in diameter.
• Motor Style: Powered by a bent axis piston hydraulic motor, providing reliable and efficient performance.
• PSI (Continuous/Intermittent): 5000
• Deck Thickness: 0.313 inches, providing exceptional durability.
• Motor/Gearbox Coupler: Made of machined steel for a strong and reliable connection.
• Motor Protection: Equipped with pressure relief valves and a case drain to safeguard the motor.
• Blade Rotation: Counterclockwise for optimal cutting efficiency.
• Blades: (8) 18 x 8.5 x 0.625 inches, designed to handle extreme cutting tasks.
• Protective Hood: Features a 12-gauge hinged, motor guard hood to protect the motor and ensure efficient operation.
