Brush Wolf Full-Size Heavy-Duty X- Brush Cutter Series | Cutting Width 60" & 72" inches | Hydraulic Flow Range 20-45 GPM | For Excavators & Backhoe

Brush Wolf Full-Size Heavy-Duty X- Brush Cutter Series | Cutting Width 60" & 72" inches | Hydraulic Flow Range 20-45 GPM | For Excavators & Backhoe

$15,724.50
$15,724.50
Sale Sold out
Customizable
Fast
24/7 Support
  • Exceptional Blade System: Equipped with a choice of standard 3-blade carriers featuring high-tempered non-updraft drop blades
  • Durability and Protection: Built with a robust 1/4-inch thick steel deck, a machined steel motor/gearbox coupler, and pressure relief valves with a case drain for motor protection.
  • Smooth and Balanced Operation: Featuring CNC-balanced blade carriers, either the 1” GRD-50 disc or the two-piece 5/8" steel disc system exclusive to Brush Wolf.
View full details

Product Description

Brush Wolf Full-Size Heavy-Duty X- Brush Cutter Series | Cutting Width 60" & 72" inches | Hydraulic Flow Range 20-45 GPM | For Excavators & Backhoe

Description

A true workhorse built tough for industrial and commercial applications. These bad boys clear brush quickly and efficiently to improve your ROI and increase profit. You can rely on these cutters to consistently tackle heavy brush and trees up to 10” in diameter. Tip speed and torque are optimum for efficient cutting with a massive 1” blade carrier and three high-tempered steel blades.

Key Features

Image Description
Drop blade

Long-Lasting Blades

The Brush Wolf industrial-strength drop-down blades are heat treated, have a milled edge, and are Supertuf coated to stand the test of time.
Motor 42X

Direct-Drive Piston Motor

Experience the power of the direct-drive SAI® radial piston motor. With higher torque, you’ll get more cutting power, quicker recovery time, and less bogging down when accelerating through thick brush.
Bearing housing

Massive Bearing Housing

We pair our direct-drive radial piston motor with a robust Eskridge® bearing housing that has a 3.75” shaft diameter and patented shaft retention system.
Pressure relief valve

Motor Protection

Pressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown.

Case Drain is included to relieve excess pressure build-up and protect the motor.
Gearbox welded seal guard

Gearbox Seal Protection

A welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox.
Deck frame

Ultra-Rugged Deck Frame

Here’s why our brush cutters last for life. We build each deck frame from a single piece of formed heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength.
Weld

Seam Welding

Unlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure.
Boxed-in gusset

Reinforced Gussets

We went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports.
Powder coating cutters

Powder-Coated Tough

Protected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter.
Blade Access Cover

Blade Access Cover

Easy access to the blade bolts for quick blade replacement.
Couplers and dust caps

Plug + Play Ready

Everything is ready to go upon delivery with the included quick-connect couplers, 90” hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination.
Hoses routed 42X

Advanced Hose Routing System

We took the time to devise a well-thought-out hose routing system based on real-life situations. Using guides and STAUFF clamps, our hydraulic lines can be routed to either side. So, you choose which side works best for your machine.
Chains 4200X

Chain Curtains

Optional, removable 5/16” safety chains to accommodate different cutting styles.
Hood 60X

Hood

The vented hood fully encloses the motor and drive components to shield them from damaging impacts and debris. The hood is also hinged to allow easy motor access.
Pilot guard

Pilot Guard

We took safety to the next level by welding a reinforced plate “pilot guard” to the underside of the cutter deck to protect you from flying objects.
Choose color

Choose Your Color

Black, yellow, or make it your own custom color.



Detailed Specifications


  • Number of Blades:
    • Standard: (3) Drop blades; non-updraft
    • Optional: (4) Reversible Hardox® 500 flat blades; non-updraft
  • Blade Carrier:
    • Standard: 1” GRD-50 disc
    • Optional: Two-piece 5/8" steel disc proprietary blade system exclusive to Brush Wolf. Blades are secured between two 5/8” thick high-strength steel discs.
  • All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation.
  • Durable Construction:
    • PSI (Continuous/Intermittent): 4,000
    • Deck Thickness: 1/4 in
    • Motor/Gearbox Coupler: Machined steel
    • Motor Protection: Pressure relief valves, case drain (required)
    • Blade Rotation: Counterclockwise
    • Hood: 12-ga hinged, vented hood
  • Efficient Blade Design:
    • Standard Blades: (3) 18 x 5 x 0.625 in; non-updraft
    • Optional Blades: (4) Hardox® 500 flat blades
      • 60X: 14.25 x 8.5 x 0.625 in; non-updraft
      • 72X: 18 x 8.5 x 0.625 in; non-updraft

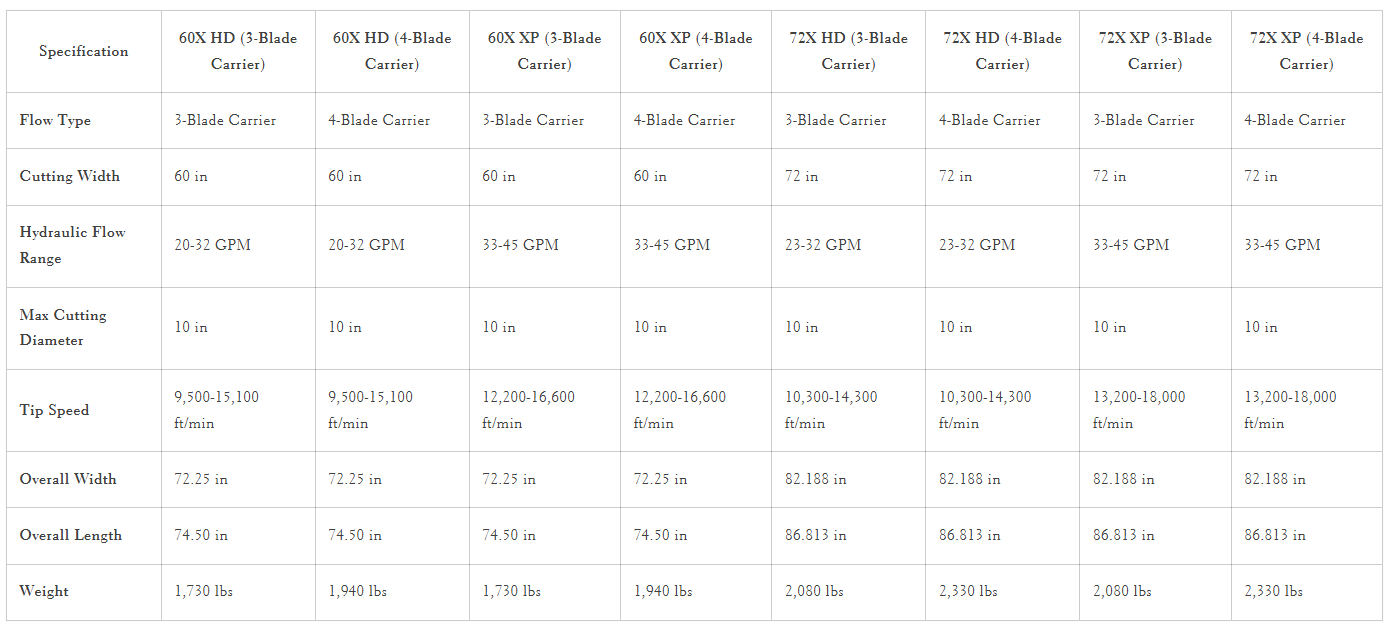

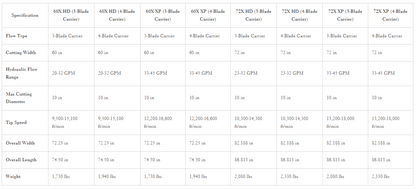

Specification 60X HD (3-Blade Carrier) 60X HD (4-Blade Carrier) 60X XP (3-Blade Carrier) 60X XP (4-Blade Carrier) 72X HD (3-Blade Carrier) 72X HD (4-Blade Carrier) 72X XP (3-Blade Carrier) 72X XP (4-Blade Carrier)
Flow Type 3-Blade Carrier 4-Blade Carrier 3-Blade Carrier 4-Blade Carrier 3-Blade Carrier 4-Blade Carrier 3-Blade Carrier 4-Blade Carrier
Cutting Width 60 in 60 in 60 in 60 in 72 in 72 in 72 in 72 in
Hydraulic Flow Range 20-32 GPM 20-32 GPM 33-45 GPM 33-45 GPM 23-32 GPM 23-32 GPM 33-45 GPM 33-45 GPM
Max Cutting Diameter 10 in 10 in 10 in 10 in 10 in 10 in 10 in 10 in
Tip Speed 9,500-15,100 ft/min 9,500-15,100 ft/min 12,200-16,600 ft/min 12,200-16,600 ft/min 10,300-14,300 ft/min 10,300-14,300 ft/min 13,200-18,000 ft/min 13,200-18,000 ft/min
Overall Width 72.25 in 72.25 in 72.25 in 72.25 in 82.188 in 82.188 in 82.188 in 82.188 in
Overall Length 74.50 in 74.50 in 74.50 in 74.50 in 86.813 in 86.813 in 86.813 in 86.813 in
Weight 1,730 lbs 1,940 lbs 1,730 lbs 1,940 lbs 2,080 lbs 2,330 lbs 2,080 lbs 2,330 lbs
