Brush Wolf Heavy-Duty X- Brush Cutter Series | Cutting Width 42" & 48" inches | Hydraulic Flow Range 14-37 GPM | For Excavators & Backhoe

Brush Wolf Heavy-Duty X- Brush Cutter Series | Cutting Width 42" & 48" inches | Hydraulic Flow Range 14-37 GPM | For Excavators & Backhoe

$11,357.50
$11,357.50
Sale Sold out
Customizable
Fast
24/7 Support
  • Motor/Gearbox Coupler: Machined steel for a strong and reliable connection.
  • Motor Protection: Equipped with pressure relief valves and a case drain (required), safeguarding the motor from pressure spikes and ensuring long-lasting performance.
  • Hood: 12-ga hinged, vented hood to protect the motor and allow efficient airflow for cooling.
View full details

Product Description

Brush Wolf Heavy-Duty X- Brush Cutter Series | Cutting Width 42" & 48" inches | Hydraulic Flow Range 14-37 GPM | For Excavators & Backhoe

Description

Up your brush-cutting game with the next generation of rotary cutters for mini and mid-size excavators/backhoes. We’ve upgraded our heavy-duty cutters with a powerful piston motor for higher torque and included a hydraulic relief block with an integrated case drain. The now removable chain curtains accommodate different cutting styles, and the vented, hinged hood improves drive-train protection. Big in power, yet still the right size to squeeze in tight spaces. A dependable, versatile cutter you’ll use for virtually everything.

Key Features

Image Description

Long-Lasting Blades

The Brush Wolf industrial-strength drop-down blades are heat treated, have a milled edge, and are Supertuf coated to stand the test of time.

Direct-Drive Piston Motor

Experience the power of the direct-drive SAI® radial piston motor. With higher torque, you’ll get more cutting power, quicker recovery time, and less bogging down when accelerating through thick brush.

Massive Bearing Housing

We pair our direct-drive radial piston motor with a robust Eskridge® bearing housing that has a 2.25” shaft diameter and patented shaft retention system.

Motor Protection

Pressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown.

Case Drain is included to relieve excess pressure build-up and protect the motor.

Gearbox Seal Protection

A welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox.

Ultra-Rugged Deck Frame

Here’s why our brush cutters last for life. We build each deck frame from a single piece of formed heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength.

Seam Welding

Unlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure.

Reinforced Gussets

We went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports.

Powder-Coated Tough

Protected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter.

Blade Access Cover

Easy access to the blade bolts for quick blade replacement.

Plug + Play Ready

Everything is ready to go upon delivery with the included quick-connect couplers, 90” hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination.

Advanced Hose Routing System

We took the time to devise a well-thought-out hose routing system based on real-life situations. Using guides and STAUFF clamps, our hydraulic lines can be routed to either side. So, you choose which side works best for your machine.

Chain Curtains

Optional, removable 5/16” safety chains to accommodate different cutting styles.

Hood

The vented hood fully encloses the motor and drive components to shield them from damaging impacts and debris. The hood is also hinged to allow easy motor access.

Pilot Guard

We took safety to the next level by welding a reinforced plate “pilot guard” to the underside of the cutter deck to protect you from flying objects.

Choose Your Color

Black, yellow, or make it your own custom color.



Detailed Specifications

  • Precision Cutting Technology:
    • Number of Blades: (2) 0.5 x 4 in; updraft
    • Blade Type: High-tempered updraft steel blades designed for lift and mulching action, ensuring efficient and precise cutting.
  • Robust and Durable Construction:
    • Blade Carrier: 1” GRD-50 disc. All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation, reducing vibrations and enhancing performance.
  • Deck Thickness:
    • 42X: 10-ga (.135 in)
    • 48X: 7-ga (.188 in)
  • Enhanced Motor Protection and Performance:
    • PSI (Continuous/Intermittent): 3,500
    • Motor/Gearbox Coupler: Machined steel for a strong and reliable connection.
    • Motor Protection: Equipped with pressure relief valves and a case drain (required), safeguarding the motor from pressure spikes and ensuring long-lasting performance.
  • Efficient Operation:
  • Blade Rotation: Counterclockwise for optimal cutting efficiency.
  • Hood: 12-ga hinged, vented hood to protect the motor and allow efficient airflow for cooling.
Specification 42X HD 42X XP 48X HD 48X XP
Flow Type Low Flow Standard Flow Standard Flow High Flow
Cutting Width 42 in 42 in 48 in 48 in
Hydraulic Flow Range 14-20 GPM 21-29 GPM 17-29 GPM 30-37 GPM
Max Cutting Diameter 4 in 5 in 5 in 6 in
Tip Speed 9,500-13,500 ft/min 10,200-14,200 ft/min 9,500-16,300 ft/min 8,600-10,600 ft/min
Overall Width 52.70 in 52.70 in 55.60 in 55.60 in
Overall Length 56.80 in 56.80 in 62.812 in 62.812 in
Weight 750 lbs 750 lbs 800 lbs 800 lbs



    Manual & Documents

    General Warranty Info:

    • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
    • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
    • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
    • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

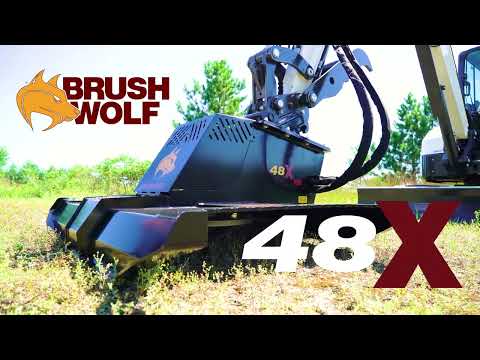

    Videos
