Brush Wolf Open Front / Compact Brush Cutter Series | Cutting Width 42" & 48" inches | Hydraulic Flow Range 8-25 GPM | For Loaders

Brush Wolf Open Front / Compact Brush Cutter Series | Cutting Width 42" & 48" inches | Hydraulic Flow Range 8-25 GPM | For Loaders

$6,010.40
$6,010.40
Sale Sold out
Customizable
Fast
24/7 Support
  • Versatile Compatibility: The 4200 and 4201 models are compatible with various compact.
  • Robust Motor Protection: Features pressure relief valves and a GRD-2 shear bolt to protect the motor from overloads.
  • Smooth Operation: All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation, reducing vibrations and improving overall performance.
View full details

Product Description

Brush Wolf Open Front / Compact Brush Cutter Series | Cutting Width 42" & 48" inches | Hydraulic Flow Range 8-25 GPM | For Loaders

Description

Don’t let their size fool you; these mighty cutters may be small, but they pack all the power and performance of their larger counterparts. Designed to fit through tight spaces, they are versatile enough to be used anywhere. The 4201 is built to fit all compact utility loaders such as Vermeer, Toro Dingo, Ditch Witch, Bobcat MT-50, and others. The 4801 is compatible with compact utility loaders ranging from small to full-size skid loaders, thanks to its various pickup plate options. Made for long-lasting durability, flexible to be used everywhere.

Key Features

Image Description
Super max flat blade

Reversible Blades

(12) Hardox® 500 flat blades, non-updraft.
Premium Hydraulic Motor

Premium Hydraulic Motor

We paired the top-of-the-line Eaton® Geroler-style hydraulic motor with the most dependable right-angle Omni® gearbox to achieve maximum torque and ideal blade tip speed. This easy-to-maintain and tried-and-true pairing will survive the years of abuse it will see in the field.
Bearing housing

Massive Bearing Housing

We pair our direct-drive radial piston motor with a robust Eskridge® bearing housing that has a 3.75” shaft diameter and patented shaft retention system.
Pressure relief valve

Motor Protection

Pressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown.

Grade-2 Shear Bolt: protects the gearbox and driveline from damage.
Gearbox welded seal guard

Gearbox Seal Protection

A welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox.
Deck frame

Ultra-Rugged Deck Frame

Here’s why our brush cutters last for life. We build each deck frame from a single piece of formed heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength.
Weld

Seam Welding

Unlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure.
Boxed-in gusset

Reinforced Gussets

We went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports.
Powder coating cutters

Powder-Coated Tough

Protected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter.
Blade Access Cover

Blade Access Cover

Easy access to the blade bolts for quick blade replacement.
Couplers and dust caps

Plug + Play Ready

Everything is ready to go upon delivery with the included quick-connect couplers, 90” hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination.
Chains 4200X

Chain Curtain

5/16” replaceable front and back safety chains contain flying debris to protect you and your cutter and aid in mulching.
Hood 60X

Hood

The vented hood fully encloses the motor and drive components to shield them from damaging impacts and debris. The hood is also hinged to allow easy motor access.
Pilot guard

Pilot Guard

We took safety to the next level by welding a reinforced plate “pilot guard” to the underside of the cutter deck to protect you from flying objects.
Choose color

Choose Your Color

Black, yellow, or make it your own custom color.

Detailed Specifications

  • Models: 4201, 4801 LF, 4801 SF
    • Low Flow (4201 and 4801 LF)
    • Standard Flow (4801 SF)
  • Cutting Width: 42 in (4201), 48 in (4801 LF & SF)
  • Hydraulic Flow Range: 8-20 GPM (4201), 8-15 GPM (4801 LF), 16-25 GPM (4801 SF)
  • Max Cutting Diameter: 2 in (4201), 3 in (4801 LF), 4 in (4801 SF)
  • Tip Speed: 6,500-16,200 ft/min (4201), 7,500-14,000 ft/min (4801 LF), 11,750-18,400 ft/min (4801 SF)
  • Overall Width: 43.75 in (4201), 49.75 in (4801 LF & SF)
  • Overall Length: 58.25 in (4201), 60 in (4801 LF & SF)
  • Weight: 470 lbs (4201), 672 lbs (4801 LF), 690 lbs (4801 SF)
  • Blade Carrier:
    • Number of Blades: (2) 0.5 x 4 in; updraft
    • Blade Type: Long-lasting, high-tempered updraft steel blades for lift and mulching action
    • Blade Carrier: 1” GRD-50 bar. All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation

Got it! Here is the comparison chart with rows and columns swapped:

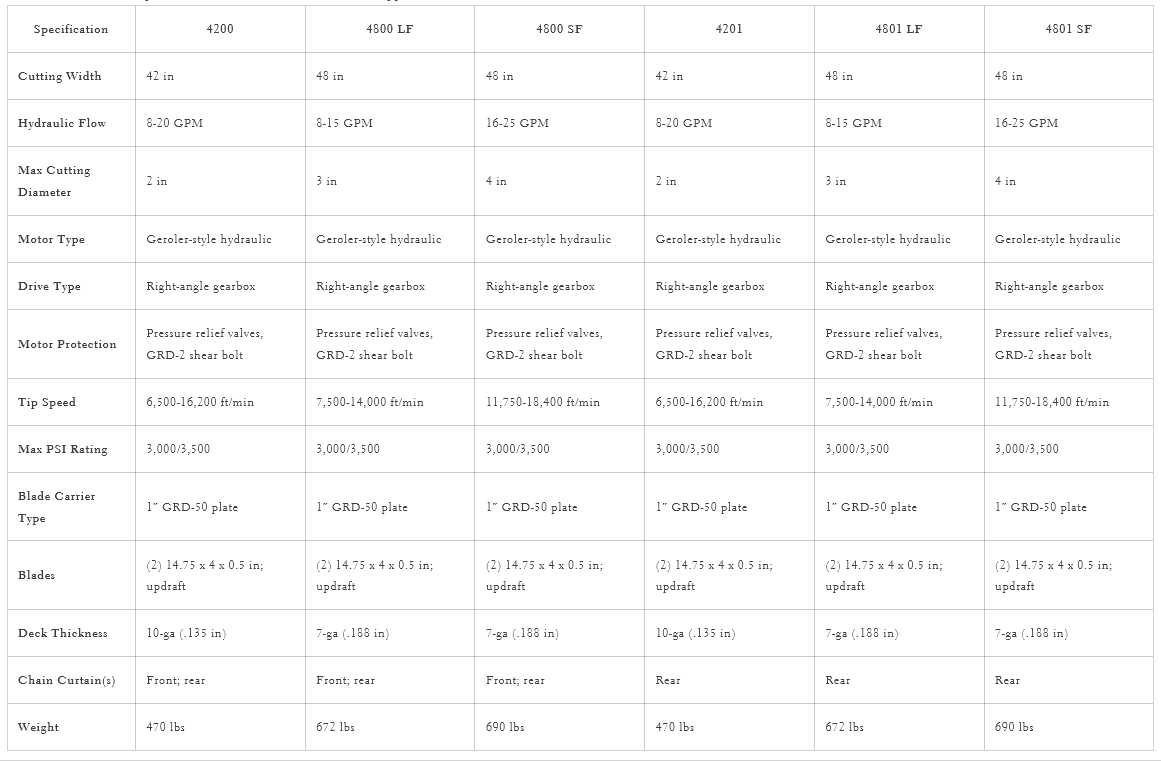

Specification 4200 4800 LF 4800 SF 4201 4801 LF 4801 SF
Cutting Width 42 in 48 in 48 in 42 in 48 in 48 in
Hydraulic Flow 8-20 GPM 8-15 GPM 16-25 GPM 8-20 GPM 8-15 GPM 16-25 GPM
Max Cutting Diameter 2 in 3 in 4 in 2 in 3 in 4 in
Motor Type Geroler-style hydraulic Geroler-style hydraulic Geroler-style hydraulic Geroler-style hydraulic Geroler-style hydraulic Geroler-style hydraulic
Drive Type Right-angle gearbox Right-angle gearbox Right-angle gearbox Right-angle gearbox Right-angle gearbox Right-angle gearbox
Motor Protection Pressure relief valves, GRD-2 shear bolt Pressure relief valves, GRD-2 shear bolt Pressure relief valves, GRD-2 shear bolt Pressure relief valves, GRD-2 shear bolt Pressure relief valves, GRD-2 shear bolt Pressure relief valves, GRD-2 shear bolt
Tip Speed 6,500-16,200 ft/min 7,500-14,000 ft/min 11,750-18,400 ft/min 6,500-16,200 ft/min 7,500-14,000 ft/min 11,750-18,400 ft/min
Max PSI Rating 3,000/3,500 3,000/3,500 3,000/3,500 3,000/3,500 3,000/3,500 3,000/3,500
Blade Carrier Type 1” GRD-50 plate 1” GRD-50 plate 1” GRD-50 plate 1” GRD-50 plate 1” GRD-50 plate 1” GRD-50 plate
Blades (2) 14.75 x 4 x 0.5 in; updraft (2) 14.75 x 4 x 0.5 in; updraft (2) 14.75 x 4 x 0.5 in; updraft (2) 14.75 x 4 x 0.5 in; updraft (2) 14.75 x 4 x 0.5 in; updraft (2) 14.75 x 4 x 0.5 in; updraft
Deck Thickness 10-ga (.135 in) 7-ga (.188 in) 7-ga (.188 in) 10-ga (.135 in) 7-ga (.188 in) 7-ga (.188 in)
Chain Curtain(s) Front; rear Front; rear Front; rear Rear Rear Rear
Weight 470 lbs 672 lbs 690 lbs 470 lbs 672 lbs 690 lbs
