- 3,000/3,500 PSI: The equipment is designed to handle a continuous pressure of 3,000 PSI and an intermittent pressure of 3,500 PSI, ensuring it can withstand high-pressure conditions during operation.
- 1/4 in: The deck is constructed with 1/4-inch thick steel, providing robustness and durability to withstand tough cutting tasks.
- Machined Steel: The coupler between the motor and gearbox is made of machined steel, ensuring a strong and reliable connection that enhances the longevity and performance of the equipment.
- Pressure Relief Valves: Added pressure relief valves safeguard the motor from pressure spikes and allow for a faster shutdown, protecting the motor from potential damage.
- GRD-2 Shear Bolt: Protects the gearbox and driveline from damage by absorbing shocks and overloads during operation.
- 5/16" GRD-50 Spun-Formed Pan: The blade carrier is made from 5/16-inch GRD-50 spun-formed pan, providing a strong and balanced platform for the blades. All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation, reducing vibrations and enhancing performance.
- Counterclockwise: The blades rotate counterclockwise, which is a standard direction for efficient cutting and mulching.
- (2) 0.5 x 4 in; Updraft: The equipment is equipped with two blades, each measuring 0.5 inches by 4 inches. These updraft blades are designed to lift and mulch the material effectively.
- High-Tempered Updraft Steel Blades: The blades are made from high-tempered updraft steel, which ensures durability and efficient cutting. The updraft design aids in lifting the material for better mulching action.
- 12-ga Hinged, Motor Guard: The hood is made from 12-gauge steel and is hinged for easy access and maintenance. It also includes a motor guard to protect the motor from debris and damage during use.
Brush Wolf Open Front / Heavy-Duty Brush Cutter Series | Cutting Width 66", 72" & 78" inches | Hydraulic Flow Range 10-40 GPM | For Skid Steer
Brush Wolf Open Front / Heavy-Duty Brush Cutter Series | Cutting Width 66", 72" & 78" inches | Hydraulic Flow Range 10-40 GPM | For Skid Steer
Regular price
$8,950.70
Regular price
Sale price
$8,950.70
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Brush Wolf Open Front / Heavy-Duty Brush Cutter Series | Cutting Width 66", 72" & 78" inches | Hydraulic Flow Range 10-40 GPM | For Skid Steer
Description
Let’s turn grueling work into a walk in the park. Our open-front cutters thrive in harsh environments thanks to the exposed high-tempered steel blades that blast through brush up to 5″ thick. The unique open front design lets you selectively cut vegetation before deck contact and then discharge the debris quickly to accelerate your job completions. The field-proven combination of the easy-to-maintain hydraulic motor and 65HP right-angle gearbox speeds up the rotation to achieve the highest torque possible while maintaining a proven tip speed. These cutters will make quick work of your tough clearing jobs.
Key Features
| Image | Description |
|---|---|
 |
Long-Lasting BladesThe Brush Wolf industrial-strength drop-down blades are heat treated, have a milled edge, and are Supertuf coated to stand the test of time. |
 |
Premium Hydraulic MotorWe paired the top-of-the-line Eaton® Geroler-style hydraulic motor with the most dependable right-angle Omni® gearbox to achieve maximum torque and ideal blade tip speed. This easy-to-maintain and tried-and-true pairing will survive the years of abuse it will see in the field. |
 |
Motor ProtectionPressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown. Grade-2 Shear Bolt: protects the gearbox and driveline from damage. |
 |
Gearbox Seal ProtectionA welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox. |
 |
Ultra-Rugged Deck FrameHere’s why our brush cutters last for life. We build each deck frame from a single piece of formed 1/4" thick heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength. |
 |
Seam WeldingUnlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure. |
 |
Reinforced GussetsWe went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports. |
 |
Powder-Coated ToughProtected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter. |
 |
Push BarLet’s help “feed” the cutter with a welded push bar to knock down taller vegetation and trees and enhance the cutting capabilities. |
 |
Slotted Front ShieldSlotted front shield provides increased visibility while protecting the operator from debris. |
 |
Blade Access CoverEasy access to the blade bolts for quick blade replacement. |
 |
Plug + Play ReadyEverything is ready to go upon delivery with the included quick-connect couplers, 90” hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination. |
 |
Chain CurtainChains hanging from the rear of the cutter prevent debris from being discharged. |
 |
Hood12-gauge steel motor guard protects from damaging impacts. Hinged for easy motor access. |
 |
Pilot GuardWe took safety to the next level by welding a reinforced plate “pilot guard” to the underside of the cutter deck to protect you from flying objects. |
 |
Choose Your ColorBlack, yellow, or make it your own custom color. |

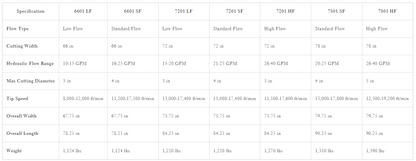

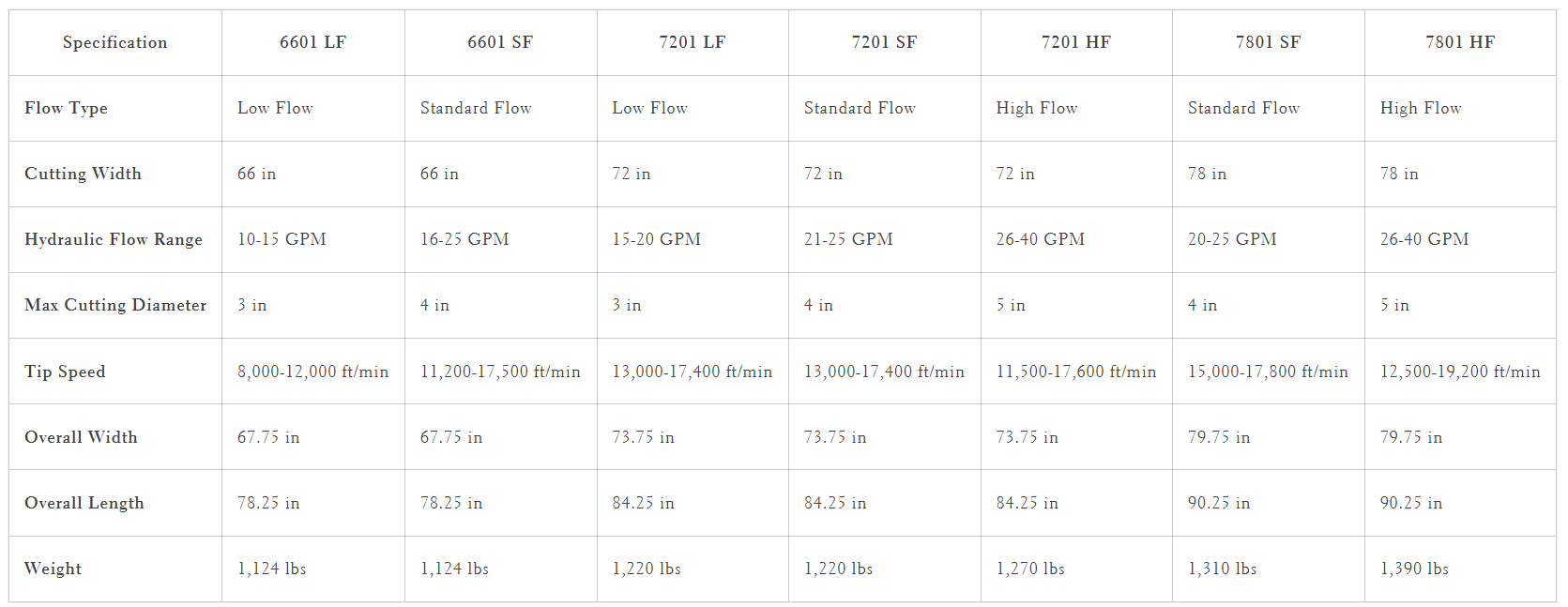

Detailed Specifications
| Specification | 6601 LF | 6601 SF | 7201 LF | 7201 SF | 7201 HF | 7801 SF | 7801 HF |
|---|---|---|---|---|---|---|---|
| Flow Type | Low Flow | Standard Flow | Low Flow | Standard Flow | High Flow | Standard Flow | High Flow |
| Cutting Width | 66 in | 66 in | 72 in | 72 in | 72 in | 78 in | 78 in |
| Hydraulic Flow Range | 10-15 GPM | 16-25 GPM | 15-20 GPM | 21-25 GPM | 26-40 GPM | 20-25 GPM | 26-40 GPM |
| Max Cutting Diameter | 3 in | 4 in | 3 in | 4 in | 5 in | 4 in | 5 in |
| Tip Speed | 8,000-12,000 ft/min | 11,200-17,500 ft/min | 13,000-17,400 ft/min | 13,000-17,400 ft/min | 11,500-17,600 ft/min | 15,000-17,800 ft/min | 12,500-19,200 ft/min |
| Overall Width | 67.75 in | 67.75 in | 73.75 in | 73.75 in | 73.75 in | 79.75 in | 79.75 in |
| Overall Length | 78.25 in | 78.25 in | 84.25 in | 84.25 in | 84.25 in | 90.25 in | 90.25 in |
| Weight | 1,124 lbs | 1,124 lbs | 1,220 lbs | 1,220 lbs | 1,270 lbs | 1,310 lbs | 1,390 lbs |
