Product Description
Brushfox Extreme HD Brush Grapple | EXTHD Series | 37"–84" Width | 8–10+ GPM | For Skid Steer
DESCRIPTION

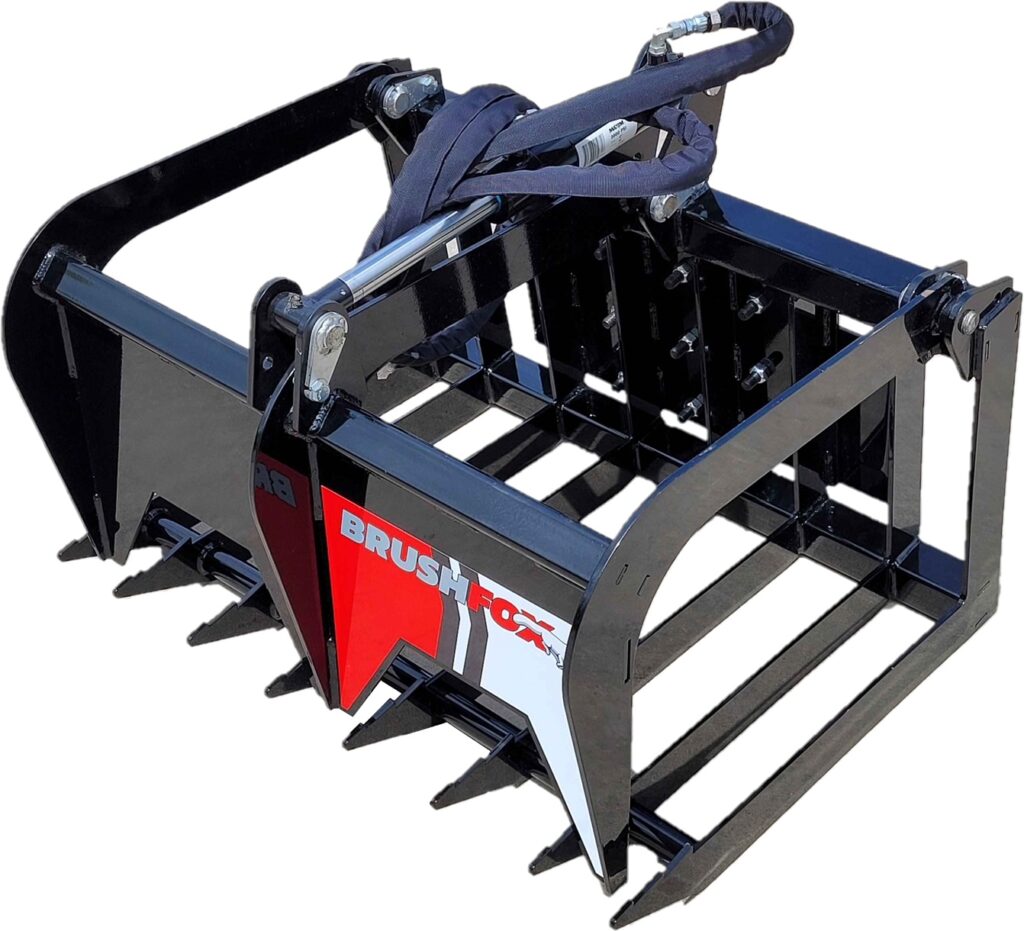

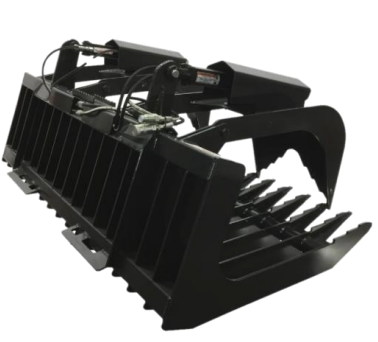

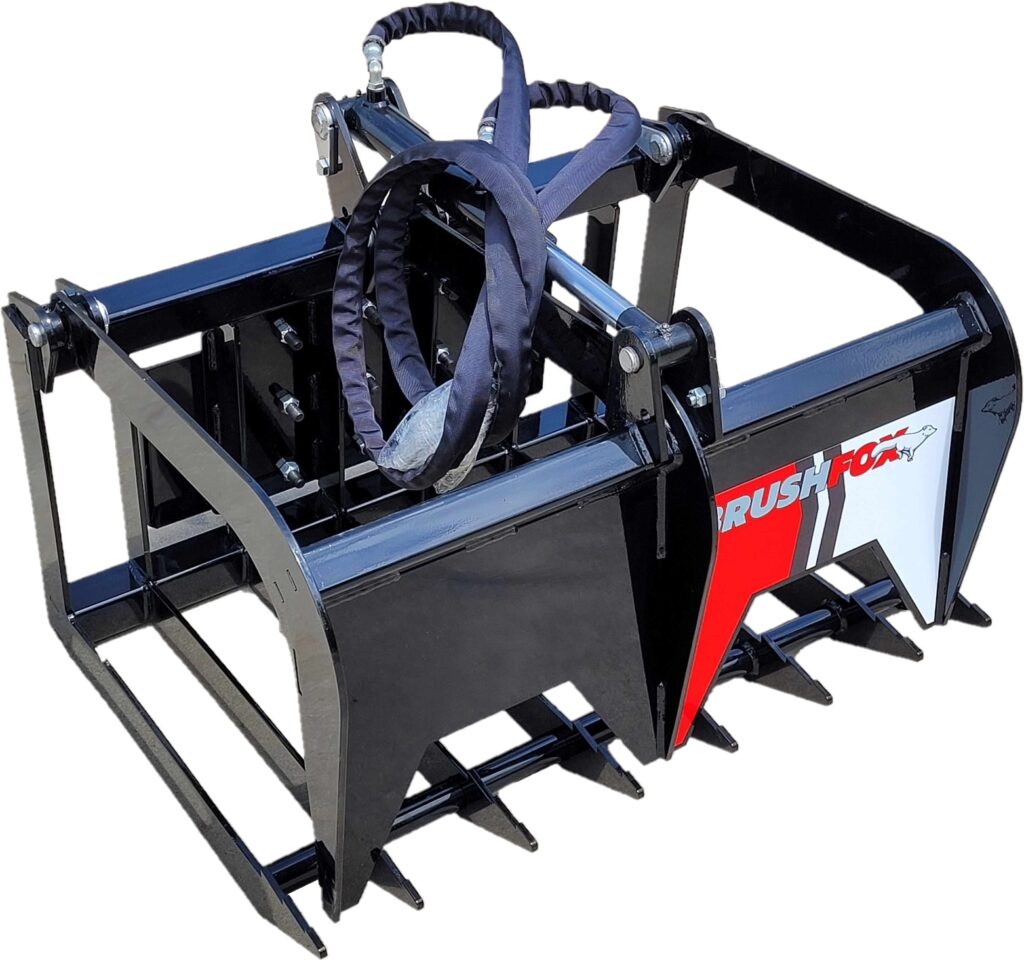

The Brushfox Extreme HD Brush Grapple Series (EXTHD36, EXTHD48, EXTHD72, EXTHD84) is built for land clearing, forestry, and heavy-duty material handling. Crafted from 50,000 psi high-strength steel, these grapples deliver unmatched durability and performance. With widths ranging from 37" to 84", they handle everything from brush and logs to rocks and debris. Featuring independent hydraulic cylinders that automatically adjust to uneven loads, gusseted tines for added strength, and a rock lip design to prevent material roll-out, these attachments are engineered for efficiency. The skid steer quick attach system ensures fast installation, while precision engineering guarantees reliability under demanding conditions. Whether you’re working in construction, agriculture, or forestry, Brushfox grapples provide the power, versatility, and rugged performance professionals need.
Key Features
- Heavy-Duty 50,000 psi Steel Extreme durability for demanding land clearing and material handling.
- Independent Hydraulic Cylinders Automatically adjust to uneven loads for secure clamping.
- Skid Steer Quick Attach Universal connection for fast, hassle-free installation.
- Multiple Width Options Choose from 37", 49", 72", or 84" to match your skid steer capacity.
- Maximum Grapple Opening 32" Handles large brush, logs, and debris with ease.
- Gusseted Tines Reinforcement Prevents bending and increases load capacity.
- Rock Lip Retention Keeps materials secure, reducing spillage and improving efficiency.
- Extra Heavy-Duty Frame 3"x3" rear tubing and 2.5" forward tube for maximum strength.
- Thick Grapple Tines 1/2" grapple tines with 3/8" webbing for superior grip.
- Outer Bucket Tines 1/2" Thick Reinforced ends for high-stress applications.
- Optimized Hydraulic Flow Operates with standard skid steer hydraulics (≈8–10+ GPM).
- Versatile Applications Forestry, construction, agriculture, and land clearing projects.
- Operator-Friendly Design Easy to control, reliable under pressure, and built for professionals.
Detailed Specifications
| Specification | EXTHD36 | EXTHD48 |
|---|---|---|
| Width | 37" | 49" |
| Height | 27" | 27" |
| Depth | 35" | 35" |
| Weight | 273 lbs | 306 lbs |
| Maximum Grapple Opening | 32" | 32" |
| Steel Strength | 50,000 psi | 50,000 psi |
| Hydraulic Cylinders | 2"x8" Independent | 2"x8" Independent |
| Hydraulic Flow Requirement | ≈8–10+ GPM | ≈8–10+ GPM |
| Bucket Tine Thickness | 3/8" (outer 1/2") | 3/8" (outer 1/2") |
| Tine Height | 4" | 4" |
| Frame Tubing | 3"x3" rear, 2.5" forward | 3"x3" rear, 2.5" forward |
| Attachment Type | Skid Steer Quick Attach | Skid Steer Quick Attach |
| Applications | Brush, logs, debris | Brush, logs, debris |
| Specification | EXTHD72 | EXTHD84 |
|---|---|---|
| Width | 72" | 84" |
| Height | 30" | 30" |
| Depth | 38" | 38" |
| Weight | 875 lbs | 975 lbs |
| Maximum Grapple Opening | 32" | 32" |
| Steel Strength | 50,000 psi | 50,000 psi |
| Hydraulic Cylinders | 2"x8" Independent | 2"x8" Independent |
| Hydraulic Flow Requirement | ≈8–10+ GPM | ≈8–10+ GPM |
| Bucket Tine Thickness | 3/8" (outer 1/2") | 3/8" (outer 1/2") |
| Tine Height | 4" | 4" |
| Frame Tubing | 3"x3" rear, 2.5" forward | 3"x3" rear, 2.5" forward |
| Attachment Type | Skid Steer Quick Attach | Skid Steer Quick Attach |
| Applications | Forestry, heavy debris | Forestry, heavy debris |
