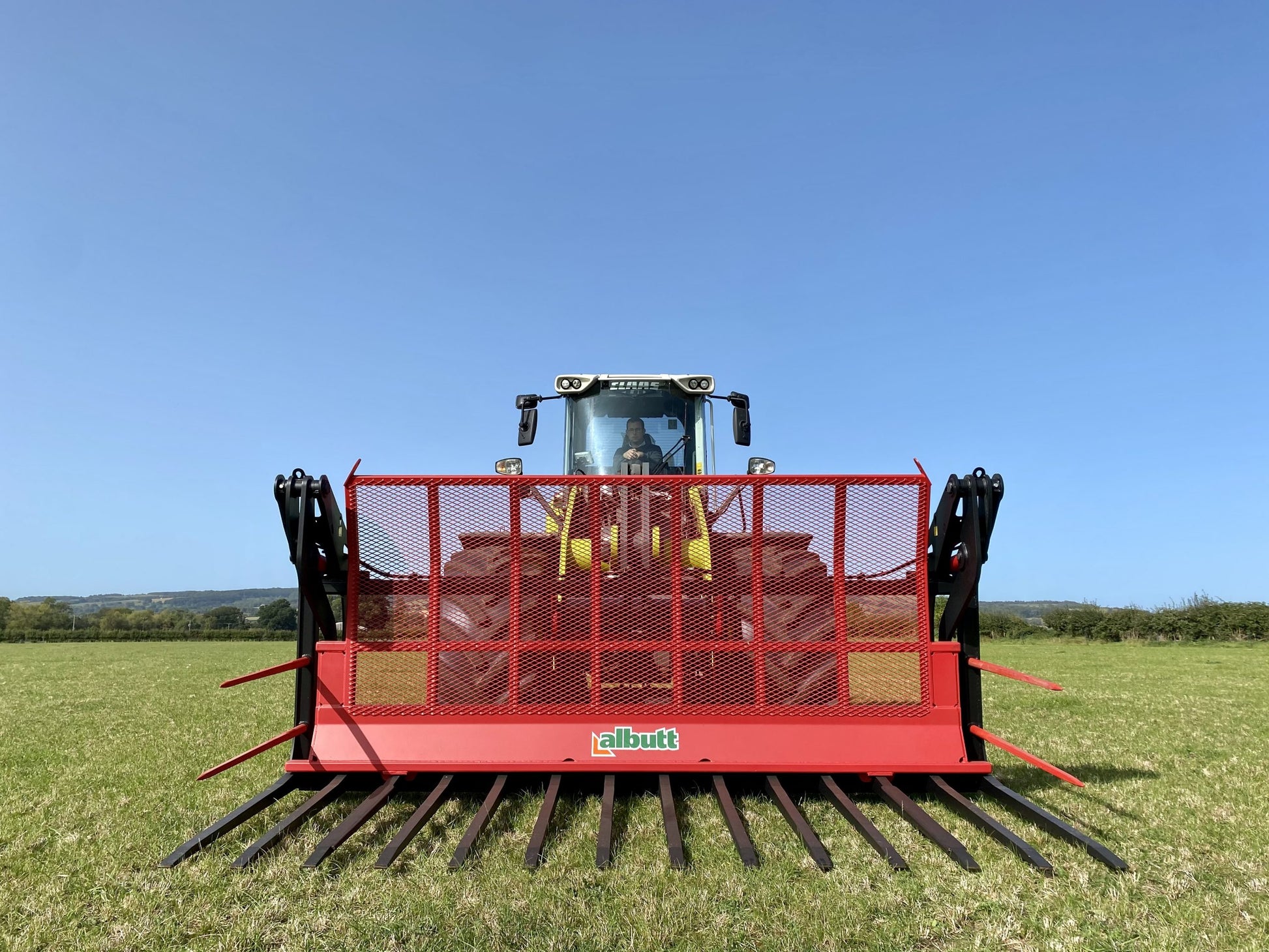

Buckrakes 14' Ft HD Hardox Buckrake | Capacity 8.77 Cubic Meter | Weight 2304 Kgs | For Tractors
Description

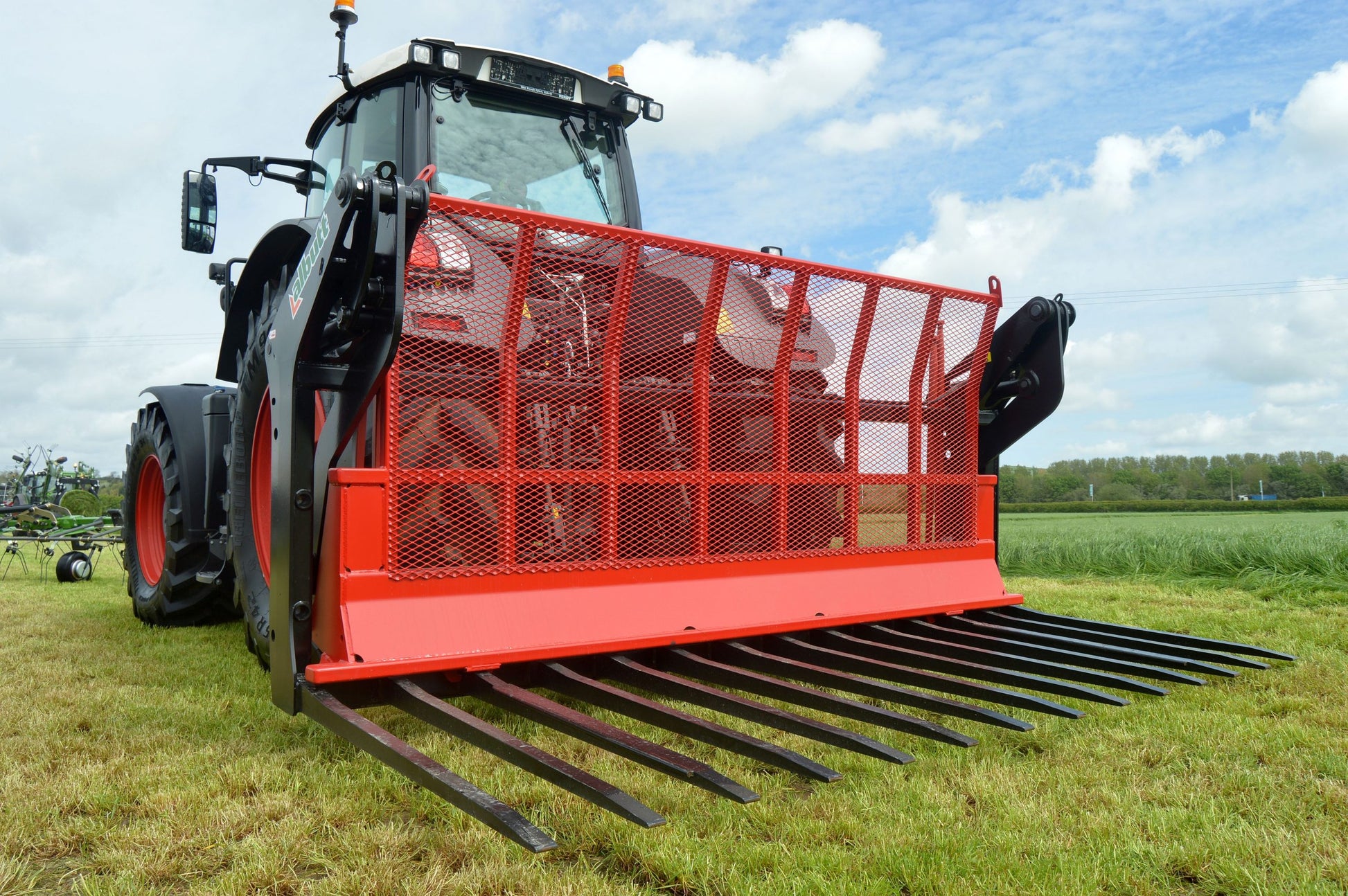

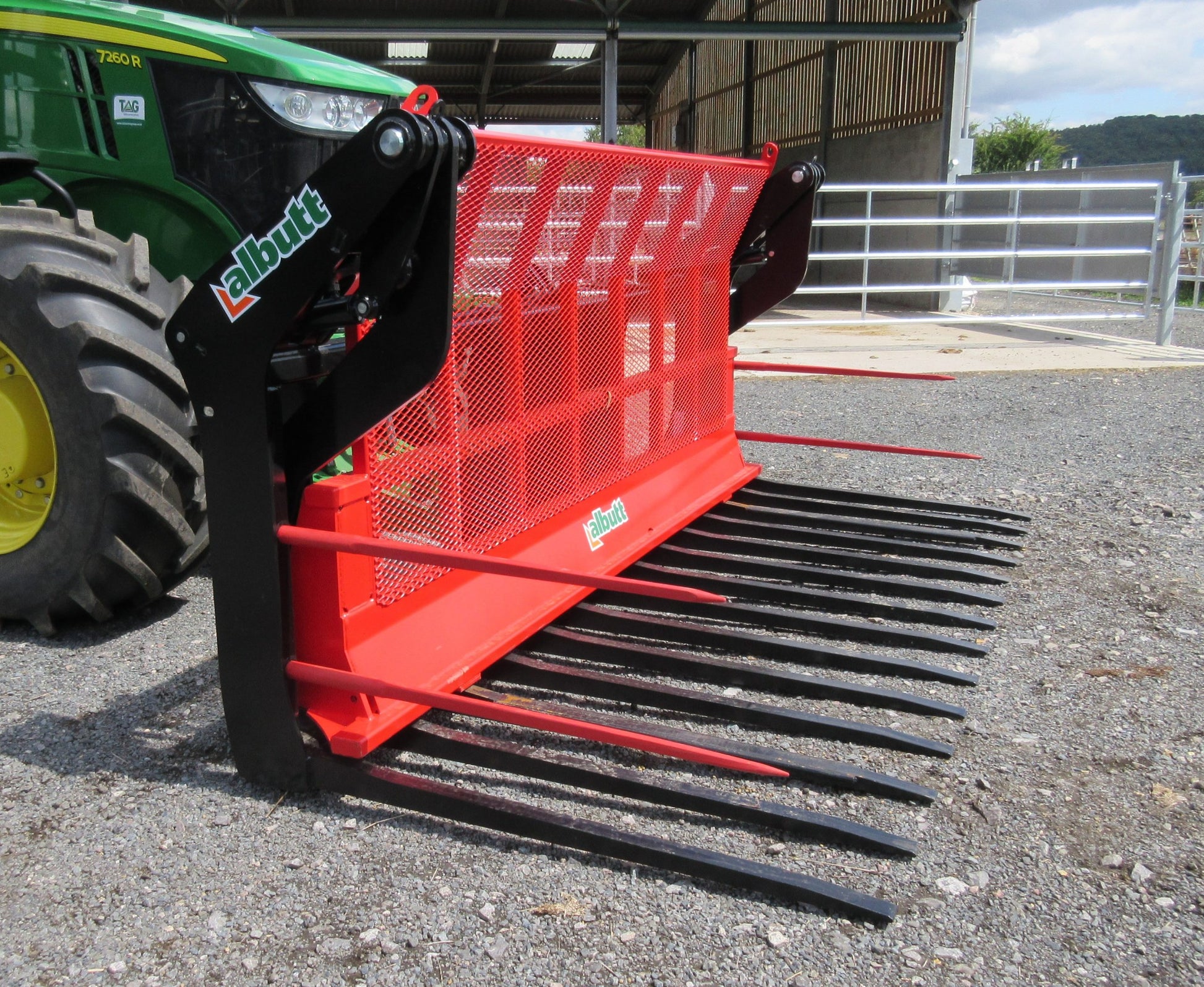

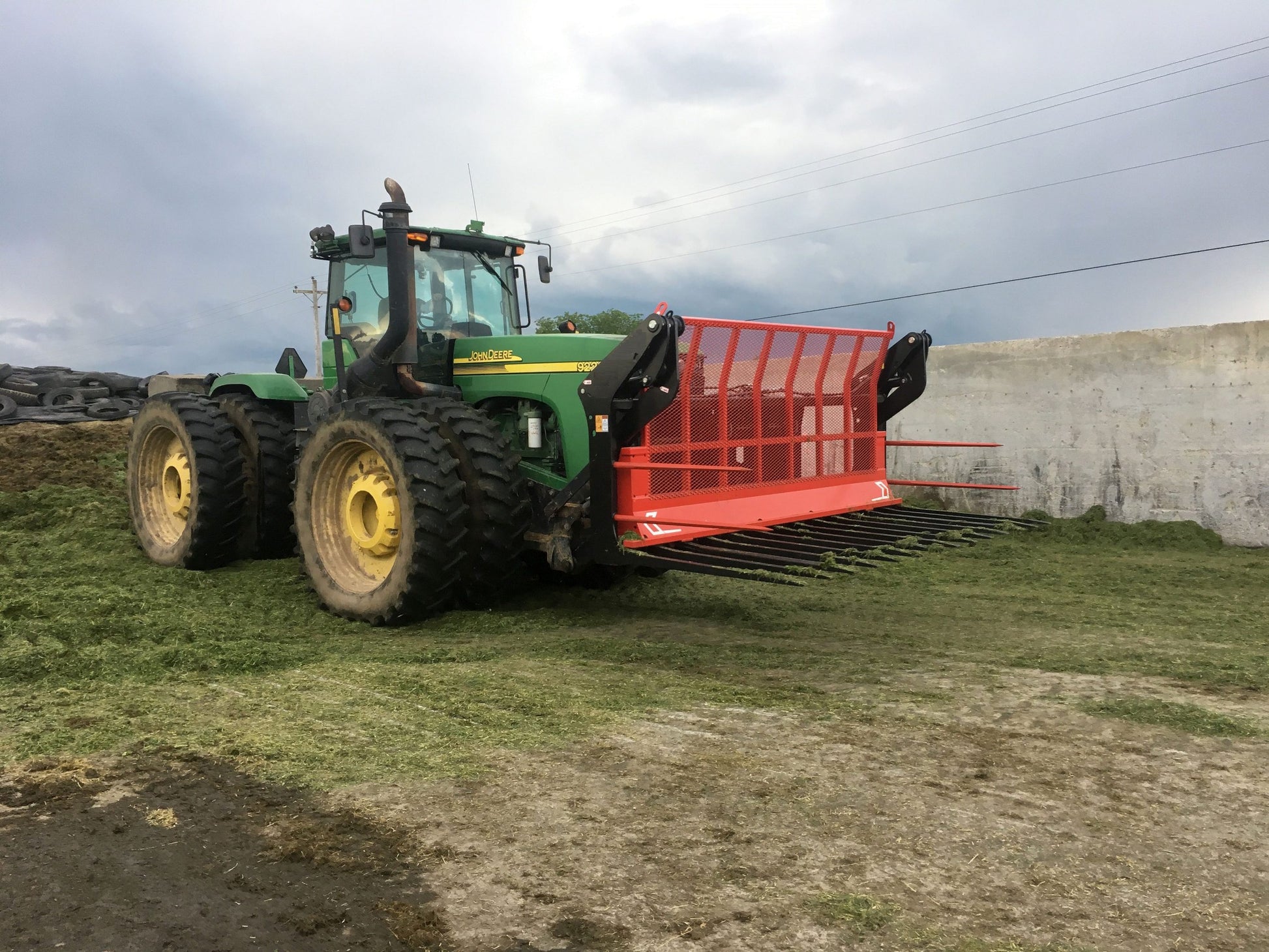

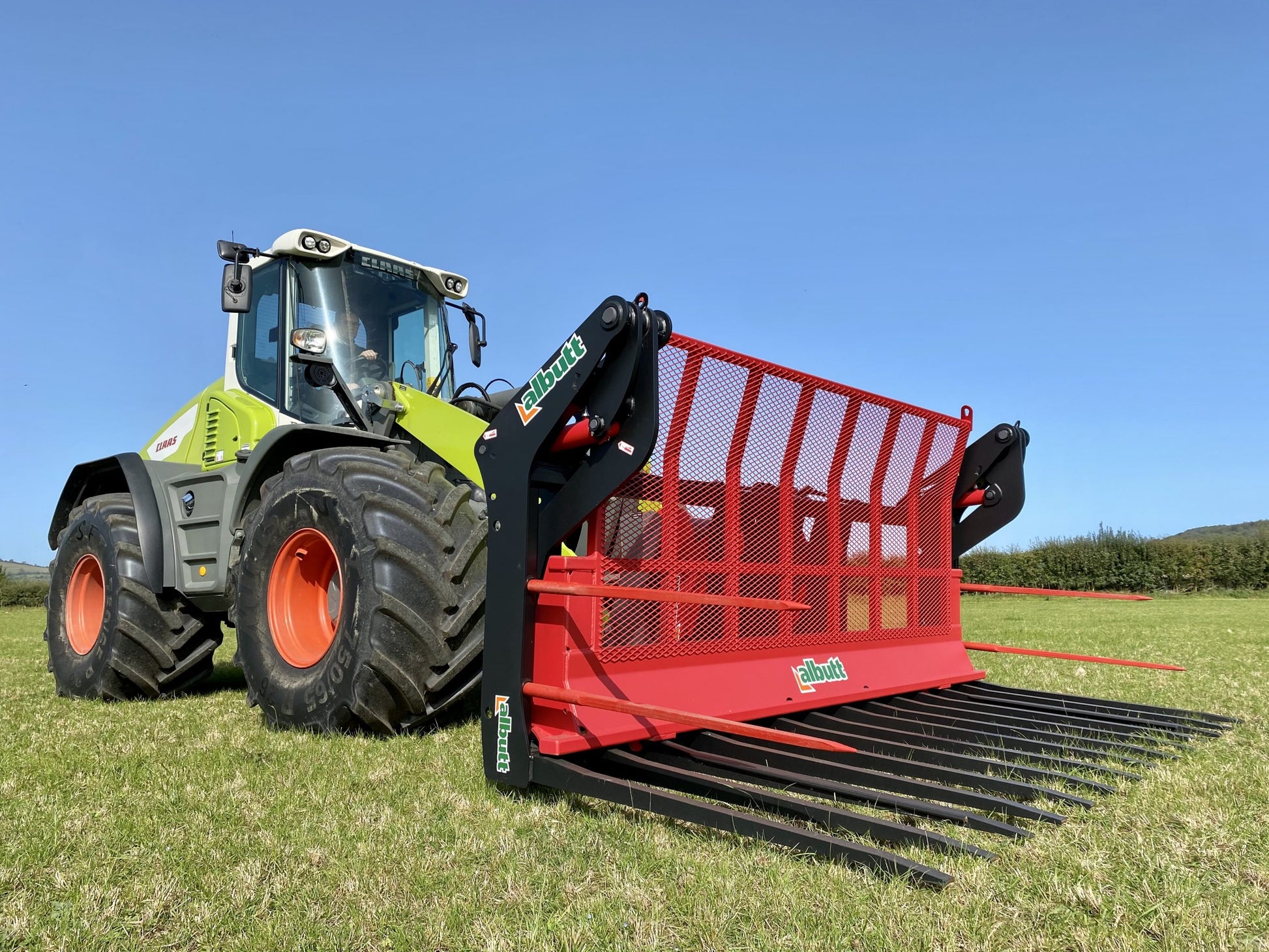

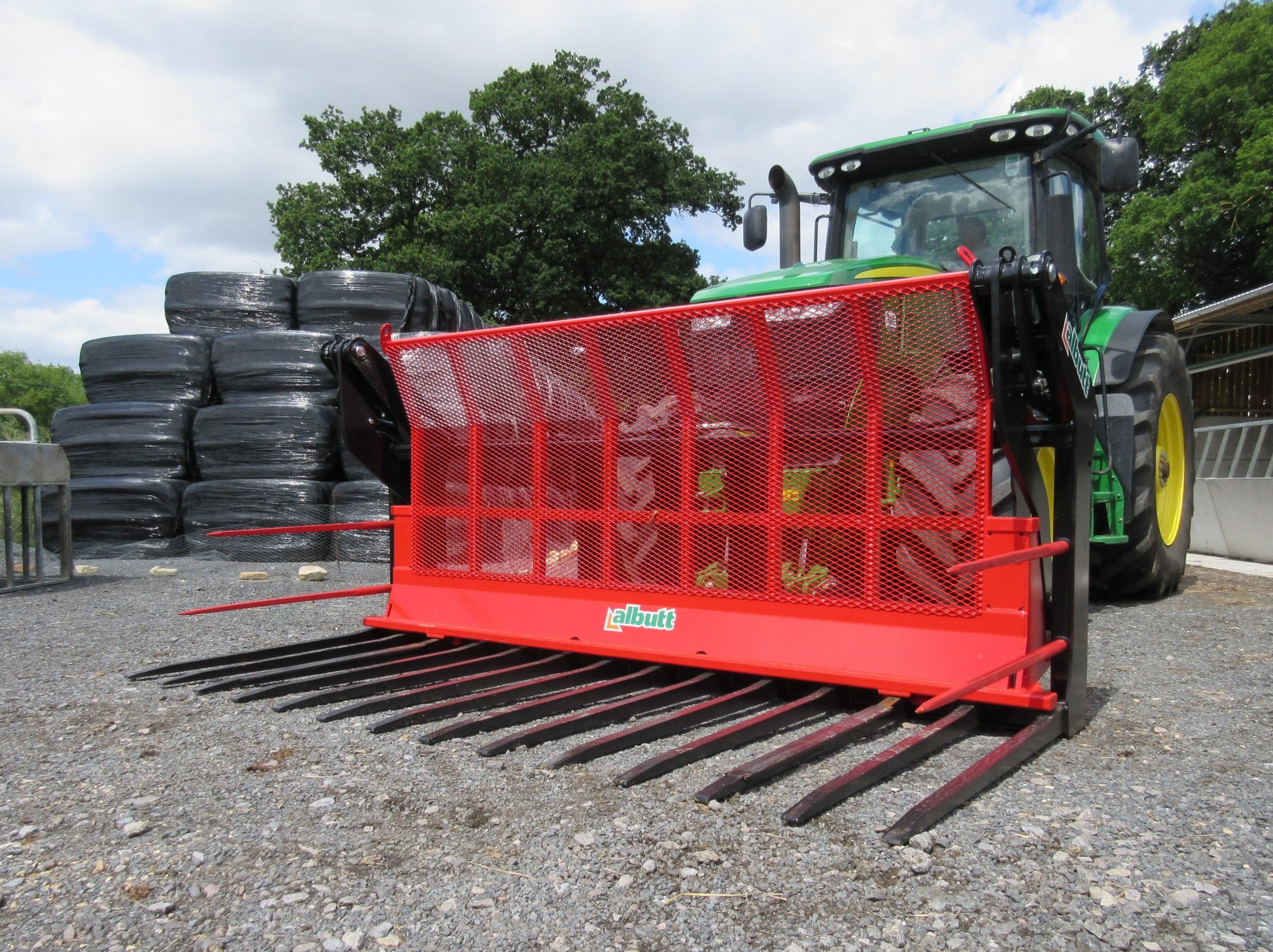

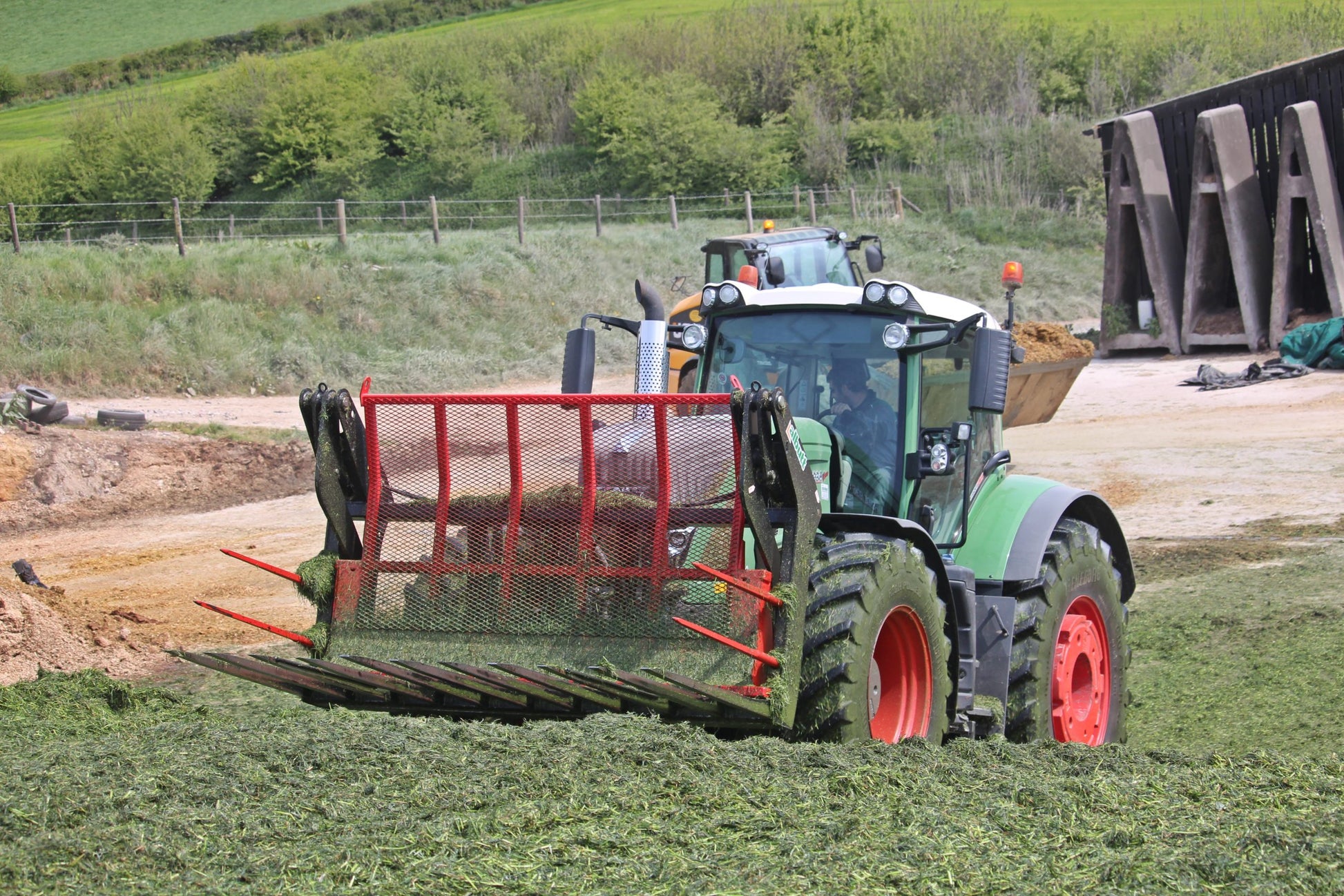

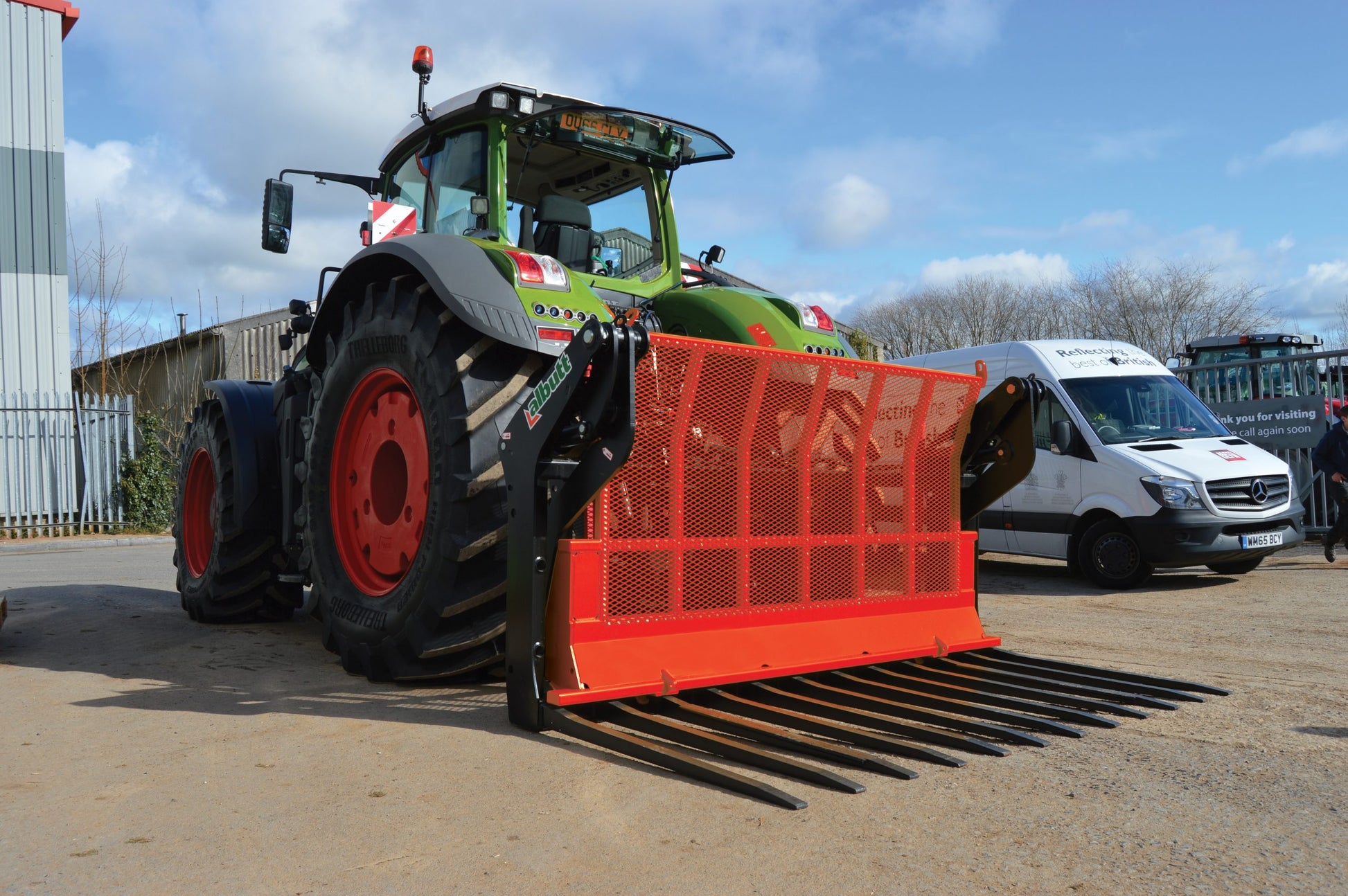

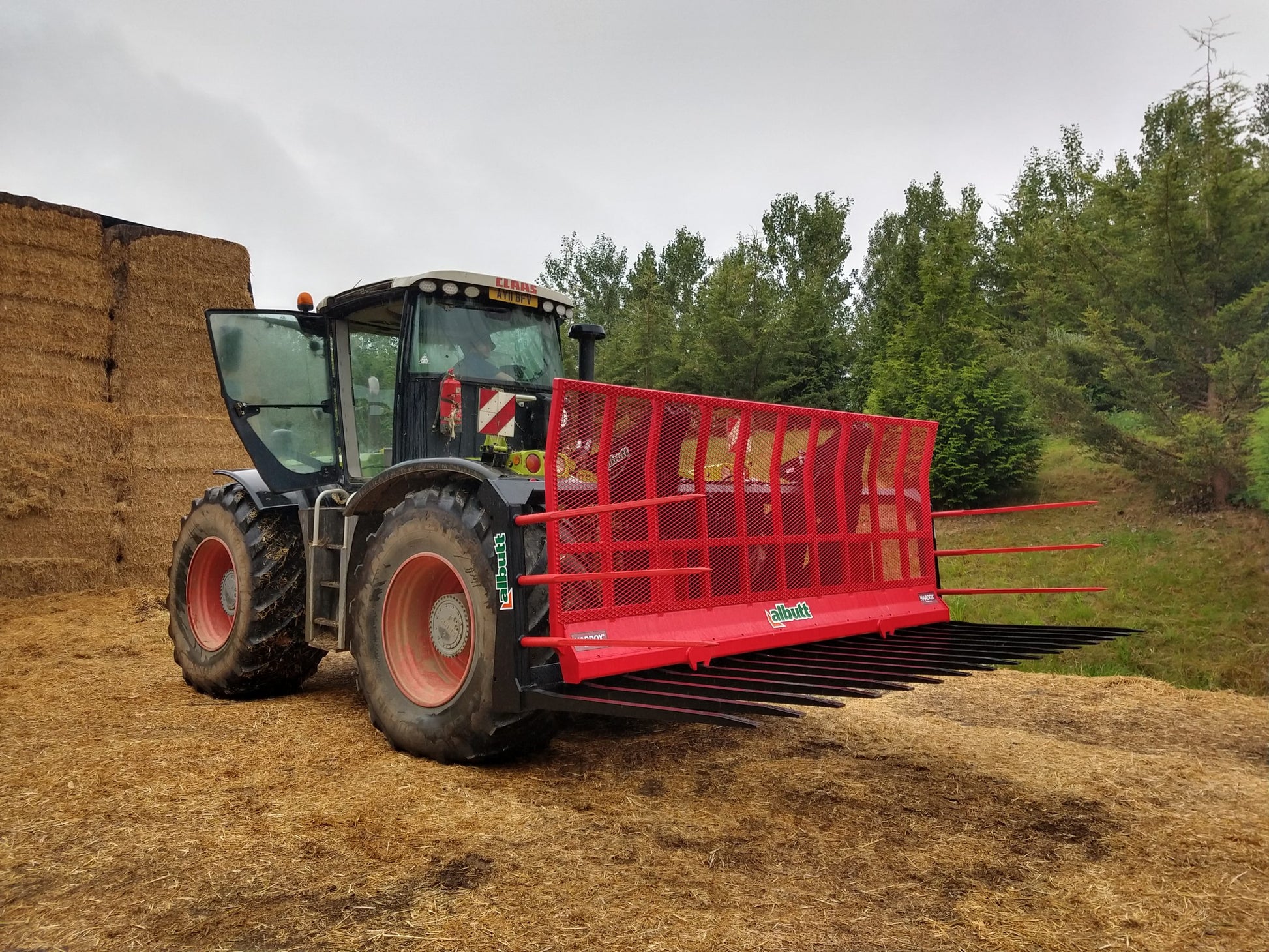

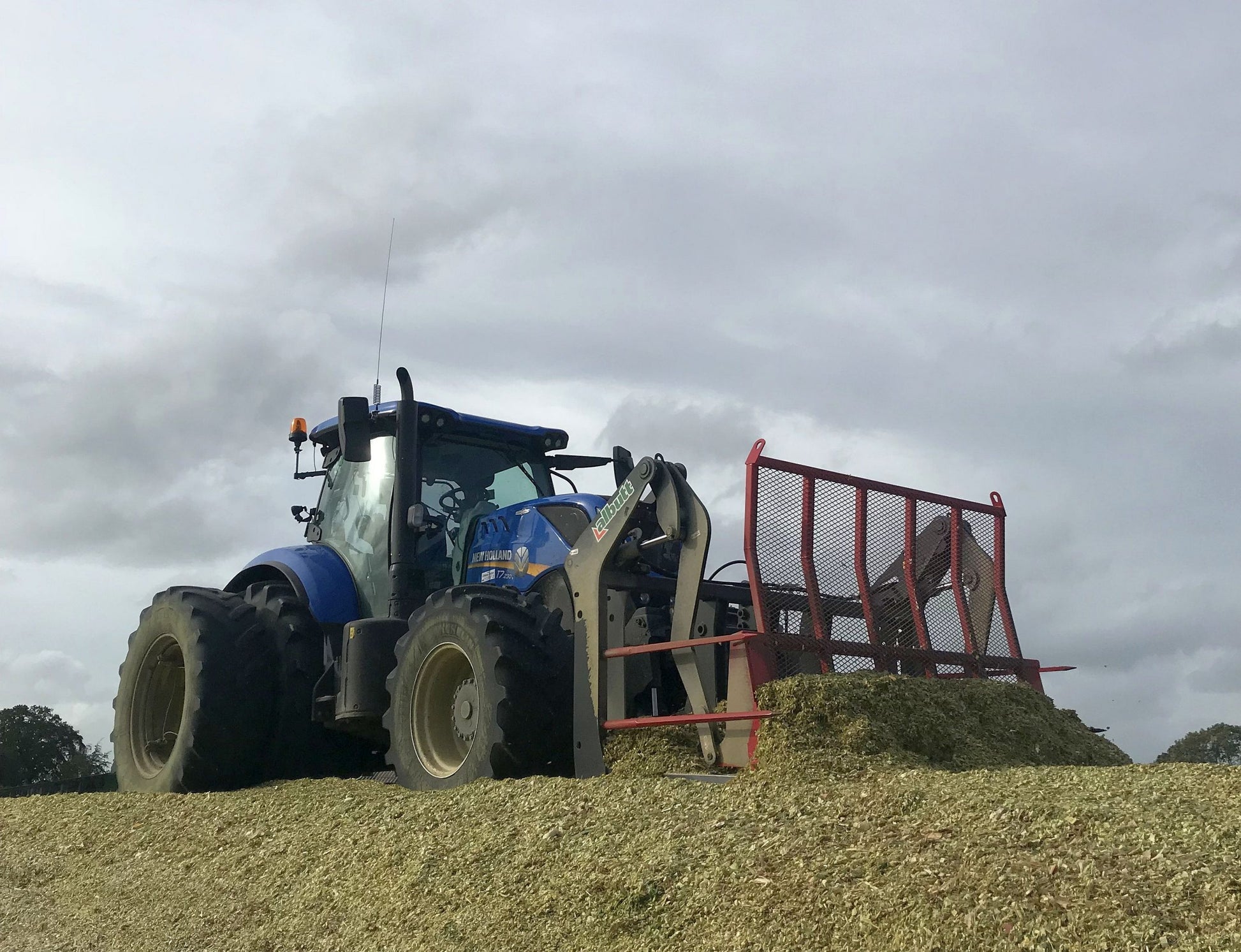

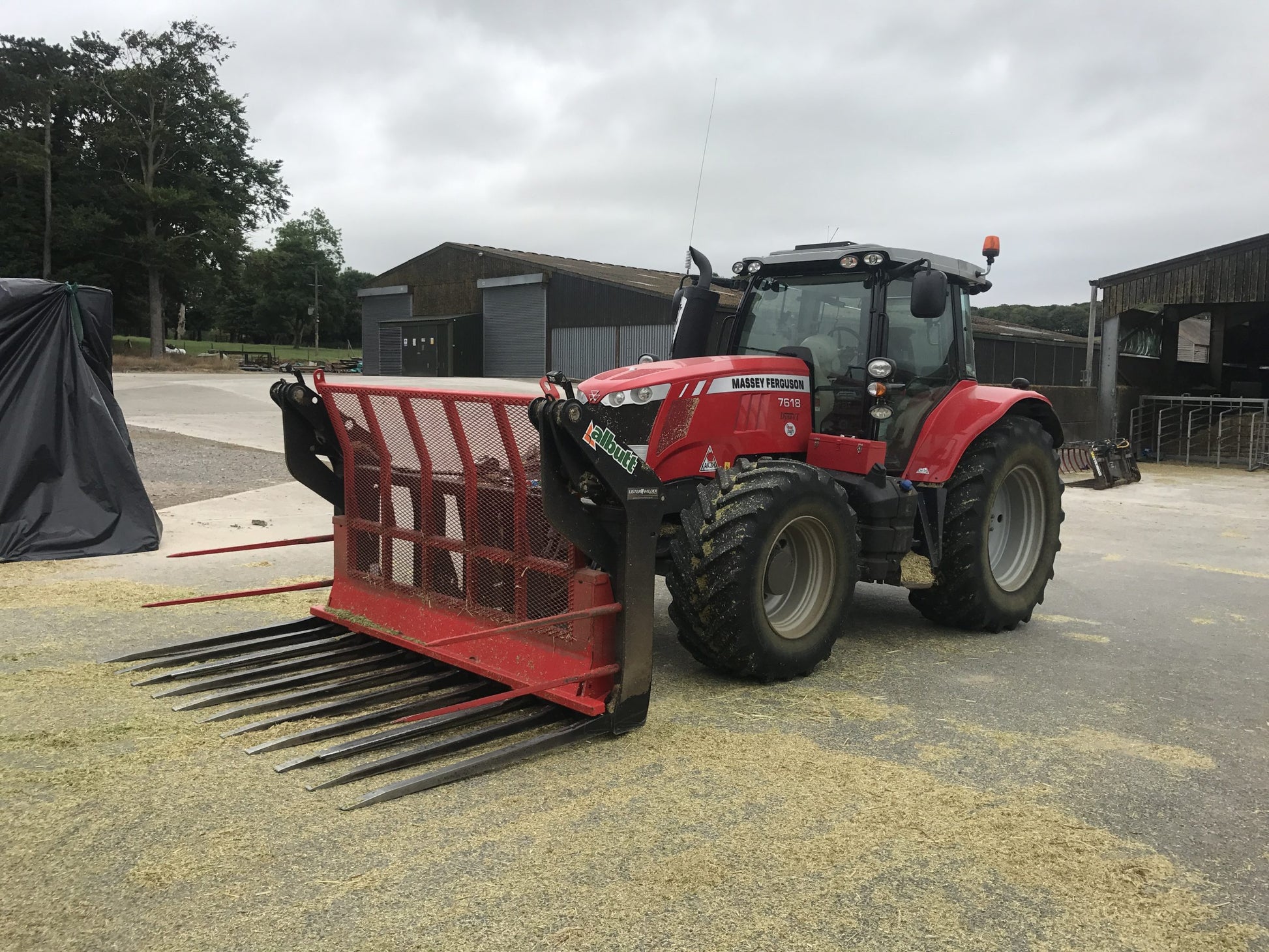

The Albutt range of Heavy Duty Buck Rakes are designed for use with high horsepower tractors or loading shovels. Tractor horsepower requirement is 160hp rear linkage and 180hp front linkage. Front linkage rating requirement is 5 tonnes. The range is renowned for being the global market leader with many repeat orders from Australia, New Zealand, USA and Canada. An unrivalled specification includes a 200 x 100mm bottom box tine holder, high grade mesh gate and high capacity hydraulic cylinders. For working the clamp at night, ask about our high visibility Working Light kit
Key Features
14' - 16' Wide Models
- Base Tines: 1650mm genuine Hardox.
- Height: 1733mm tall.
- Side Tines: Triple side tines.
- Tine Holder: 200 x 100mm.
- High Specification: Recognised global market leader with highest specification and capacities.
- Flow Divider Valve: High flow divider valve to prevent gate twists on uneven loads.
- Ram Bore Size: 90mm.
- Pivot Pins: 60mm diameter main pivot pins.

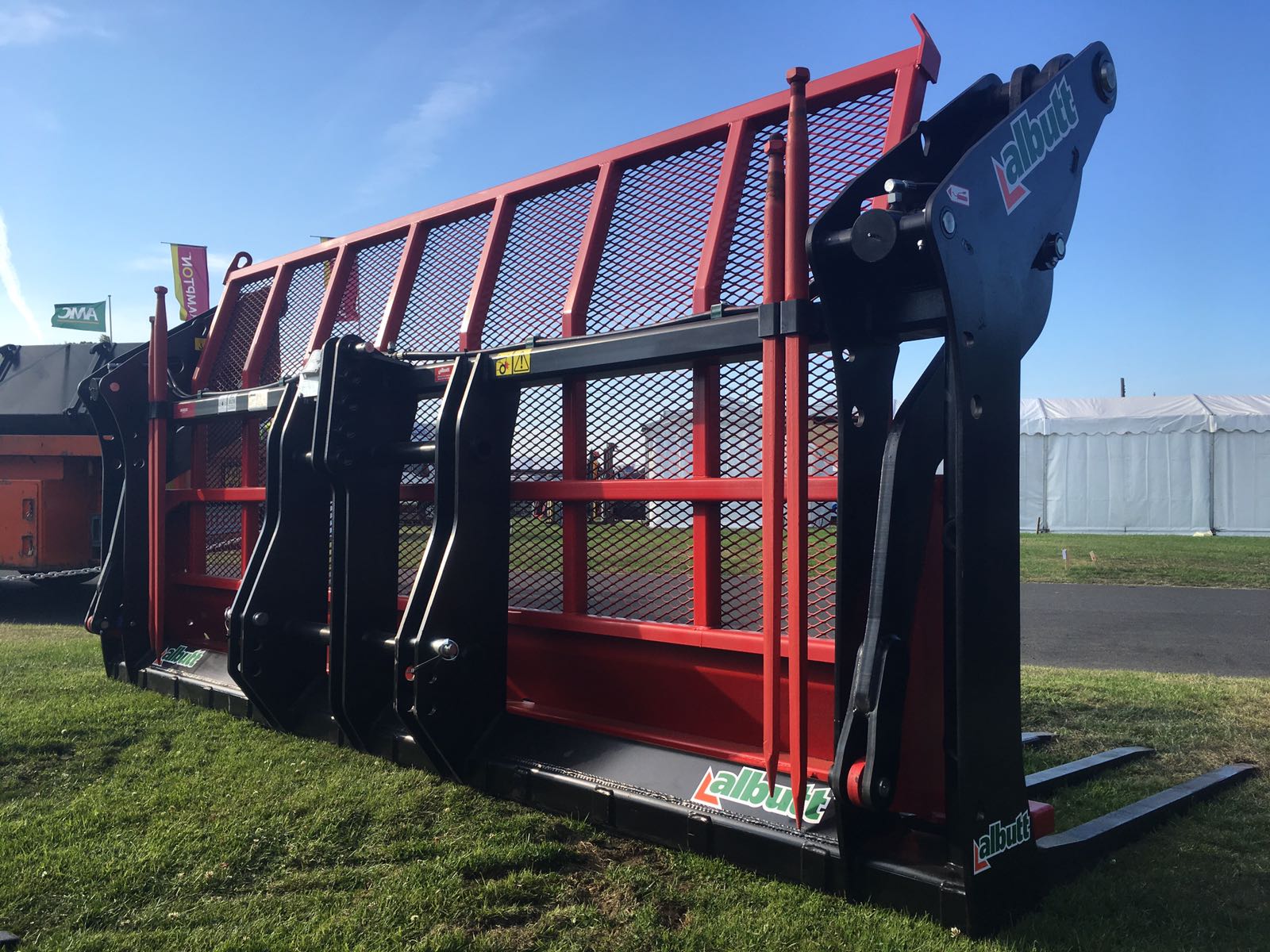

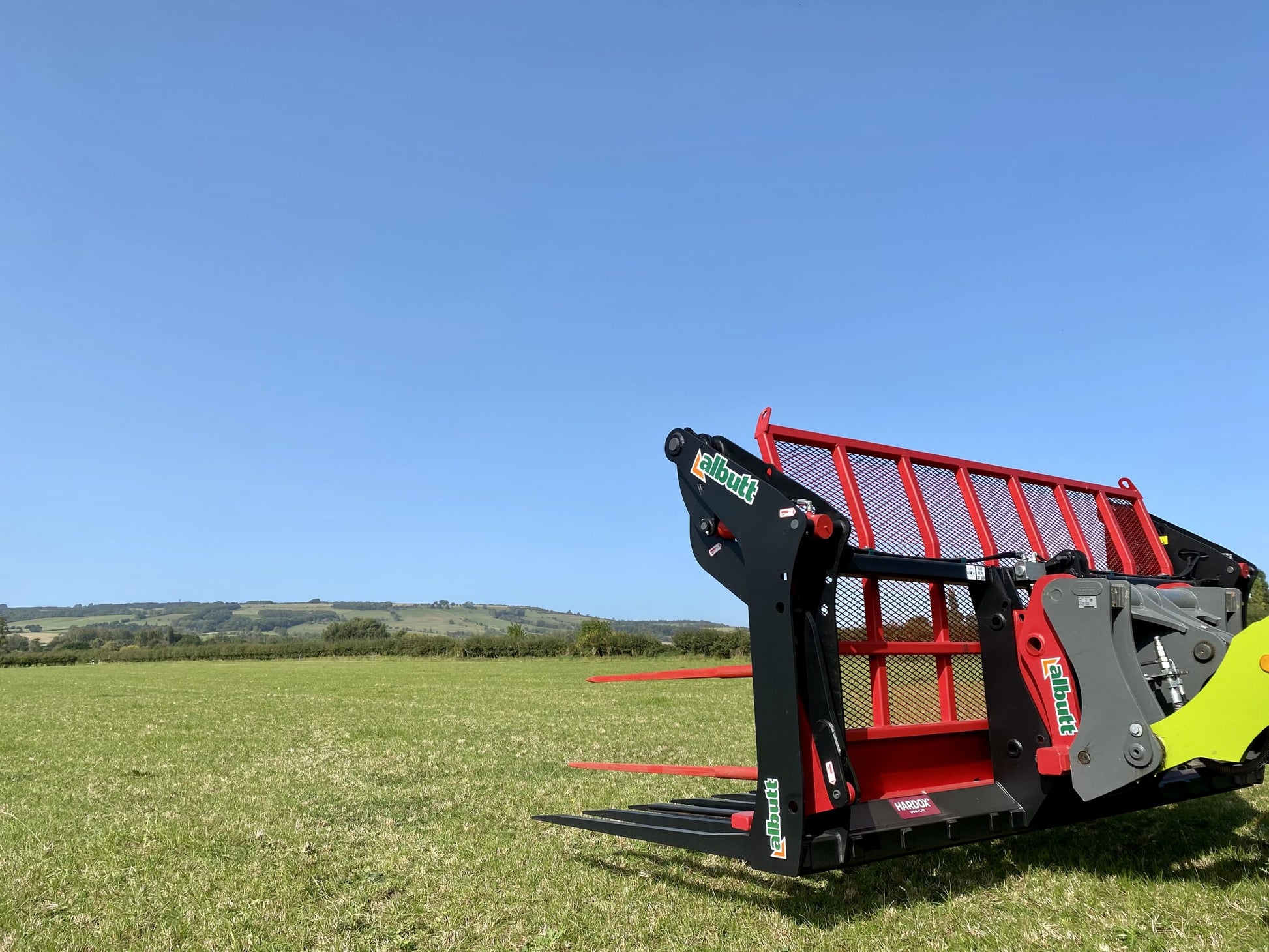

- Linkage: CAT4 linkage as standard with options including Wheeled Loader Brackets.
- Prevent Silage Build-Up: Angled tine holder top.
- Spill Frame: Leant forward spill frame on gate.
- Mesh Gate: High grade mesh gate for strength and great visibility.
- Gate Mounting: Double profile gate mounting to prevent arms bending.
- Gate Movement: Moves in rollers on tines to prevent underside wear and scrape.
Detailed Specifications
| Model | Width | Tines | Capacity | Weight |
|---|---|---|---|---|
| B834PPHX | 14′ | 16 | 8.77 m³ | 2304 kgs |
