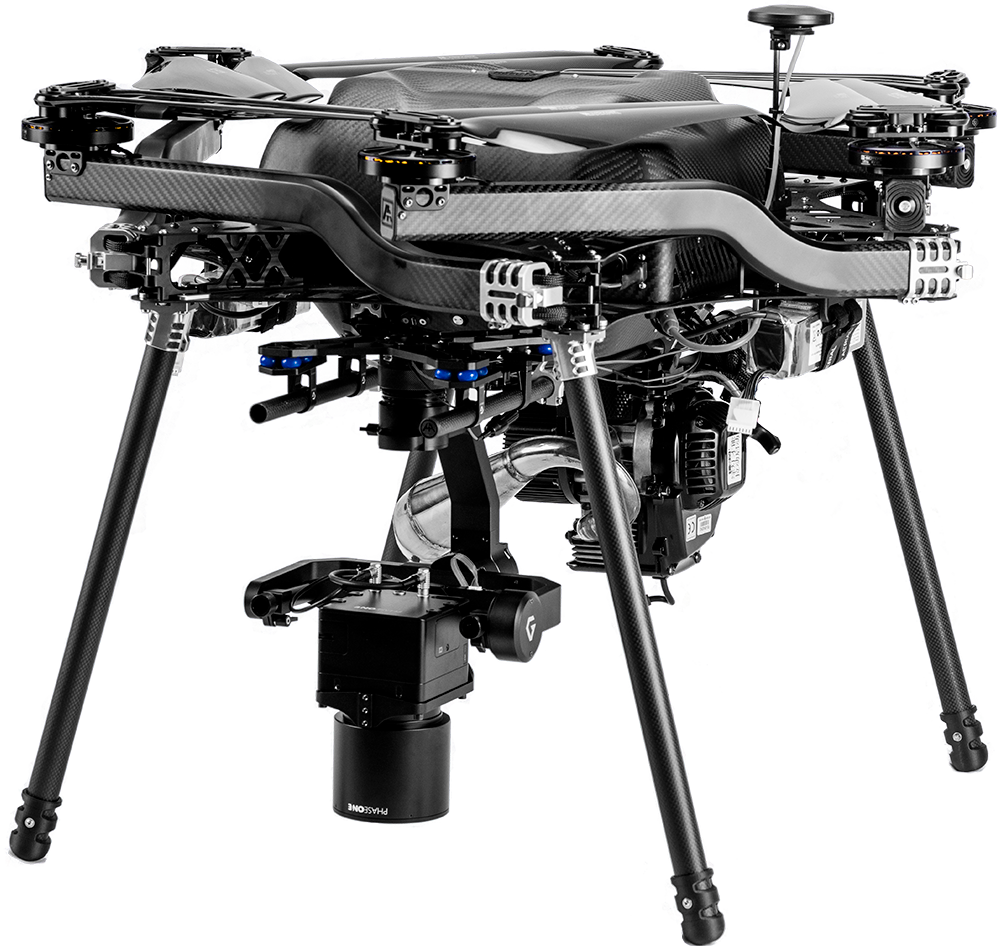

Harris Aerial Carrier H6 Hybrid HE+
Harris Aerial Carrier H6 Hybrid HE+
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Get A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Harris Aerial Carrier H6 Hybrid HE+
Key Features
- Plug-and-Play EFI (Electronic Fuel Injection) 2.4kW continuous power generator
- Dual Generator and Battery Power
- Extra power is provided against harsh wind or aggressive flight maneuvers
- Fully convertible to all electric (LiPo batteries) and Hydrogen-electric power formats in minutes
- Folds down to 45% of its flight-ready size for easy transportation
- Modular payload bay with varying power outputs and connections
- Rapid Field Deployment in several minutes
Intuitive GCS Telemetry
- Easy Mission Planning
- System status and warning flags with 10 telemetry channels for the generator system.
- Generator mode states: Stop, Idle, Run; all controllable via GCS screen and/or 3 position switch on GCS.
- Real-time fuel level % display from high accuracy EFI fuel flow sensor.
- Compatible with Windows, Android, and iOS devices.
Detailed Specifications
Drone Specifications
| Feature | Details |
|---|---|
| Max Payload | 6kg |
| Diagonal Wheelbase | 1590mm (flight-ready) / 658mm (folded) |
| Propeller Size | 29 inches |
| All-Up Weight | 14.5kg (no fuel) / 16.5kg (with 2.5L fuel) |
| Max Take-Off Weight | 23kg |
| Max Flight Time | 5 hours |
| Flight Time | 3 hours (with 4L fuel and 6kg payload) |
| Speed | 15m/s |
| Voltage | 48V |
| Fuel Tank | 4.3L |
GCS and Telemetry
| Feature | Details |
|---|---|
| Generator States | Stop, Idle, Run |
| Telemetry Channels | 10, including fuel level and warnings |
| Fuel Monitoring | Real-time % display via high-accuracy EFI sensor |
| Compatibility | Windows, Android, iOS |
In Package
-
1x H6 Hybrid UAV (tested and ready to fly)
- Cube 2.1 flight controller with dual HERE 3 GNSS & M8P chip
- Mauch Power Cube 4 system
- 1x FPV Camera System
- 1x HERElink GCS: 1080p HD display (standard)
- 1x Harris Advanced Ground Station Software for mission planning
- 1x 2400W EFI Generator Hybrid System
- 2x 5000 Flight Batteries
- 1x Smart Charging Station
- 1x Custom Transport Trunk with Wheels
- 1-Year Manufacturer’s Warranty
Don’t Miss Out
Experience the power and versatilit
Dimensions
In The Box
- 1x H6 Hybrid UAV tested ready to fly (Cube 2.1
- Dual HERE 3 GNSS & M8P chip Mauch Power Cube 4)
- 1x FPV Camera System
- 1x HERElink GCS with 1080p HD display (standard)
- 1x Harris Advanced Ground Station Software for Mission Planning
- 1x 2400W Generator Hybrid System
- 2x 5000 Flight Batteries
- 1x Smart Charging Station
- 1x Custom Transport Trunk w. Wheels
- 1x 1 Year Manufacturer's Warranty
