Product Description

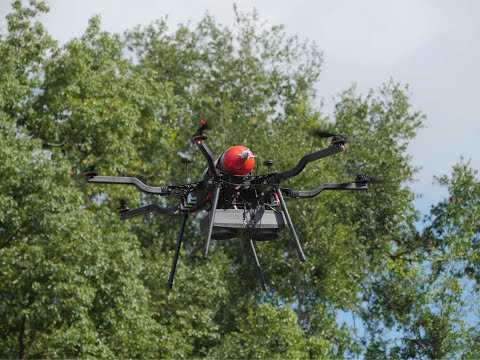

Harris Aerial Carrier H6 Hydrone
DESCRIPTION
TheCarrier H6 Hydroneis our all-new hybrid electric drone powered by our hydrogen fuel cell.
TheCarrier H6 Hydrone is equipped with Intelligent Energy’s 2.4kw FCPM (fuel cell power module).The recommended payload is 3kg allowing for up to 2.5hrs of flight. The max payload is 5kgallowing up to 1.5hrs of flight.
The Carrier H6 Hydronecan be configured to carry scientific grade sensors, such as multispectral cameras, professional DSLRs for cinematography, and LiDAR. The H6 Hydrone provides hybrid flight times while maintaining the nearly silent operation of an electric platform.
Key Features
Folds down to 45% of its flight-ready size for easy transportation.
Functional airframe design allows for rapid field deployment.
2.4kW Fuel Cell Power Module and backup Battery Power
High Efficiency Hydrogen-Electric Conversion
Extra power is provided against harsh wind or aggressive flight maneuvers
Payload and Flight TimesThe H6 Hydrone can fly its max payload of 5kg payload for 1.5 hours (90 minutes).
Detailed Specifications
Drone Specifications
Feature
Details
Max Payload
5kg
Diagonal Wheelbase
1590mm (flight-ready) / 658mm (folded)
Propeller Size
29 inches
All-Up Weight
8.5kg (empty), 14.5kg (with generator)
Max Take-Off Weight
25kg
Max Flight Time
2.5 hours (3kg payload) / 1.5 hours (5kg payload)
Voltage
48V
Speed
15m/s
Fuel Cell Specifications
Feature
Details
Fuel Type
10.8L 350bar Cylinder
Fuel Cell Power Module
2.4kW Intelligent Energy Air-Cooled System
Continuous Power
2400W
Peak Power
Up to 8000W
Output Voltage
50V
Operating Altitude
Up to 5000ft
Safety Features
Feature
Details
Safety Systems
Dual redundant power system, backup battery
Certifications
CE and FCC Certified
In Package
1x H6 Hybrid UAV tested ready to fly (Cube 2.1
Dual HERE 3 GNSS & M8P chip Mauch Power Cube 4)
1x FPV Camera System
1x HERElink GCS with 1080p HD display (standard)
1x Harris Advanced Ground Station Software for Mission Planning
1x 2400W Generator Hybrid System
2x 5000 Flight Batteries
1x Smart Charging Station
1x Custom Transport Trunk w. Wheels
1x 1 Year Manufacturer's Warranty
