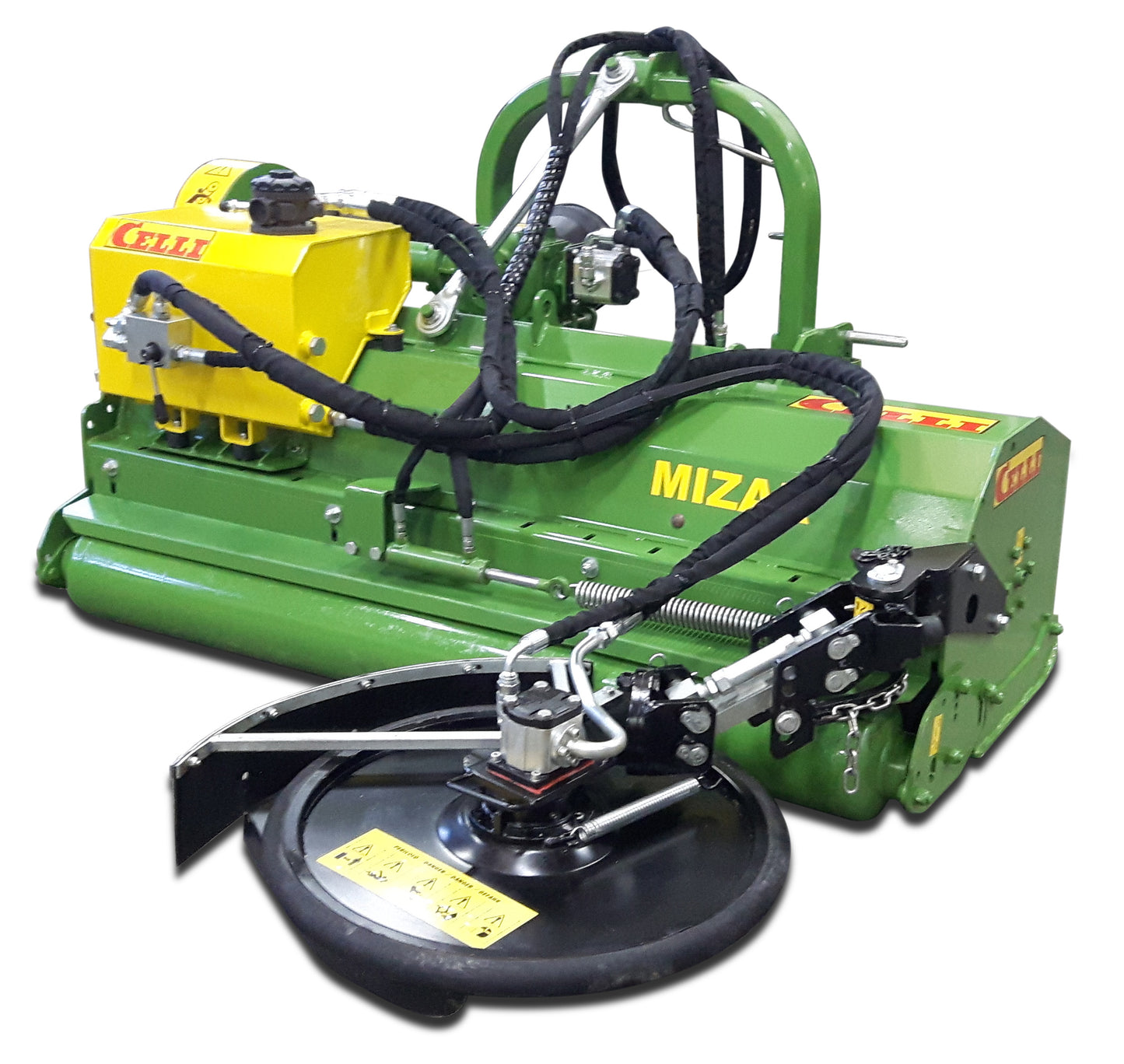

Celli Flail Mower | Model Mizar F175WE | 31.5" Weed Eater Disk | 69" Working Width | 40-90 HP | For Tractor

Product Description

Celli Flail Mower | Model Mizar F175WE | 31.5" Weed Eater Disk | 69" Working Width | 40-90 HP | For Tractor

Description

Suitable for grass, shoots and pruning (ø 6-7 cm) Technical specifications and standard equipment *double reversible hitch *maximum horsepower: 90 HP (66 KW) *PTO: 540 rpm; 1-speed: 2,278 rpm *4 belt transmission *front and upper counter-blades *rear roller ø 194 mm or rubber rear wheels *gearbox with freewheel safety device *mobile 3-point hitches with double PTO *Manual side-shift mechanism onto chromium-plated rod, through threaded bar *resting foot *double shielded box frame *drive shaft without safety device *side guards

Applications

• Orchard and Vineyard Maintenance: Ideal for clearing weeds, grass, and small shoots between rows.
• Roadside and Path Maintenance: Reversible and side-shift capabilities make it easy to maintain paths and roadside areas.
• Field and Pasture Upkeep: Efficiently clears dense grass and brush, keeping fields in optimal condition.
• General Agriculture: Perfect for routine maintenance, eliminating dense brush and rejuvenating fields.

Key Features

• Working Width: 69" (175 cm) for efficient coverage in orchards, vineyards, and open fields
• Weed Eater Disk: 31.5" diameter for precision trimming around trees, posts, and tight areas
• Power Range: Suitable for tractors from 40 HP to 90 HP for versatile use across farm sizes
• Cutting Capability: Handles grass, weeds, shoots, and prunings up to 6–7 cm in diameter
• Drive System: 4‑belt transmission with PTO at 540 rpm (1‑speed, 2,278 rpm rotor) for reliable power transfer
• Blade & Rotor Design: Flat hammer blades on a Ø 168 mm rotor for clean, consistent mulching
• Build Quality: Double‑shielded box frame with front and upper counter‑blades for durability and fine shredding
• Height & Position Control: Adjustable rear roller (Ø 194 mm) or steerable rubber wheels for consistent cutting height
• Hitch & Shift: Double reversible hitch with manual side‑shift on a chromium‑plated rod for flexible positioning
• Safety Features: Gearbox with freewheel safety device and side guards for operator protection

Detailed Specifications

Standard Version

• Double Reversible Hitch: Provides attachment flexibility for different mowing needs.
• Counter Blades: Front and upper counter blades for effective mulching and cutting.
• Gearbox with Freewheel: Enhanced safety with a freewheel gearbox device.
• Transmission: Four-belt transmission for smooth power transfer.
• Manual Side-Shift: Side-shift mechanism with chromium-plated rod for precision control.
• Double Shielded Frame: Reinforced frame for added durability and protection.
• Safety Side Guards: Ensures safe operation by protecting the mower and surroundings.
• Rear Roller or Wheels: Options for a 194 mm roller or rubber rear wheels for effective ground contact.
