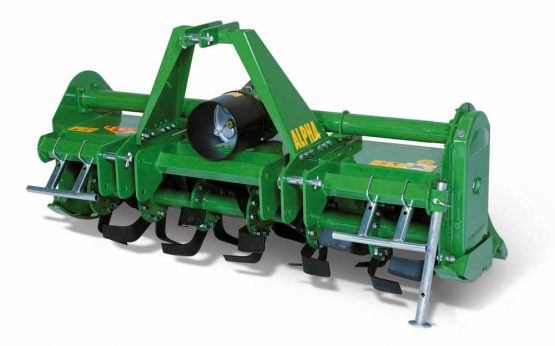

Celli Rotary Tiller | Model FBA 105-165 | 42"-65" Working Width | 25-45 HP | For Tractor

Celli Rotary Tiller | Model FBA 105-165 | 42"-65" Working Width | 25-45 HP | For Tractor

$3,647.00
$3,647.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Working Width Range: 42" (1.05 m) to 65" (1.65 m) to suit small to mid‑size tractors and varied plot sizes
  • Power Range: Designed for tractors from 25 HP to 45 HP (18–33 kW) for light to medium tillage work
  • Max Working Depth: 18 cm (7") for effective seedbed preparation and soil aeration
  • Blade Size & Count: L‑shaped blades, 60 × 6 mm, 6 per flange for thorough soil mixing and residue incorporation
  • PTO & Rotor Speed: 540 rpm PTO with 221 rpm rotor output for consistent tillage performance
View full details

Product Description

Celli Rotary Tiller | Model FBA 105-165 | 42"-65" Working Width | 25-45 HP | For Tractor

DESCRIPTION

The CELLI FBA Series Fixed Rotary Tillers combine simple, modern design with high-performance features typically reserved for more robust models. Designed to handle rigorous agricultural tasks, these rotary tillers feature a double-boxed metal sheet frame for enhanced durability and rigidity. Equipped with a chain side transmission, L-shaped blades, and a well-designed tailgate for optimal ground leveling, the FBA tillers provide efficient soil preparation with a maximum working depth of 18 cm (7 inches). The CELLI ALPHA 180 model takes it up a notch, featuring a gear side transmission and slightly larger blades for more intensive use and a deeper working depth of 20 cm (8 inches). Each model includes removable safety devices and side skids for added stability and control.

Key Features

  • Working Width Range: 42" (1.05 m) to 65" (1.65 m) to suit small to mid‑size tractors and varied plot sizes
  • Power Range: Designed for tractors from 25 HP to 45 HP (18–33 kW) for light to medium tillage work
  • Max Working Depth: 18 cm (7") for effective seedbed preparation and soil aeration
  • Transmission: Side chain drive for reliable torque transfer and low maintenance
  • Blade Size & Count: L‑shaped blades, 60 × 6 mm, 6 per flange for thorough soil mixing and residue incorporation
  • PTO & Rotor Speed: 540 rpm PTO with 221 rpm rotor output for consistent tillage performance
  • Frame & Build: Double‑boxed steel frame for rigidity and long service life
  • Tailgate Design: Shaped for optimal soil leveling and finishing after tillage
  • Height Control: Adjustable side skids for precise working depth
  • Safety Features: Resting foot, removable safety guards, and optional shear bolt or clutch PTO shaft
  • Ideal Applications: Orchards, vineyards, horticulture, small farms, and general soil preparation

Detailed Specifications

FBA 105

Feature Specification
Working Width 42"
Max Working Depth 18 cm
Minimum HP Requirement 25 HP
Maximum HP 45 HP
Transmission Chain
Blade Size 60 × 6 mm
PTO Speed 540 rpm
PTO Output Speed 221 rpm

FBA 125

Feature Specification
Working Width 49"
Max Working Depth 18 cm
Minimum HP Requirement 30 HP
Maximum HP 45 HP
Transmission Chain
Blade Size 60 × 6 mm
PTO Speed 540 rpm
PTO Output Speed 221 rpm


FBA 145

Feature Specification
Working Width 58"
Max Working Depth 18 cm
Minimum HP Requirement 35 HP
Maximum HP 45 HP
Transmission Chain
Blade Size 60 × 6 mm
PTO Speed 540 rpm
PTO Output Speed 221 rpm

FBA 165

Feature Specification
Working Width 65"
Max Working Depth 18 cm
Minimum HP Requirement 40 HP
Maximum HP 45 HP
Transmission Chain
Blade Size 60 × 6 mm
PTO Speed 540 rpm
PTO Output Speed 221 rpm
