Product Description

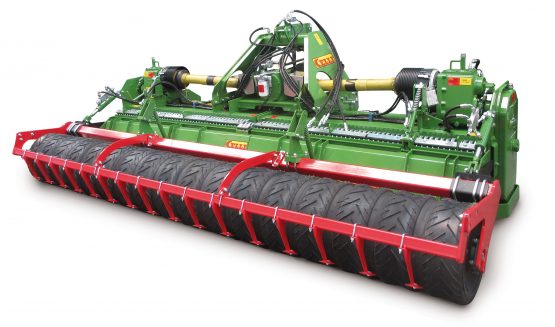

Celli Stone Burier / Bed Former | Model Lothar DD | 11'.5"-15'.19" Working Width | Up to 280 HP | For Tractor
Included Options:
Optical Roller Attachment: Optional for improved field leveling and finishing.
DESCRIPTION
The Celli Lothar DD Dual-Drive Stone Burier & Bed Former is engineered for large-scale field management, suitable for tractors up to 280 HP. This versatile attachment effectively prepares fields by burying stones and creating well-formed beds, optimizing soil conditions for crop growth. Available in three working widths—11.5', 13.5', and 15.19'—the Lothar DD model adapts seamlessly to varied field sizes and agricultural needs.
With its powerful dual-drive design and 2-speed PTO gearbox (284 and 310 RPM), the Lothar DD delivers flexibility for different soil types and conditions. The rotor, featuring outward-leaning L-shaped blades, works at a maximum depth of 25 cm to manage compacted soil and integrate crop residues effectively. Built with durability in mind, this attachment includes a reinforced hydraulic roller system, a central blade, and a spring-cushioned tailgate that adjusts for precision performance.
Applications
- Field Preparation: Ideal for burying stones and creating seed beds.
- Residue Management: Integrates crop residues into the soil for improved organic matter.
- Heavy-Duty Agriculture: Suited for large-scale farming operations.
- Land Reclamation: Breaks up compacted soil to promote aeration and root growth.
- Professional Farming: Provides reliable, high-performance soil management.
Key Features
- High Horsepower Capability: Operates with tractors up to 280 HP for demanding soil management tasks.
- Adjustable PTO Speeds: Dual-speed gearbox with 284 and 310 RPM options for adaptable performance.
- Soil and Bed Management: L-shaped blades and dual-drive rotor for effective stone burying and bed formation.
- Enhanced Safety and Durability: Includes automatic shaft limiter, rear spring-cushioned tailgate, and safety protections.
- Efficient Soil Depth Control: Hydraulic adjustment of rollers for precise soil conditioning.
Detailed Specificaitons
| Specification | Details |
|---|---|
| Part Numbers | LOTHAR 360, LOTHAR 400, LOTHAR 450 |
| Manufacturer | Celli |
| Category | Tractor Attachments |
| Subcategory | Stone Buriers & Bed Formers |
| Horsepower Compatibility | Up to 280 HP |
| Available Working Widths | 11.5', 13.5', 15.19' |
| Gearbox | 2-speed, 284 RPM / 310 RPM |
| Drive System | Side gear drive |
| 3-Point Hitch Compatibility | Category 2 & 3 |
| Tine Type | L-shaped, 80x8 mm |
| Maximum Working Depth | 25 cm (10 inches) |
| Safety Features | Automatic limiter, removable protections |
| Adjustments | Hydraulic roller, threaded tailgate adjustment |
Standard Version
- Heavy-Duty Power: Compatible with high-horsepower tractors (up to 280 HP).
- Dual-Drive System: Adjustable speed for optimized tilling in varied soil conditions.
- Effective Soil Tilling and Stone Burying: Outward-leaning L-shaped blades for thorough soil preparation.
- Rugged Construction: Reinforced Cat. 2 and 3 hitches, spring-cushioned tailgate, and central blade.
- Precise Roller Control: Hydraulic adjustment for consistent depth and soil conditioning.
