Chasing Waterlinked DVL A50 Kit | Maximum Depth Rating 300 Meters | For M2 Pro & M2 Pro MAX

Chasing Waterlinked DVL A50 Kit | Maximum Depth Rating 300 Meters | For M2 Pro & M2 Pro MAX

$9,999.00
$9,999.00
Sale Sold out
Customizable
Fast
24/7 Support

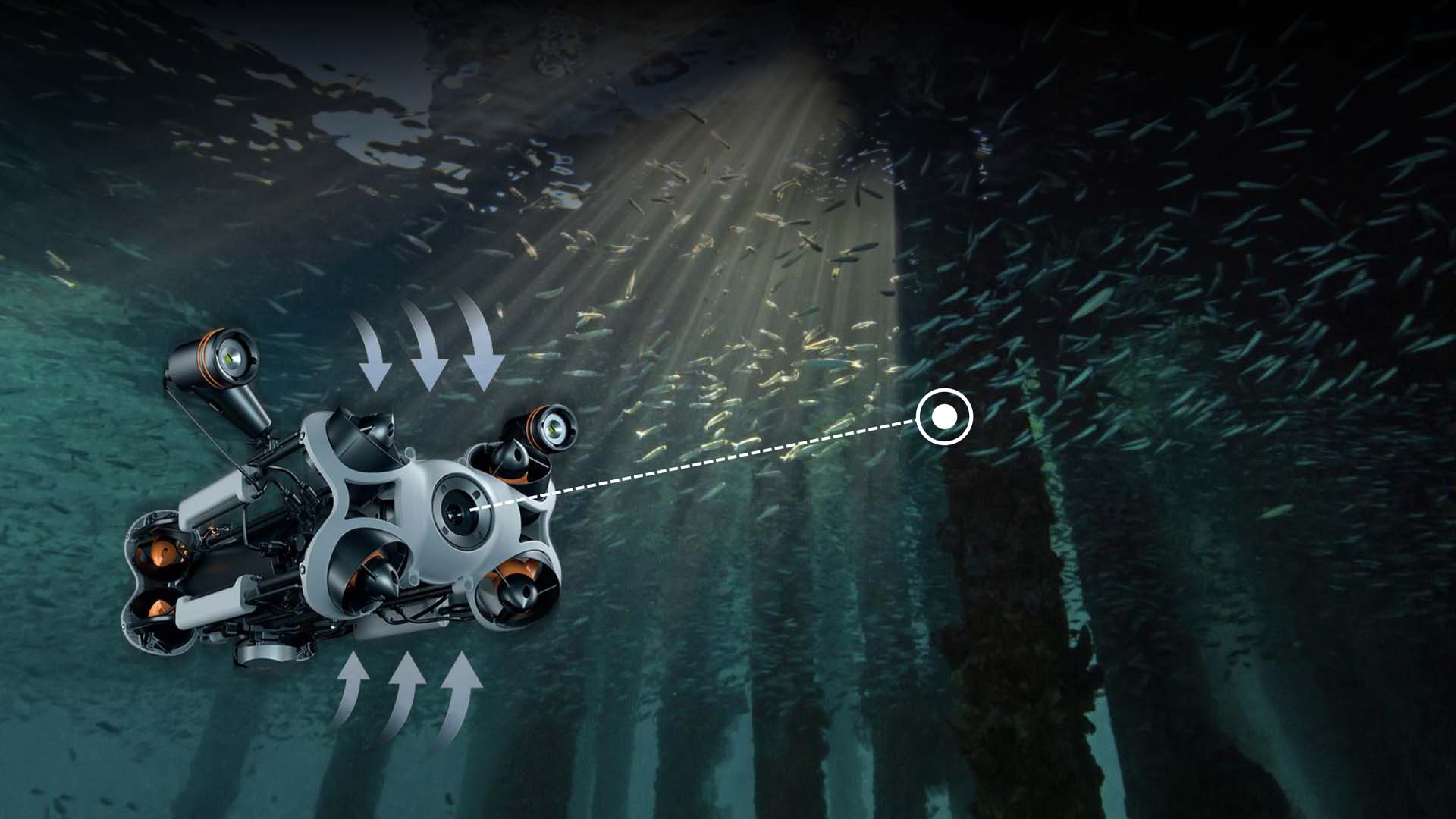

  • Fixed Point Navigation: Maintains position even in strong currents.

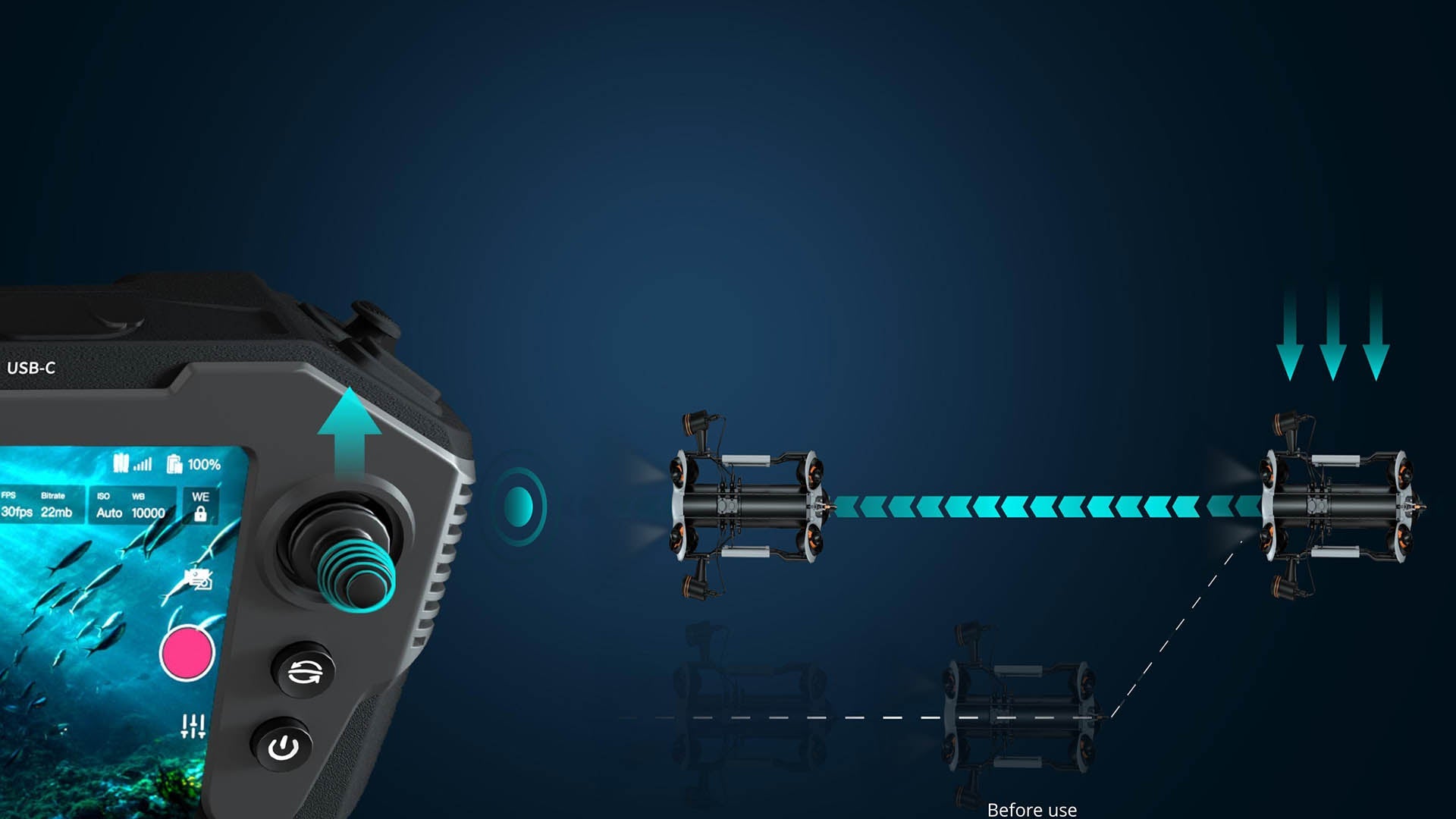

  • Anti-Current Mode: Keeps depth and position stable without remote control.

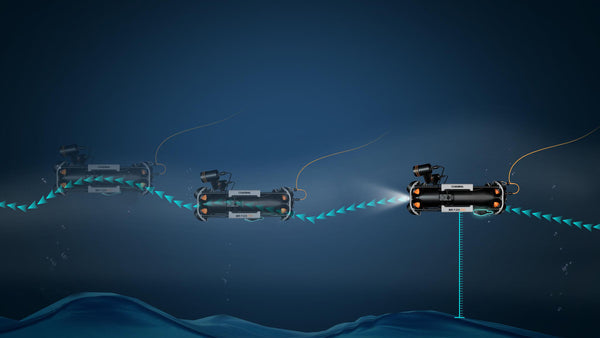

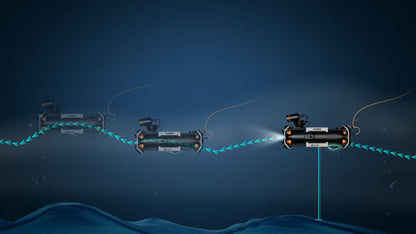

  • Terrain Following Mode: Allows navigation at a set distance from the bottom.
  • Compatibility: Works with M2 Pro and M2 Pro MAX underwater drones.
View full details

Product Description

Chasing Waterlinked DVL A50 Kit | Maximum Depth Rating 300 Meters | For M2 Pro & M2 Pro MAX

Description

The Chasing Waterlinked DVL A50 Kit is designed for fixed point navigation against current, making it an essential tool for underwater drones. Compatible with both M2 Pro and M2 Pro MAX models, this kit helps maintain position even in strong currents, similar to a GPS position hold. It features Anti-Current mode for depth and position stability without remote control operation and Terrain Following mode for navigating at a consistent distance from the bottom.

Key Features

  • Fixed Point Navigation: Maintains position even in strong currents.
  • Anti-Current Mode: Keeps depth and position stable without remote control.
  • Terrain Following Mode: Allows navigation at a set distance from the bottom.
  • Compatibility: Works with M2 Pro and M2 Pro MAX underwater drones.
  • Precision Performance: Ensures accurate and reliable positioning.

Detailed Specifications


Feature Specification
Diameter 66mm
Height 25mm
Weight 198 grams (210 grams for M2 Pro Max)
Weight Submerged 145 grams
Depth Rating 300 meters
Transducer Frequency 1 MHz
Transducer Beam Angle 22.5 Degrees
Minimum Altitude 5 cm
Maximum Altitude 50 meters
Maximum Velocity 3.75 meters per second (8.5 MPH)
Velocity Resolution 0.1 mm/s
Terrain Following Range 0.5 meters to 50 meters



    Manual & Documents

    General Warranty Info:

    • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
    • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
    • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
    • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

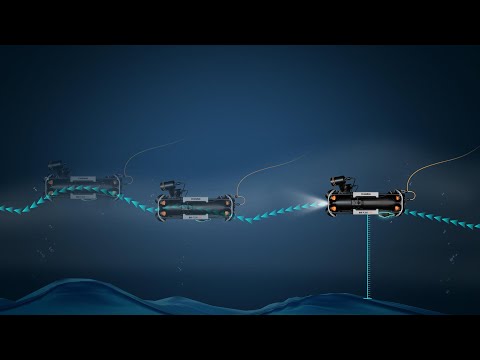

    Videos
