CID 60", 66", 72" & 78" STANDARD DUTY ROOT GRAPPLE WITH WELDED TEETH FOR SKID STEER

CID 60", 66", 72" & 78" STANDARD DUTY ROOT GRAPPLE WITH WELDED TEETH FOR SKID STEER

$2,318.00 USD
$2,318.00 USD
Sale Sold out
Shipping calculated at checkout.
Width

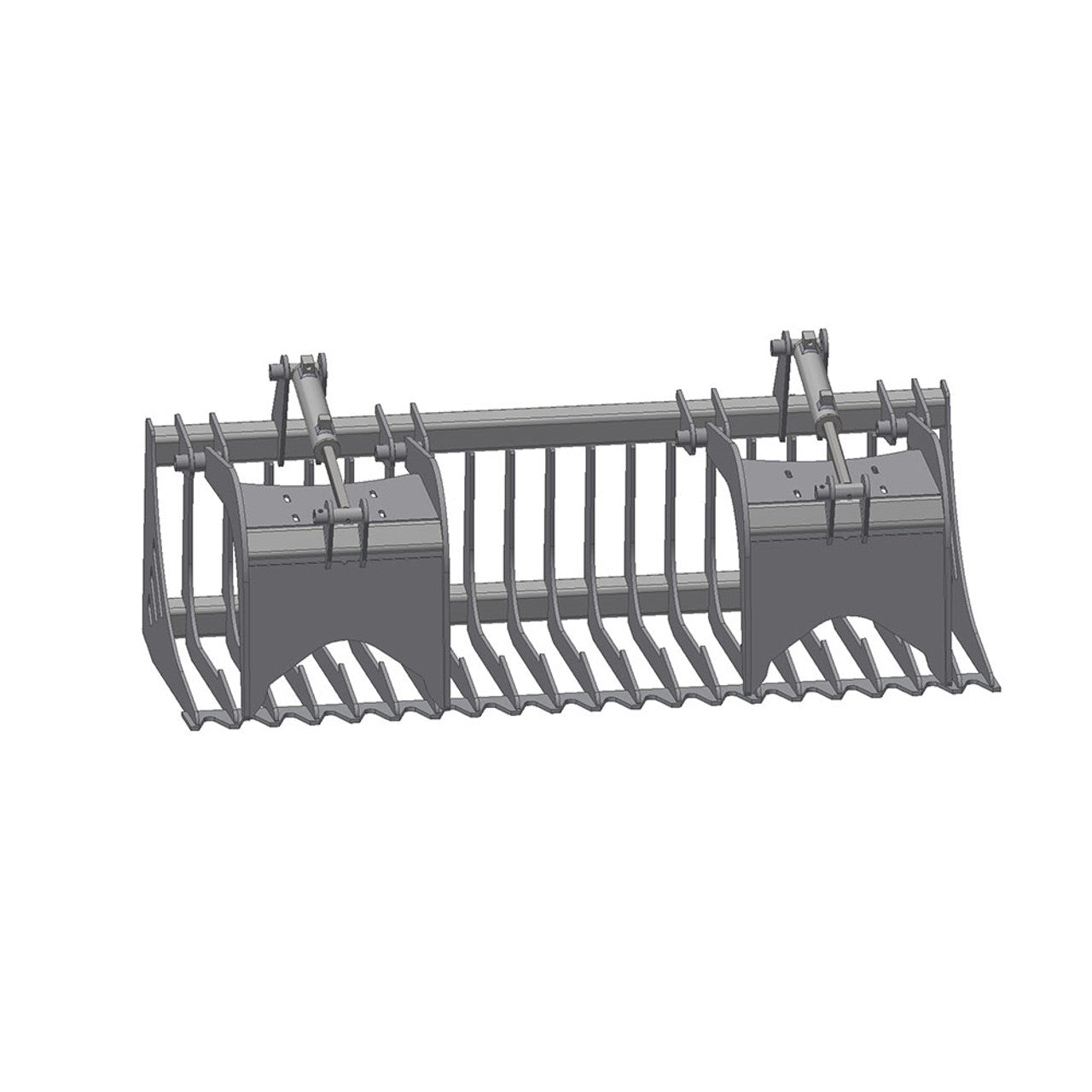

CID 60", 66", 72" & 78" STANDARD DUTY ROOT GRAPPLE WITH WELDED TEETH FOR SKID STEER

DESCRIPTION

The CID's Skid Steer Standard Duty Rock Grapple sifts dirt through 3" spaced heavy duty steel tines to remove rocks, debris, and other material

  • Allowing you to pick up most everything but the dirt.
  • The twin 2” bore by 10” stroke cylinders rated at 4,000 psi
  • Provides this grapple with extra versatility with welded on teeth for extra stability.

What's Included?

  • Rock Grapple attachment
  • Universal Skid Steer Mount
  • Hoses
  • Flat Faced Couplers
  • Owner's manual

SPECIFICATIONS

  • 2” bore by 10” stroke cylinder
  • Fully welded teeth

Model 60" Bucket

  • Cylinder Dia. ("): 10.25
  • Cylinder Bore: 2.25
  • Tine Length: 33

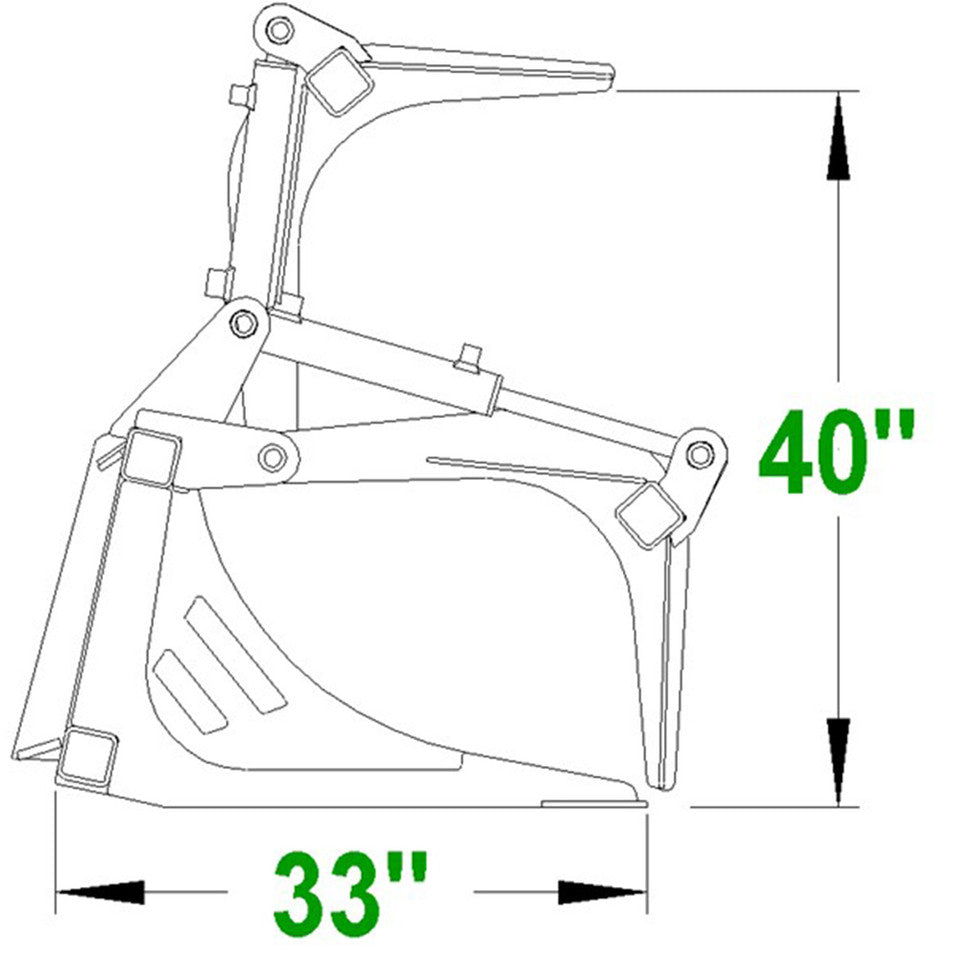

  • Jaw Opening ("): 40

Model 66" Bucket

  • Cylinder Dia. ("): 10.25
  • Cylinder Bore: 2.25
  • Tine Length: 33
  • Jaw Opening ("): 40

Model 72" Bucket

  • Cylinder Dia. ("): 10.25
  • Cylinder Bore: 2.25
  • Tine Length: 33
  • Jaw Opening ("): 40

Model 78" Bucket

  • Cylinder Dia. ("): 10.25
  • Cylinder Bore: 2.25
  • Tine Length: 33
  • Jaw Opening ("): 40
