CID 72"-84" and 96" Hay Bale Grapple Bucket Attachment For Skid Steer

CID 72"-84" and 96" Hay Bale Grapple Bucket Attachment For Skid Steer

$4,683.00
$4,683.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Versatile Applications: Handles loose hay, straw, silage, snow removal, and general cleanup tasks.
  • Large Capacity: Grapples and transports multiple square bales or large round bales for efficient farm management.
  • Heavy-Duty Construction: Built with 1/4" steel wrap and 3/4" x 6" cutting edge for durability in demanding conditions.
  • Optional Bolt-On Edge: Enhance durability and extend the life of the bucket with an optional bolt-on cutting edge.
  • Reliable Hydraulic System: Equipped with 2” x 10” cylinders and grease fittings at every hinge point for smooth and reliable operation.
View full details

Product Description

CID 72"-84" and 96" Hay Bale Grapple Bucket Attachment For Skid Steer

DESCRIPTION

The CID Hay Bale Grapple Bucket Attachment is a versatile and robust tool designed for farm work, snow removal, and general material handling. Built to withstand heavy-duty use, this attachment offers exceptional performance for gathering, grappling, and transporting loose hay, straw, silage, and bales of various sizes.

With its 1/4" steel wrap and 3/4" x 6" cutting edge, the bucket ensures long-lasting durability. For enhanced longevity, an optional bolt-on cutting edge is available. The attachment is equipped with 2” x 10” hydraulic cylinders and grease fittings at every hinge point, ensuring smooth and efficient operation.

Whether you’re managing hay bales or tackling cleanup tasks, the CID Hay Grapple Bucket is a reliable choice for any skid steer operator.

Key Features

  • Heavy-Duty Build: Constructed with 1/4" steel wrap and a 3/4" x 6" cutting edge for durability.
  • Multi-Purpose Design: Ideal for hay handling, snow removal, and general cleanup tasks.
  • Large Capacity: Capable of grappling multiple square bales or large round bales for time-efficient transport.
  • Optional Bolt-On Edge: Extend the cutting edge's life with an optional bolt-on edge.
  • Hydraulic Precision: Equipped with 2” x 10” cylinders and grease fittings for reliable performance.

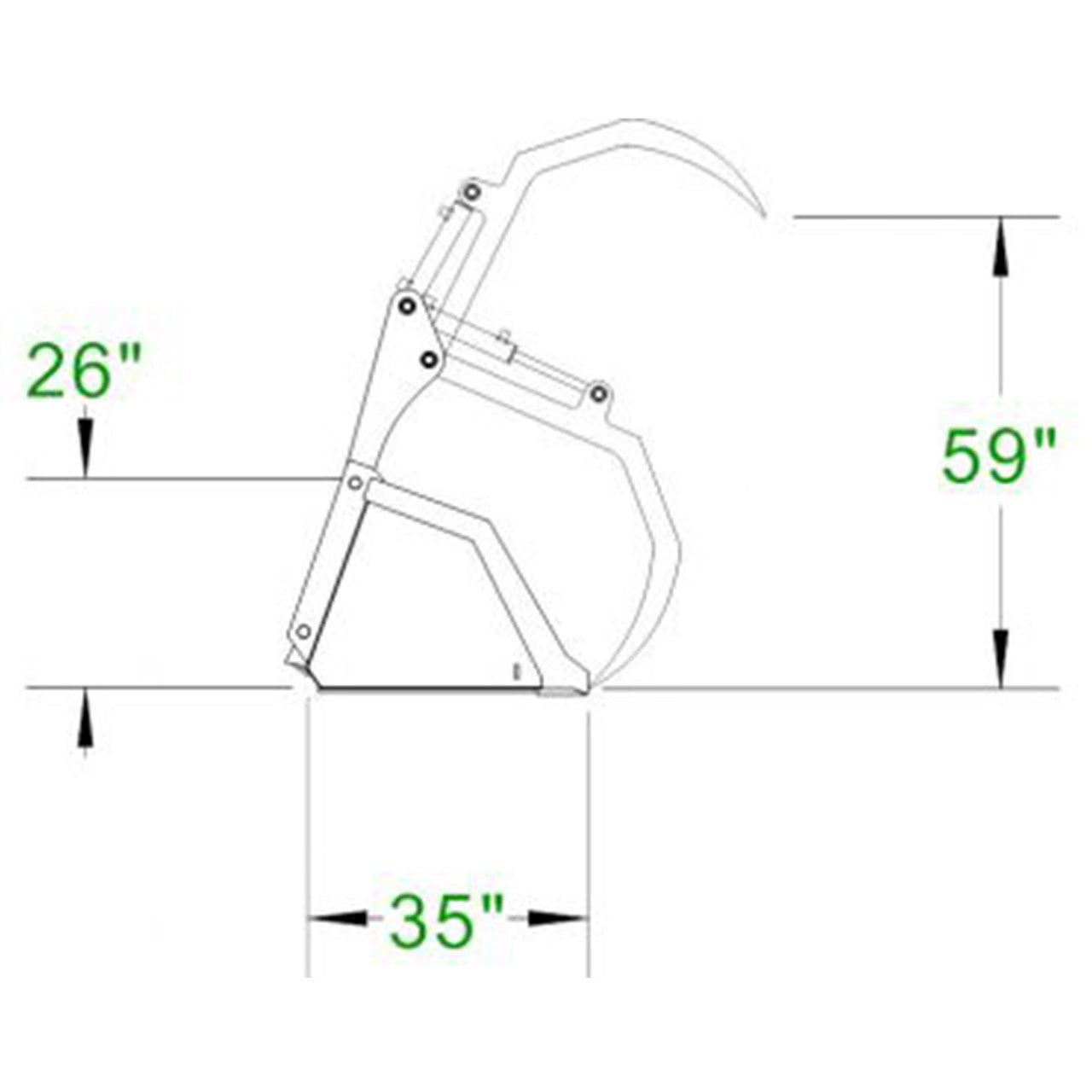

Detailed Specifications

Features: 84" and 96" Models

Feature 84" Model (Option 1) 84" Model (Option 2) 96" Model
Weight (lbs.) 1513 1550 1550
Width (") 72 84 96
Depth (") 35 35 35
Cutting Edge (") 3/4" x 6" Steel 3/4" x 6" Steel 3/4" x 6" Steel
Bucket Wrap Material (") 1/4" Steel 1/4" Steel 1/4" Steel
Hydraulic Cylinders 2” x 10” 2” x 10” 2” x 10”

In Package

  • Skid Steer Hay Grapple Bucket
  • Universal Skid Steer Mounting Plate
  • Hydraulic hoses
  • Flat faced couplers
  • Owner's manual
