CL Fabrication EZ Bale Spears | Width 60" To 102" inches | Oil Flow Range 15 To 25 GPM | For Skid Steers
CL Fabrication EZ Bale Spears | Width 60" To 102" inches | Oil Flow Range 15 To 25 GPM | For Skid Steers
Regular price
$865.00
Regular price
Sale price
$865.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
CL Fabrication EZ Bale Spears | Width 60" To 102" inches | Oil Flow Range 15 To 25 GPM | For Skid Steers
DESCRIPTION

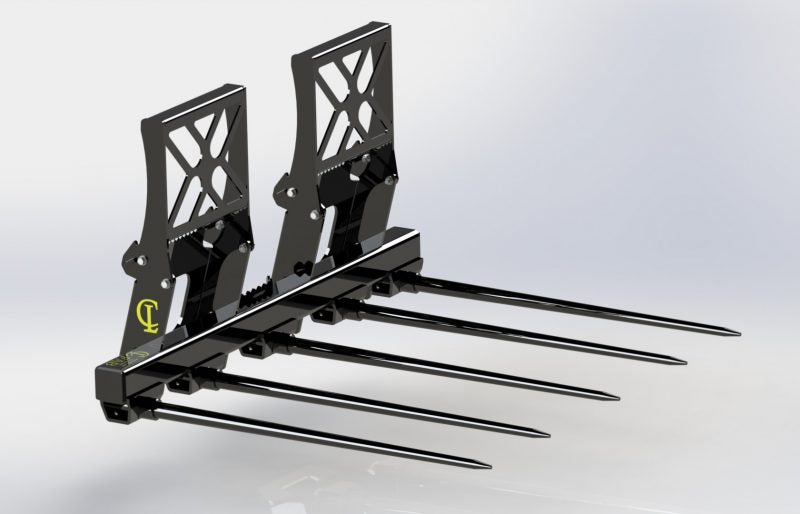

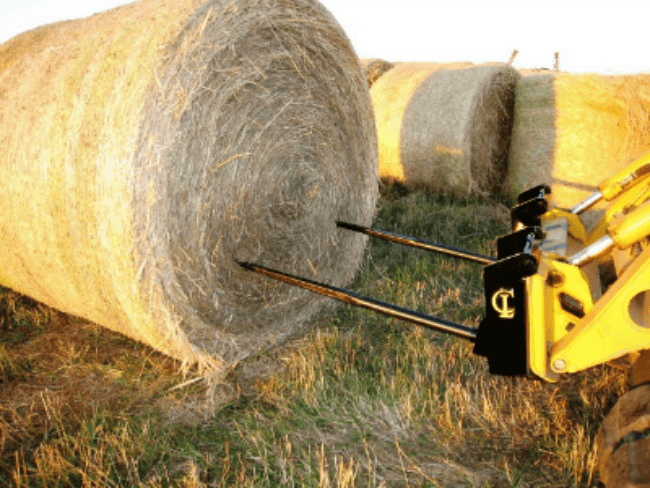

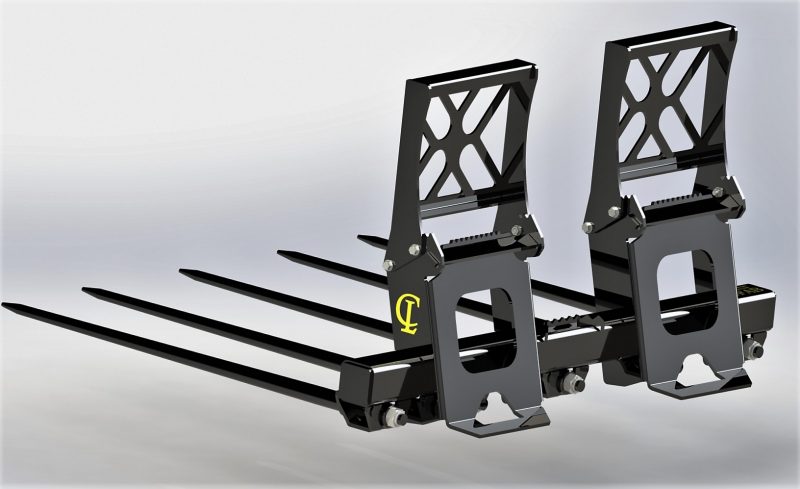

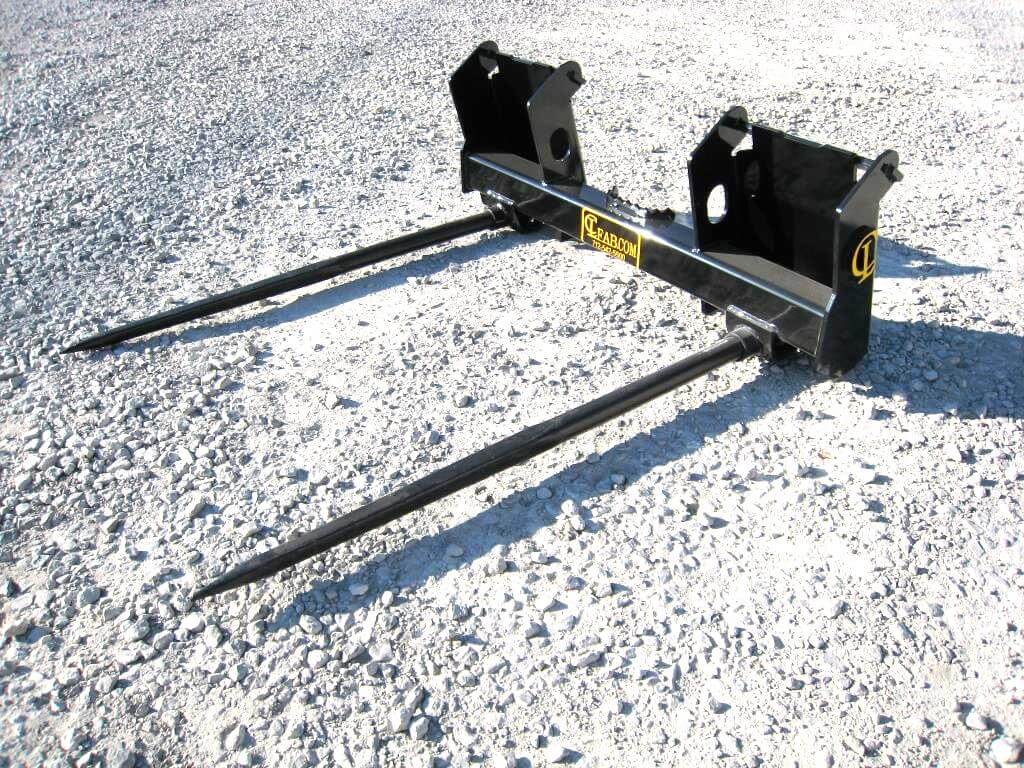

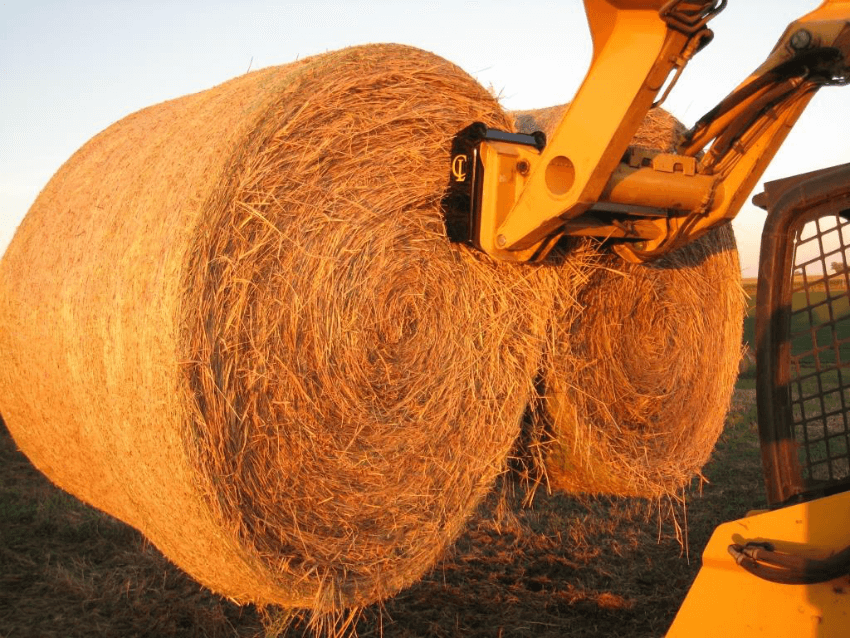

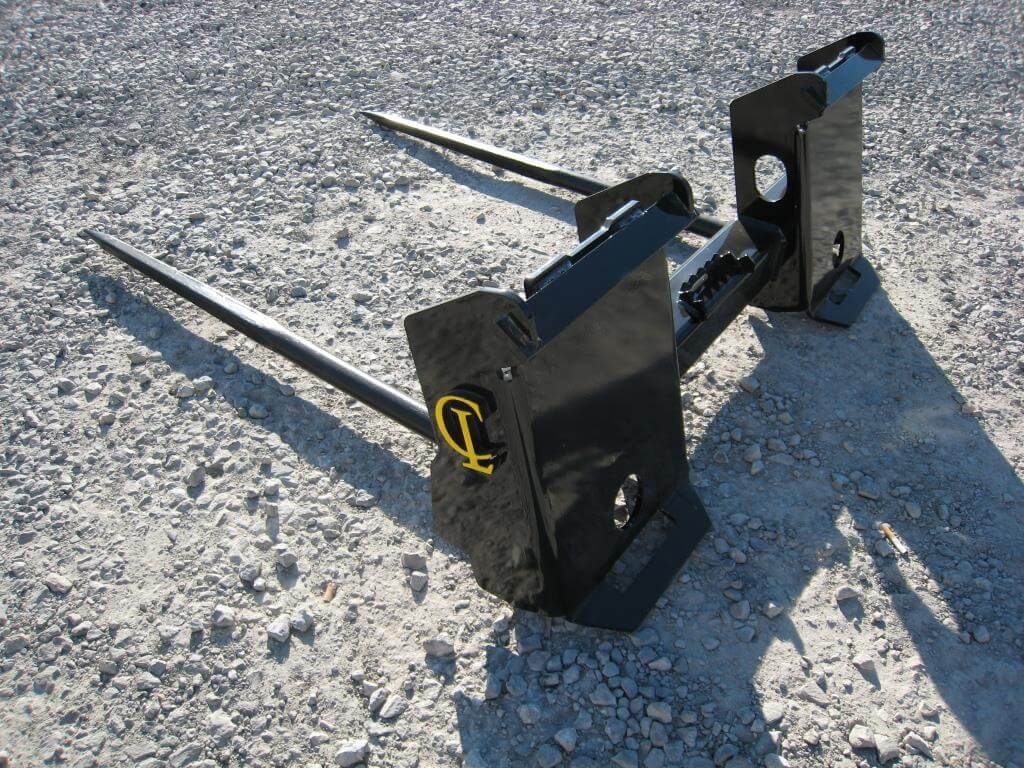

The Skid Steer Bale Spears from CL Fabrication are designed for efficient bale handling, featuring a patent-pending heavy-duty frame, high-strength forged spears, and universal skid steer mounting compatibility. These bale spears provide optimal stability, durability, and performance, making them ideal for handling big square and round bales with ease.
Key Features
- Universal Skid Steer Compatibility – Designed to fit all standard skid steer loaders, ensuring quick attachment and seamless integration into your existing equipment fleet.
- Optimized for 15 To 25 GPM Hydraulic Flow – Built to perform at standard skid steer hydraulic flow rates, providing smooth and consistent operation for bale handling.
- Heavy-Wall 4"x4"x3/8" Steel Tube Frame – Industrial-grade construction resists flexing under heavy loads, increasing durability and extending service life.
- Patent-Pending Frame Design – Unique engineering enhances structural rigidity and load distribution, making bale transport more stable and efficient.
- Dual or Quad 49" Forged Spears – Available with 3 or 4 high-tensile spears, each rated at 3,500 lbs, ideal for safely moving large round or square hay bales.
- 43" Usable Spear Length – Ensures deep and secure bale penetration, reducing slippage during lifting and transport.
- 3/8" Formed Steel Mounting Plates – Precision-welded for strength and long-term reliability, even in rugged field conditions.
- Reinforced Upper Hook Bars – 1/2" thick by 1.50" wide hook bars provide superior stability and reduce vibration during operation.
- Abrasive-Blasted and Powder-Coated Finish – Offers high resistance to rust, wear, and UV damage, extending the life of the attachment.

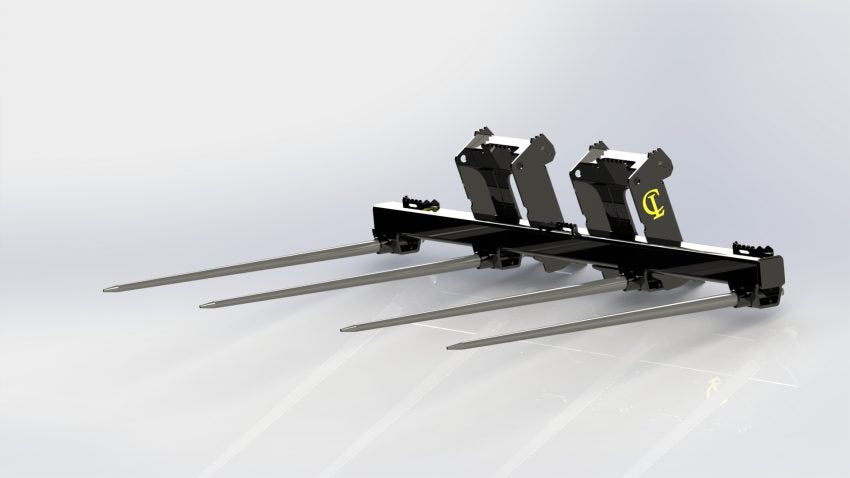

- Available in 60" or 102" Widths – Choose the ideal size for your operation, whether working in tight spaces or covering wide bale rows.
- Easy Attachment & Detachment – Designed for fast hookup so you can switch tasks without wasting time or tools.
- High-Capacity Load Rating – Each spear is engineered for demanding use, supporting up to 3,500 lbs, perfect for dense or wet bales.
- Ideal for Ag & Livestock Operations – Perfect for farms, ranches, and feedlots that require daily or seasonal bale transport and stacking.
- Low Maintenance Design – Solid steel components and a corrosion-resistant finish reduce maintenance needs, saving you time and money.
- Proudly Made in the USA – Built with American steel and craftsmanship for long-term performance you can count on in the field.
Detailed Specifications
| Feature | Skid Steer 3 Spike (60" Wide) | Skid Steer 4 Spike (102" Wide) |
|---|---|---|
| Width (in) | 60 | 102 |
| Frame Tube Dimensions | 4"x4"x3/8" Heavy-Wall Steel | 4"x4"x3/8" Heavy-Wall Steel |
| Mount Plate Thickness (in) | 3/8" Formed Steel | 3/8" Formed Steel |
| Spears Count | 3 | 4 |
| Spear Length (in) | 49" (Usable Length: 43") | 49" (Usable Length: 43") |
| Spear Load Rating (lbs each) | 3,500 | 3,500 |
| Upper Skid Steer Hook Bars (in) | 1/2" Thick x 1.50" Wide | 1/2" Thick x 1.50" Wide |
| Finish | Abrasive Blasted & Powder-Coated | Abrasive Blasted & Powder-Coated |
| Oil Flow Range (GPM) | 15-25 | 15-25 |
