CL Fabrication Ripper | Model XR | Width 76" to 84" | Adjustable Tine Lengths 18” to 20” | For Skid Steer
CL Fabrication Ripper | Model XR | Width 76" to 84" | Adjustable Tine Lengths 18” to 20” | For Skid Steer
Regular price
$2,165.00
Regular price
Sale price
$2,165.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
CL Fabrication Ripper | Model XR | Width 76" to 84" | Adjustable Tine Lengths 18” to 20” | For Skid Steer
DESCRIPTION

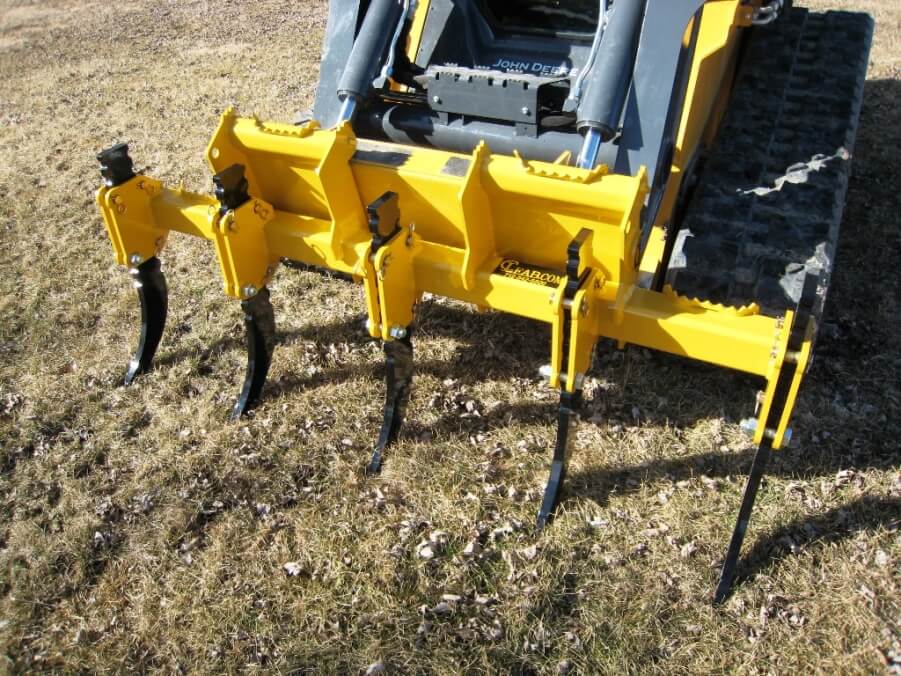

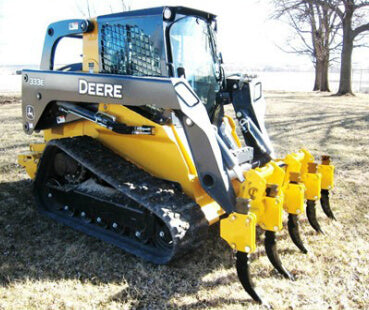

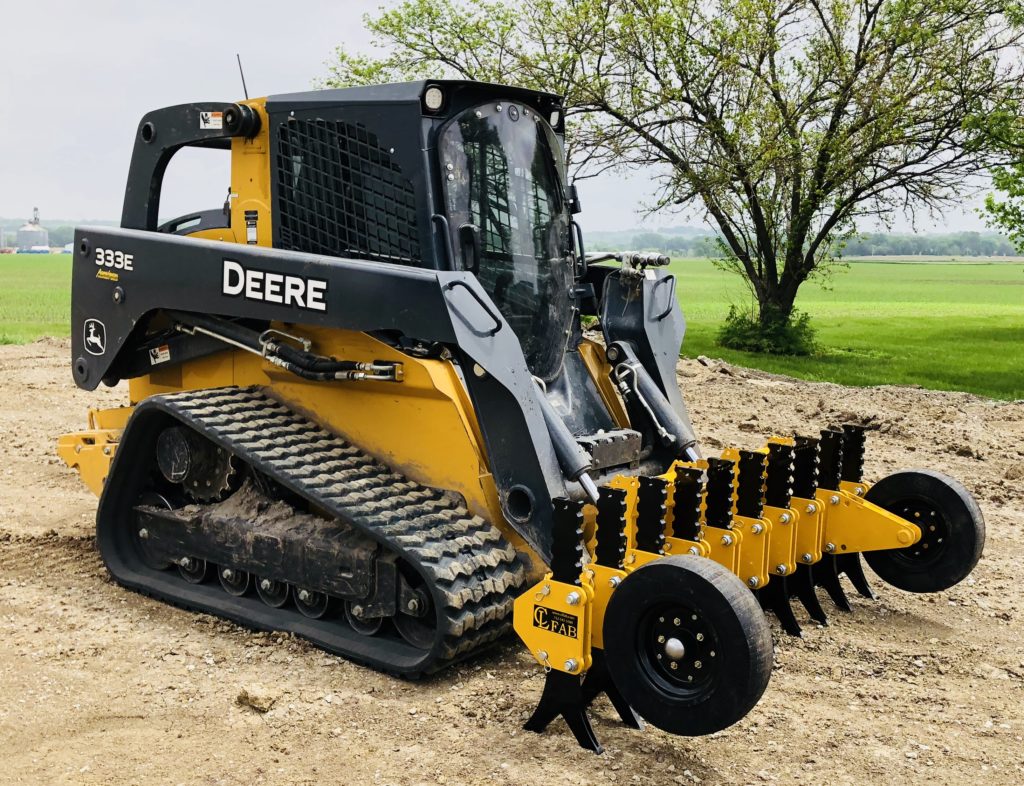

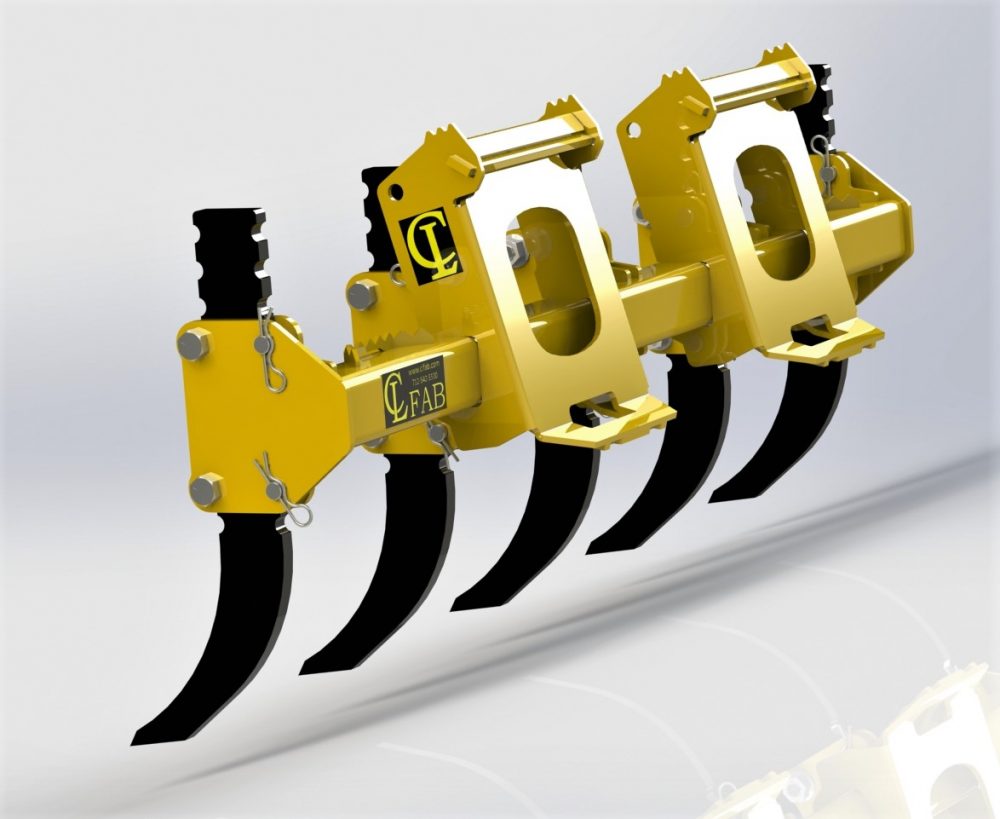

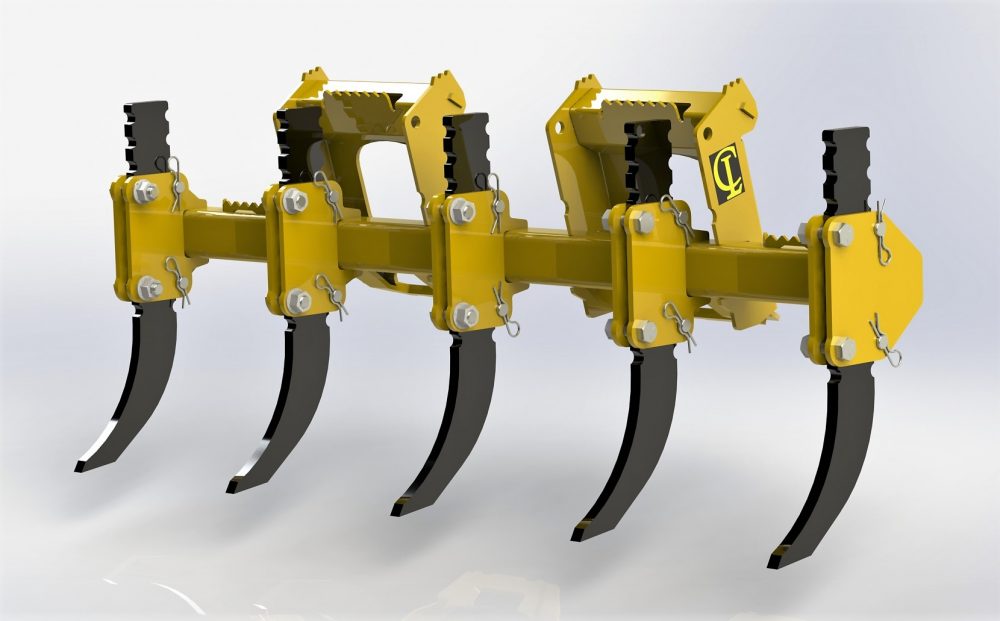

The CL Fabrication XR Ripper is a powerful ground-breaking attachment designed for skid steers and compact track loaders, ideal for ripping through hard ground, tearing out roots, and breaking up stumps and rocks. Built with reversible tines, heavy-duty AR400 steel, and a patented mount system, it ensures maximum efficiency and durability in tough excavation tasks.
Key Features
- Heavy-Duty AR400 Steel Tines – Provides exceptional strength for deep ripping and tough ground conditions.

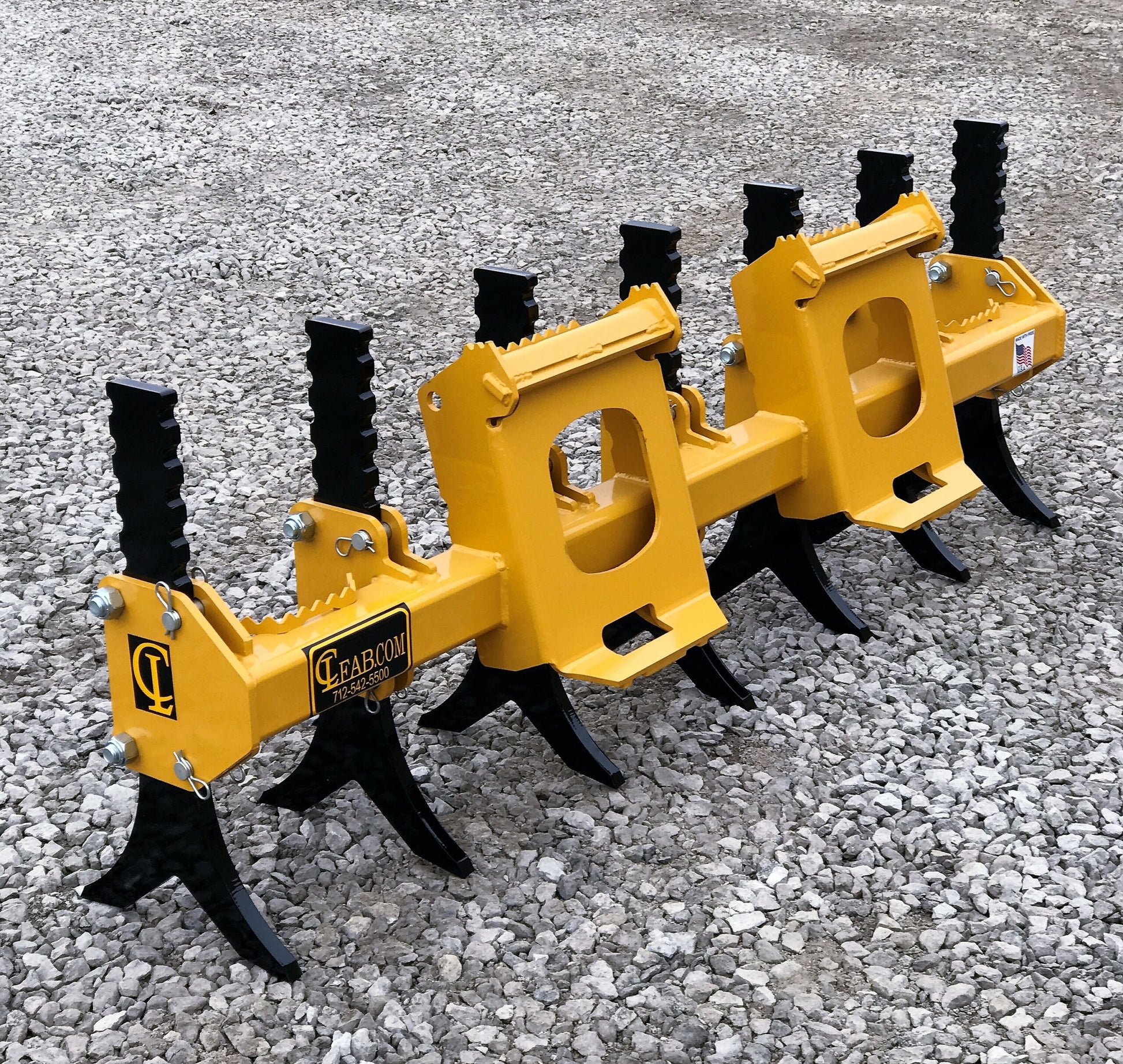

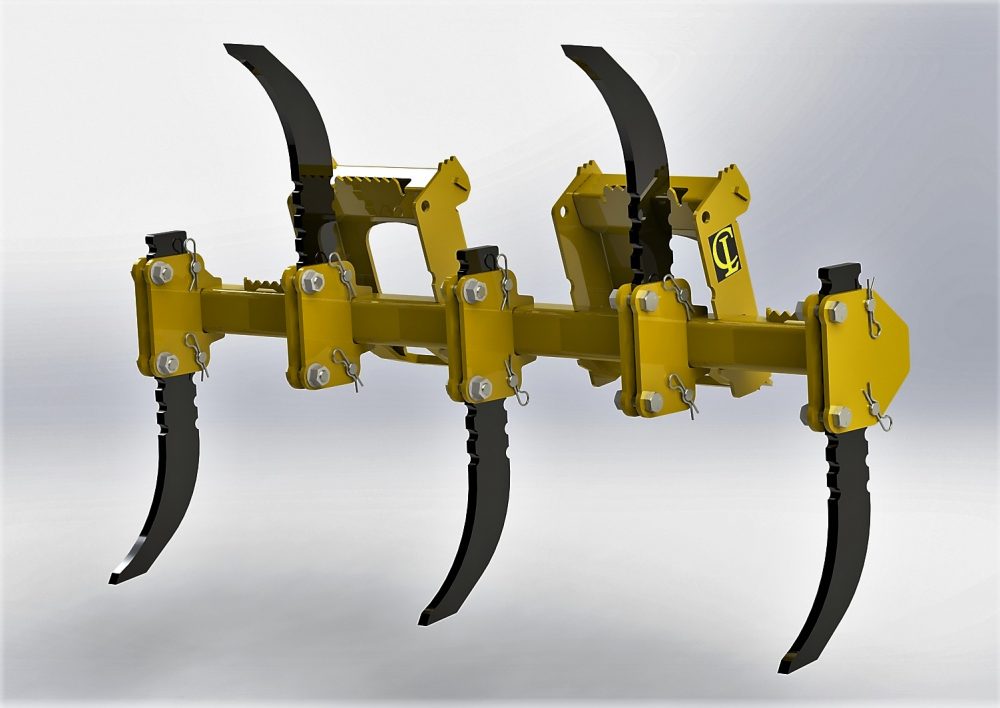

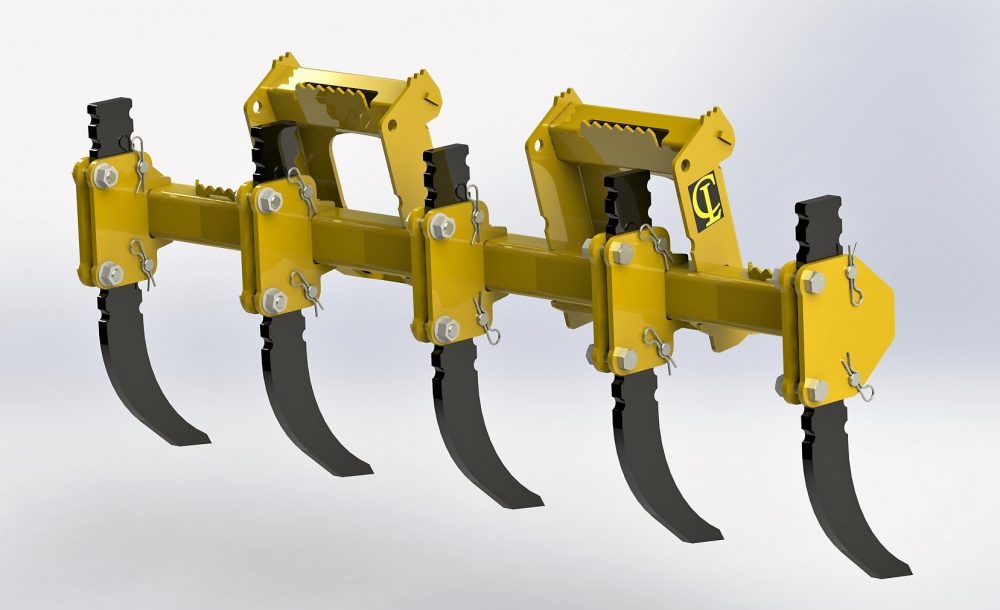

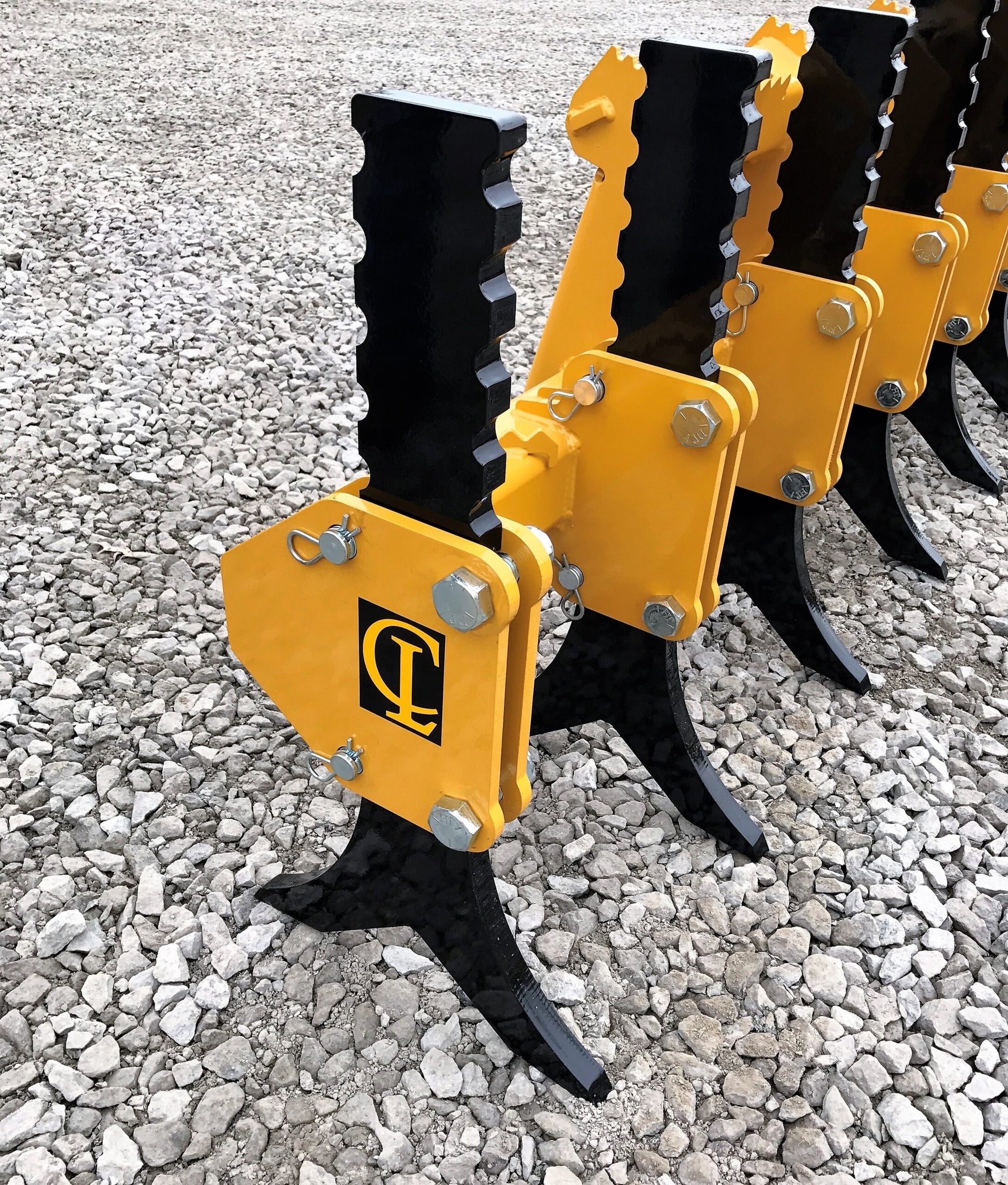

- Reversible Teeth – Allows ripping in both forward and reverse directions, improving versatility.
- Maximum Depth of 20” Below Grade – Ensures deep penetration for breaking up compacted soil and removing obstacles.

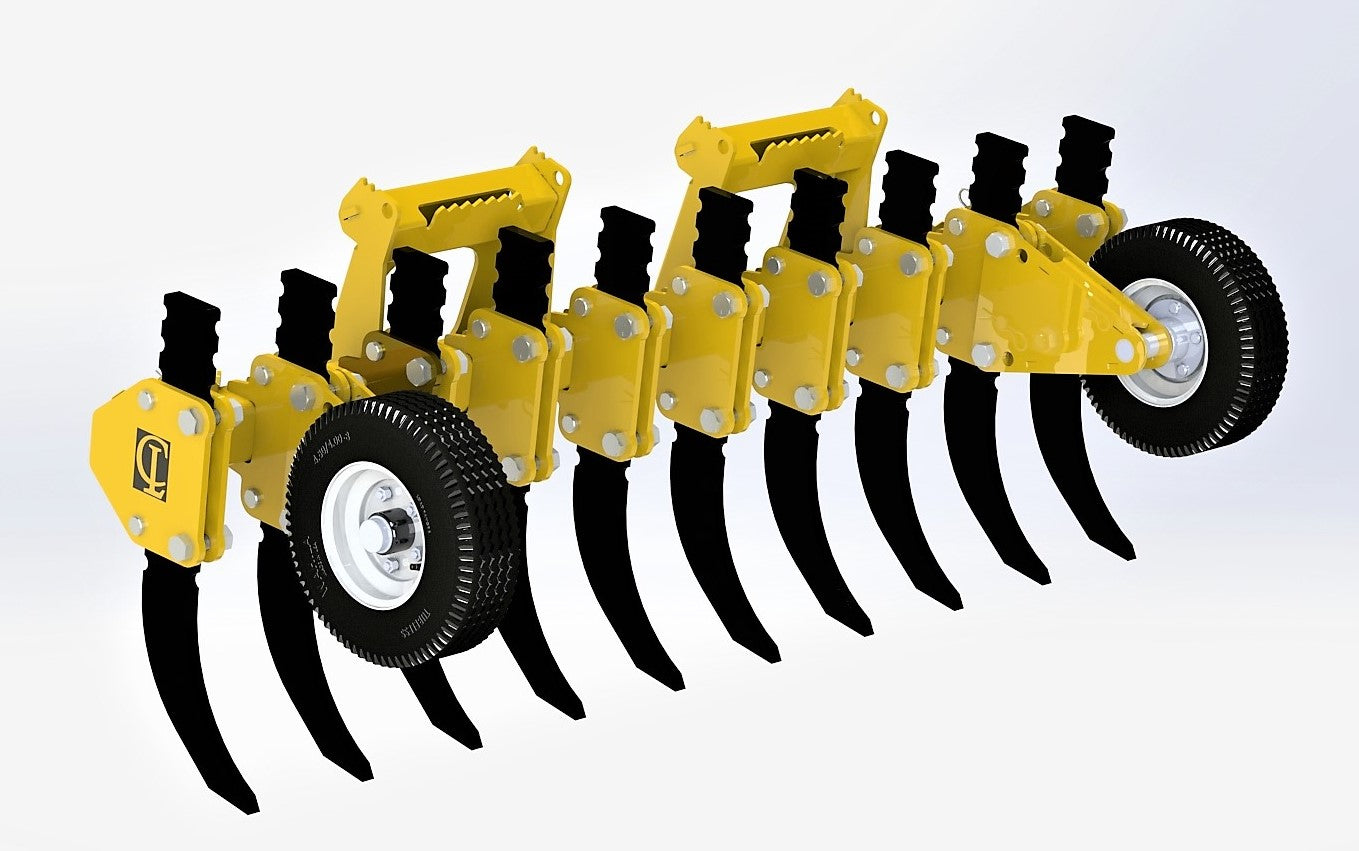

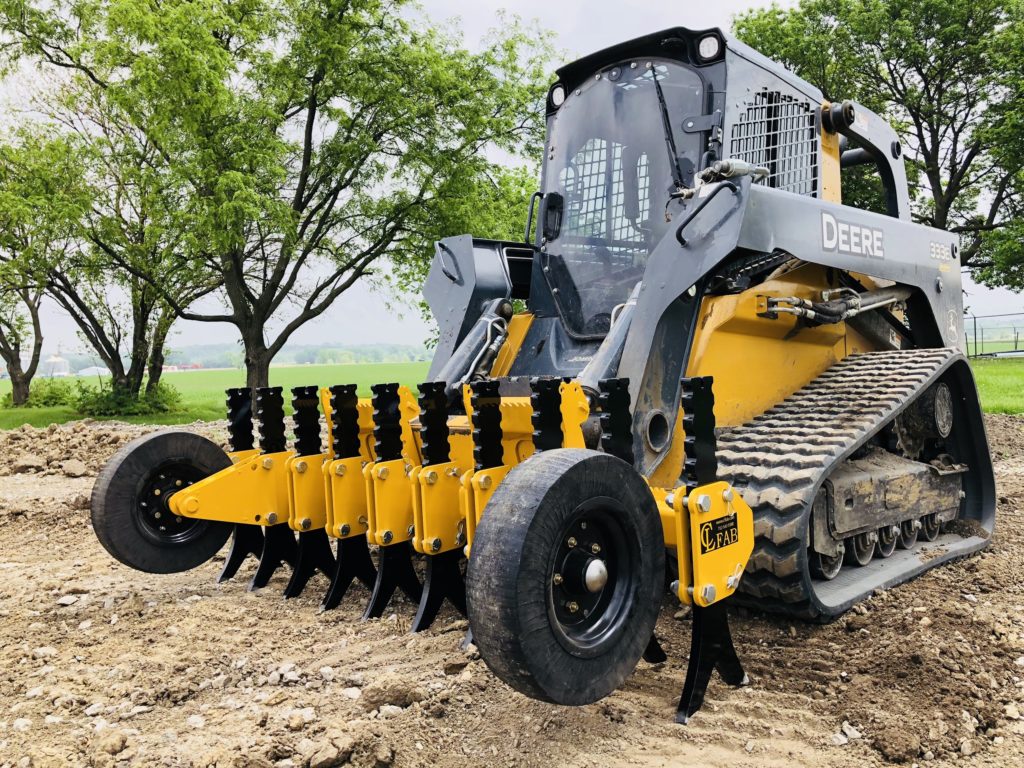

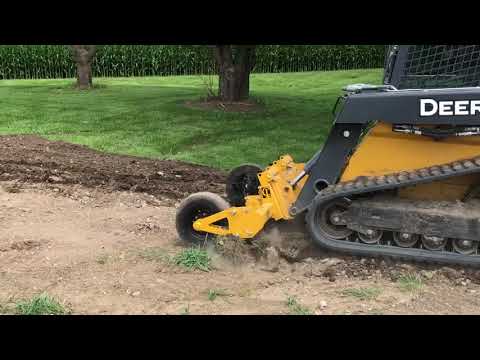

- Adjustable Gauge Wheels (Optional) – Improves depth control, ensuring consistent ripping performance.

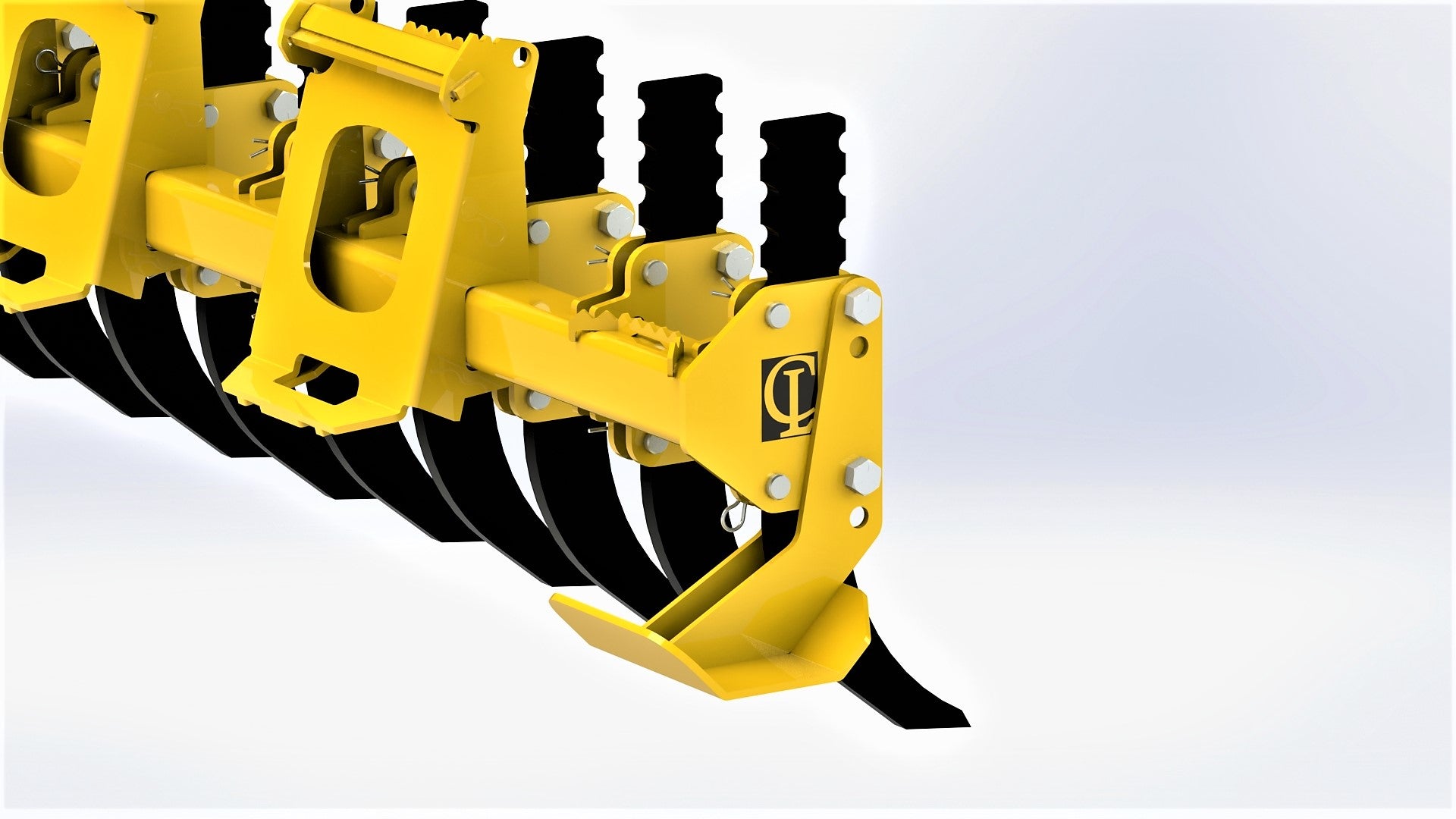

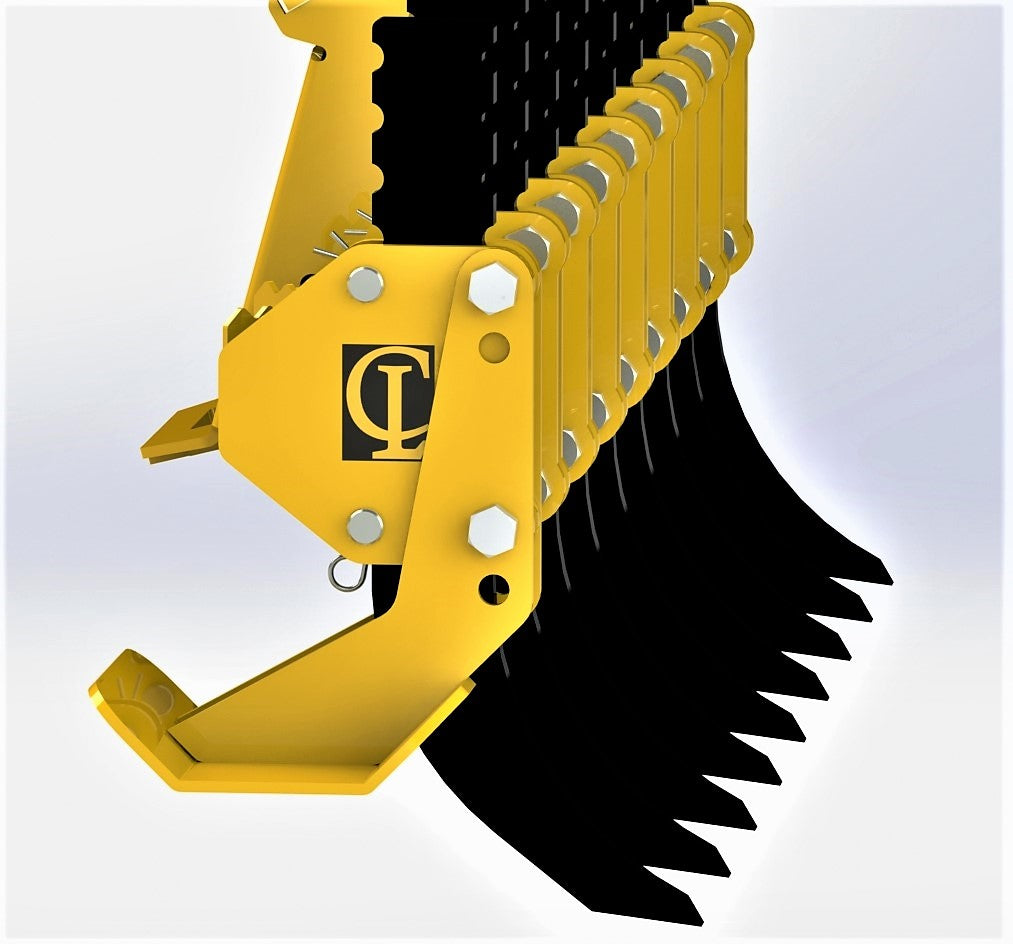

- Adjustable Skid Shoes (Optional) – Enhances vertical control, improving overall efficiency.
- 3/4” Thick Upper & Lower Skid Steer Attach Points – Provides reinforced mounting strength for rugged applications.
- Patented One-Piece Mount Brackets – Boosts attachment security, ensuring long-term durability.
- Four Anti-Skid Steps – Offers safety and stability when mounting and dismounting.
- No Tools Needed to Adjust Tines – Quick and easy adjustments, reducing downtime.
- Tough Powder-Coated Finish – Resists corrosion and wear, extending lifespan in harsh environments.

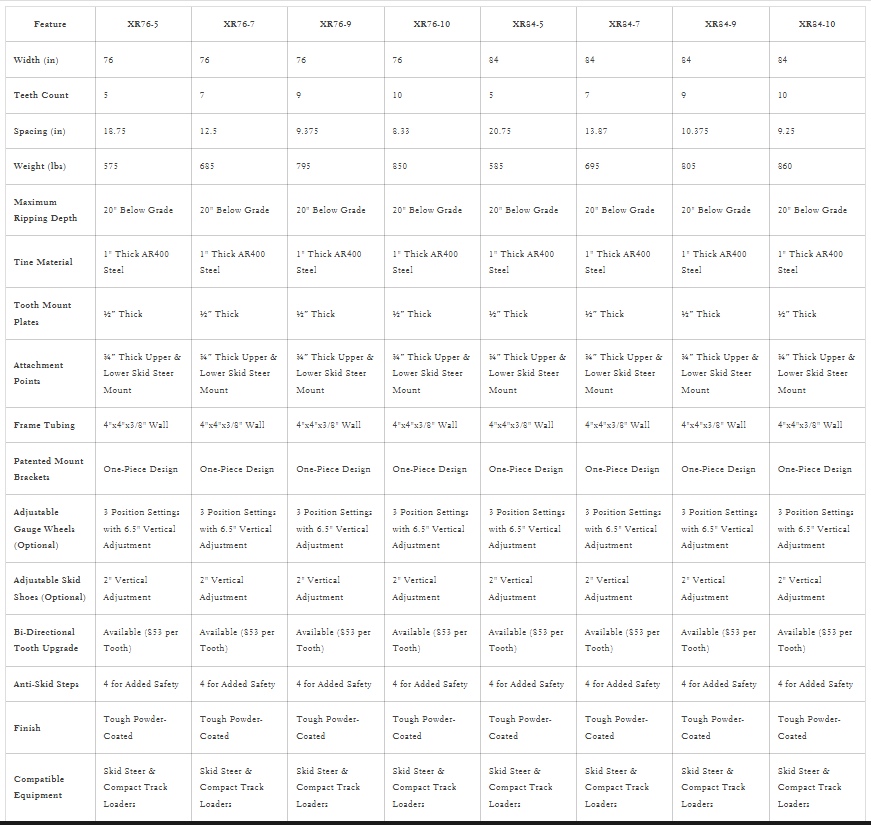

Detailed Specifications
| Feature | XR76-5 | XR76-7 | XR76-9 | XR76-10 | XR84-5 | XR84-7 | XR84-9 | XR84-10 |
|---|---|---|---|---|---|---|---|---|
| Width (in) | 76 | 76 | 76 | 76 | 84 | 84 | 84 | 84 |
| Teeth Count | 5 | 7 | 9 | 10 | 5 | 7 | 9 | 10 |
| Spacing (in) | 18.75 | 12.5 | 9.375 | 8.33 | 20.75 | 13.87 | 10.375 | 9.25 |
| Weight (lbs) | 575 | 685 | 795 | 850 | 585 | 695 | 805 | 860 |
| Maximum Ripping Depth | 20" Below Grade | 20" Below Grade | 20" Below Grade | 20" Below Grade | 20" Below Grade | 20" Below Grade | 20" Below Grade | 20" Below Grade |
| Tine Material | 1" Thick AR400 Steel | 1" Thick AR400 Steel | 1" Thick AR400 Steel | 1" Thick AR400 Steel | 1" Thick AR400 Steel | 1" Thick AR400 Steel | 1" Thick AR400 Steel | 1" Thick AR400 Steel |
| Tooth Mount Plates | ½” Thick | ½” Thick | ½” Thick | ½” Thick | ½” Thick | ½” Thick | ½” Thick | ½” Thick |
| Attachment Points | ¾” Thick Upper & Lower Skid Steer Mount | ¾” Thick Upper & Lower Skid Steer Mount | ¾” Thick Upper & Lower Skid Steer Mount | ¾” Thick Upper & Lower Skid Steer Mount | ¾” Thick Upper & Lower Skid Steer Mount | ¾” Thick Upper & Lower Skid Steer Mount | ¾” Thick Upper & Lower Skid Steer Mount | ¾” Thick Upper & Lower Skid Steer Mount |
| Frame Tubing | 4"x4"x3/8" Wall | 4"x4"x3/8" Wall | 4"x4"x3/8" Wall | 4"x4"x3/8" Wall | 4"x4"x3/8" Wall | 4"x4"x3/8" Wall | 4"x4"x3/8" Wall | 4"x4"x3/8" Wall |
| Patented Mount Brackets | One-Piece Design | One-Piece Design | One-Piece Design | One-Piece Design | One-Piece Design | One-Piece Design | One-Piece Design | One-Piece Design |
| Adjustable Gauge Wheels (Optional) | 3 Position Settings with 6.5" Vertical Adjustment | 3 Position Settings with 6.5" Vertical Adjustment | 3 Position Settings with 6.5" Vertical Adjustment | 3 Position Settings with 6.5" Vertical Adjustment | 3 Position Settings with 6.5" Vertical Adjustment | 3 Position Settings with 6.5" Vertical Adjustment | 3 Position Settings with 6.5" Vertical Adjustment | 3 Position Settings with 6.5" Vertical Adjustment |
| Adjustable Skid Shoes (Optional) | 2" Vertical Adjustment | 2" Vertical Adjustment | 2" Vertical Adjustment | 2" Vertical Adjustment | 2" Vertical Adjustment | 2" Vertical Adjustment | 2" Vertical Adjustment | 2" Vertical Adjustment |
| Bi-Directional Tooth Upgrade | Available ($53 per Tooth) | Available ($53 per Tooth) | Available ($53 per Tooth) | Available ($53 per Tooth) | Available ($53 per Tooth) | Available ($53 per Tooth) | Available ($53 per Tooth) | Available ($53 per Tooth) |
| Anti-Skid Steps | 4 for Added Safety | 4 for Added Safety | 4 for Added Safety | 4 for Added Safety | 4 for Added Safety | 4 for Added Safety | 4 for Added Safety | 4 for Added Safety |
| Finish | Tough Powder-Coated | Tough Powder-Coated | Tough Powder-Coated | Tough Powder-Coated | Tough Powder-Coated | Tough Powder-Coated | Tough Powder-Coated | Tough Powder-Coated |
| Compatible Equipment | Skid Steer & Compact Track Loaders | Skid Steer & Compact Track Loaders | Skid Steer & Compact Track Loaders | Skid Steer & Compact Track Loaders | Skid Steer & Compact Track Loaders | Skid Steer & Compact Track Loaders | Skid Steer & Compact Track Loaders | Skid Steer & Compact Track Loaders |
