Product Description

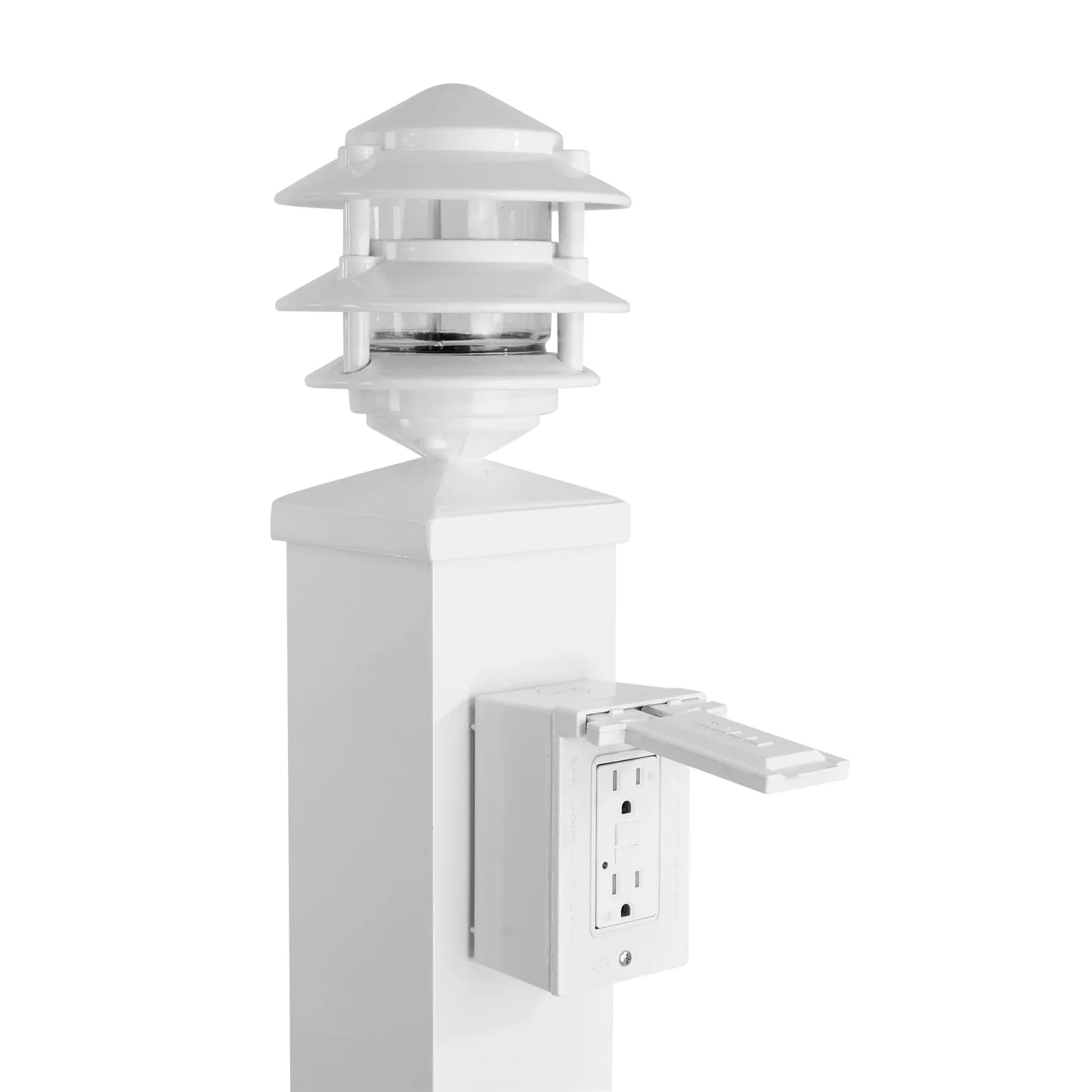

CM Marine Dock Pagoda Light Post With Electric | Model CMPEL36 | Height 44" | Marine‑Grade Aluminum Pedestal | For Universal Dock & Pathway Lighting
DESCRIPTION
The CM Marine Dock Pagoda Light Post with Electric delivers a refined coastal aesthetic while providing reliable illumination and power access for your dock, garden, or pathway. Crafted in the USA from marine‑grade all‑aluminum and finished with a durable powder‑coat, this pedestal is engineered for long‑term performance in harsh waterfront environments. The integrated 110V pagoda light features a lime crystal glass globe and a high‑quality porcelain socket for easy maintenance. A built‑in GFCI outlet with weatherproof protection ensures safe, convenient power access for dockside equipment. With its TIG‑welded construction, corrosion resistance, and clean architectural lines, this pedestal enhances both the functionality and appearance of any marine or residential setting.
Key Features
- Marine‑grade aluminum construction corrosion‑resistant TIG‑welded pedestal built for long‑term dockside durability.
- Integrated 110V pagoda light provides warm, reliable illumination with LED or incandescent compatibility.
- Weatherproof electrical system includes GFCI outlet, gang box, and protective cover for safe outdoor use.
- High‑quality porcelain socket replaceable medium‑base design ensures simple field maintenance.
- Lime crystal glass globe enhances light diffusion while delivering a premium nautical aesthetic.
- Durable powder‑coat finish resists UV, salt, and moisture exposure for lasting appearance.
- Made in the USA craftsmanship precision‑built with superior weld quality and marine‑grade materials.
- Universal dock & pathway use ideal for docks, seawalls, gardens, marinas, and waterfront walkways.
- 44" overall height optimized for visibility, safety, and architectural balance.
- Robust 8" x 8" base ensures stable mounting on docks, decks, or concrete surfaces.
- 4" x 4" pedestal body clean, modern profile suitable for residential or commercial installations.
- UL‑listed lighting components meets safety standards for wet‑location applications.
- Easy installation access 3.5" bottom access hole simplifies wiring and setup.
- LED‑ready design supports up to 10‑watt LED for energy‑efficient lighting.
- High‑output compatibility supports up to 100‑watt incandescent for brighter illumination needs.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | CM Marine |
| Model | CMPEL36 |
| Product Type | Dock Pagoda Light Post with Electric |
| Overall Height | 44" to top of light |
| Base Dimensions | 8" x 8" |
| Pedestal Size | 4" x 4" |
| Access Hole | 3.5" from bottom |
| Material | Marine‑grade all‑aluminum |
| Construction | TIG‑welded |
| Finish | Powder‑coated (White or Black) |
| Light Voltage | 110V |
| Light Compatibility | Up to 10‑watt LED or 100‑watt incandescent |
| Socket Type | Porcelain medium base |
| Fixture Material | Die‑cast zinc alloy (Zamak 3) |
| Electrical Components | GFCI outlet, gang box, weatherproof cover |
| GFCI Rating | 15 Amp, 125‑Volt, self‑test with LED indicator |
| UL Listing | Light fixture UL‑listed |
| Application | Docks, seawalls, pathways, gardens, marinas |
