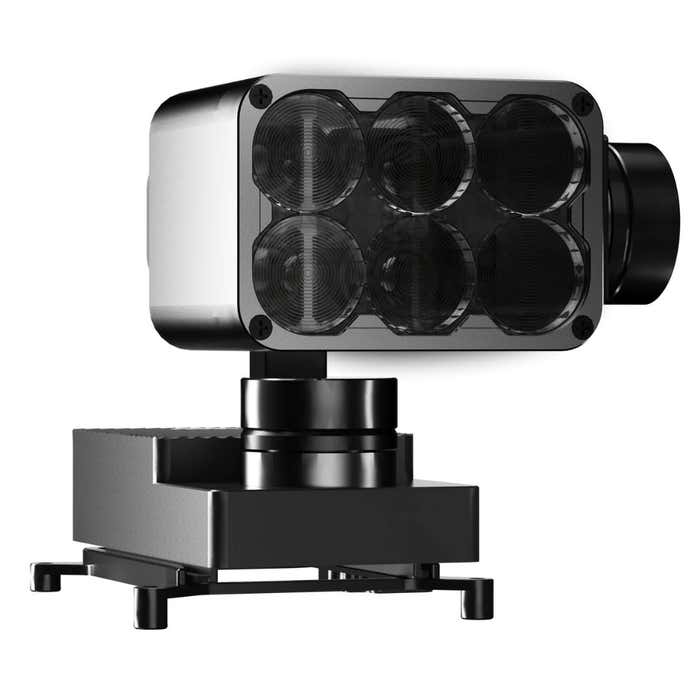

CZI GL60 Mini SDK Gimbal Spotlight for DJI M30
CZI GL60 Mini SDK Gimbal Spotlight for DJI M30
CZI GL60 Mini SDK Gimbal Spotlight for DJI M30
DESCRIPTION
Searching for a robust lighting option compatible with your DJI Matrice 30 drone?
Try the CZI GL60 Mini SDK Gimbal Spotlight! Equipped with 3-axis gimbal technology, AI follow features, and a 150-meter effective illumination range, this spotlight is ideal for tasks such as search and rescue operations or inspections.
This payload is original, brand new, and sealed! While there are many lower quality third-party products available that claim to be compatible with your drone, it is important to use only high-quality and genuine drone parts.
If we don't have it, we can most likely get it! If you are looking for something not shown on our site, contact us to see if we're able to source it for you.
Have any questions? Our friendly and knowledgeable Solution Consultants are standing by, ready to help! Contact us via phone or email.
SPECIFICATION
- Electrical Interface: DJI OSDK
- Weight/g: 240 (Technically)
- Size/mm: L158 * W87 * H82
- Total Power/W: 65
- LED Power/W: 60
- Supply Voltage/V: 24
- Luminous Flux/lm: 7000 ± 3% (Technically)
- FOV/°: 13
- Illumination Distance/m: 150 100 50
- Spot Diameter/m: 34 22.8 11.4
- Illumination Area/m2: 917 407 102
- Central Illuminance/Lux: 7 (Technically) 16 (Technically) 60 (Technically)
-
Gimbal Rotation and Design Range
Range of Rotation:
- Pitch: -70° ~ +90° (Technically)
- Horizontal: ±125° (Technically)
-
Design Range of Gimbal:
- Pitch: -70° ~ +90° (Technically)
- Horizontal: ±125° (Technically)
- Roll: ±125° (Technically)
- Operating Temperature: -20°C ~ +50°C (Technically
IN THE BOX
- 1x CZI GL60 Mini SDK Gimbal Spotlight for DJI M30
