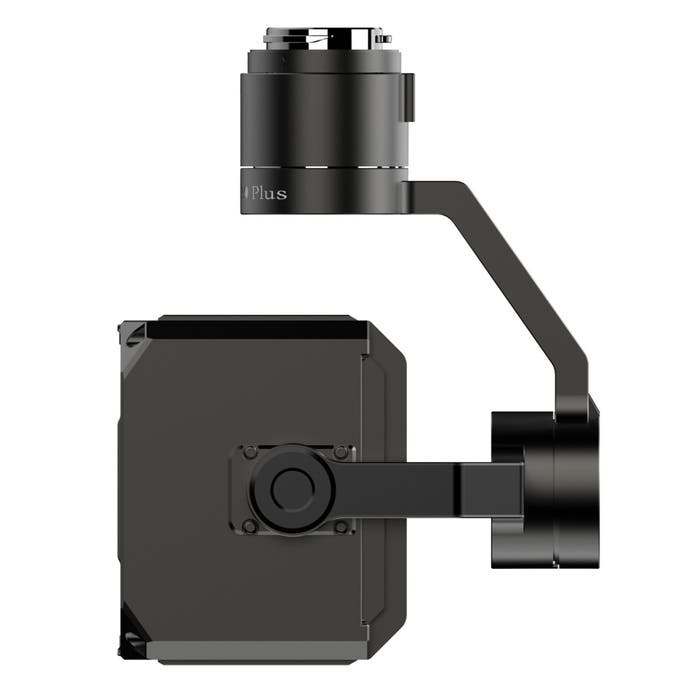

CZI GL60 Plus SDK Gimbal Spotlight for DJI M300/M350 RTK

CZI GL60 Plus SDK Gimbal Spotlight for DJI M300/M350 RTK

$2,199.00
$2,199.00
Sale Sold out
Customizable
Fast
24/7 Support

Exceptional Illumination: Equipped with 4 sets of optical imaging components producing up to 13,400 lumens for unmatched brightness and color uniformity.

Extended Range Lighting: Effective illumination area of 1,225 square meters at 150m, with a focused 15° beam angle.

Lightweight Design: Weighs only 750g, ensuring minimal impact on drone performance and flight endurance.

Advanced Gimbal Control: Dynamic adjustments with a pitch range of -99° to +23° and horizontal rotation of ±99°.

Wide Compatibility: Seamlessly integrates with DJI M200 V2, M300 RTK, and M350 RTK drones via DJI SkyPort V2.0 interface.

View full details

    Product Description

    CZI GL60 Plus SDK Gimbal Spotlight for DJI M300/M350 RTK

    DESCRIPTION

    The CZI GL60 Plus SDK Gimbal Spotlight is a high-performance lighting payload designed to elevate the capabilities of the DJI M300/M350 RTK drones. Engineered for demanding night operations such as law enforcement, search-and-rescue missions, firefighting, and industrial inspections, this spotlight ensures precise, uniform, and powerful illumination.

    Featuring 4 sets of optical imaging components, the GL60 Plus emits a highly focused 15° beam with up to 13,400 lumens of brightness. This results in an effective illumination area of up to 1,225 square meters at 150m altitude, enabling exceptional visibility for complex aerial tasks. The dual-power modes (120W and 60W) and adjustable brightness settings provide operational flexibility for a variety of scenarios.

    Weighing just 750g, the GL60 Plus is ultra-lightweight, ensuring minimal impact on drone stability and battery life. Its advanced gimbal system allows for dynamic adjustment of the spotlight’s angle, enhancing precision and adaptability during flight. Compatible with DJI SkyPort V2.0, this spotlight integrates seamlessly with DJI enterprise drones for smooth and reliable operation in the most demanding environments.

    Key Features

    • Superior Brightness: Offers up to 13,400 lumens of powerful lighting with excellent color uniformity.
    • Adjustable Beam and Area: Focused 15° beam with adjustable spot diameters and illumination areas for various distances.
    • Dynamic Gimbal Control: Allows for precise angle adjustments with a pitch range of -99° to +23° and horizontal rotation of ±99°.
    • Dual Power Modes: Operates at 120W or 60W, depending on the mission’s requirements.
    • Durable and Weatherproof: Performs reliably in extreme temperatures from -20°C to +50°C, making it suitable for diverse environments.

    Detailed Specifications

    Model

    GL60 Plus
    Electrical interface

    DJI SkyPort V2.0
    Weight/g

    750g
    Dimensions/mm

    126*131*167mm
    FOV/°

    15°
    Supply voltage /V

    PSDK 17V+OSDK 24V
    PSDK 17V
    Total power/W

    128W
    68W
    LED power/W

    120W
    60W
    Luminous flux/lm

    13400lm±3%
    8000lm±3%
    Luminous efficacy(lm/W)

    111.67lm/W
    133.33lm/W
    Spot diameter/m

    13.2m（distance：50m,120W）
    26.4m（distance：100m,120W）
    39.5m（distance：50m,120W）
    13.2m（distance：50m,60W）
    26.4m（distance：100m,60W）
    39.5m（distance： 150m,60W）
    Illumination area/m²

    136m²（distance：50m,120W）
    544m²（distance：100m,120W）
    1225m²（distance：150m,120W）
    136m²（distance：50m,60W）
    544m²（distance：100m,60W）
    1225m²（distance：150m,60W）
    Central illuminance/Lux

    85Lux（Power:120W；distance：50m）
    23Lux（Power:120W；distance：100m）
    11Lux（Power:120W；distance：150m）
    45Lux（Power:60W；distance：50m）
    12Lux（Power:60W；distance：100m）
    6Lux（Power:60W；distance：150m）
    Function mode

    Normally on: 120W , 60W
    Sharp flash: 120W , 60W
    Adjusting the gimbal angle
    Adjusting brightness
    Range of rotation of the gimbal

    Pitch: -99°~+23°
    Horizontal: ±99°
    Design range of the gimbal

    Pitch: - 100 ° ~ + 24° < br / > Horizontal: ±100° < br / > Rolling: - 90°～+ 60°
    Operating temperature

    -20°C~+50°C

    In Package

    • 1x CZI GL60 Plus SDK Gimbal Spotlight
