| Specification | Value |
|---|---|
| Model | IR10 |
| Version | See through rain/haze IR fill-in light (940nm) |
| Electrical Interface | DJI SkyPort V2.0 |
| Size | 186128158 mm |
| Weight | 800±5 g |
| Power | ≤40 W |
| Out Light Power | 12±0.5 W |
| FOV | 0.56°-45° |
| Luminous Wavelength | 808 nm/940 nm |
| Effective Distance | ≥1000 m |
| Laser Safety Distance | ≥90 m |
| Individual Control Angle | Pitch: -125°~+40° Horizontal: ±320° |
| IR10 Mount No.1 head port + DJI H20T | Pitch: -125°~+40° Horizontal: -25°~+45° |
| IR10 mount No. 2 head port + DJI H20T | Pitch: -125°~+40° Horizontal: -15°~+12° |
| IR10 mount No.1 head port + DJI H20 | Pitch: -125°~+40° Horizontal: ±45° |
| IR10 mount No.2 head port + DJI H20 | Pitch: -125°~+40° Horizontal: ±45° |
| Working temperature | -20～+50°C |
CZI IR-10 Infrared Zoom Spotlight | Advanced Stealth Surveillance & Reconnaissance Tool
CZI IR-10 Infrared Zoom Spotlight | Advanced Stealth Surveillance & Reconnaissance Tool
Regular price
$7,399.00
Regular price
Sale price
$7,399.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

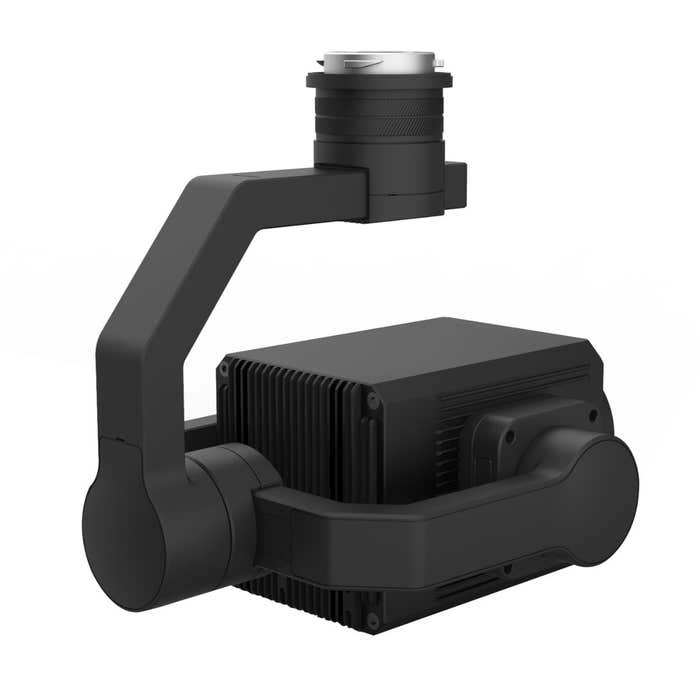

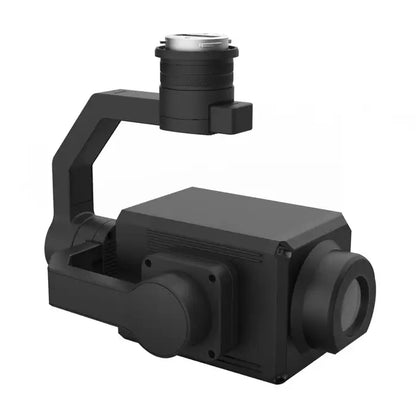

CZI IR-10 Infrared Zoom Spotlight | Advanced Stealth Surveillance & Reconnaissance Tool
Description
The CZI IR-10 Infrared Zoom Spotlight is an advanced illumination device designed for stealth surveillance and reconnaissance. Utilizing the latest laser fiber generator, this spotlight delivers a powerful 12W light that remains invisible to the human eye. With an impressive 70x optical zoom and infrared fill-in light capability, it ensures clear visibility over long distances when used with DJI's IR mode H20N/H20T. Ideal for search and rescue missions, the IR10 can be directly mounted on DJI Matrice M200 V2, M300 RTK, and M350 RTK via the DJI SkyPort V2.0 interface. The 940nm version provides nearly IR exposure-free light, making it perfect for covert operations. The robust design includes a weatherproof and dustproof shell, ensuring reliable performance in harsh conditions.
What's in the Box:
-
1x CZI IR-10 Infrared Zoom Spotlight
Key Features
- Latest Laser Fiber Generator: Utilizes cutting-edge laser fiber technology to deliver a powerful 12W light, enhancing visibility without being detectable by the human eye, making it perfect for covert operations.
- 70x Optical Zoom: Provides long-distance infrared fill-in light, allowing for clear and detailed surveillance over extended ranges, ideal for comprehensive situational awareness.
- Invisible to Human Eyes: Emits infrared light that is invisible to the naked eye, ensuring stealth and secrecy during surveillance and reconnaissance missions.
- Mountable on DJI Drones: Easily integrates with DJI Matrice M200 V2, M300 RTK, and M350 RTK via the DJI SkyPort V2.0, offering seamless compatibility and versatility across various UAV platforms.
- Weatherproof and Dustproof Design: Built to withstand harsh conditions, this spotlight features a robust shell that ensures reliable performance in challenging environments, whether in rain or dusty terrains.
