D & B Construction Equipment High Dump Roll Out Bucket | Standard 5yd & Narrow 4yd | Width 96" & 108" Inches | Capacity 4 & 5 YD | Horsepower 150 To 300 HP | For Loaders
D & B Construction Equipment High Dump Roll Out Bucket | Standard 5yd & Narrow 4yd | Width 96" & 108" Inches | Capacity 4 & 5 YD | Horsepower 150 To 300 HP | For Loaders
DESCRIPTION

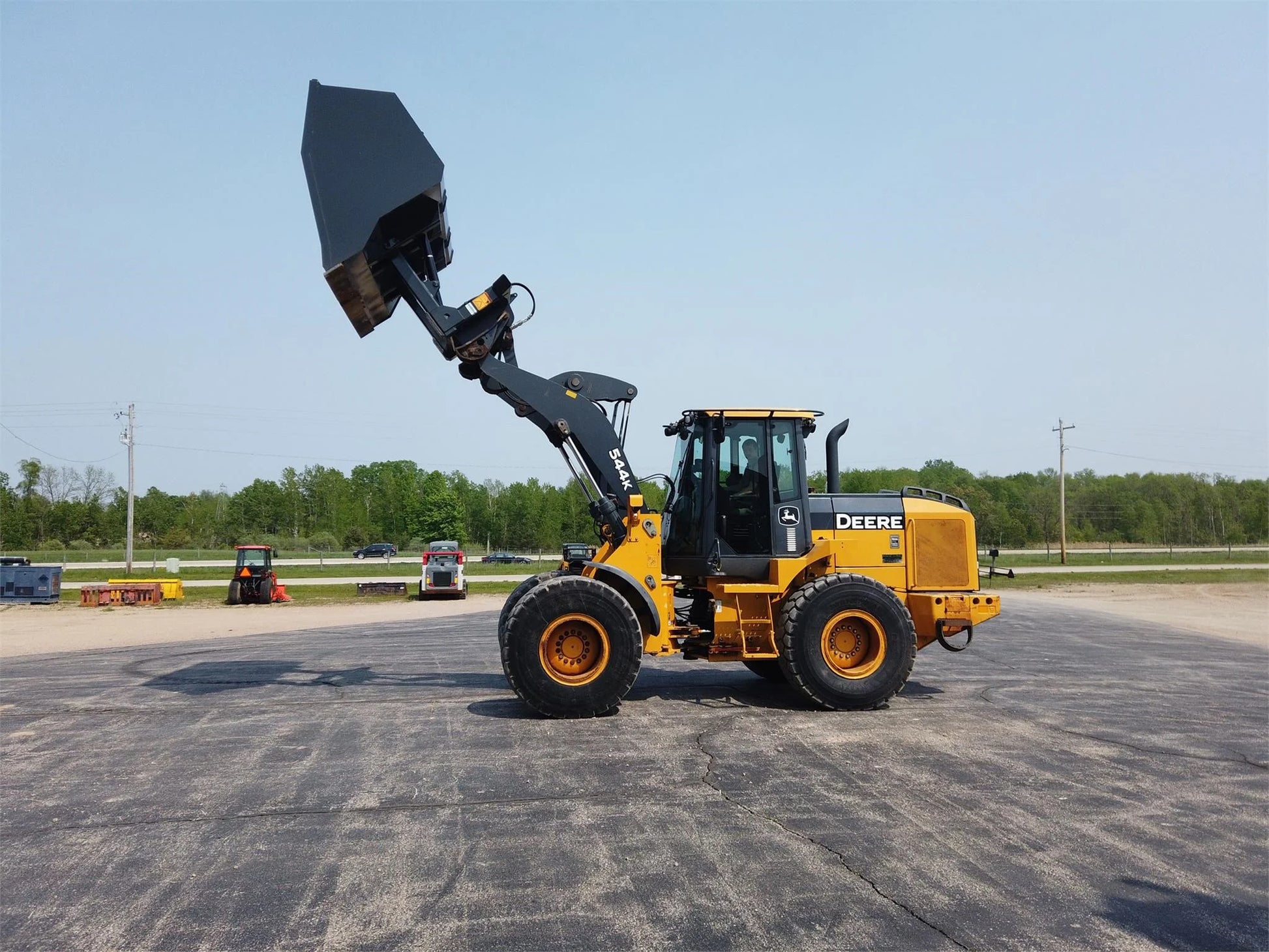

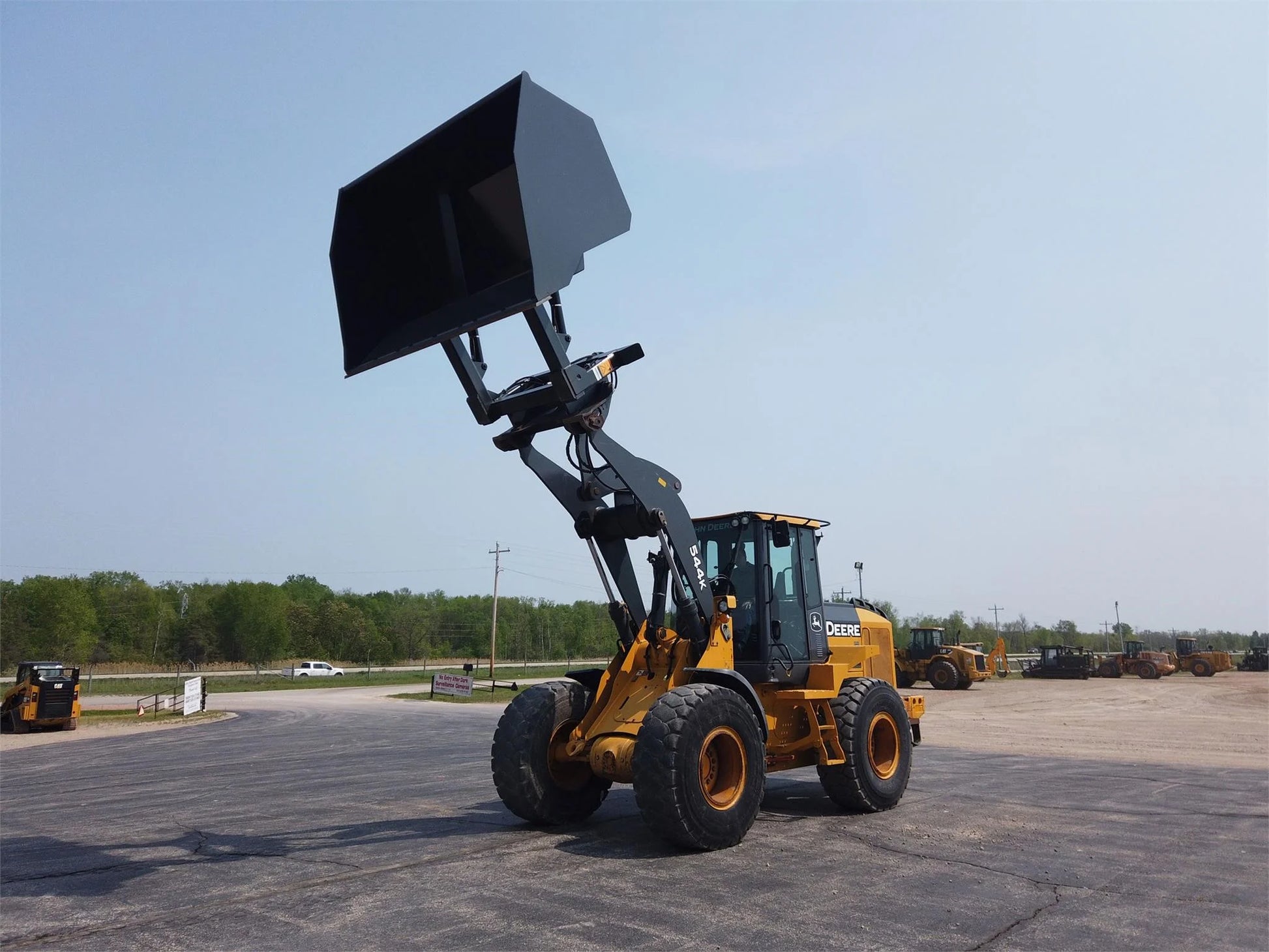

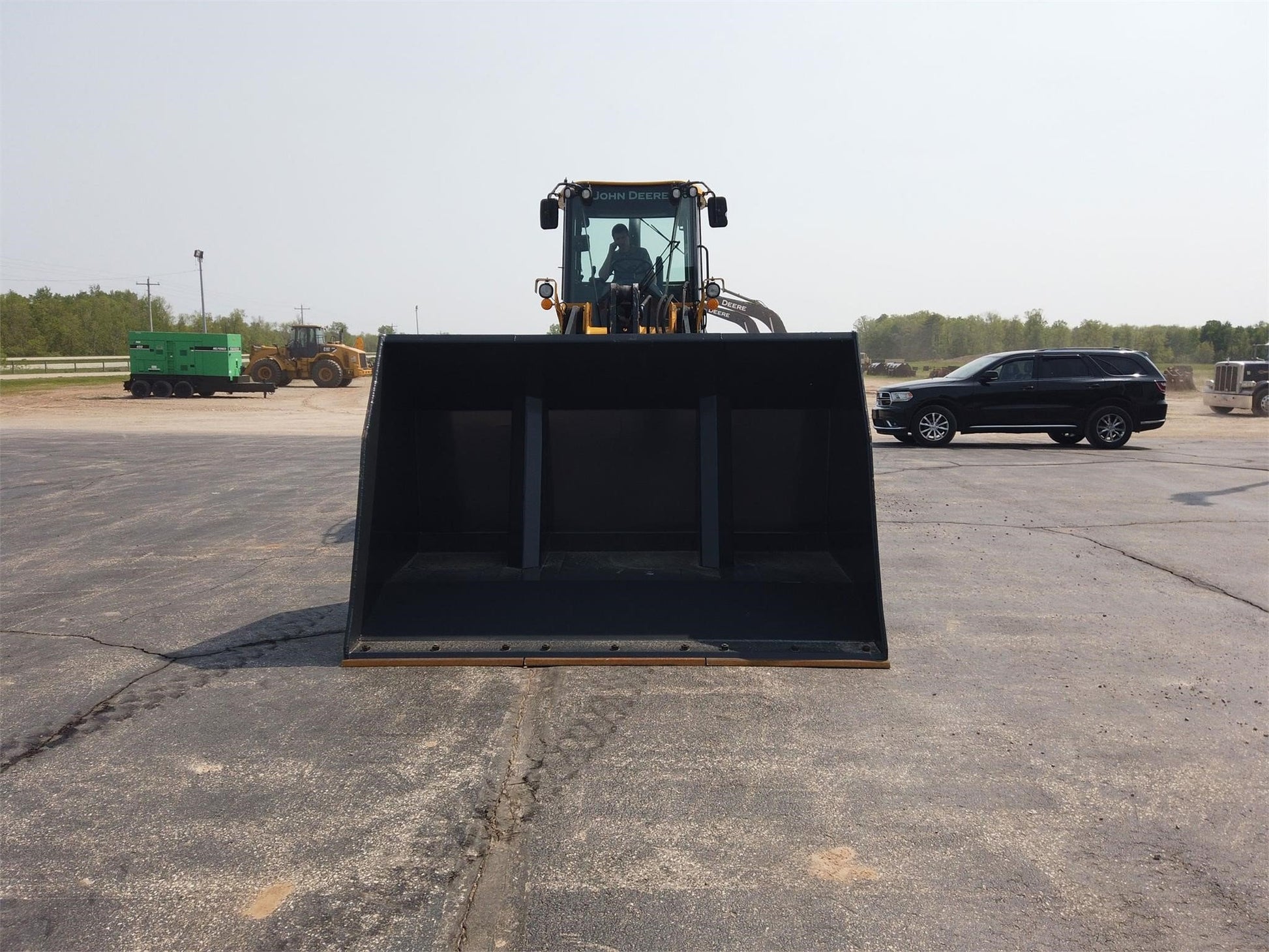

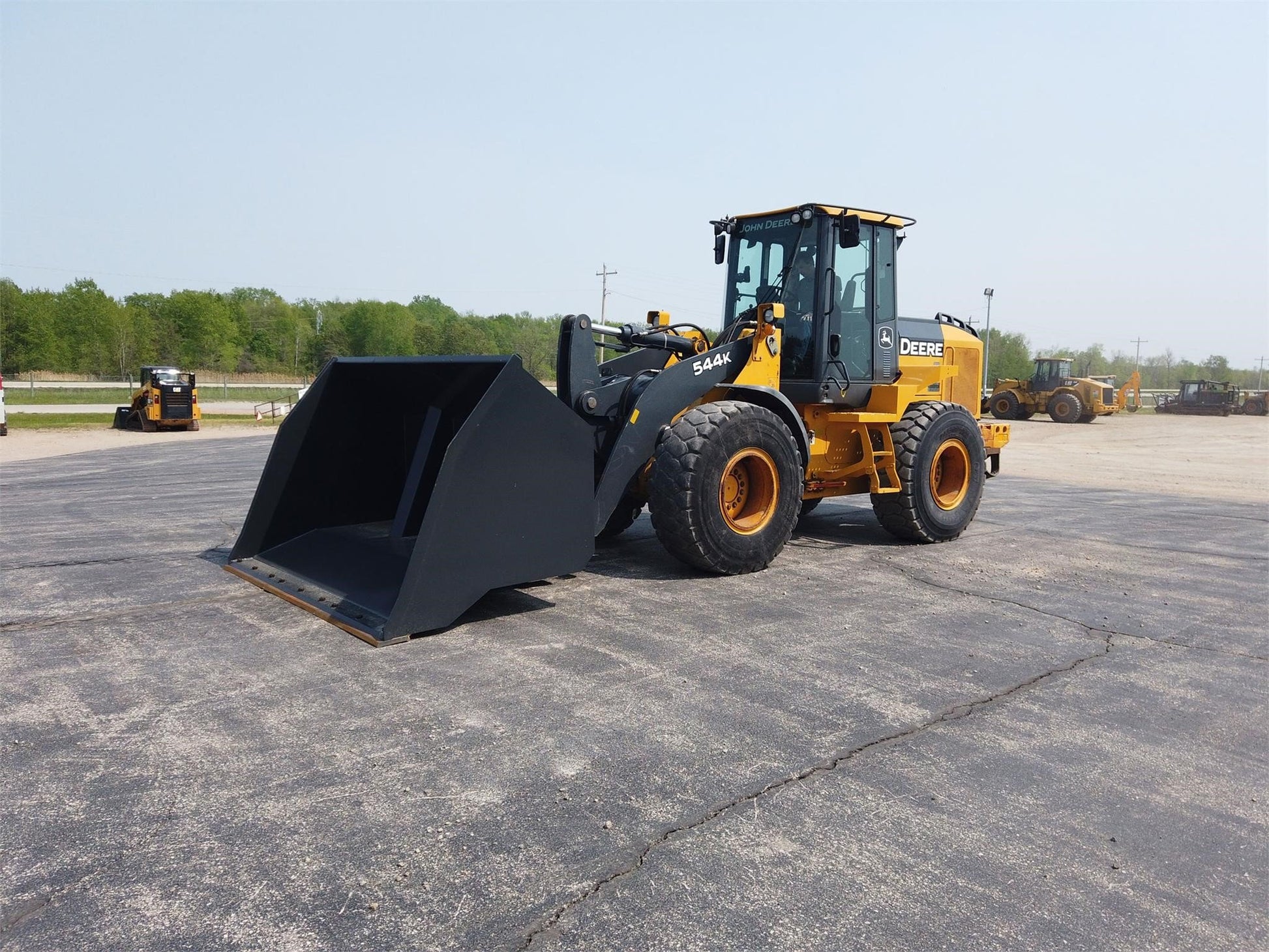

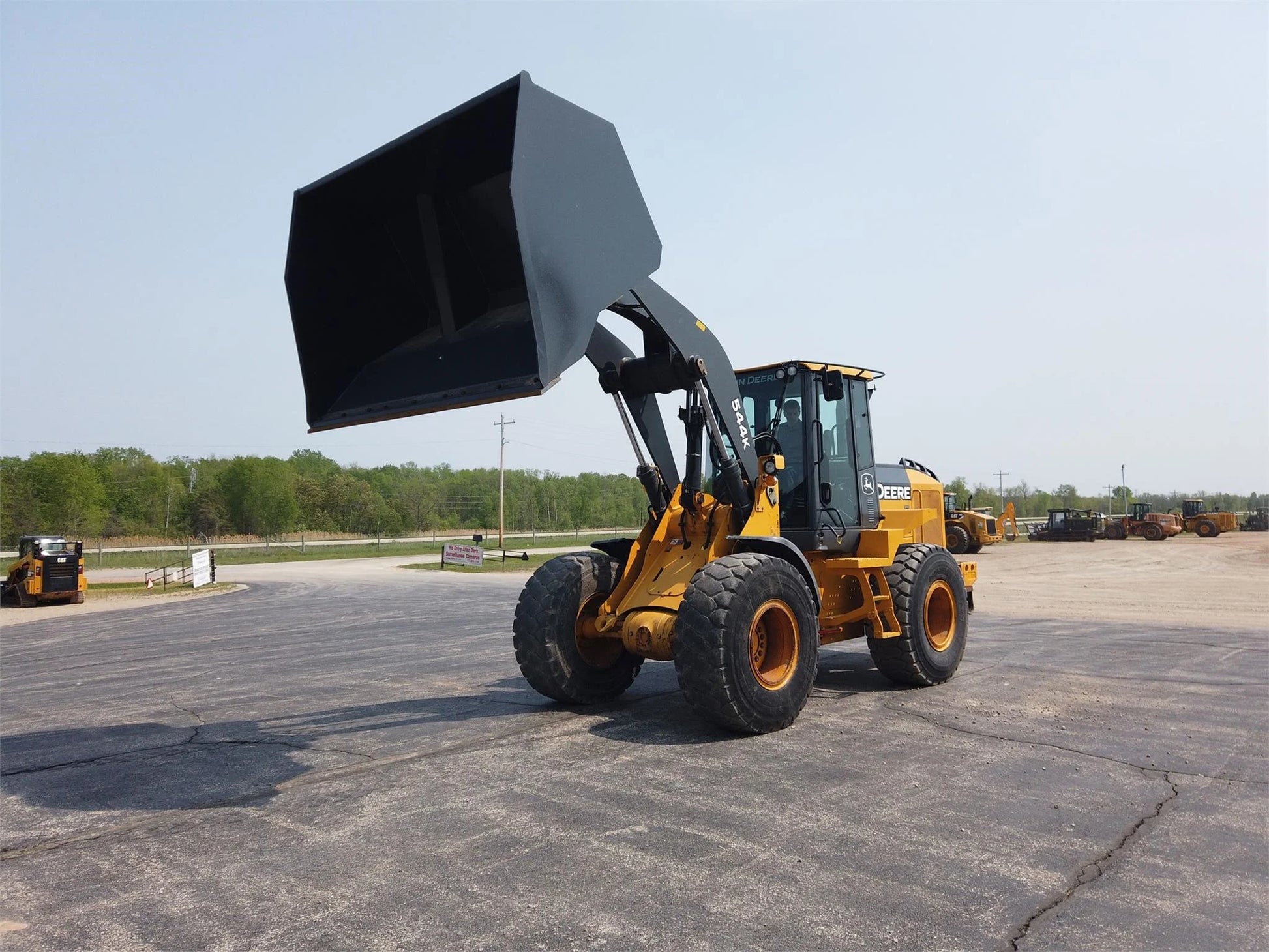

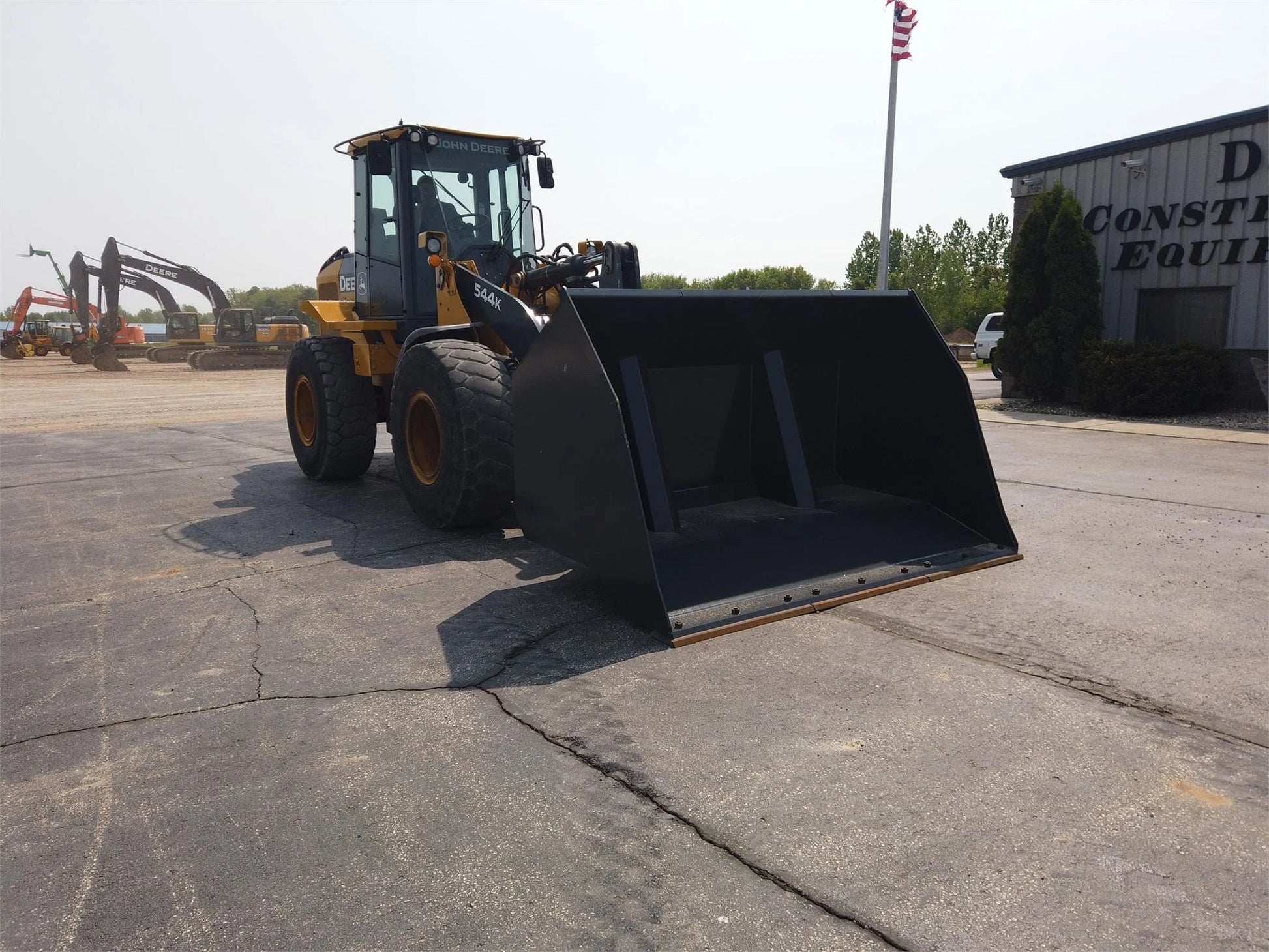

D & B Construction Equipment Dump Roll Out Buckets are designed for high-efficiency material handling and superior reach on job sites. These heavy-duty buckets provide an additional 4 to 5 feet of lift height compared to standard high-lift machines, making them an excellent solution for loading high-sided trucks or containers.
Available in both Standard 5-yard and Narrow 4-yard capacities, these buckets feature rugged construction and a deep profile for enhanced volume and durability. Choose from factory-installed mounts including JRB 416, Volvo ISO, Hi-Viz, or go with a Blank Plate version for custom fabrication to fit your specific loader.
Ideal for Case, Deere, and Volvo loaders, these buckets are in stock and ready to ship, offering unmatched performance in feed handling, construction, and bulk material loading operations.
Key Features
Extended Lift Height: Gain 4–5 feet more vertical reach over standard loaders.
Multiple Sizes: Choose between Standard 5yd or Narrow 4yd models to fit your application.
Horsepower 150 To 300 HP For Loaders
Heavy-Duty Build: Constructed to handle demanding environments with up to 4,500 lbs of shipping weight.

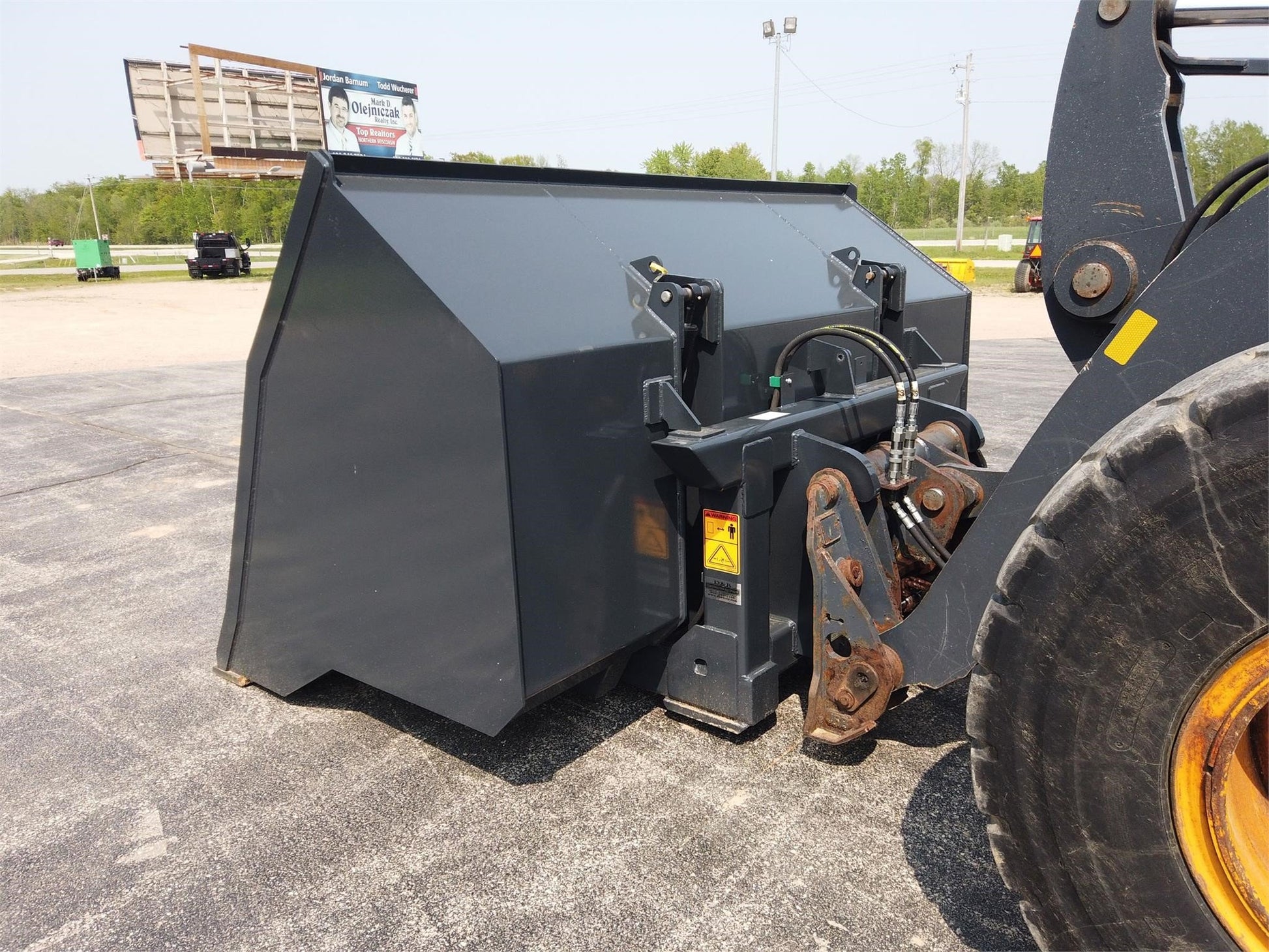

Mounting Options: Pre-fitted with JRB 416, Volvo ISO, Hi-Viz mounts or blank-backed for custom mounting.
Versatile Loader Fit: Compatible with popular loader models from Case, Deere, and Volvo.
Available Now: All models are in stock for fast delivery and field-ready use.
Detailed Specifications
Feature
Standard 5yd
Narrow 4yd
Bucket Capacity
5 cubic yards
4 cubic yards
Width
108 inches
96 inches
Height
60 inches
60 inches
Depth
62 inches
62 inches
Shipping Weight
4,500 lbs
4,000 lbs
Mount Type
JRB 416, Volvo ISO, Hi-Viz
JRB 416, Volvo ISO, Hi-Viz
Lift Height Benefit
+4 to 5 ft above standard high-lift
+4 to 5 ft above standard high-lift
Horsepower Compatibility
150–300 HP
120–250 HP
Loader Compatibility
Case, Deere, Volvo loaders
Case, Deere, Volvo loaders
Feature
Standard 5yd (Blank Plate)
Narrow 4yd (Blank Plate)
Bucket Capacity
5 cubic yards
4 cubic yards
Width
108 inches
96 inches
Height
60 inches
60 inches
Depth
62 inches
62 inches
Shipping Weight
4,500 lbs
4,000 lbs
Mount Type
Blank Plate (for custom fabrication)
Blank Plate (for custom fabrication)
Lift Height Benefit
+4 to 5 ft above standard high-lift
+4 to 5 ft above standard high-lift
Horsepower Compatibility
150–300 HP
120–250 HP
Loader Compatibility
Custom mounting required
Custom mounting required
