Danuser Auger Drive | 2″ Hex Output | 36″ Max Diameter | Machine Size 2–9 Ton | For Excavators
Danuser Auger Drive | 2″ Hex Output | 36″ Max Diameter | Machine Size 2–9 Ton | For Excavators
Regular price
$3,552.00
Regular price
Sale price
$3,552.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Danuser Auger Drive | 2″ Hex Output | 36″ Max Diameter | Machine Size 2–9 Ton | For Excavators
DESCRIPTION

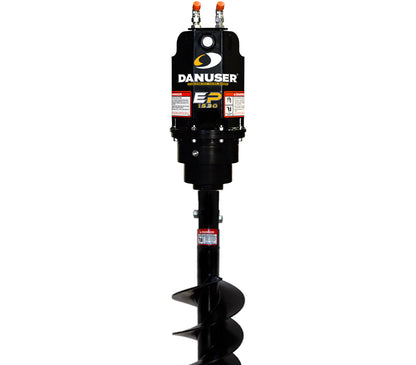

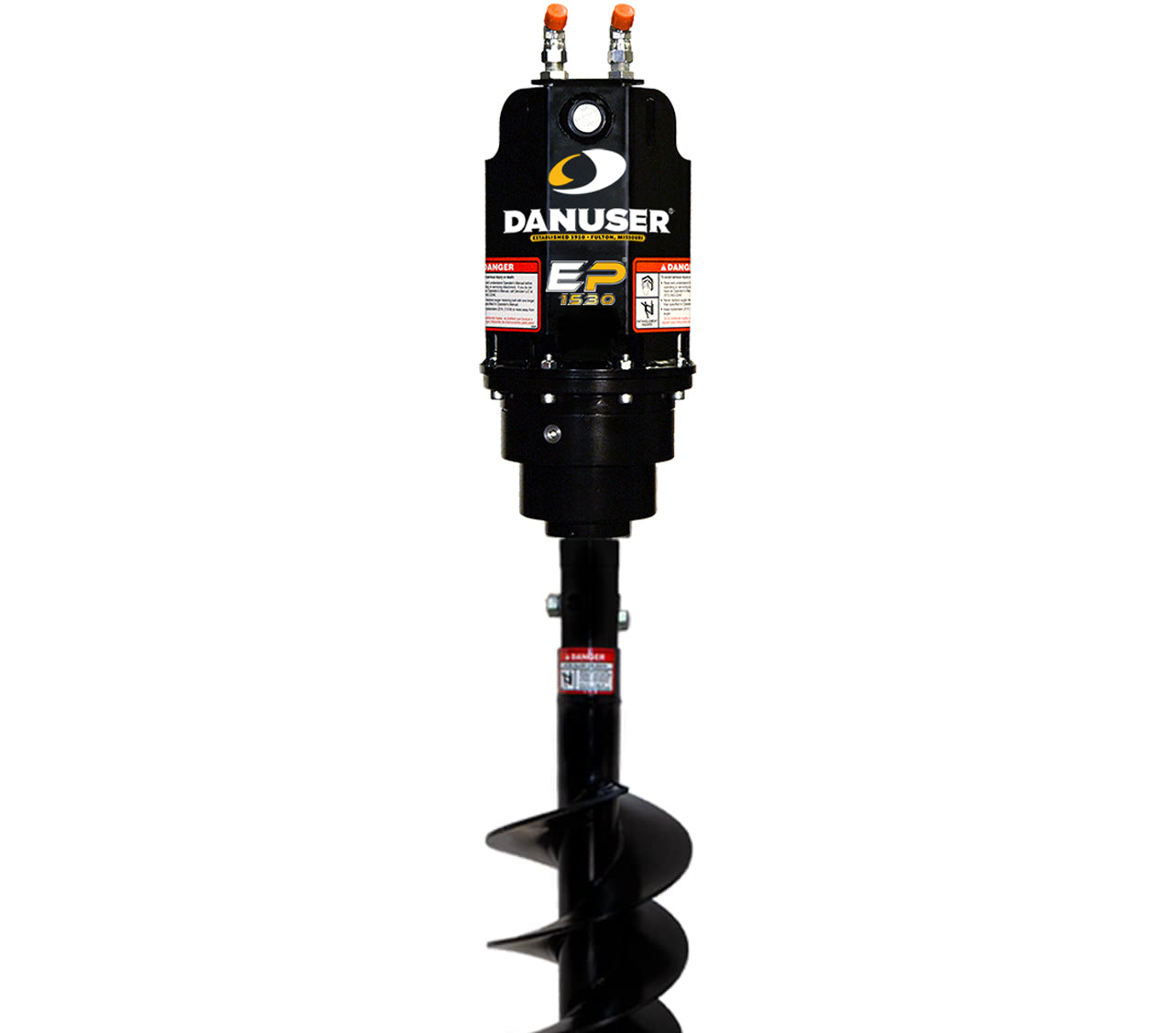

The Danuser EP 1530 is an extreme-duty auger drive built for higher torque output and deeper drilling capability in compact and mid-size excavators ranging from 2 to 9 tons. With flow tolerance from 15–30 GPM, this 2″ hex drive unit handles auger bits up to 36″ in diameter with standard 4′ flighting, making it ideal for construction, utility, fencing, and landscaping applications. The kit includes a pre-assembled 66″ hydraulic hose package with abrasion sleeves and flush-face couplers, designed for plug-and-play use across OEM mount styles such as pin-on, wedge, QA, quick coupler, and TAG systems. Reliable, rugged, and adaptable—EP 1530 delivers productivity in demanding soil conditions.
Key Features
- Drive Type: 2″ Hex output shaft Supports high-capacity auger bits up to 36″ diameter
- Torque Rating: High-output motor rated for 15–30 GPM Ideal for compact and mid-frame excavator hydraulic systems
- Mount Configurations: Available in pin-on, wedge, QA, quick attach, and TAG coupler Machine-specific compatibility across CAT, John Deere, Kubota, Takeuchi
- Bit Capacity: Handles 6″–36″ auger bits with standard 4′ depth Suitable for deep postholes, tree planting, utility trenching
- Plug-and-Play Kit: Pre-assembled hose kit (66″) w/ abrasion sleeves Includes ½″ flush-face couplers for rapid installation
- Machine Class Compatibility: Designed for excavators 2 to 9 tons Covers compact to mid-size carriers with sufficient flow and lifting capacity
- Applications: Construction fencing, foundation prep, landscaping, utilities Adaptable for dirt, clay, and compacted soils
- Durability: Extreme-duty construction built for rugged terrain Long service life under heavy torque conditions

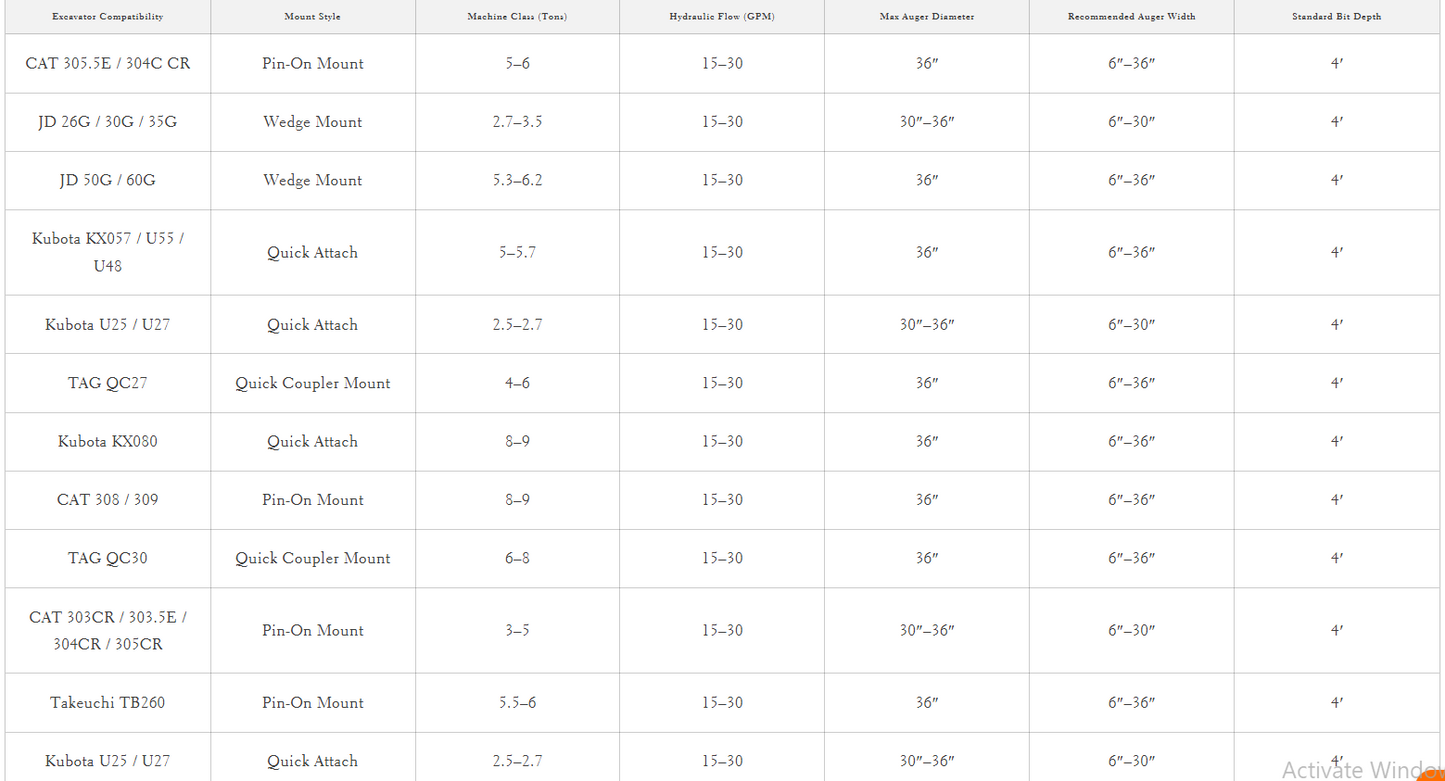

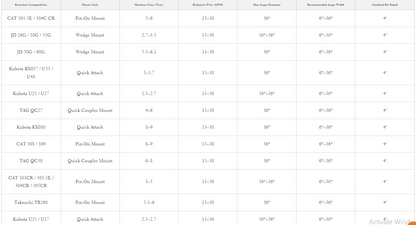

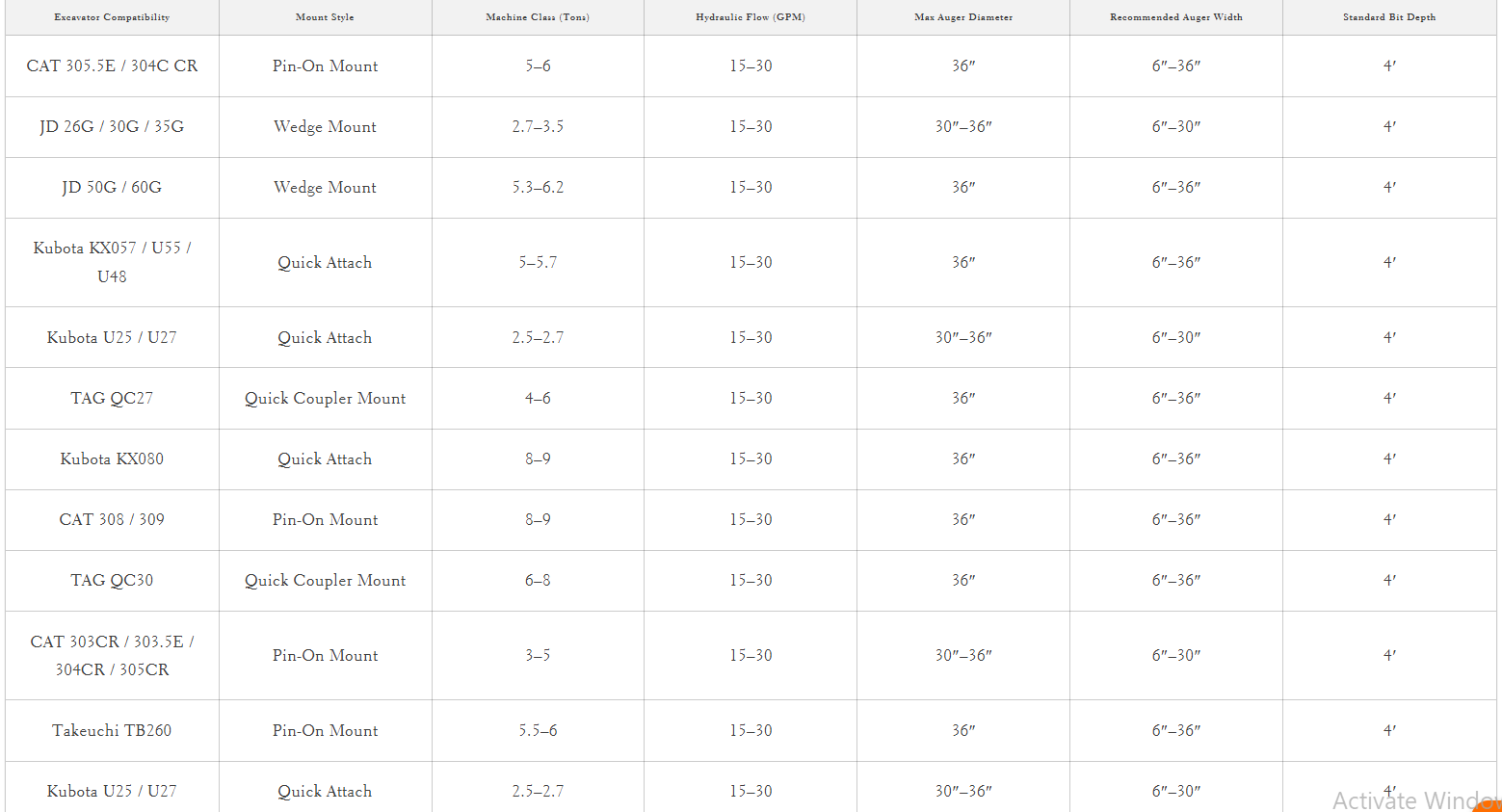

Detailed Specifications
| Specification | CAT 305.5E / 304C CR | JD 26G / 30G / 35G |
|---|---|---|
| Mount Style | Pin-On Mount | Wedge Mount |
| Machine Class (Tons) | 5–6 | 2.7–3.5 |
| Hydraulic Flow (GPM) | 15–30 | 15–30 |
| Max Auger Diameter | 36″ | 30″–36″ |
| Recommended Auger Width | 6″–36″ | 6″–30″ |
| Standard Bit Depth | 4′ | 4′ |
| Specification | JD 50G / 60G | Kubota KX057 / U55 / U48 |
|---|---|---|
| Mount Style | Wedge Mount | Quick Attach |
| Machine Class (Tons) | 5.3–6.2 | 5–5.7 |
| Hydraulic Flow (GPM) | 15–30 | 15–30 |
| Max Auger Diameter | 36″ | 36″ |
| Recommended Auger Width | 6″–36″ | 6″–36″ |
| Standard Bit Depth | 4′ | 4′ |
| Specification | Kubota U25 / U27 | TAG QC27 |
|---|---|---|
| Mount Style | Quick Attach | Quick Coupler Mount |
| Machine Class (Tons) | 2.5–2.7 | 4–6 |
| Hydraulic Flow (GPM) | 15–30 | 15–30 |
| Max Auger Diameter | 30″–36″ | 36″ |
| Recommended Auger Width | 6″–30″ | 6″–36″ |
| Standard Bit Depth | 4′ | 4′ |
| Specification | Kubota KX080 | CAT 308 / 309 |
|---|---|---|
| Mount Style | Quick Attach | Pin-On Mount |
| Machine Class (Tons) | 8–9 | 8–9 |
| Hydraulic Flow (GPM) | 15–30 | 15–30 |
| Max Auger Diameter | 36″ | 36″ |
| Recommended Auger Width | 6″–36″ | 6″–36″ |
| Standard Bit Depth | 4′ | 4′ |
| Specification | TAG QC30 | CAT 303CR / 303.5E / 304CR / 305CR |
|---|---|---|
| Mount Style | Quick Coupler Mount | Pin-On Mount |
| Machine Class (Tons) | 6–8 | 3–5 |
| Hydraulic Flow (GPM) | 15–30 | 15–30 |
| Max Auger Diameter | 36″ | 30″–36″ |
| Recommended Auger Width | 6″–36″ | 6″–30″ |
| Standard Bit Depth | 4′ | 4′ |
| Specification | Takeuchi TB260 | Kubota U25 / U27 |
|---|---|---|
| Mount Style | Pin-On Mount | Quick Attach |
| Machine Class (Tons) | 5.5–6 | 2.5–2.7 |
| Hydraulic Flow (GPM) | 15–30 | 15–30 |
| Max Auger Diameter | 36″ | 30″–36″ |
| Recommended Auger Width | 6″–36″ | 6″–30″ |
| Standard Bit Depth | 4′ | 4′ |
