Product Description

Demco | All Wheel Steer Header Transport Trailer | Model HT38AWS, HT42AWS, HT48AWS | Lengths 38' To 48' | GVW 14,000 To 16,000 lbs | Horsepower 400 To 500 HP | For Tractor

DESCRIPTION

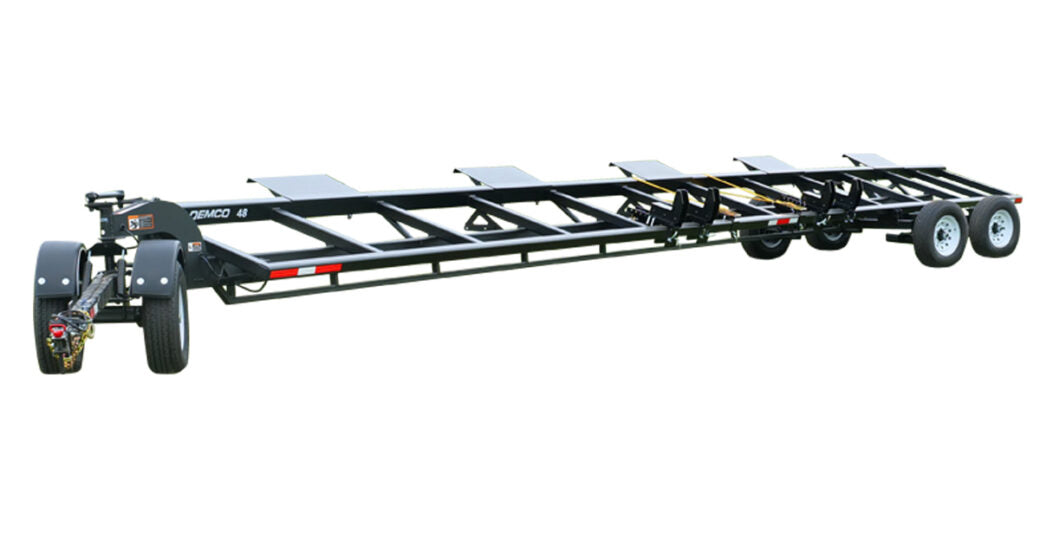

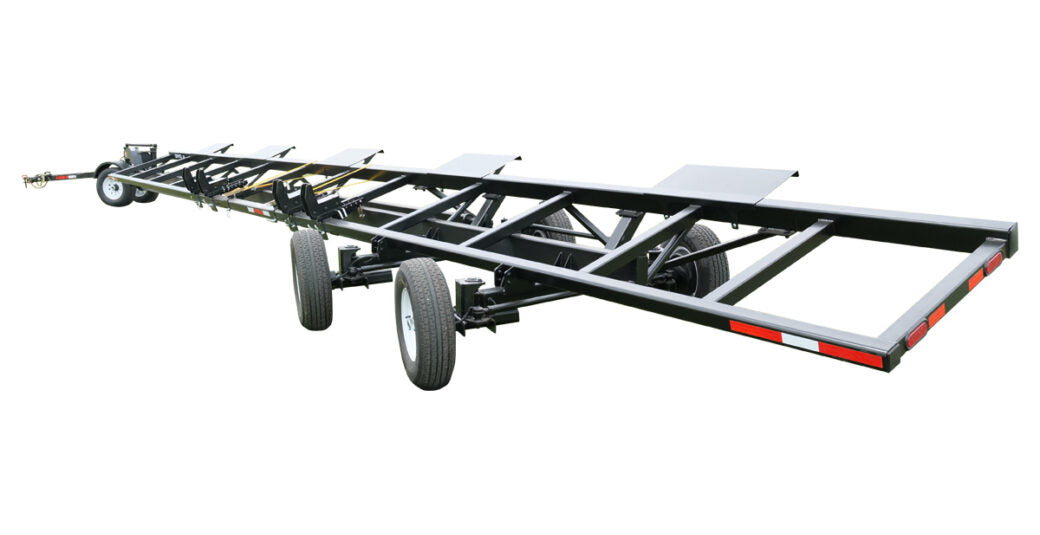

The Demco All Wheel Steer Combine Header Transport Trailers bring unmatched maneuverability and speed, blending the best elements of Standard and Heavy-Duty transports into one innovative model. Engineered to support larger combine headers, this high-speed, all-wheel steer transport ensures smooth and efficient operations even at higher speeds, providing a new level of control and stability.

Available in lengths from 32' to 52', this versatile model offers all the essential features needed for secure and efficient transport. Equipped with tandem rear steerable axles, heavy-duty torsion flex front and rear axles, and high-performance LED lighting, the Demco All Wheel Steer models deliver excellent functionality on the road and across fields, meeting the high demands of modern agricultural work.

Key Features

• All Wheel Steer design enables tight turning and precise maneuverability, ideal for navigating narrow field entrances and tight farmyards.
• High-speed towing capability reduces transport time between fields, boosting harvest efficiency.
• Compatible with tractors rated between 400–500 HP, ensuring reliable performance for large-scale operations.
• Available in 38', 42', and 48' lengths to accommodate a wide range of combine header sizes, including JD, MacDon, Shelbourne, and Draper models.
• 7K–8K torsion flex front and rear axles absorb road shock, delivering a smoother ride and protecting your equipment.
• Tandem rear steerable axles with optional electric brakes provide enhanced control and stopping power on uneven terrain.
• Telescoping tongue (91" standard, upgradeable to 139" or 1110") offers flexible hookup options for various towing setups.
• LED rear tail lights with 7-pole RV plug ensure visibility and safety during highway transport.
• Heavy-duty articulating pivots increase durability and allow for a shorter turning radius 21.25' for 38', 24' for 42', and 27.5' for 48'.
• Increased ground clearance from side-mounted steering linkages prevents snagging and improves off-road capability.
• Adjustable tie downs (Qty 2) and slider brackets (Qty 2–4) securely hold headers in place during transit.
• Carrying capacity of 14,000–16,000 lbs supports even the heaviest modern headers without compromise.
• SMV (Slow Moving Vehicle) sign included for DOT compliance and added road safety.
• Poly front fenders protect against debris and reduce wear from road conditions.
• Upgrade options include electric brakes on front and rear axles, ball coupler or pintle ring, and additional mounting brackets for full customization.
