Product Description

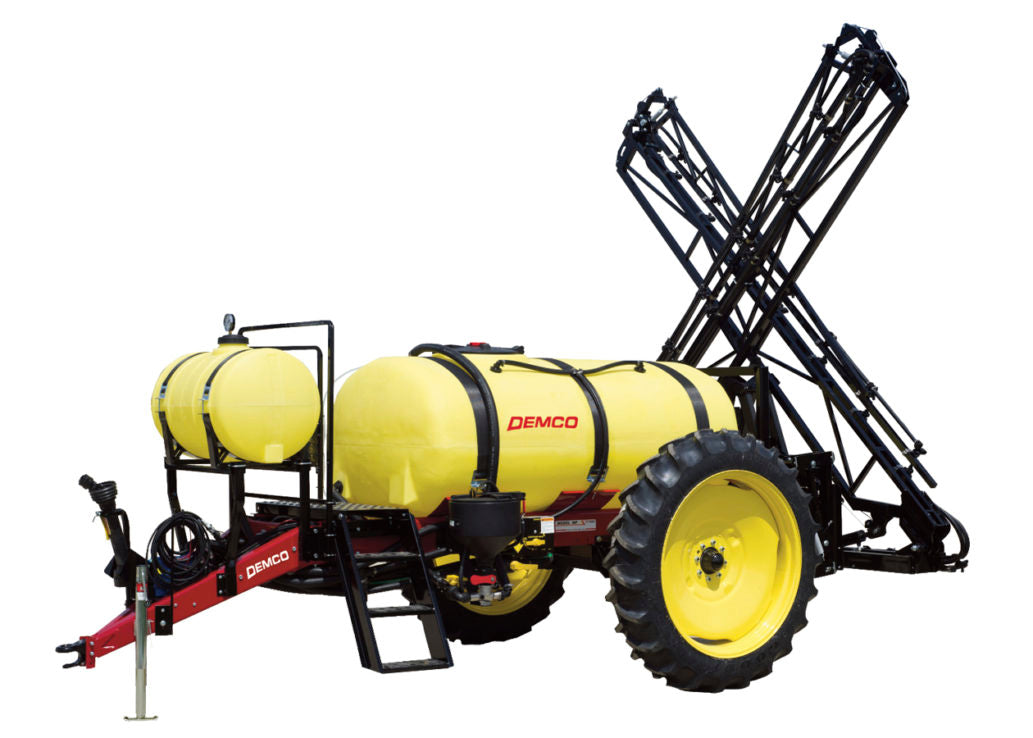

Demco | Big Wheel Sprayer | Model 500 Gallon | X-Fold Boom 45′ To 60′ | Horsepower 90 To 200 HP | For Tractor
DESCRIPTION
Built for serious spraying performance in a compact footprint, the Demco 500 Gallon Big Wheel Sprayer is your go-to solution for smaller-scale field applications that demand precision, efficiency, and durability. Whether you're managing row crops, food plots, or cover crops, this medium-duty sprayer delivers professional-grade results with minimal field compaction.
With a rugged 10-gauge steel frame, adjustable axle spacing, and a 500-gallon elliptical tank, this sprayer is engineered to last through season after season of tough field work. The hydraulic X-fold boom system offers effortless wing control, height adjustment, and clean, narrow transport width making this sprayer as agile as it is capable.
From chemical application to fence-line spraying, Demco’s 500-gallon sprayer adapts to your operation with multiple pump types, plumbing configurations, and precision control options. It's not just a sprayer it's a productivity booster tailored to your farm.
Key Features
- Tank Capacity: 500 Gallons with Dual Jet Agitation.
- Boom Width: 45' & 60' Hydraulic X-Fold with Independent Wing Control.
- Tractor Compatibility: 90 To 200 HP for efficient field spraying.
- Trailer Length: 130" Hitch to Axle with 29" Ground Clearance.
- Intended Use: For Row Crop Tractors in Small to Mid-Sized Field Applications.
- Elliptical Polyethylene Tank: Includes sump, baffle, and 16" flip-top manway.
- Adjustable Wheel Spacing: 62" To 120" for flexible row configurations.
- Pump Options: Hypro® or Ace hydraulic, gear, roller, and belt drive systems.
- Boom Transport Width: 10'8" for safe road travel and compact storage.
- Stainless Steel Boom & Hose Clamps: Durable and corrosion-resistant.
- Height Adjustment: 2' of vertical travel for terrain adaptability.
- 11.2 x 38 Bias Tires: Narrow footprint reduces soil compaction.
- Optional Accessories: Foam marker, chemical eductor, light kit, and fence line spray kits.
- Control Options: Manual, solenoid, motorized ball valves, or Raven® automatic rate control.
- Quick Refill System: Compatible with nurse tank transfer pumps for faster turnaround.
Detailed Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 500 gallons (elliptical polyethylene tank) |
| Tank Features | Dual jet agitators, sump, baffle, 16" flip-top lid |
| Frame Construction | 10-gauge formed steel trailer |
| Ground Clearance | 29 inches |
| Axle Width Adjustment | 62" – 120" (infinite spacing) |
| Tire Size | 11.2 x 38 bias 6-ply tires |
| Pump Options | PTO, Belt Drive, or Hydraulic (Hypro®/Ace®) |
| Boom Options | 45' or 60' Hydraulic X-Fold Boom |
| Boom Features | Wing leveling, height adjust, breakaway tips |
| Transport Width | 10' 8" |
| Height Adjustment (Boom) | 2 feet vertical travel |
| Controls (Optional) | Raven® 450 Auto Rate Control, Manual or Motorized Valves |
| Lighting (Optional) | Integrated flasher, turn, and tail lights |
| Plumbing | Optional TeeJet® drip-free or triple nozzles |
| Quick Fill System | 2" quick coupler with optional nurse tank refill |
| Chemical Handling | Optional foam marker, chemical eductor, hand wash |
Manuals & Documents
- AB20023 500 Gallon Single and Tandem Axle
- AB20040 Plumbing Control System
- AB20086 - Hydraulic X-Fold 45' and 60'
- AA11003 Application Brochure
