Product Description

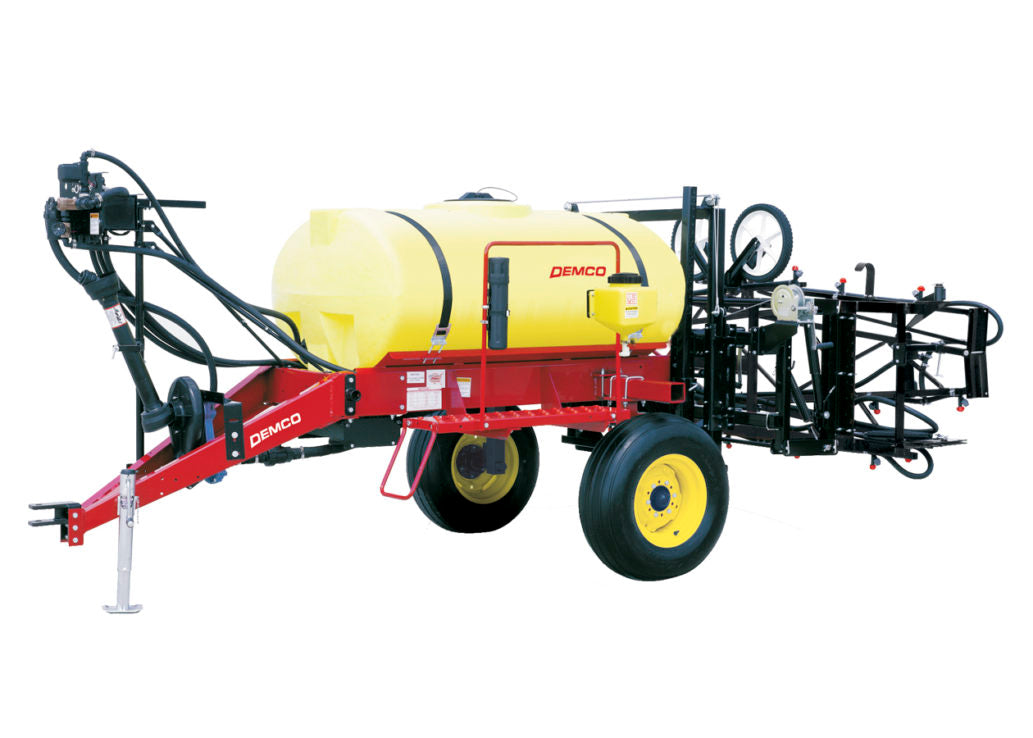

Demco | Deluxe Single Axle Sprayer | 300 Gallon | 30' To 45' Boom | Roller & Hydraulic Pump Options | Horsepower 90 To 200 HP | For Tractors
DESCRIPTION
When it comes to consistent field application, the Demco 300 Gallon Deluxe Single Axle Sprayer is your go-to solution for dependable, smaller-capacity spraying. Designed with the needs of producers in mind, this pull-type sprayer offers rugged durability, simplified maintenance, and flexible configurations to match your operation.
Whether you're spraying herbicides, pesticides, or nutrients, this trailer sprayer is built to deliver precise coverage with less hassle. Its 300-gallon elliptical polyethylene tank, dual jet agitators, and drip-free boom system work together to ensure thorough mixing and uniform application every time.
Add in a high-clearance frame, convenient work platform, and boom width options of 30’ or 45’, and you’ve got a trailer sprayer ready to tackle any row-crop or pasture job with efficiency and ease. For growers who value reliability and customization, the Demco Deluxe Sprayer is a proven performer.
Key Features
- 300 Gallon Elliptical Polyethylene Tank with Dual Jet Agitators for consistent chemical mixing.
- Designed for Tractors with 90 To 200 HP, ideal for small to mid-sized farms.
- 30' To 45' Truss Boom Options with TeeJet® drip-free diaphragm check nozzles for precise spray control.
- 10-Gauge Formed Steel Trailer with 27" Ground Clearance for rugged field performance.
- Adjustable Wheel Spacing from 60" To 80" to match various row crop configurations.
- Clean Water Tank Mounted on Frame for easy flushing and maintenance.
- DBFT Flotation Boom Mechanism enhances boom stability over uneven terrain.
- ¾" High Volume Plumbing ensures efficient chemical delivery across boom width.
- Stainless Steel Boom and Hose Clamps resist corrosion and extend equipment life.
- Hydraulic Height Adjuster with 24" Travel for optimal spray height control.
- Manual and Electric Control Valve Options for tailored spray management.
- Compatible with Hypro® and Ace Pumps: roller, gear, belt, and hydraulic drive.
- Wheel Assisted Boom Tip Protectors reduce damage during tight turns or transport.
- Optional Fence Line Spray Kits (Electric or Manual) for targeted perimeter coverage.
- Quick Refill System speeds up tank refills using nurse tank transfer pumps.
Detailed Specifications
| Specification | Details |
|---|---|
| Tank Capacity | 300 gallons (polyethylene elliptical) |
| Tank Features | Dual jet agitators, sump, 16" flip-top fill manway |
| Trailer Type | Single axle, 10-gauge steel frame |
| Ground Clearance | 27 inches |
| Wheel Spacing | Adjustable: 60" – 80" |
| Tires | T11L (11.2 x 38 bias 6-ply) |
| Boom Width Options | 30' or 45' truss boom |
| Boom Mechanism | DBFT Flotation Boom with hydraulic leveling (recommended) |
| Boom Features | Drip-free diaphragm nozzles, ¾" plumbing, SS clamps |
| Pump Options | Roller, Gear Drive, Belt Drive, or Hydraulic |
| Control Options | Manual or electric (solenoid valve) |
| Clean Water Tank | Included, frame-mounted |
| Work Platform & Safety Rail | Included |
| Transport Width (Boom Folded) | ~10' 8" (varies by boom) |
