Demco Dual Auger Grain Cart | Model 1300 | Total Weight 24,460 | Horsepower 250 HP | Hub Size 20 Bolt | For Tractors

Demco Dual Auger Grain Cart | Model 1300 | Total Weight 24,460 | Horsepower 250 HP | Hub Size 20 Bolt | For Tractors

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Capacity: 1,325 To 1,425 Bushels
  • Tractor Power: Minimum 250 HP
  • Unloading Rate: 600 Bushels/Minute
  • Total Weight: 24,460 To 31,300 lbs
  • For High-Horsepower Tractors in Harvest Operations.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Demco Dual Auger Grain Cart | Model 1300 | Total Weight 24,460 | Horsepower 250 HP | Hub Size 20 Bolt | For Tractors

DESCRIPTION

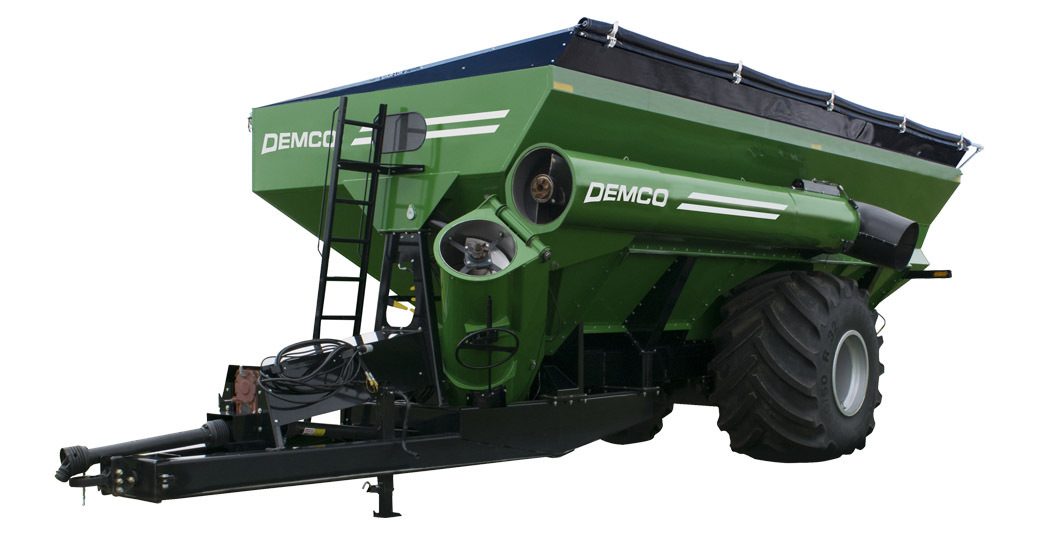

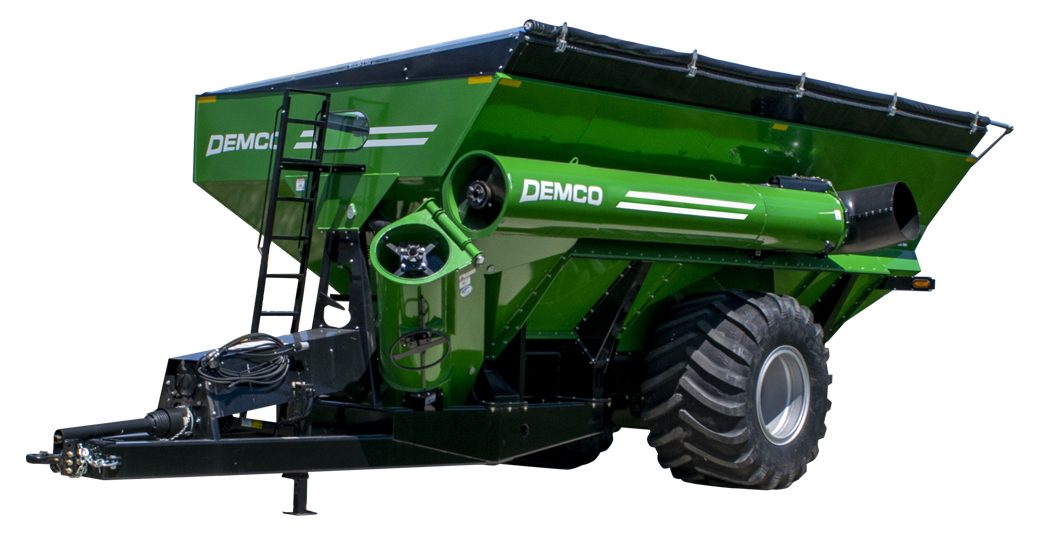

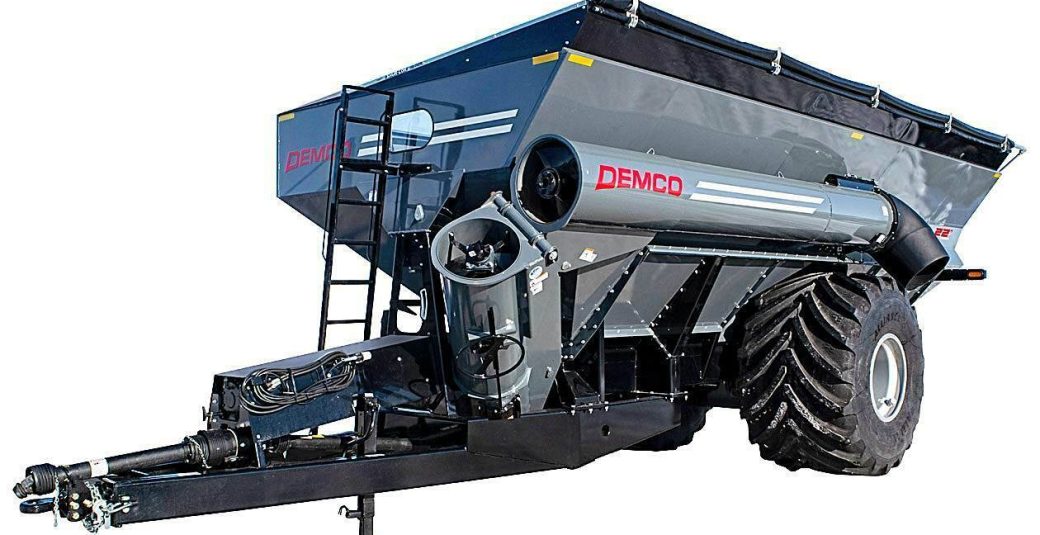

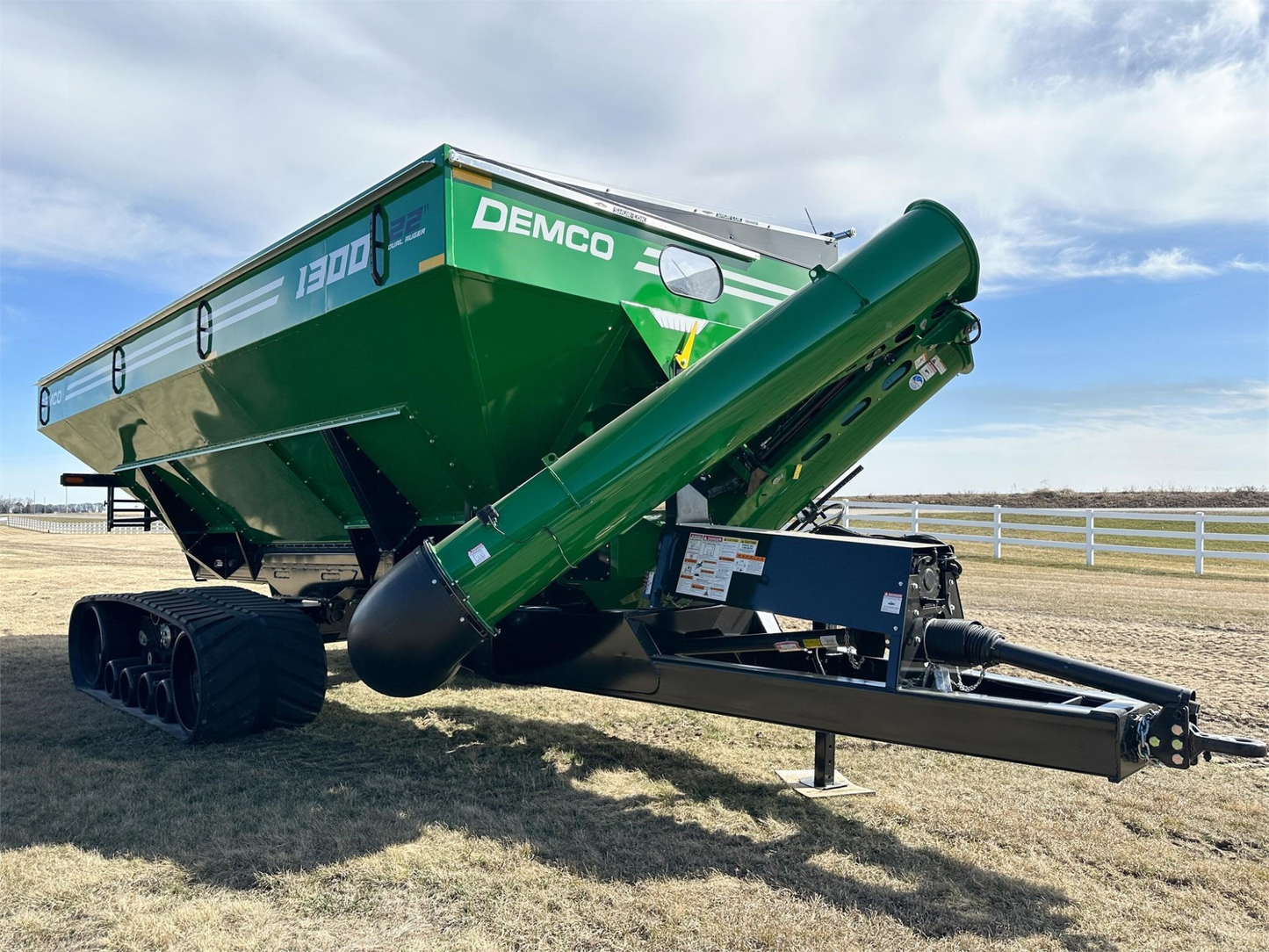

The Demco 1300 Dual Auger Grain Cart is purpose-built to enhance harvest efficiency and reliability. With a capacity exceeding 1300 bushels, this grain cart incorporates powerful, user-focused features designed to streamline operations. Equipped with a 1¾” 1000 RPM PTO, the Demco 1300 ensures efficient power transfer without the need for pulleys or belts. Its automatic reset "cut-out" clutch safeguards the auger and tractor PTO, while the 10,000 lb drop-leg tongue jack facilitates a tighter turning radius for easy maneuverability.

Safety and visibility are paramount with features like grain viewing windows, reflective decals, LED lights, and a low center of gravity for improved side hill stability. The grain cart also includes a 5-point scale system (monitor not included) and a backlit ergonomic pendant that requires only one remote outlet, enhancing control and convenience. With a narrow transport width of 11'9" (1050 tires), the Demco 1300 Grain Cart is designed to fit any operation's needs.

Key Features

  • Capacity: 1,325 To 1,425 Bushels (Level/Heaped).
  • Tractor Horsepower: Minimum 250 HP.
  • Unloading Rate: 600 Bushels/Minute.
  • Transport Width: 11'11" (Wheels), 13'5" (Tracks).
  • For High-Horsepower Tractors in Harvest Operations.

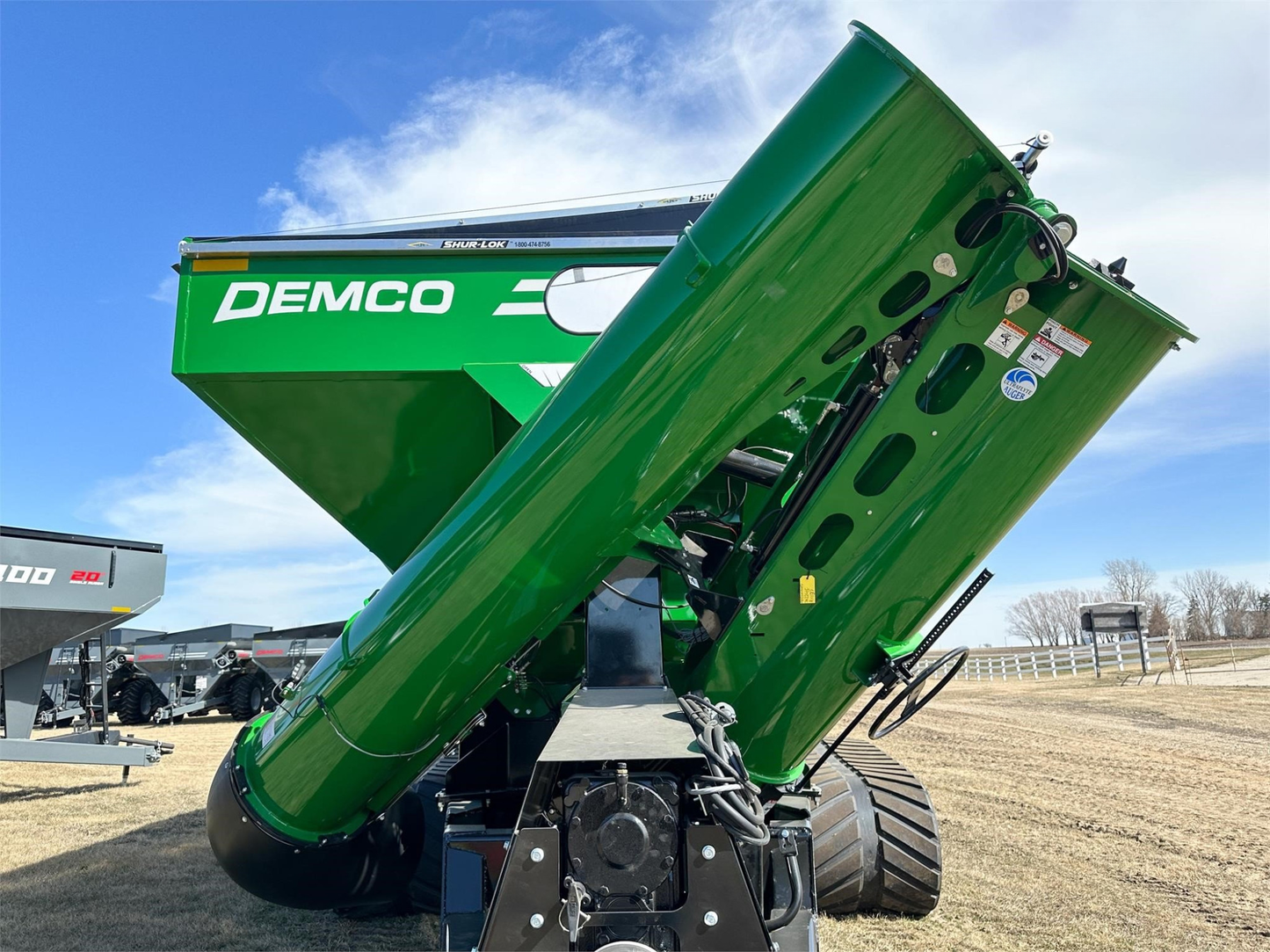

  • Dual Auger System: 22" vertical and 20" horizontal augers for fast, efficient unloading.

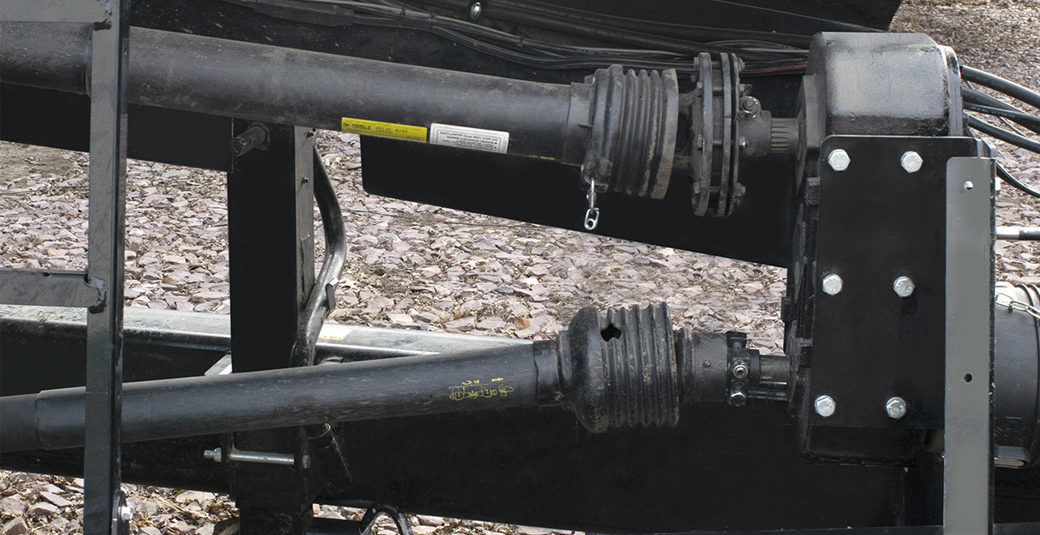

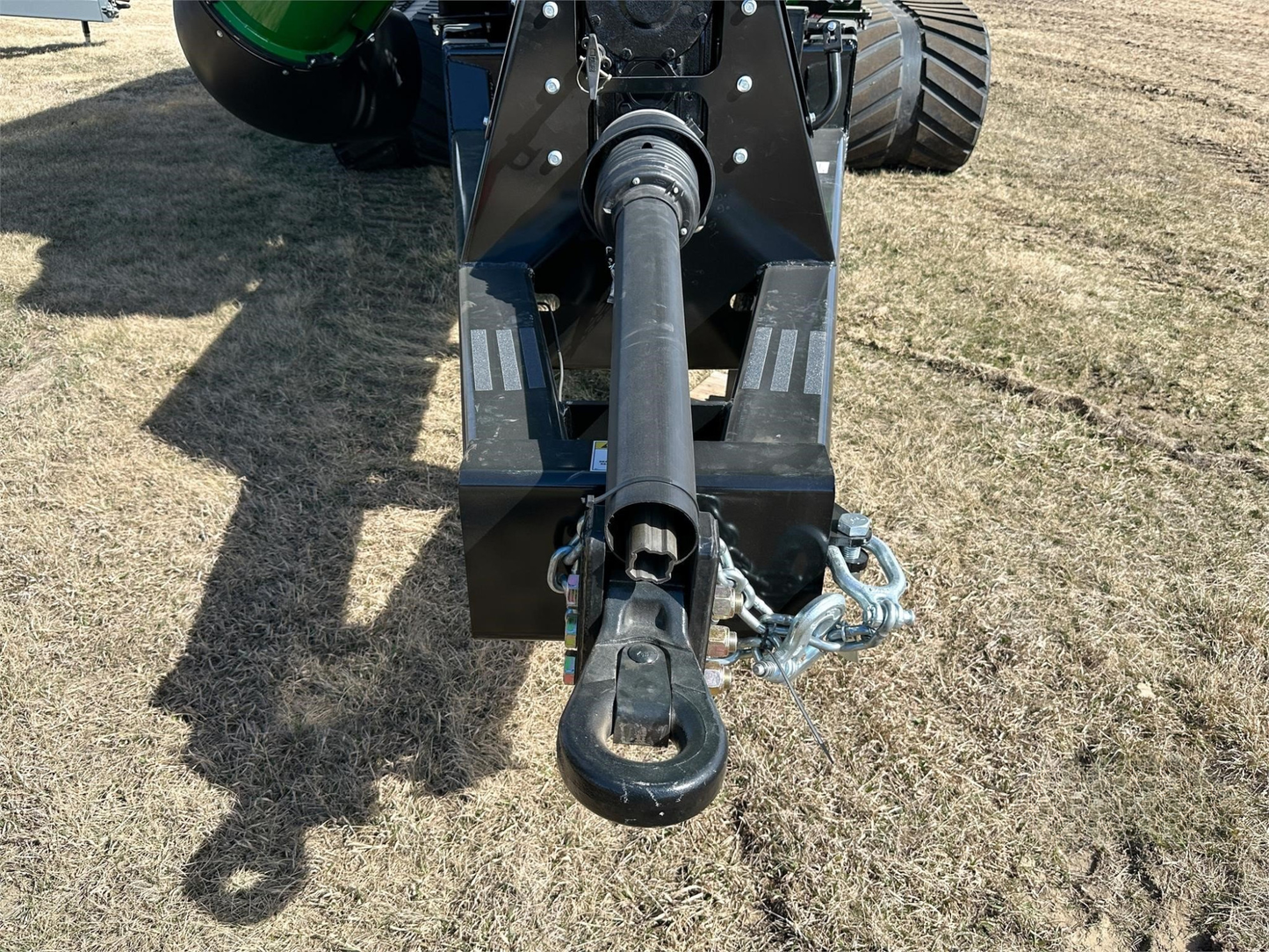

  • PTO Driven: 1 ¾ - 1000 RPM with no belts or pulleys for reduced maintenance.

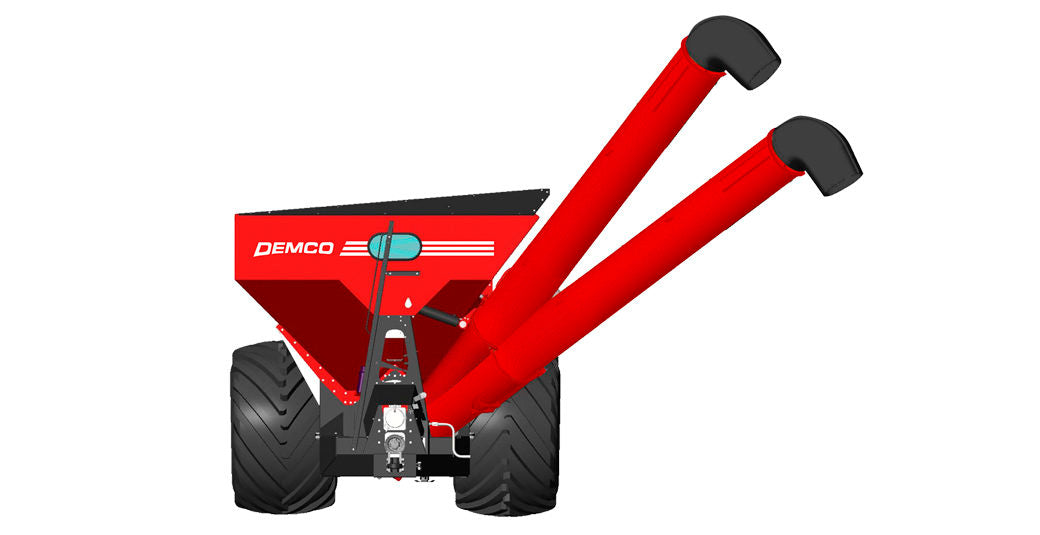

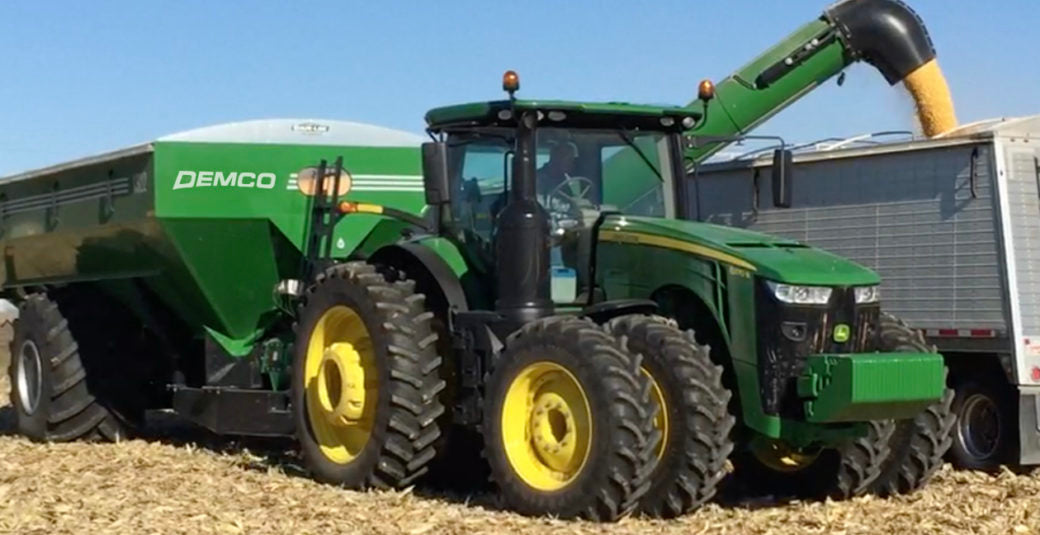

  • Forward Reach Auger: Adjustable from 12' to 16' for better operator visibility and reduced spillage.
  • UltraFlyte Auger Flighting: High-carbon steel with thicker edges for 50% longer wear.
  • Low Side Cart Height: Just 11' for improved stability on slopes.
  • LED Lights & Reflective Decals: Enhance safety during night operations.
  • Grain Viewing Windows: Monitor fill levels with ease.

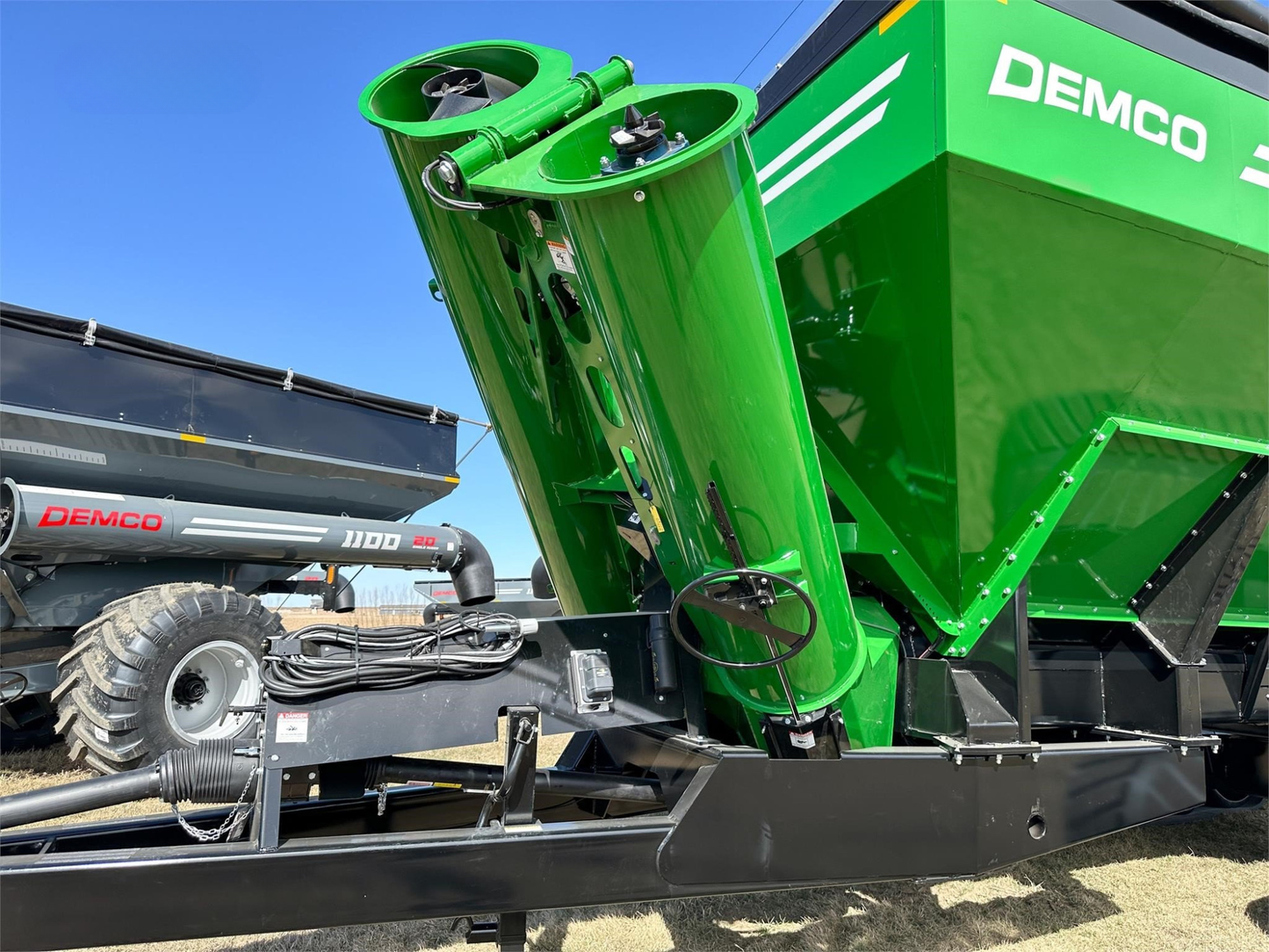

  • Clean-Out Doors: 6 lever-operated trough doors and hand wheel auger door for easy maintenance.
  • Adjustable Hitch: Fits Category 4 or 5 hammer strap drawbars.

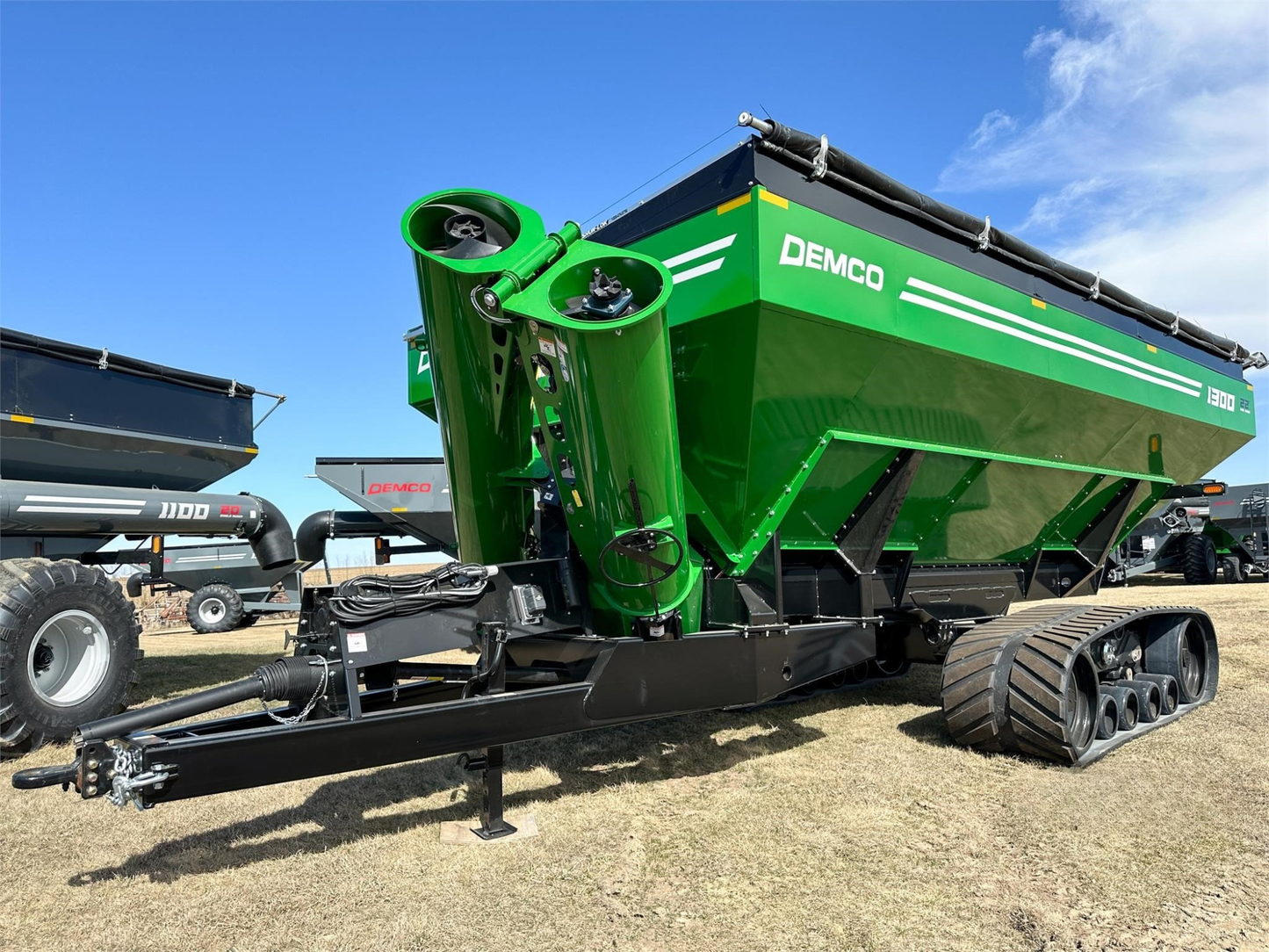

  • Optional Track Systems: Camso or Soucy 36" wide belts for enhanced flotation.

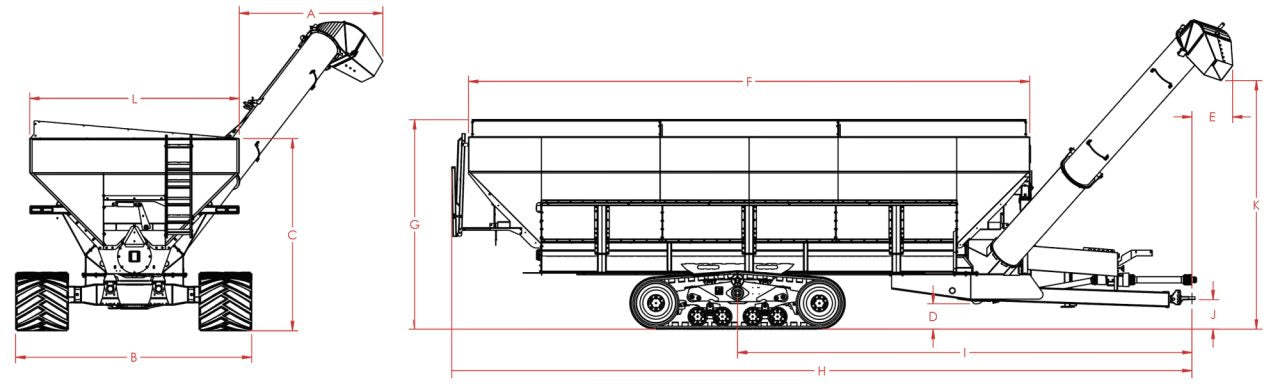

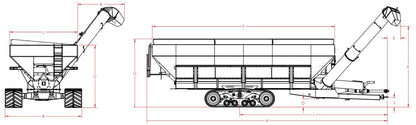

Detailed Specifications

Specification Details
Auger Extends to Side 10'11" to 8'
Box Width (Transport) 11'9"
Box Height (Low Side) 11'
Ground Clearance 18"
Auger Extends to Front 11'7"
Box Length 28'7"
Box Height (High Side) 12'
Total Length 37'8"
Axle to Tongue Length 23'10"
Drawbar/Tongue Height Adjustable, 21"

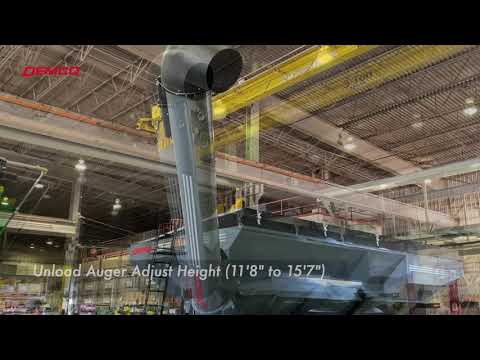

Auger Clearance Height 11'8" to 15'7"
Capacity 1300+
Vertical Unload Auger 22”
Horizontal Drag Auger 20”
Unloading Time (bu/min.) 600
Spindle Size 5½"
Tractor HP Required 275
Hub Size 20 bolt
Tread Width 12'2"
Tongue Weight (Empty) 4,120 lbs
Tongue Weight (Loaded) 6,000 lbs
Total Weight (with Wheels/Tires) 24,460 lbs
Rear Ground Clearance 2'10"
