Product Description
Demco Dual Auger Grain Cart | Model 1700 | 1000 RPM PTO | Tongue Weight 6500 Lbs | Horsepower 350 HP | For Tractors
DESCRIPTION
The Demco 1700 Dual Auger Grain Cart is built for maximum capacity and efficiency during large-scale harvest operations. With a dual-auger system featuring a powerful 22" vertical unload auger and a 20" horizontal drag auger, this grain cart allows for rapid, reliable unloading at an impressive rate of 600 bushels per minute. Designed to hold up to 1900 bushels, this cart is ideal for high-yield farms looking for a durable, high-capacity solution.
Key Features
- Heaped Capacity: 1,900 bushels for extended field time and fewer unloads.
- Unloading Rate: 600 bu/min ensures rapid transfer and reduced downtime.
- Dual Auger System: 22" vertical and 20" horizontal augers for efficient grain flow.
- PTO Driven: 1 ¾ - 1000 RPM with no belts or pulleys for low-maintenance reliability.
- Tractor Horsepower: Minimum 350 HP.
- Tractor Compatibility: Requires minimum 350 HP for optimal performance.
- Transport Width: Just 14' for easier road travel and tight field maneuvering.
- Total Length: 39'7" accommodates high-volume harvests without sacrificing mobility.
- Low Side Cart Height: 11'3" enhances stability on slopes and uneven terrain.
- Tongue Weight Loaded: 6,100 lbs for balanced towing and safe operation.
- UltraFlyte Auger Flighting: Made with high-carbon steel for 50% longer wear life.
- Forward Reach Auger: Adjustable from 12' to 16' for better operator visibility and reduced spillage.
- Clean-Out Doors: 6 lever-operated trough doors and hand wheel auger door for easy post-season maintenance.
- LED Lights & Reflective Decals: Improve visibility and safety during night operations.
- Adjustable Hitch: Fits Category 4 or 5 hammer strap drawbars for versatile tractor compatibility.
- 5-Point Scale System: Ready for precision load tracking (monitor not included).

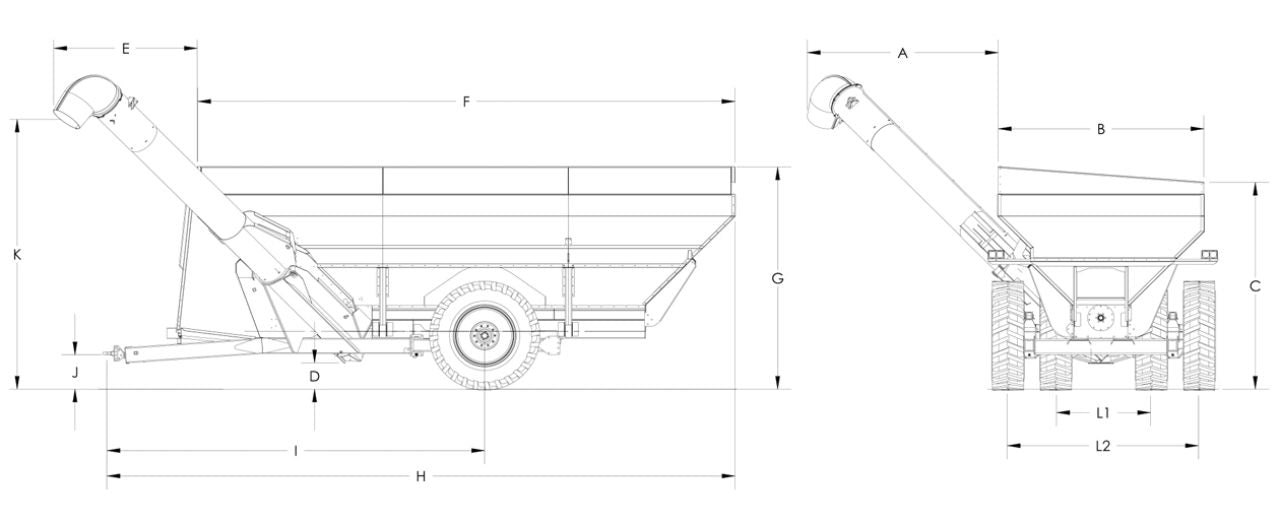

Detailed Specifications
| Feature | Details |
|---|---|
| Level Full Capacity | 1,750 Bushels |
| Heaped Full Capacity | 1,900 Bushels |
| Unload Auger (Vertical/Horizontal) | 22" / 20" |
| Unloading Speed | 600 bu/min |
| PTO | 1 ¾ - 1000 RPM |
| Tractor HP Required | 350+ HP |
| Transport Width | 14' (Wheels or Tracks) |
| Box Length | 30'6" |
| Total Length | 39'7" |
| Box Height (Low/High Side) | 11'3" / 12'5" |
| Tongue Weight (Empty/Loaded) | 4,530 lbs / 6,100 lbs |
| Total Weight (Wheels/Tracks) | 31,700 lbs / 40,000 lbs |
| Auger Clearance Height | 9'7" to 14'10" |
| Rear Ground Clearance | 2'10" |
| Drawbar Height (Adjustable) | 1'6" |
| Tread Width | 13'5" |
| Hub Size | 10 Bolt |
| Spindle Size | 5 ½" |
Manuals & Documents
- Manual
- Operator Manual - AG20056 - Grain Cart 1100, 1300, 1500, 1700, & 2200 Dual Auger
- Parts Manual - AG20058 - Grain Cart Dual Auger Front Fold 1700DA & 2200DA
- 1116535 Rev V Shurco Replacement Parts Manual
- AG11008 Harvest Equipment Rev36
