Demco Single Auger Grain Cart | Model 650 | Total Weight 7,560 lbs | Horsepower 150+ HP | Hub Size 10 Bolt | For Tractors

Demco Single Auger Grain Cart | Model 650 | Total Weight 7,560 lbs | Horsepower 150+ HP | Hub Size 10 Bolt | For Tractors

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Total Weight 7,560 lbs & Horsepower 150+ HP & Hub Size 10 Bolt For Tractors
  • Optimized Unloading: Fast 250 bu/min unloading rate for maximum efficiency
  • Sturdy Design: Heavy-duty welded box construction for extended use
  • Convenient Controls: Hydraulic flow gate for smooth grain control
  • Durable Hubs: Equipped with high-capacity ductile iron hubs
  • Efficient Auger System: 14” balanced auger with high-carbon steel
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

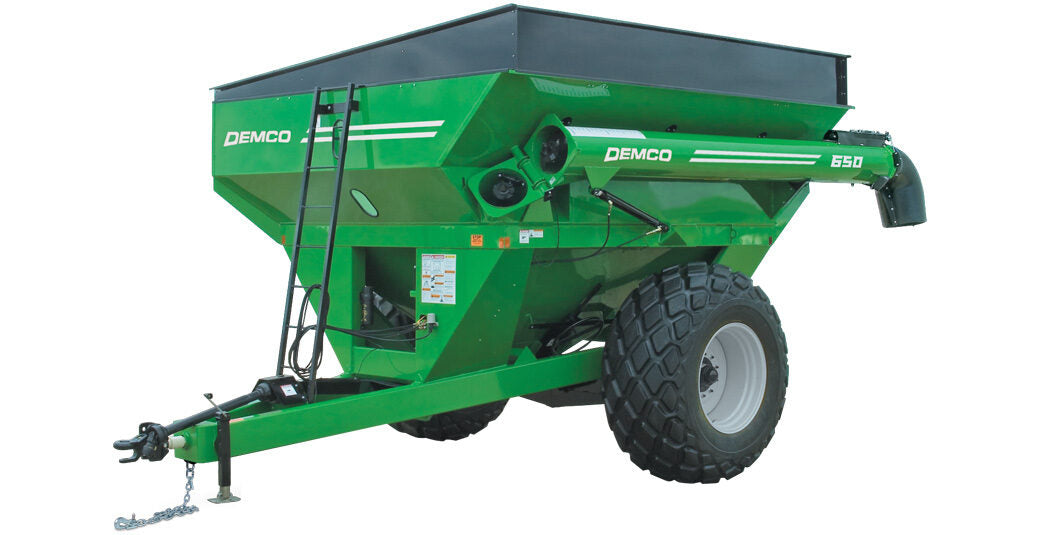

Demco Single Auger Grain Cart | Model 650 | Total Weight 7,560 lbs | Horsepower 150+ HP | Hub Size 10 Bolt | For Tractors

DESCRIPTION

Efficient Harvesting and High-Capacity Grain Management

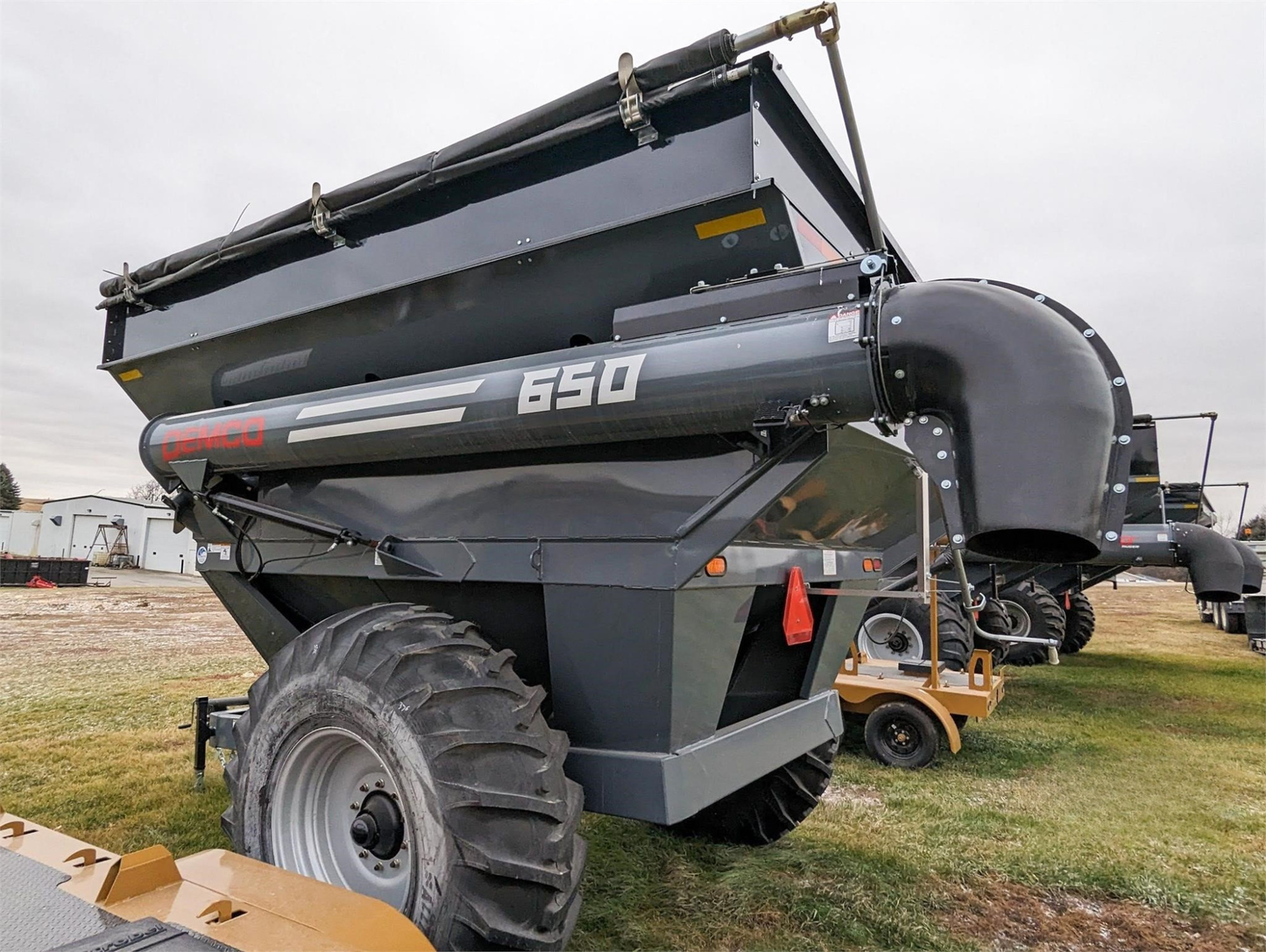

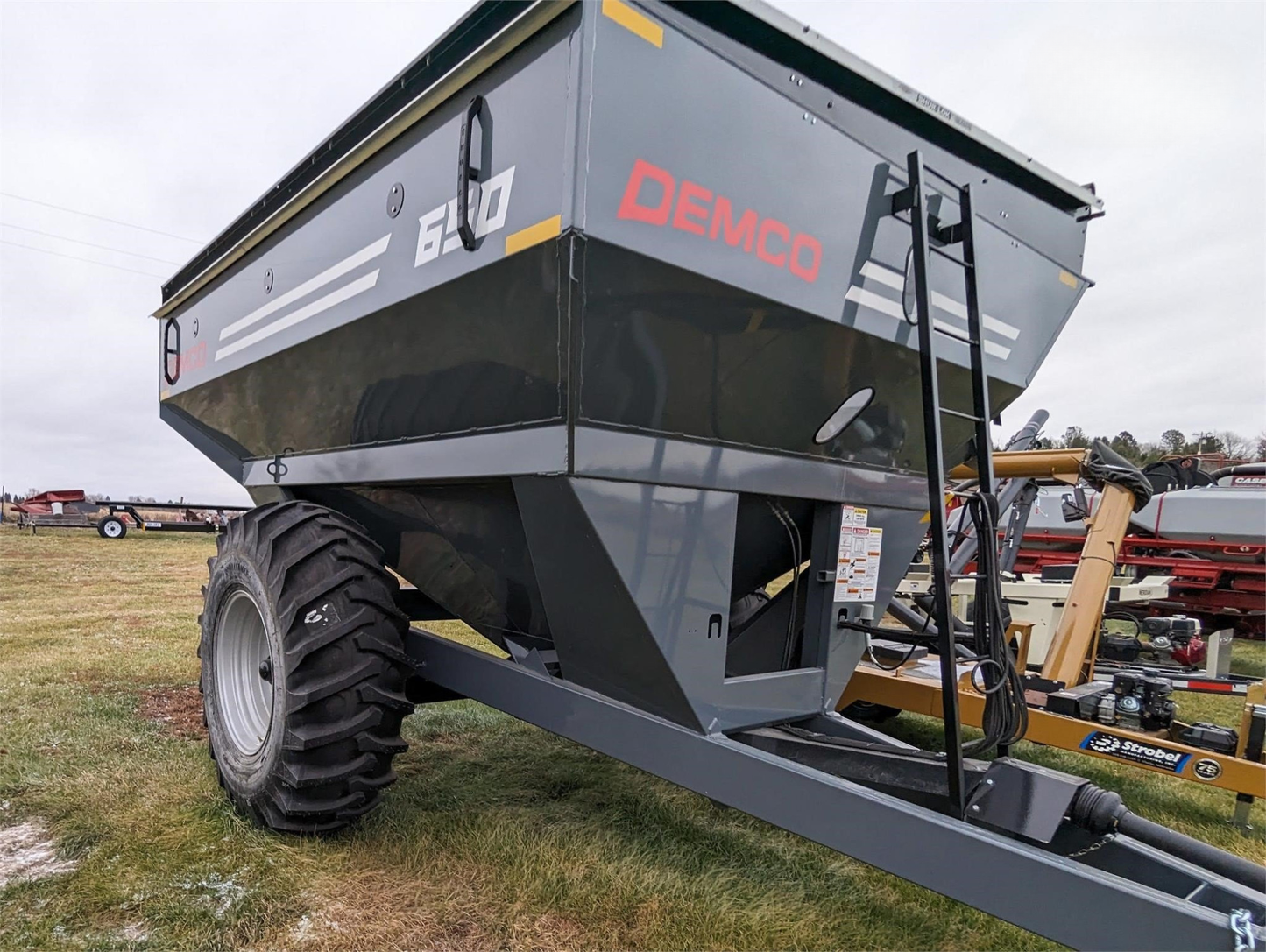

The Demco 650 Grain Cart is built to streamline harvesting operations by enhancing capacity and user-friendly design. With a high capacity of 650 bushels, it’s designed to handle large loads effectively, minimizing downtime and maximizing productivity. This cart features advanced grain handling solutions like a 1000 RPM PTO with an automatic reset clutch, hydraulic flow control, and a high-quality balanced auger to ensure smooth and efficient unloading.

Durability and Practicality Combined for Field Efficiency

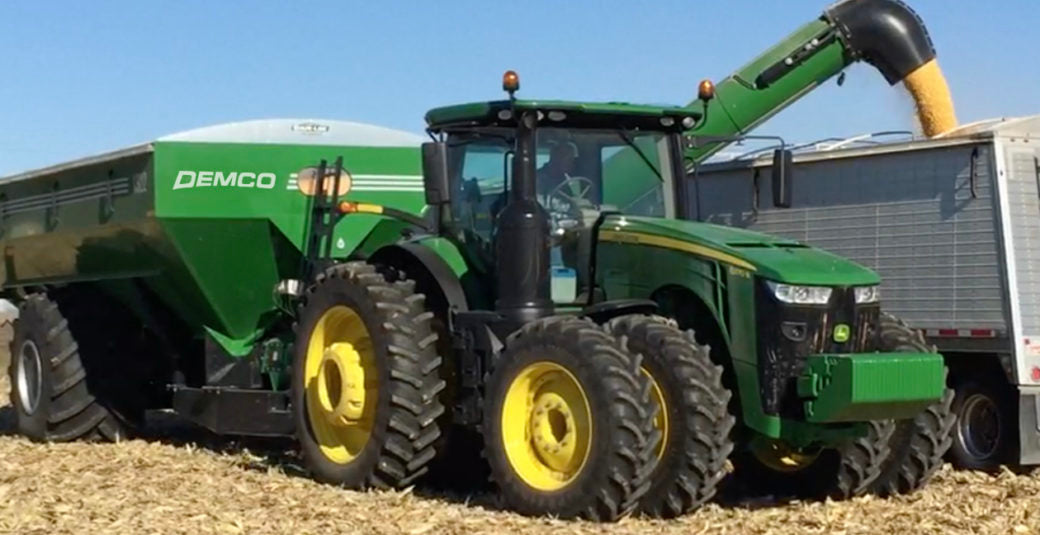

Crafted for long-term durability, the Demco 650 Grain Cart is equipped with a 4" x 10" tongue frame and robust 22,500 lb ductile iron hubs for exceptional stability. The heavy-duty welded box construction with silicone-sealed seams reduces rust and corrosion, while the forward reach and foldable auger enhance visibility and allow compact storage, making it a reliable asset for demanding fieldwork.

Key Features

  • 1000 RPM PTO: Equipped with automatic reset “cut-out” clutch and overrunning clutch for PTO and auger protection.
  • Grain Viewing Windows: Two windows provide improved visibility for monitoring grain levels.
  • Drop-leg Tongue Jack: 7,000 lb capacity with a storage position to enable a tighter turning radius.
  • Hydraulic Flow Gate: 30” gate for controlled and efficient grain discharge.
  • Reflective Decals & Lighting: LED lights and reflective decals for enhanced visibility and night-time operations.

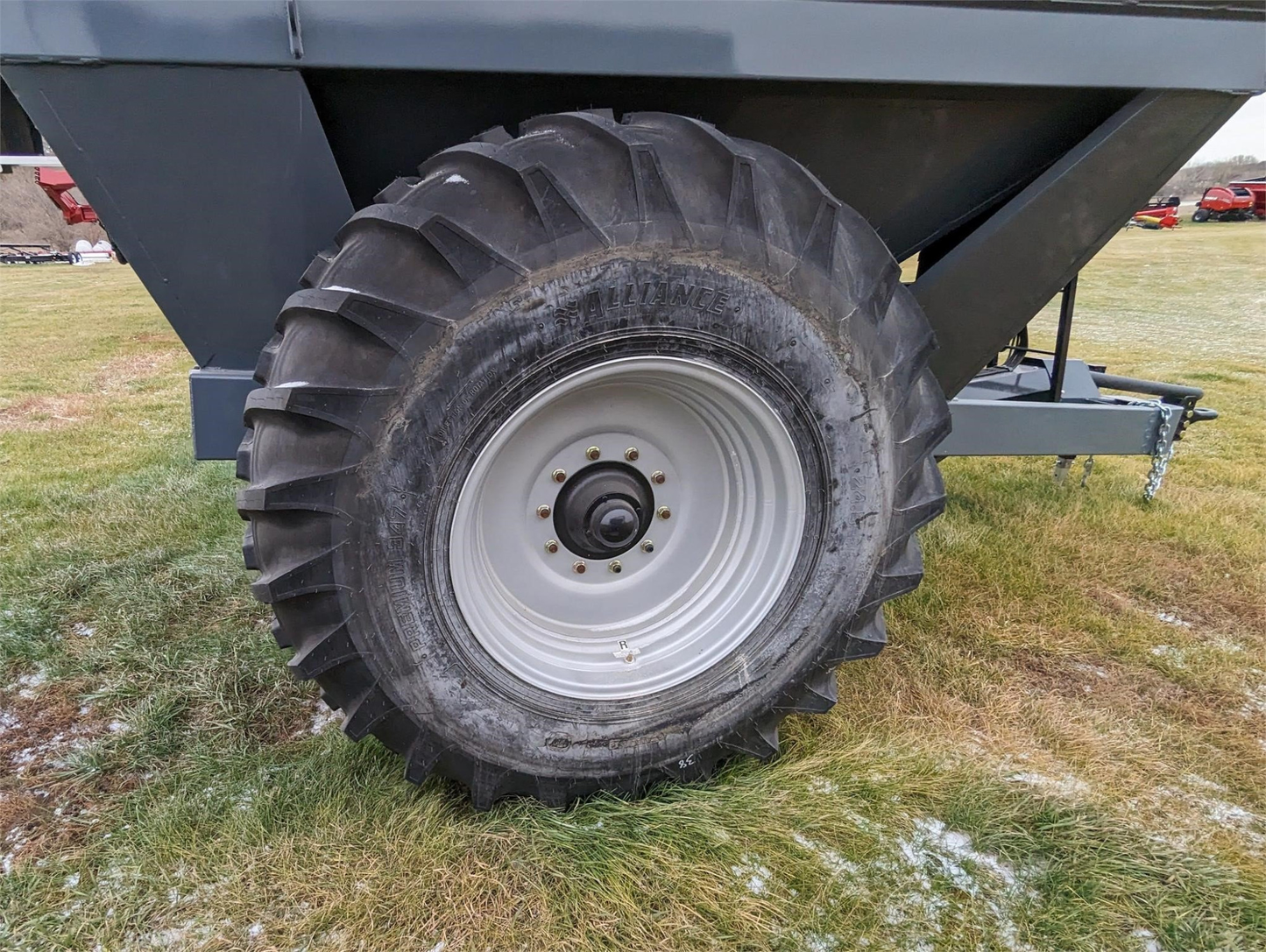

  • Heavy-Duty Hubs: 22,500 lb ductile iron hubs for reliable performance under heavy loads.

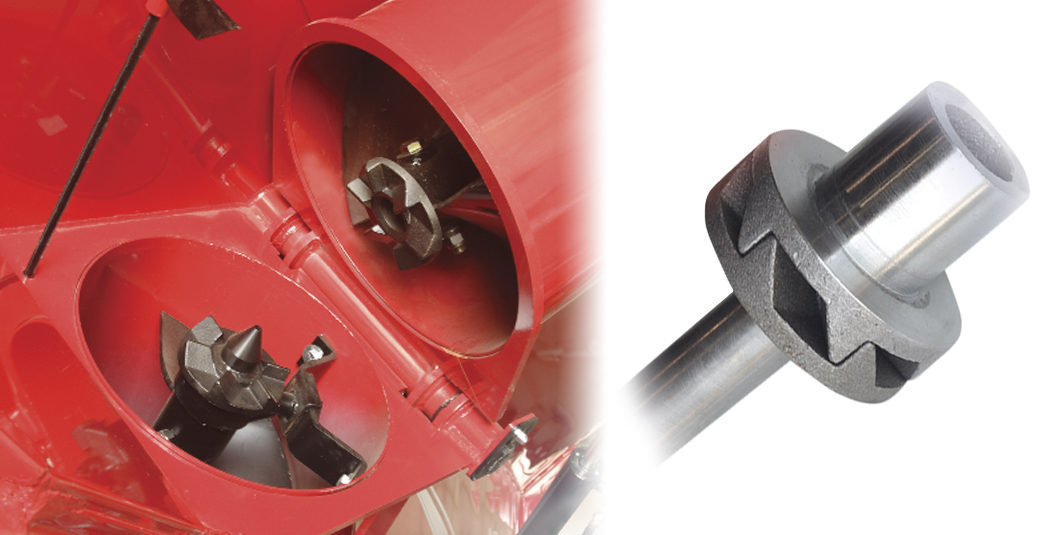

  • 14” Balanced Auger: High-efficiency auger with Posi-Drive connection and a 3/8” flighting.

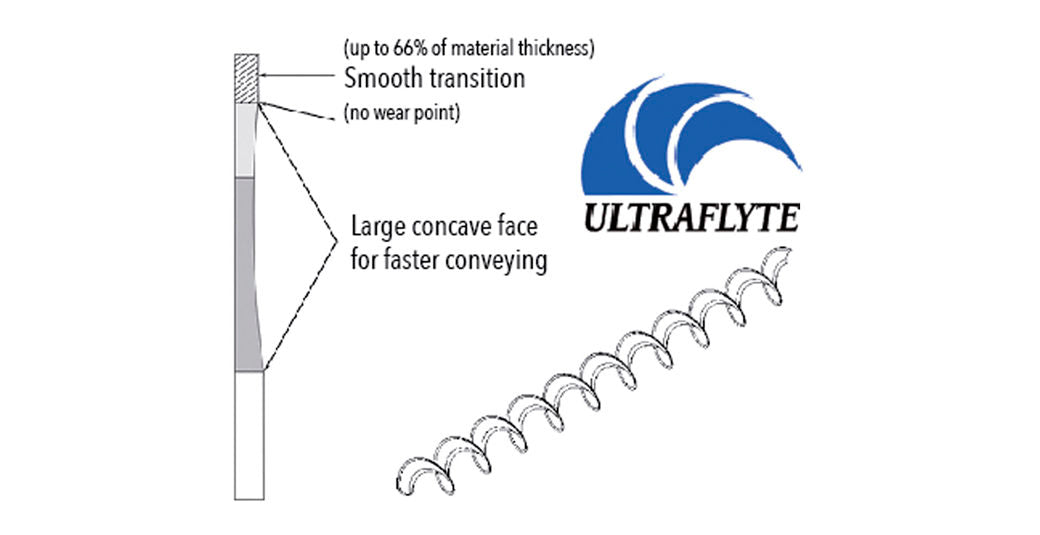

  • UltraFlyte Auger: Durable 1008/1010 high-carbon steel with an extended wear outer edge.
  • Foldable Auger: Compact fold within box width for easy transport and storage.
  • Welded Box Construction: Silicone-sealed seams for rust prevention and extended durability.

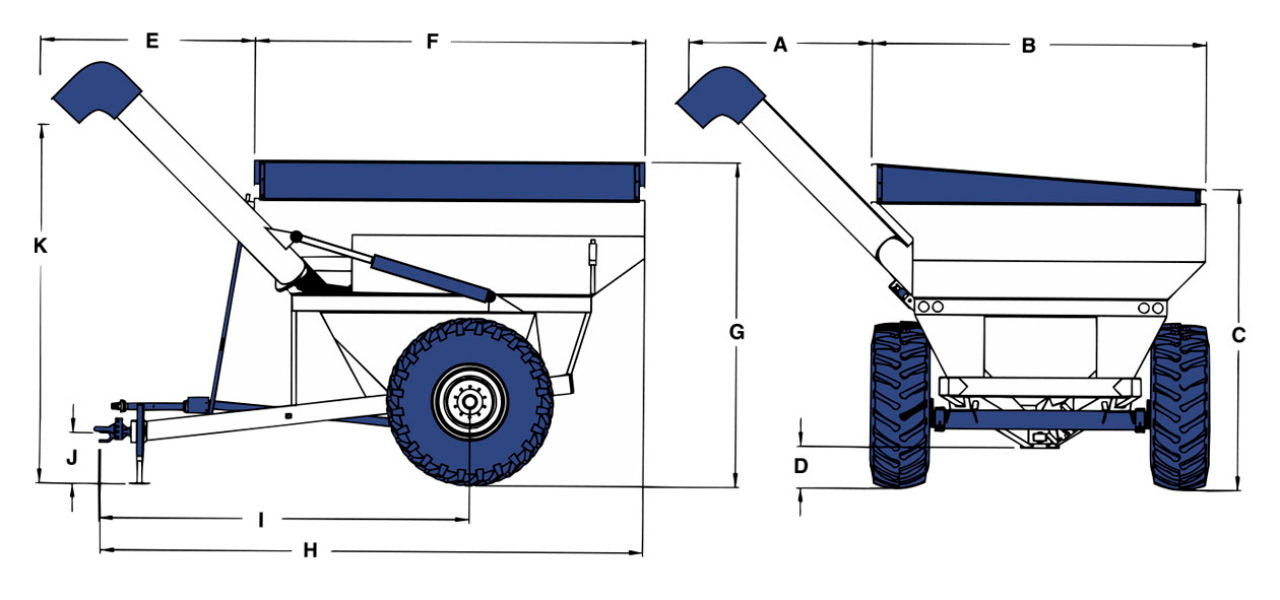

Detailed Specifications

Specification Details
Capacity 650 Bu.
Balanced Auger Size 14"
Unloading Time 250 bu/min
Spindle Size 4 1/2"
Tractor HP Required 150+
Hub Size 10 bolt
Tread Width (Standard) 120"
Tread Width (Optional) 120-144"

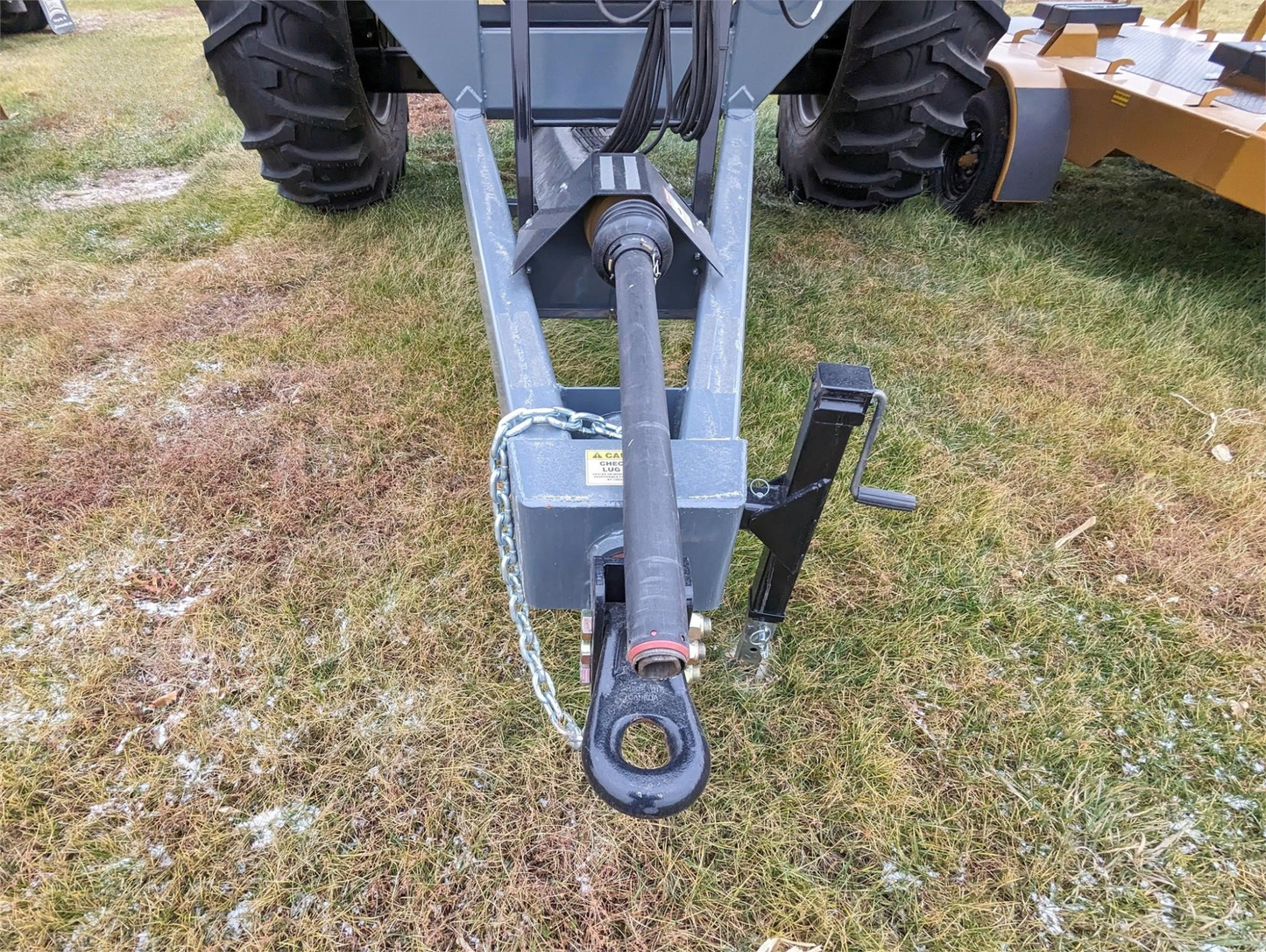

Tongue Frame 4"x10"
Tongue Weight (Empty) 1,190 lbs
Tongue Weight (Loaded) 2,600 lbs
Weight (Wheels & Tires) 7,560 lbs
Auger Extends to Side 7'7"
Box Width (Transport) 11'11"
Height (Low Side) 10'1"
Ground Clearance 18"
Auger Extends to Front 7'1"
Box Length 14'
Box Height (High Side) 11'9"
Total Length 20'
Axle to Tongue Length 13'6"
Drawbar/Tongue Height 22"
Auger Clearance Height 14'
