Demco Single Auger Grain Cart | Model 750 | Total Weight 8,220 lbs | Horsepower 150+ HP | Hub Size 10 Bolt | For Tractors

Demco Single Auger Grain Cart | Model 750 | Total Weight 8,220 lbs | Horsepower 150+ HP | Hub Size 10 Bolt | For Tractors

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Capacity: 750 Bushels with #2 Corn at 15% Moisture.
  • Tractor Compatibility: 150+ HP for optimal performance.
  • Auger Size: 14" Balanced with UltraFlyte Flighting.
  • Unloading Rate: Up to 250 Bu/Min for fast field transfer.
  • Transport Width: 11'11"
  • Total Length: 20'
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Demco Single Auger Grain Cart | Model 750 | Total Weight 8,220 lbs | Horsepower 150+ HP | Hub Size 10 Bolt | For Tractors

DESCRIPTION

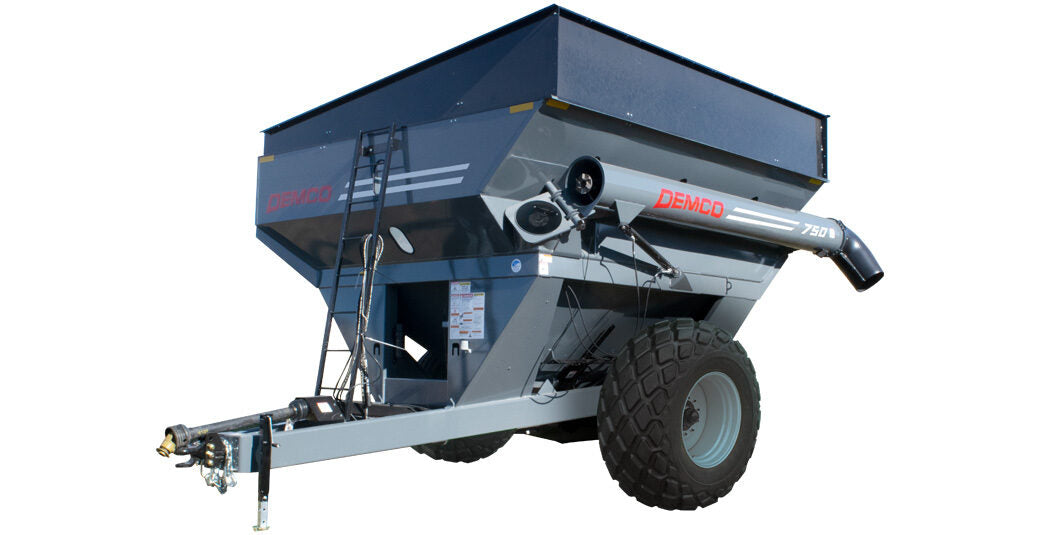

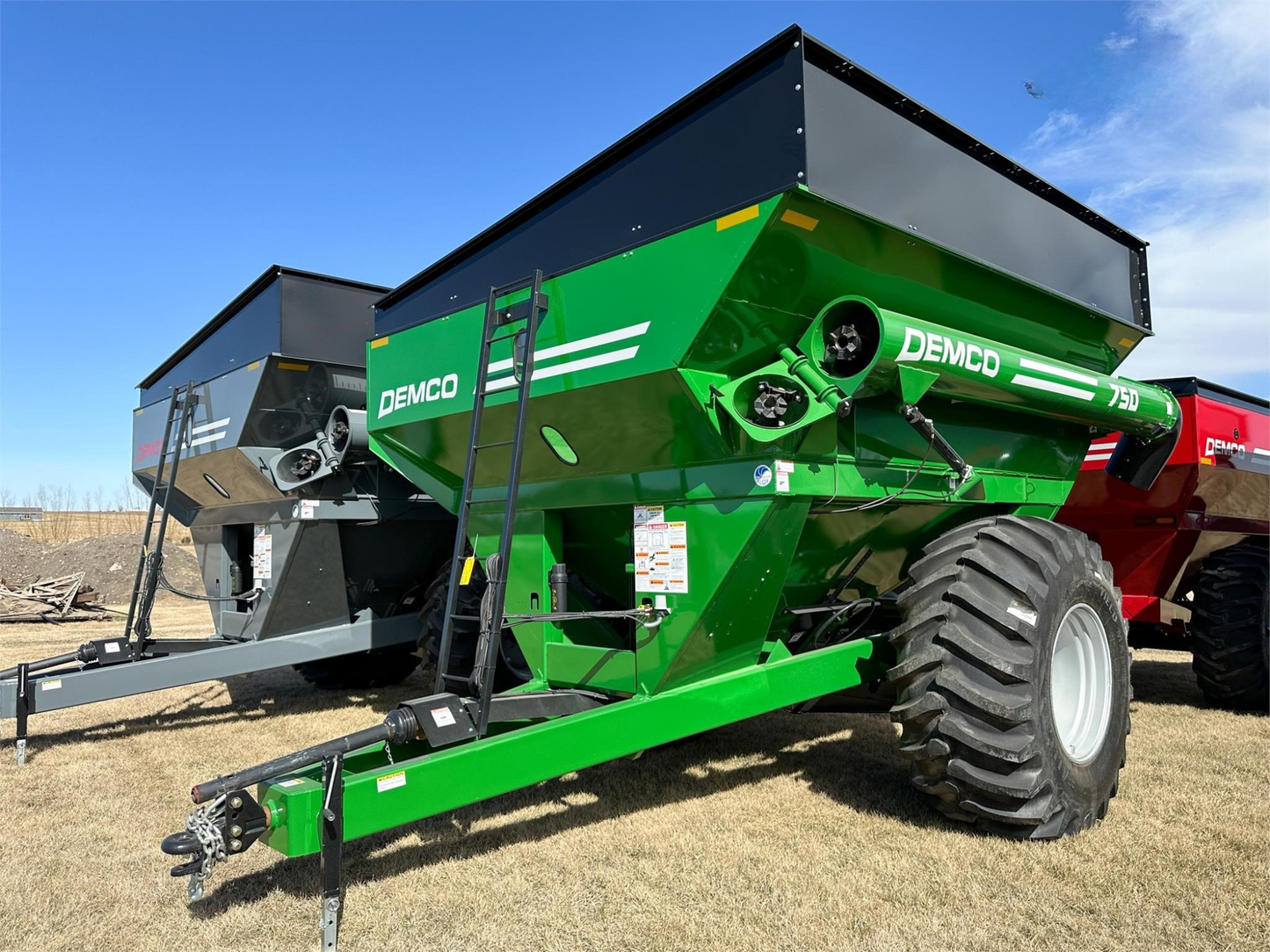

The Demco 750 Grain Cart is designed to enhance productivity and efficiency during harvest, with a large 750-bushel capacity and advanced features for ease of use. Built with a powerful 1000 RPM PTO and a 14” balanced auger, this cart ensures smooth grain transfer and protects both the auger and tractor PTO with an automatic reset "cut-out" clutch. High-visibility features, including reflective decals and LED lights, enhance safety during nighttime operations.

Engineered with durable, rust-resistant welded box construction and 22,500 lb. ductile iron hubs, the Demco 750 offers reliability in demanding conditions. Key features like a hydraulic-controlled flow gate, hand wheel-operated clean-out door, and forward reach auger simplify operations, making this grain cart a dependable choice for farmers looking to optimize their harvest.

Key Features

  • Capacity: 750 Bushels with #2 Corn at 15% Moisture.
  • Tractor Compatibility: 150+ HP for optimal performance.
  • Auger Size: 14" Balanced with UltraFlyte Flighting.
  • For Row Crop Tractors in High-Capacity Harvesting Operations.
  • Unloading Rate: Up to 250 Bu/Min for fast field transfer.
  • Transport Width: 11'11"
  • Total Length: 20'.
  • Tongue Weight (Empty/Loaded): 1,240 lbs / 2,900 lbs.
  • Welded Box Construction with Silicone-Sealed Seams for Rust Resistance.

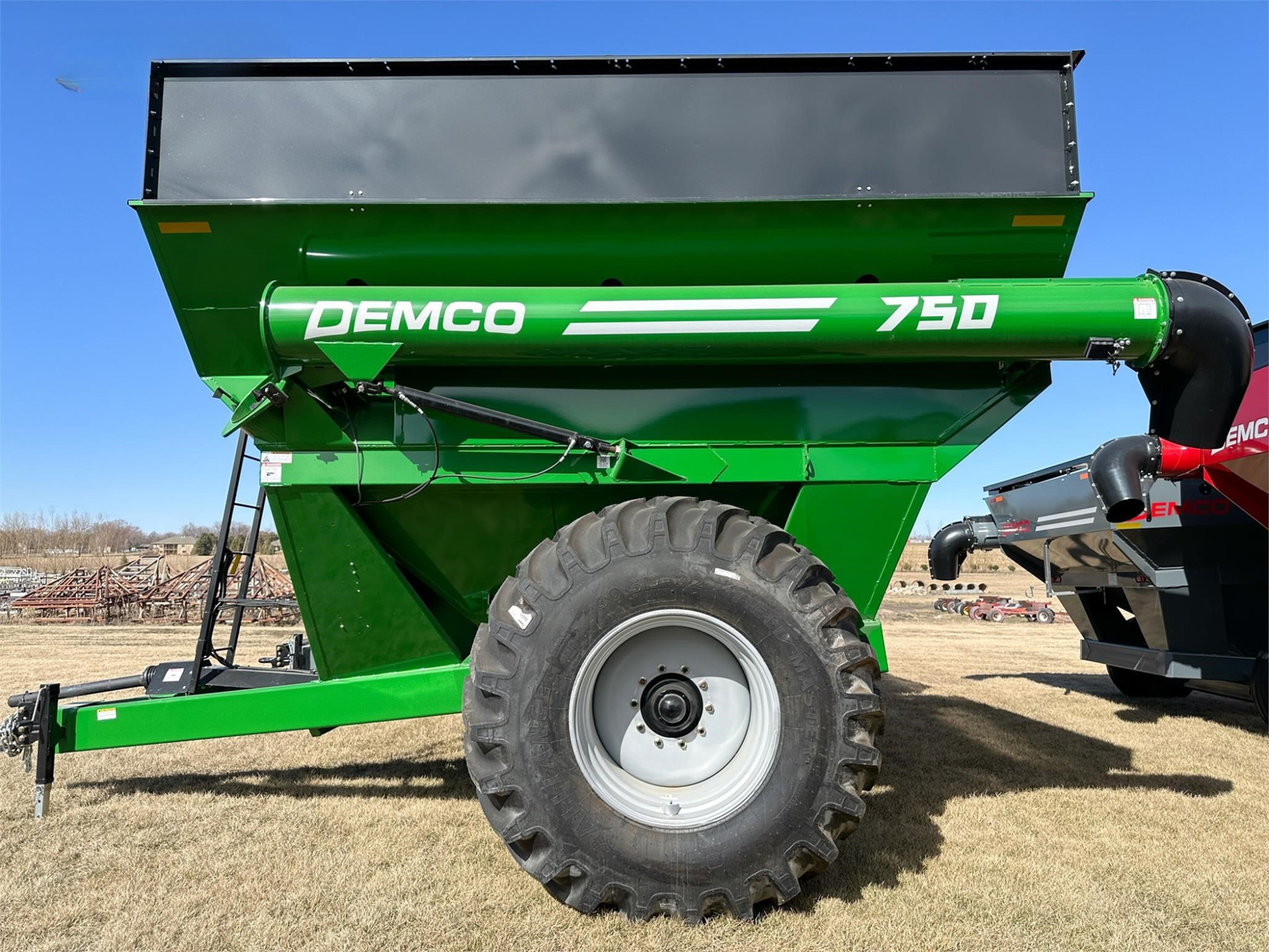

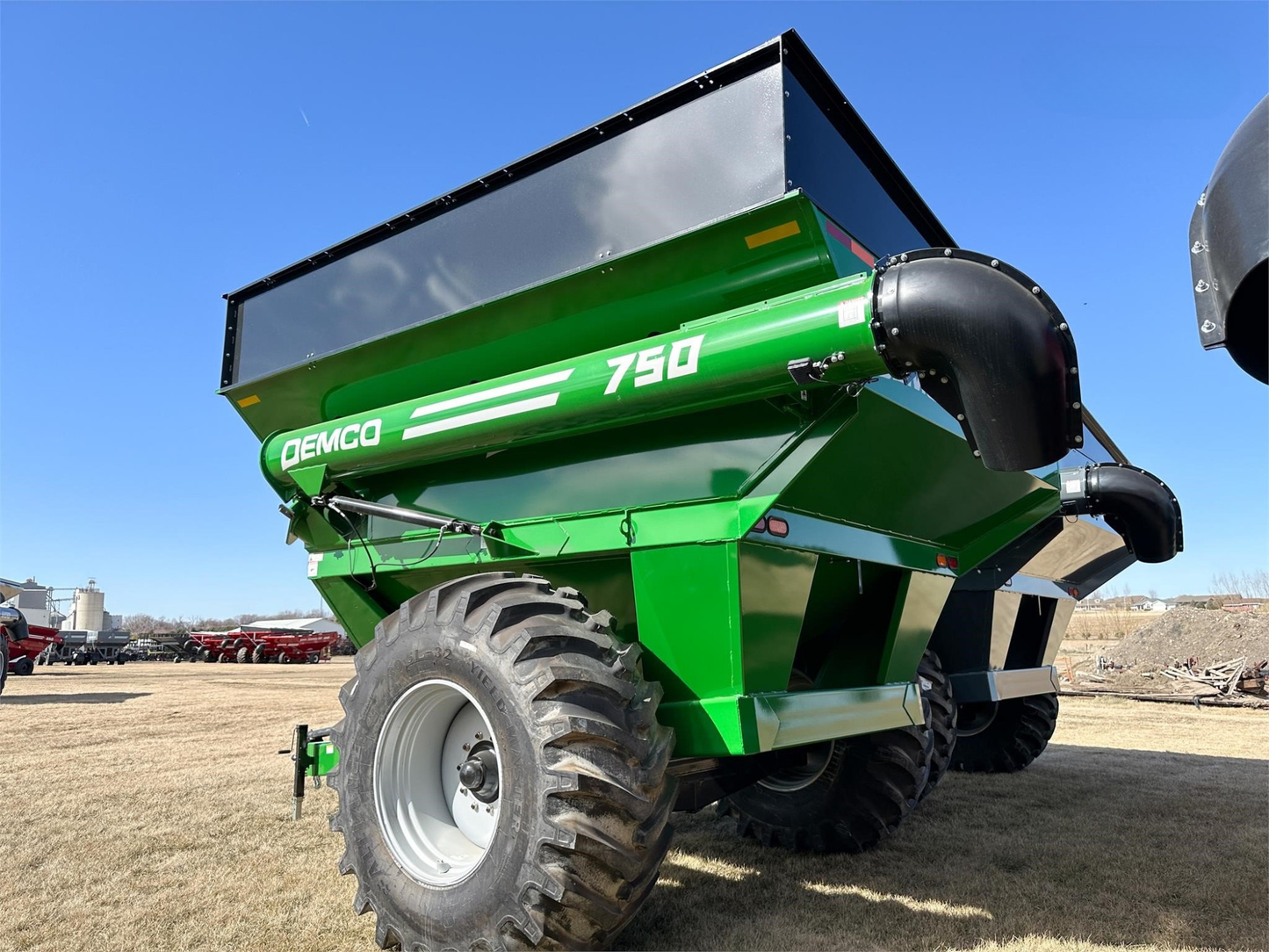

  • Forward Reach Auger for Enhanced Operator Visibility.
  • Hydraulic Controlled 30" Flow Gate for Precision Grain Control.

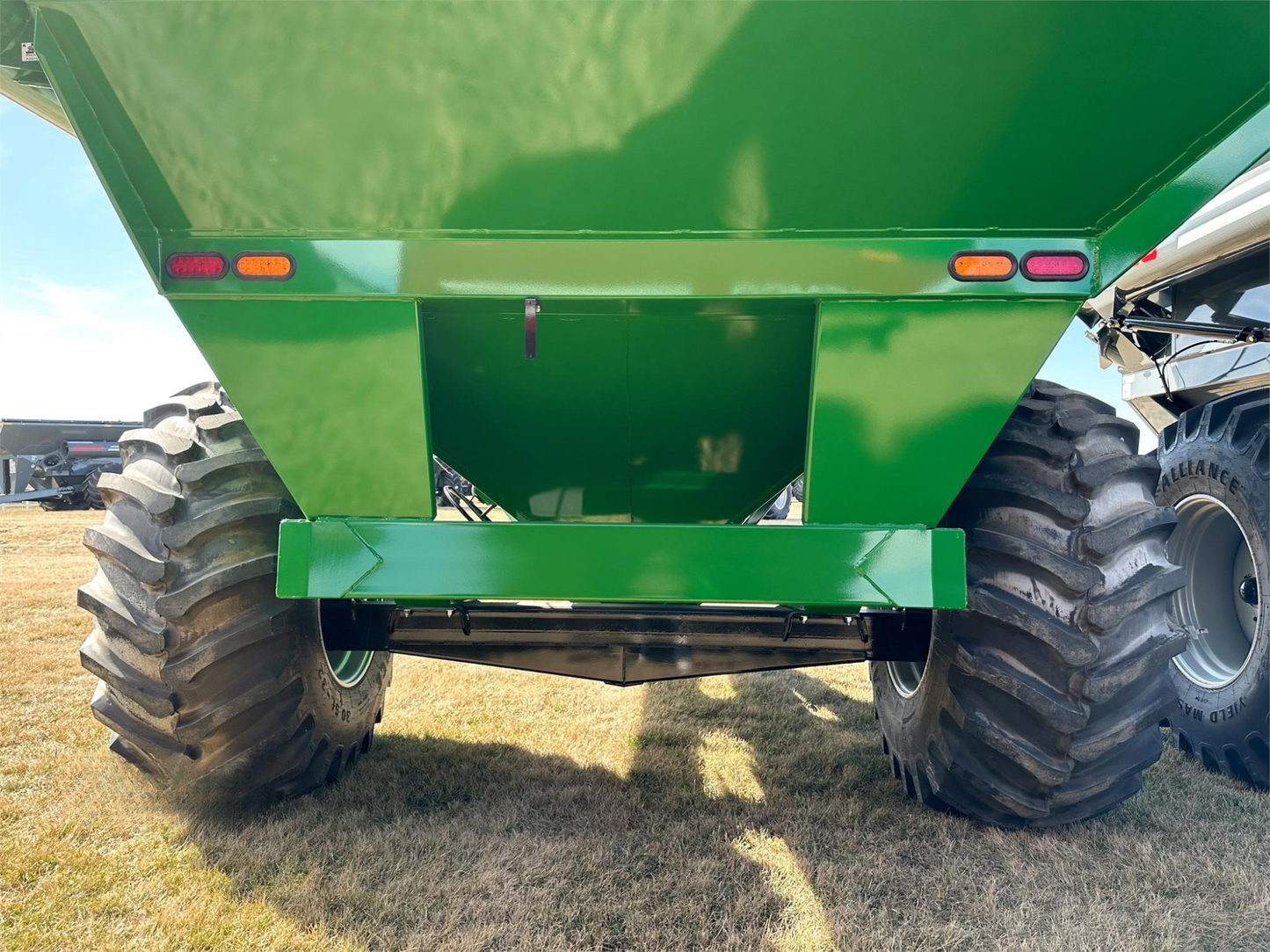

  • LED Lights, Reflective Decals, and Auger Spotlight for Nighttime Operation.

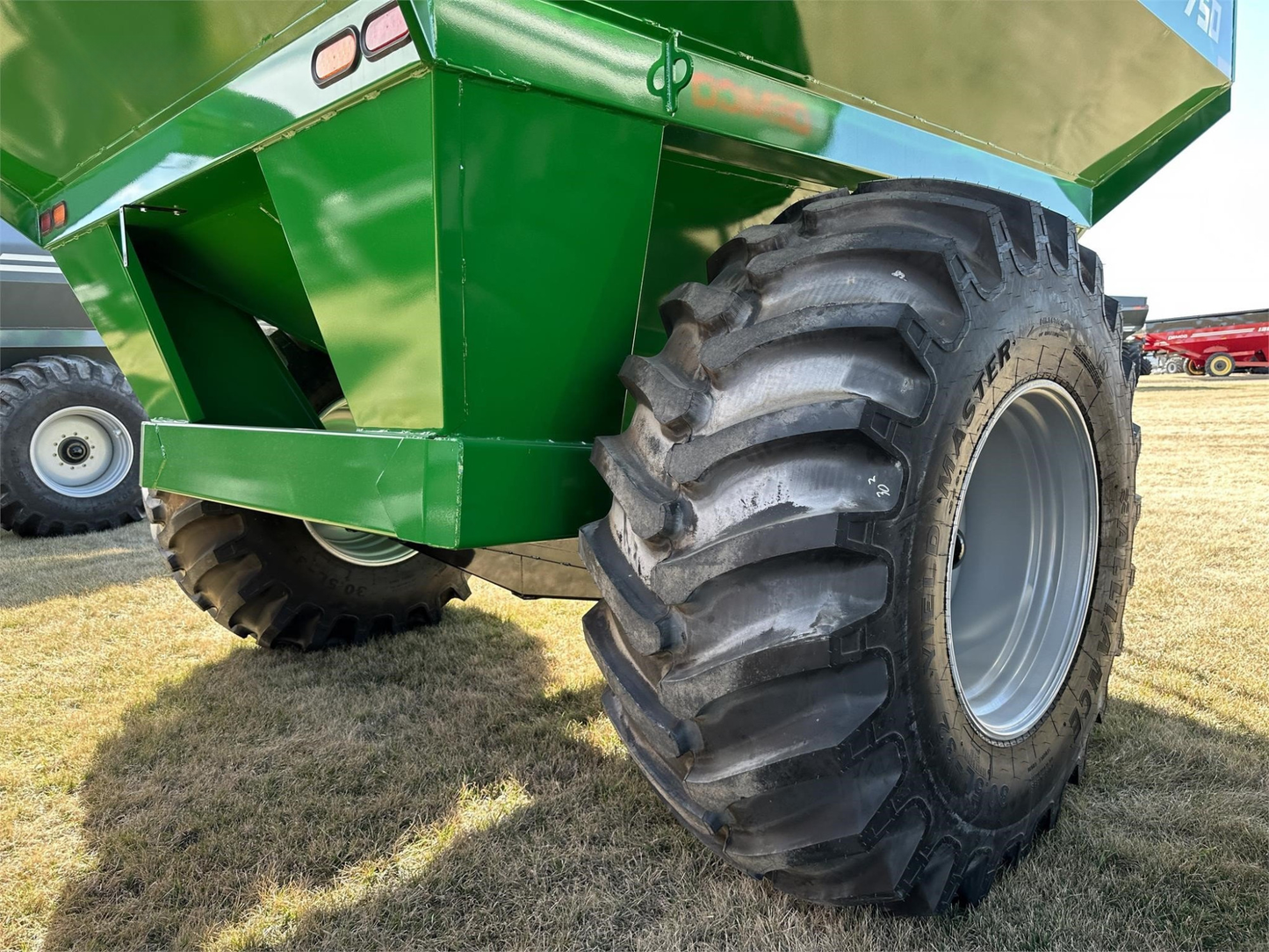

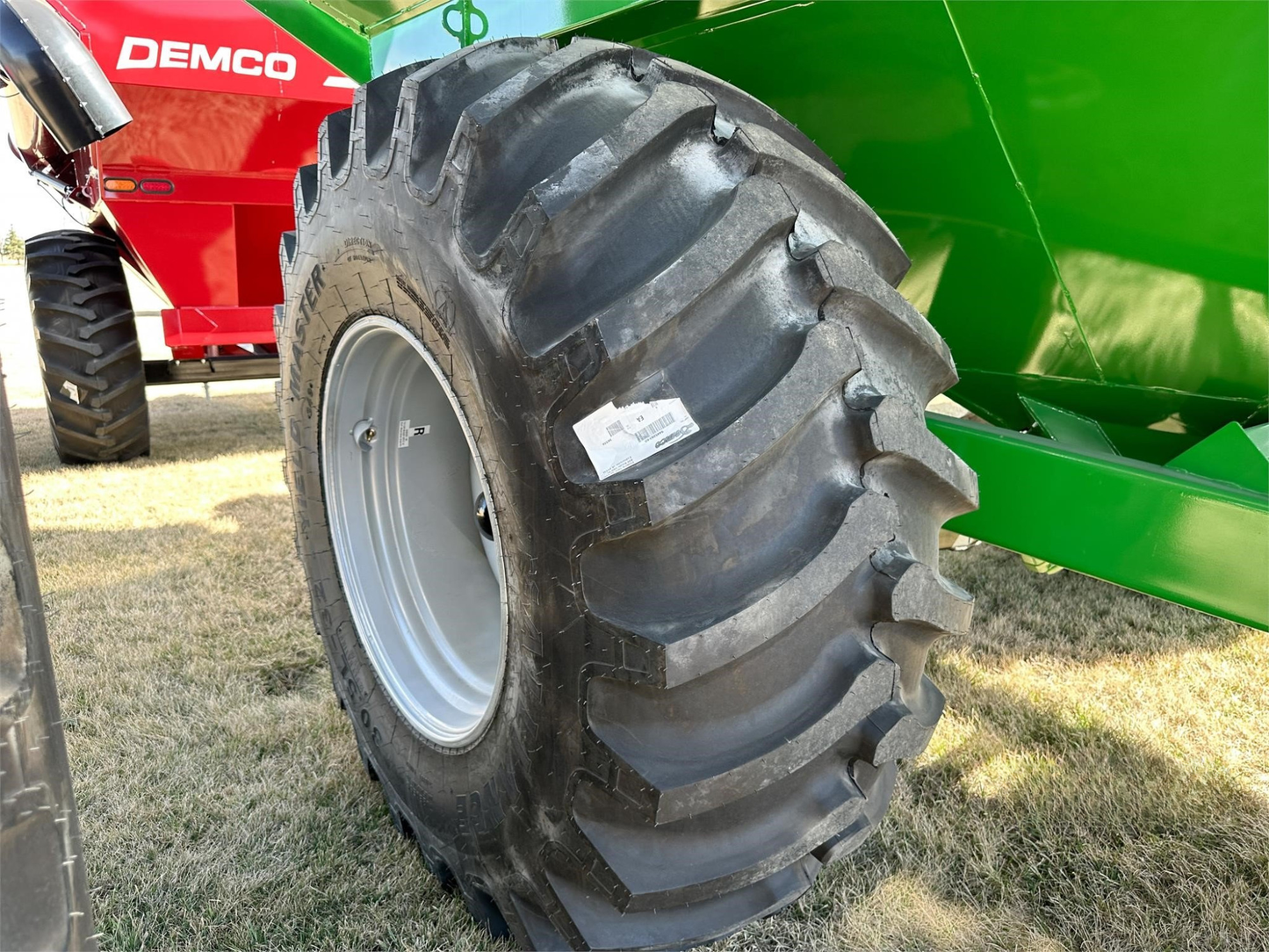

  • 22,500 lb Ductile Iron Hubs and 10-Bolt Wheels for Heavy-Duty Support.
  • Optional Hydraulic Drive Kit (15 To 25 GPM Required).
  • Adjustable Spout and Pendant Grip for Ergonomic Control.
  • Scale Kits and Roll-Top Tarp Available for Added Functionality.

Detailed Specifications

Specification Details
Capacity 750 Bushels
Balanced Auger Size 14"
Unloading Time 250 bu/min
Spindle Size 4 1/2"
Required Tractor HP 150+
Hub Size 10 bolt
Tread Width (Standard) 120"
Tread Width (Optional) 120-144"
Tongue Frame 4" x 10"
Tongue Weight (Empty) 1,240 lbs
Tongue Weight (Loaded) 2,900 lbs
Weight (Wheels & Tires) 8,220 lbs
Auger Extends to Side 7'7"
Box Width (Transport) 11'11"
Box Height (Low Side) 11'1"
Ground Clearance 18"
Auger Extends to Front 7'1"
Box Length 14'
Box Height (High Side) 12'6"
Total Length 20'
Axle to Tongue Length 13'6"
Drawbar/Tongue Height 22"
Auger Clearance Height 14'
