Product Description
Demco Single Auger Grain Cart | Model 850 | Width 120" | Horsepower 175+ HP | Hub Size 10 Bolt | For Tractors
DESCRIPTION

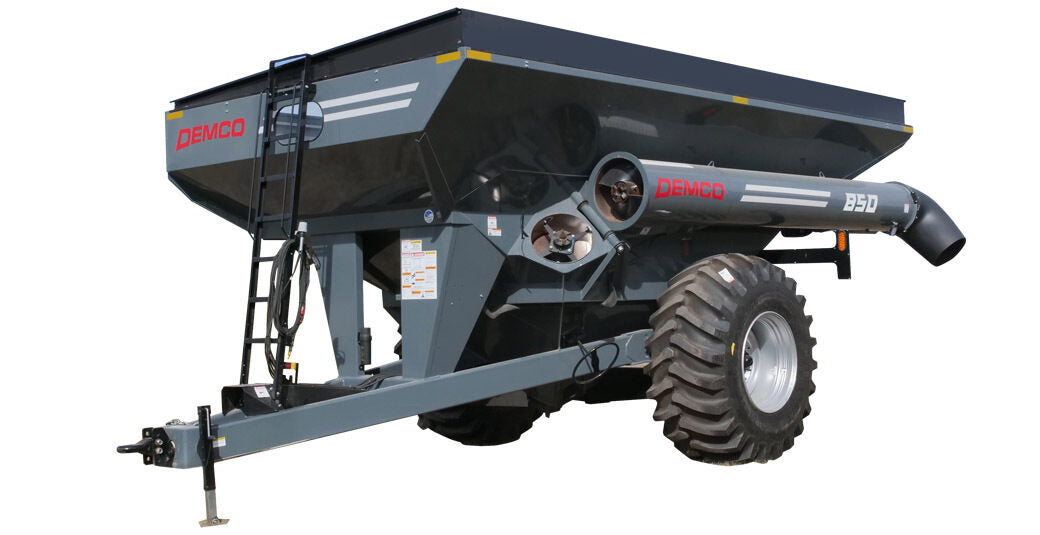

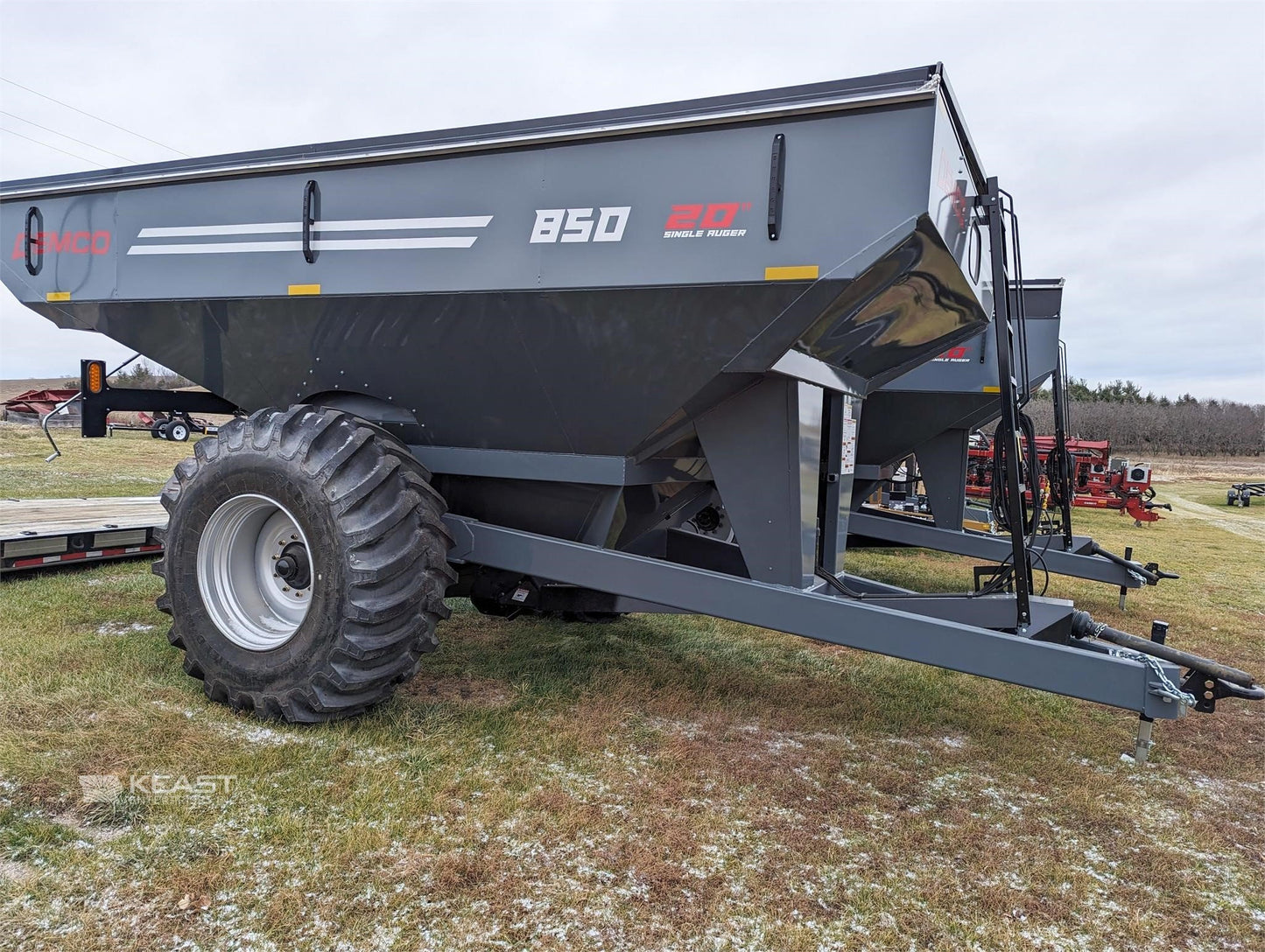

The Demco 850 Grain Cart is designed to boost productivity and efficiency during harvest season, combining a high capacity of over 850 bushels with user-friendly and durable features. Powered by a 1 ¾ - 1000 RPM PTO and equipped with a 20” balanced auger, this grain cart provides fast unloading of up to 530 bushels per minute, significantly reducing downtime. The auger's forward reach and Posi-Drive connection enhance operator visibility and reliability, making it ideal for large-scale farming operations.
Constructed with a welded box design and silicone-sealed seams, the Demco 850 Grain Cart resists rust and corrosion, even in the harshest conditions. Adjustable axles, heavy-duty spindles, and hubs ensure robust performance, while high-visibility reflective decals and LED lights improve safety during nighttime operations. With options for tread width and an advanced UltraFlyte auger, this cart delivers reliability and efficiency throughout every harvest.
Key Features
- Efficient Power Transfer: 1 ¾ - 1000 RPM PTO with two output shafts, no belts or pulleys
- Protective Clutch: Automatic reset "cut-out" clutch to protect auger and tractor PTO

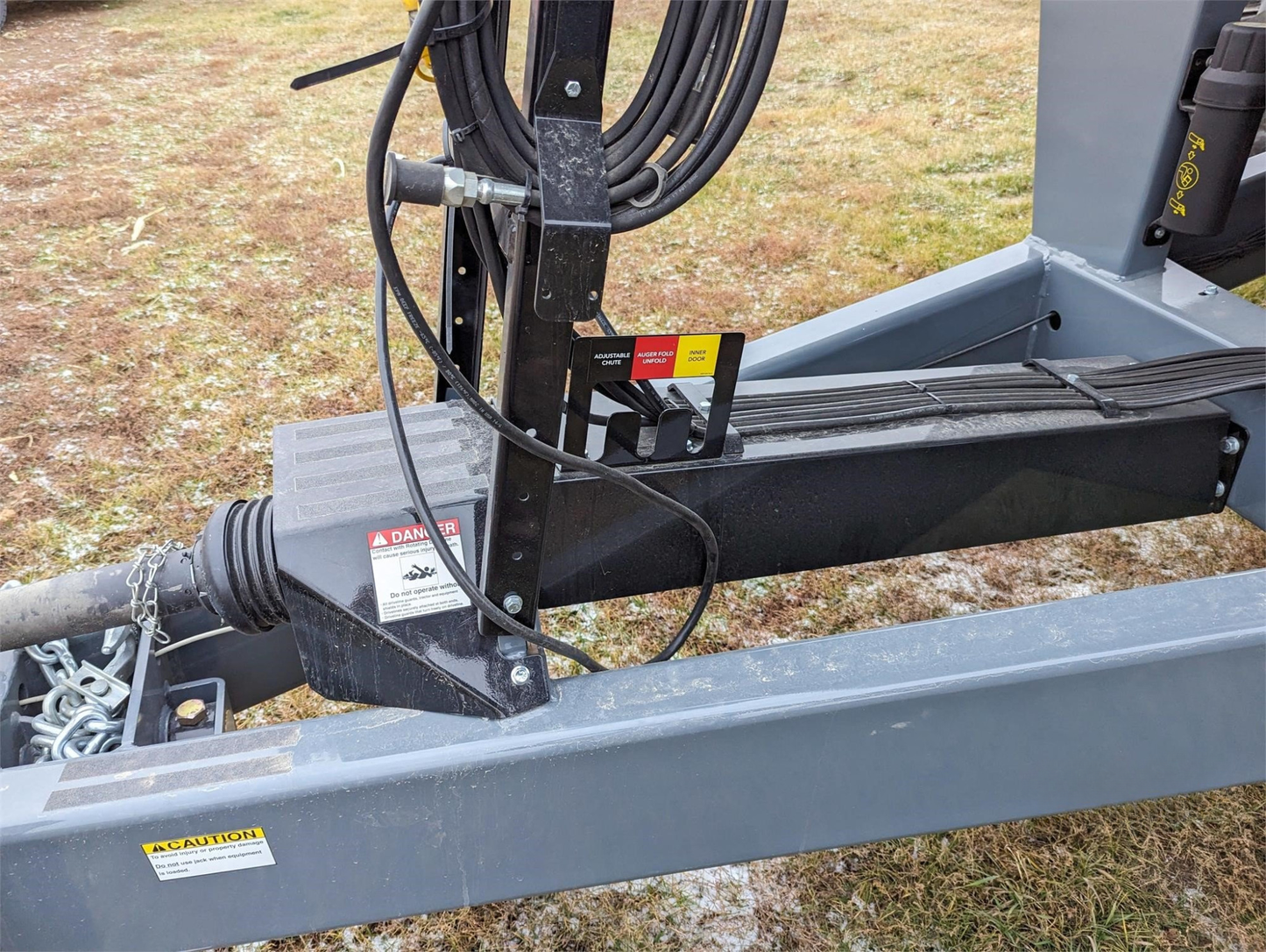

- Adjustable Hitch: Fits Category 4 or 5 hammer strap drawbar
- Enhanced Safety: Reflective decals and LED lights for nighttime operation

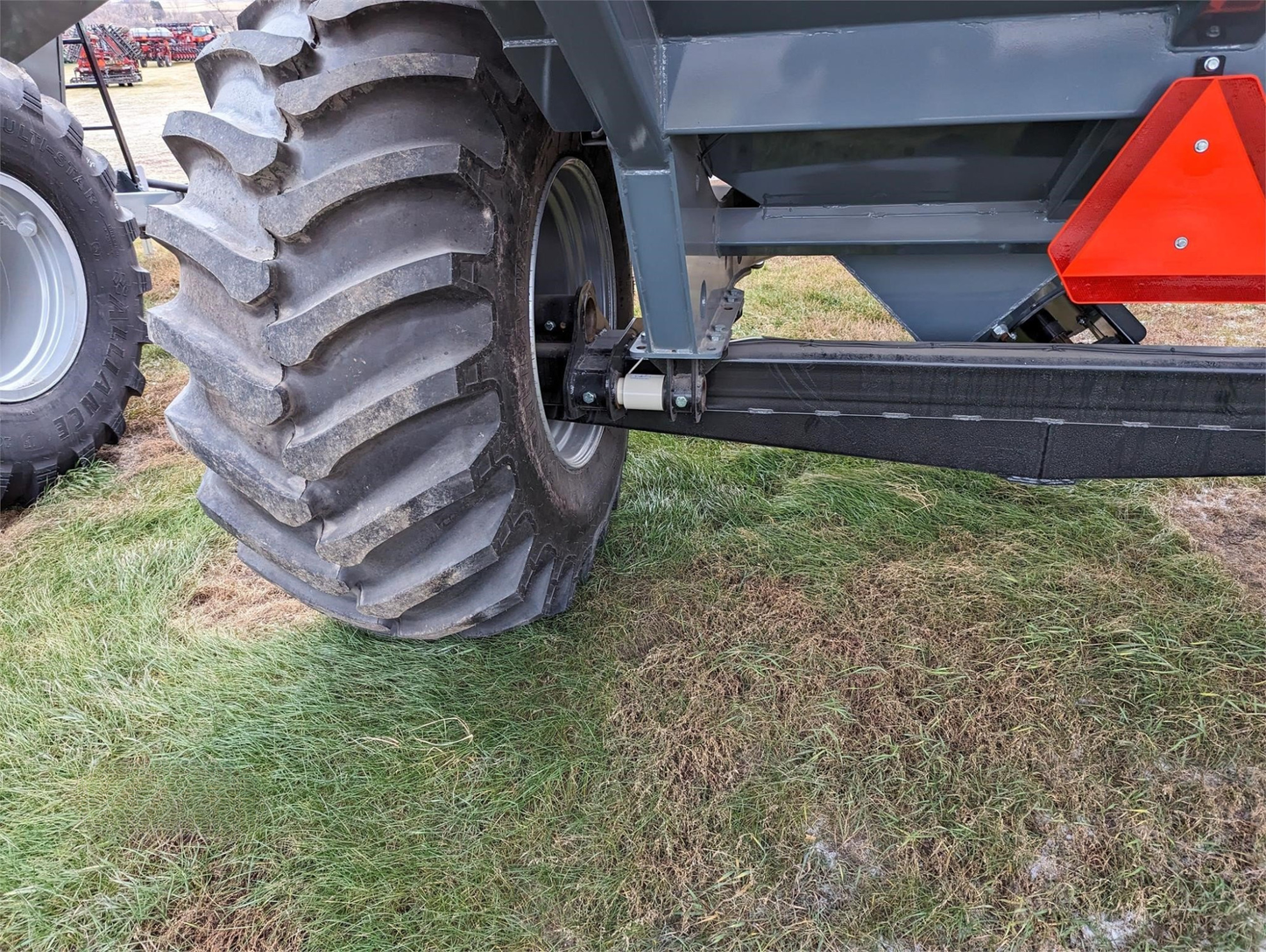

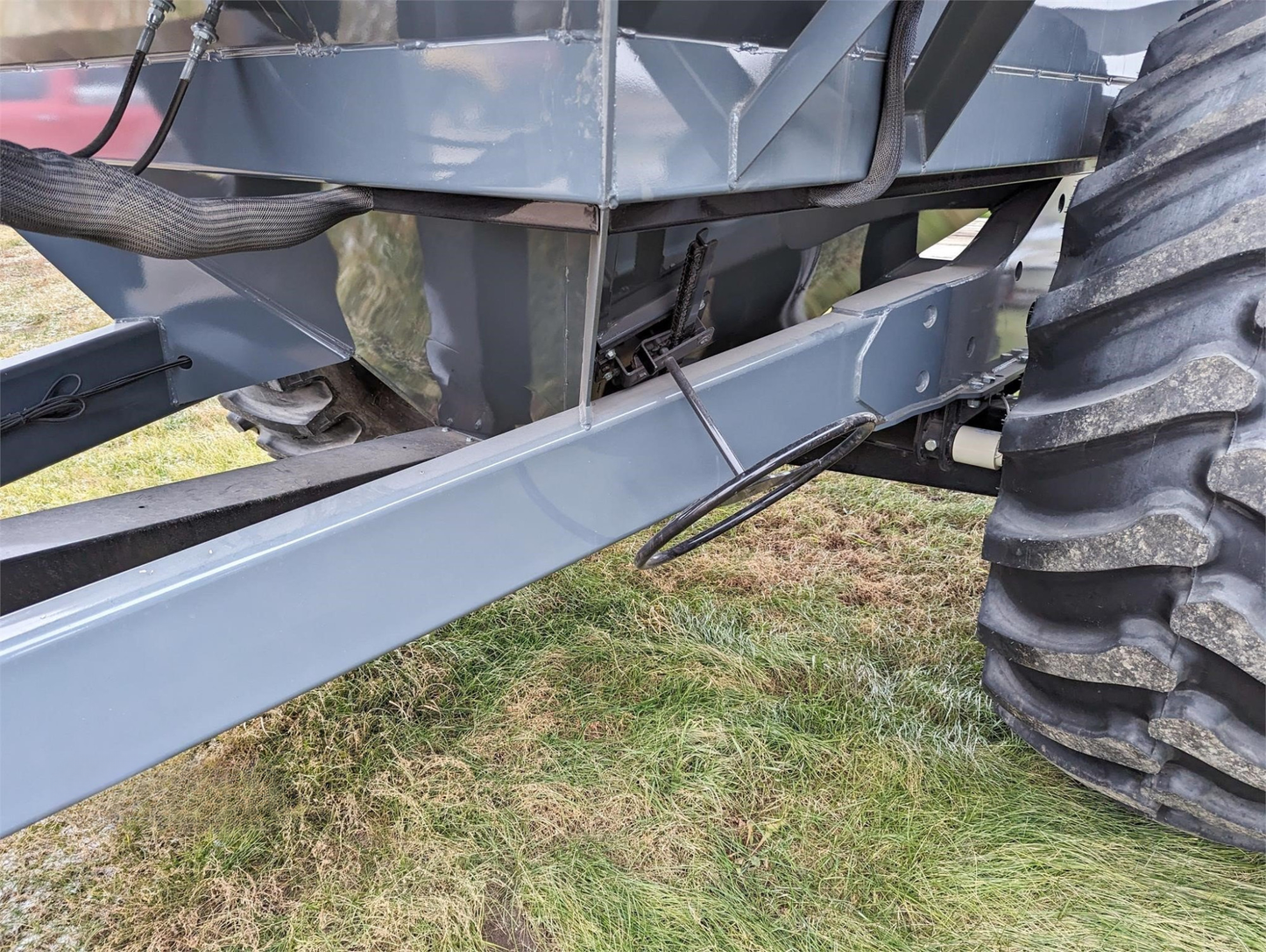

- Sturdy Construction: Tube and truss design with adjustable axle
- Corrosion Resistance: Welded box with silicone-sealed seams

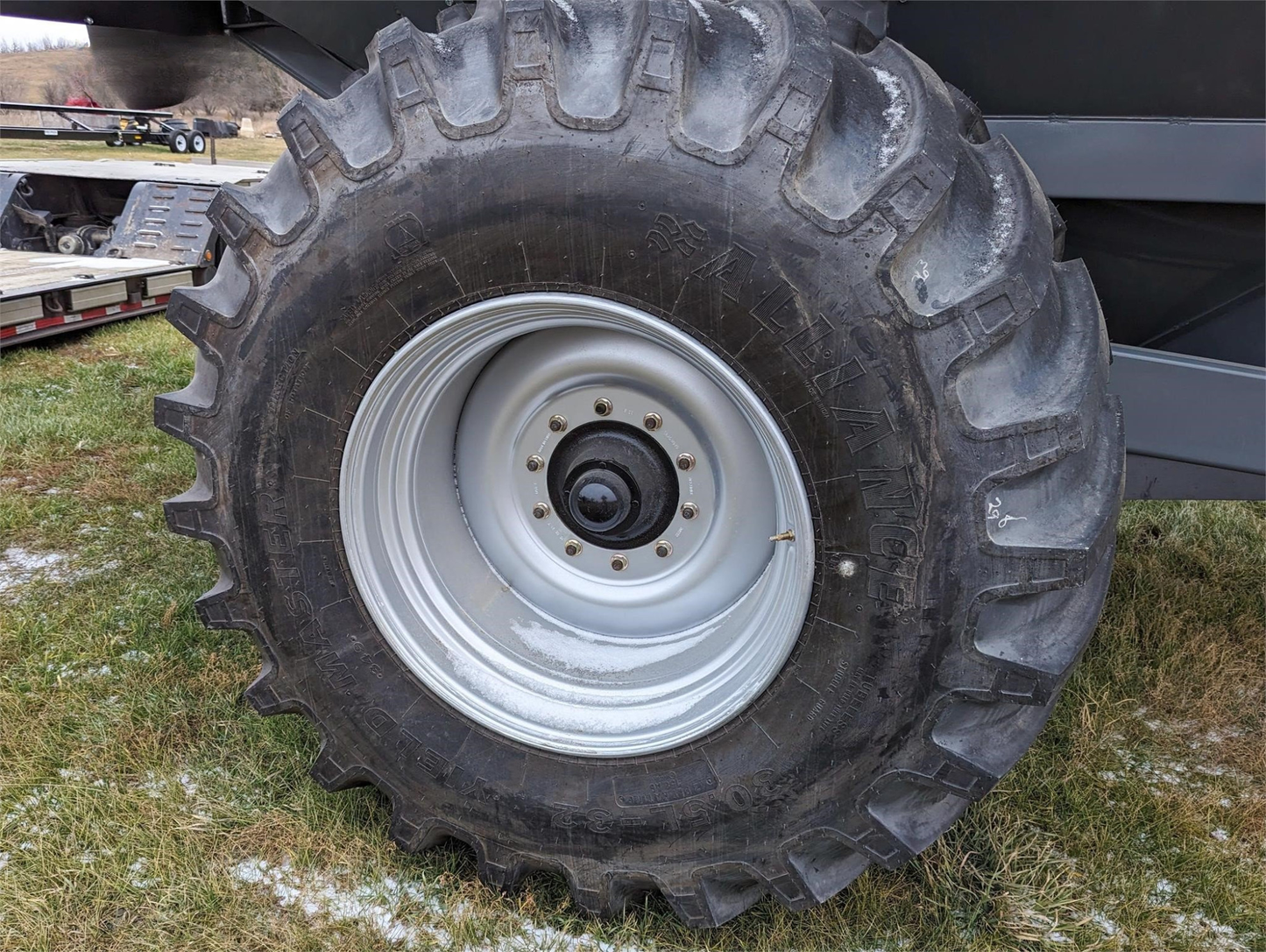

- Heavy-Duty Components: Durable spindles and 10-bolt hubs

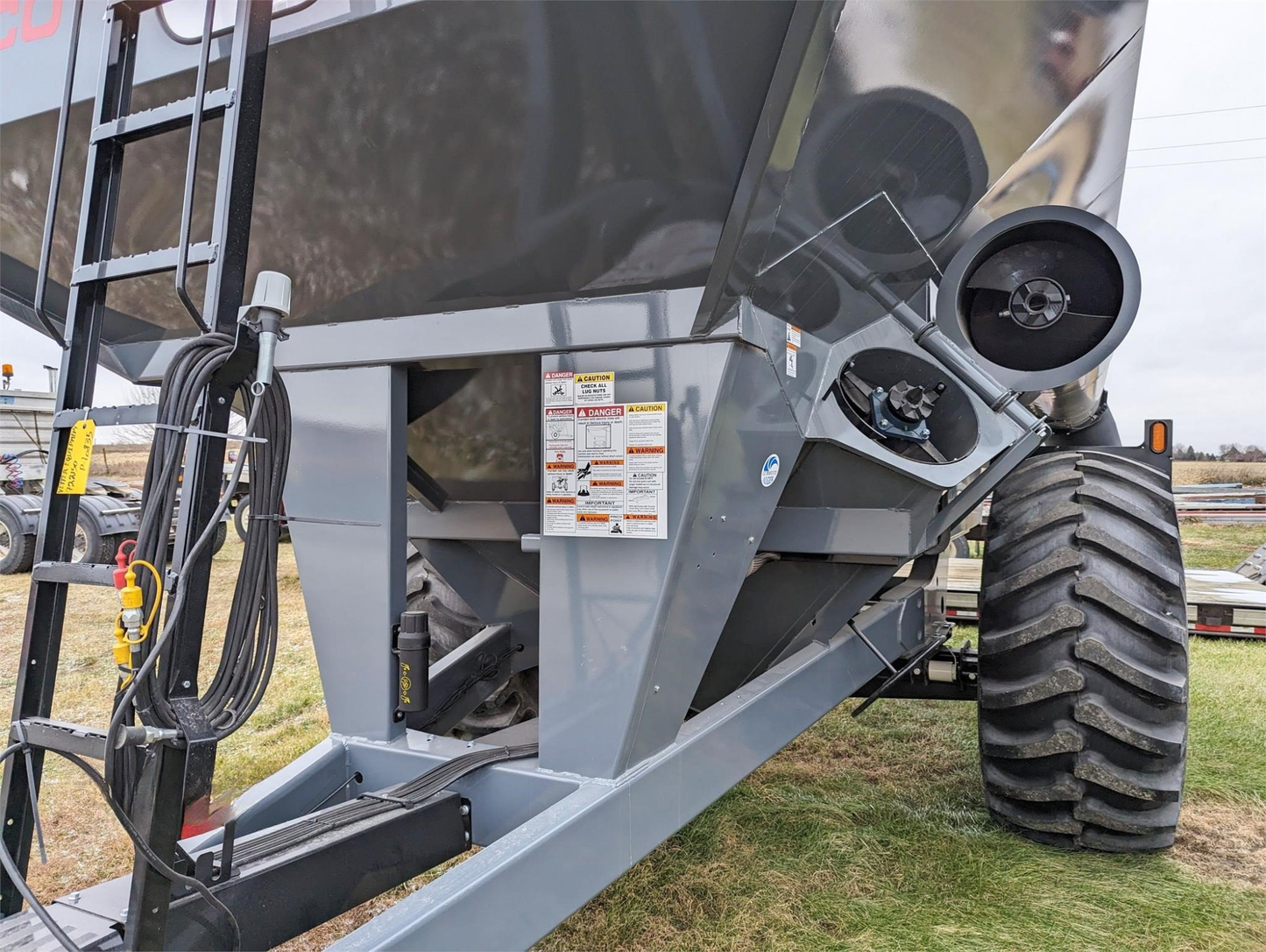

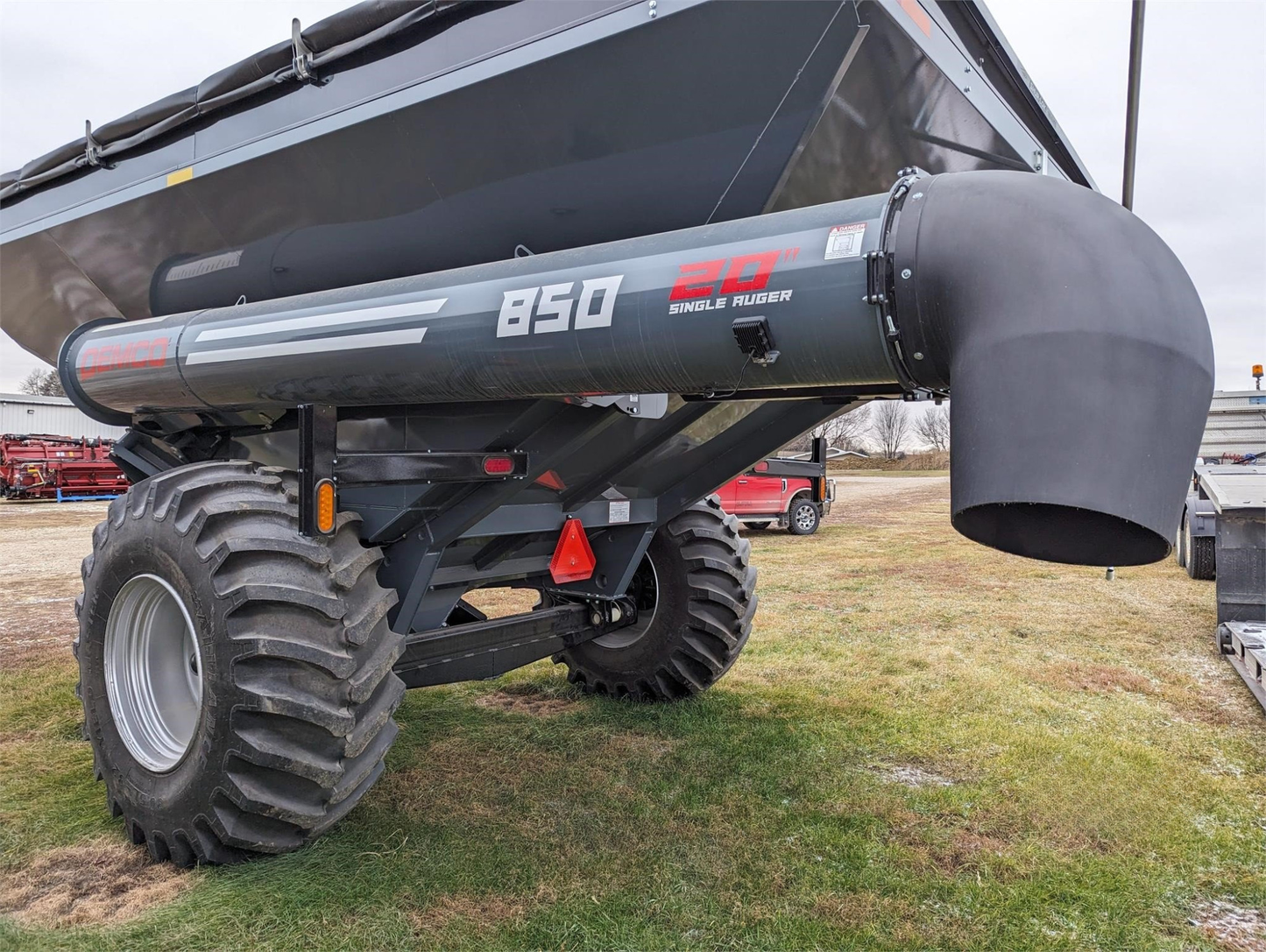

- High-Performance Auger: 20” balanced auger with 3/8” flighting and UltraFlyte steel
- Optimized Unloading: 2-stage unload auger folding cylinder for smooth operation
- Forward Reach Auger: Offers improved operator visibility
Detailed Specifications
| Specification | Details |
|---|---|
| Capacity | 850 Bushels |
| Balanced Auger Size | 20" |
| Unloading Time | 530 bu/min |
| Spindle Size | 4 1/2" |
| Required Tractor HP | 175+ |
| Hub Size | 10 bolt |
| Tread Width (Standard) | 120" |
| Tread Width (Optional) | 120-144" |
| Tongue Frame | 4" x 10" |
| Tongue Weight (Empty) | 1,180 lbs |
| Tongue Weight (Loaded) | 4,000 lbs |
| Weight (Wheels & Tires) | 11,400 lbs |
| Weight (Tracks) | 17,600 lbs |
| Auger Extends to Side | 9'5" |
| Box Width (Transport) | 12'4" (24.5s), 12'10" (30.5s), 13'4" (900s) |
| Box Height (Low Side) | 11' |
| Ground Clearance | 15" |
| Auger Extends to Front | 5'8" |
| Box Length | 20'1" |
| Box Height (High Side) | 11'4" |
| Total Length | 26'8" |
| Axle to Tongue Length | 16'1" |
| Drawbar/Tongue Height | 20" |
| Auger Clearance Height | 13'9" |
In Package:
- Demco 850 Grain Cart
- 20” Balanced Auger with UltraFlyte steel flighting
- LED Lighting System
- Adjustable Axle and Hitch
Available Options:
- Extended Tread Width: 120-144"
- Tire Options: 24.5, 30.5, or 900 tire configurations
- UltraFlyte Auger with thicker edge for extended wear
- Track System for enhanced stability and reduced compaction
