Product Description

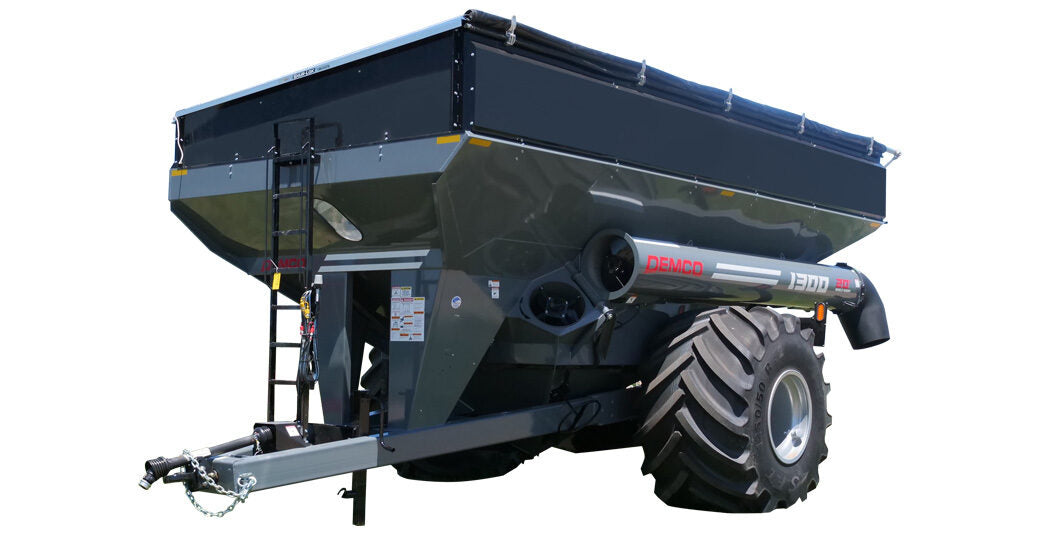

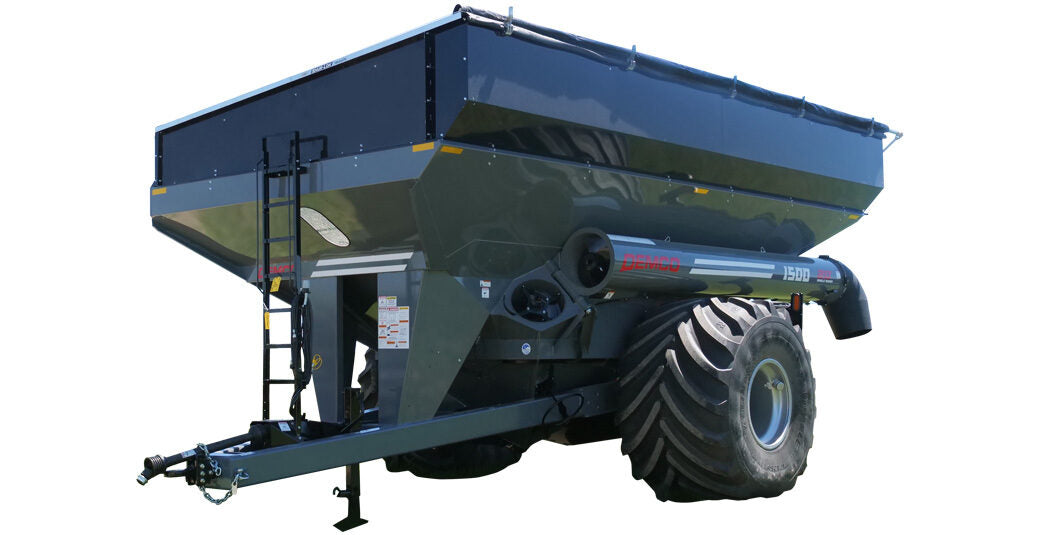

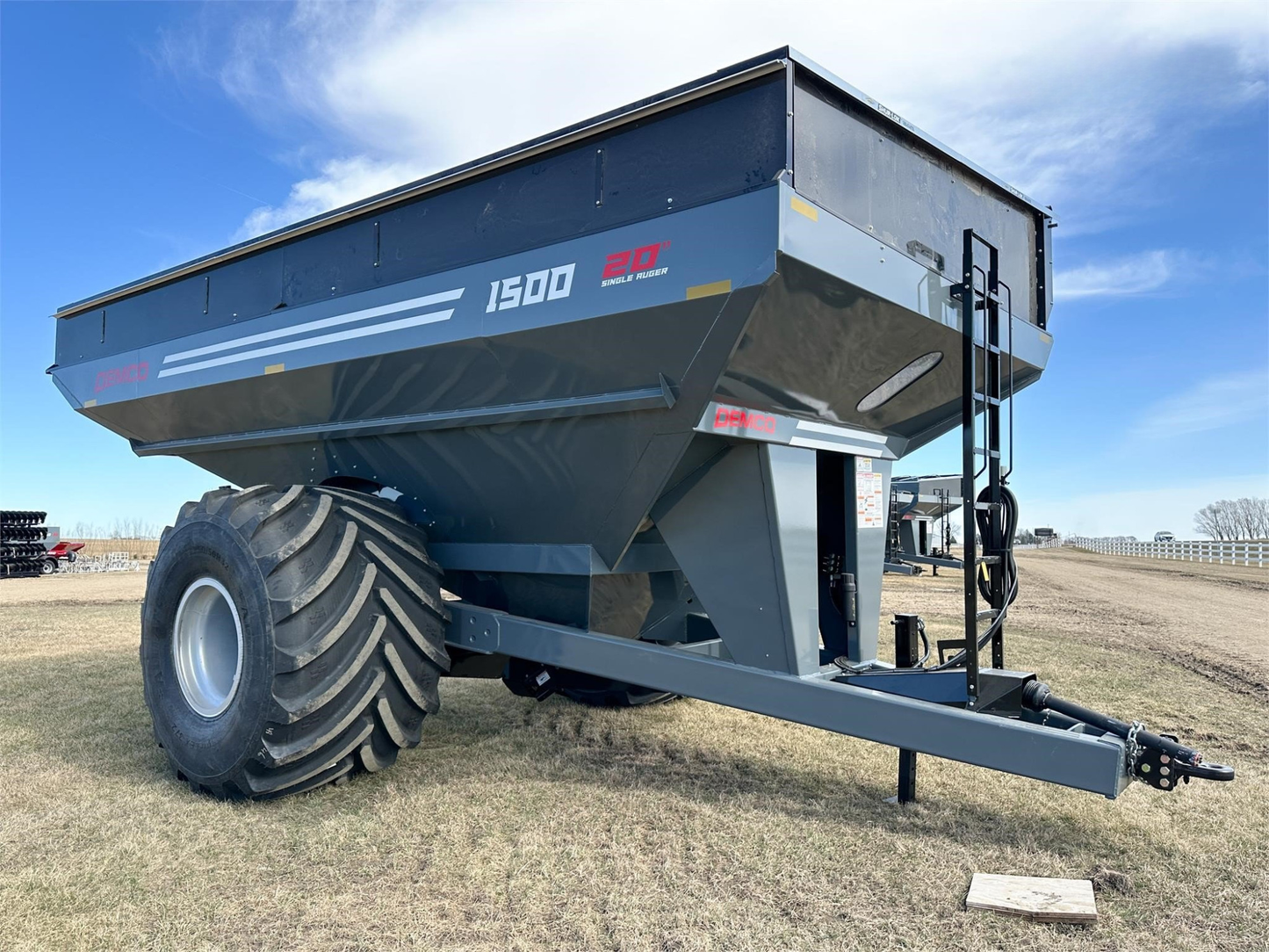

Demco Single Auger Grain Carts | Model 1300 & 1500 | Tread Width 112" To 193" | Horsepower 200+ | For Tractor
DESCRIPTION
The Demco Single Auger Grain Carts Model 1300 and 1500 are designed to enhance operator productivity with their large capacity and advanced features. With a balanced 20" auger and Ultraflyte auger flighting, these grain carts are optimized for efficient grain handling and provide superb visibility for the operator during unloading. Whether you choose the 1300 or 1500 model, you can count on durable construction, high performance, and operator convenience for a smooth and productive harvest.
These high-capacity grain carts are built tough, featuring a 1-3/4 - 1000 RPM PTO for efficient power transfer, a reset "cut-out" clutch to protect the auger and PTO, and reflective decals with LED lights for nighttime operations. With optional features like a 5-point scale system, the Demco grain carts are built to handle demanding fieldwork reliably and effectively.
Key Features

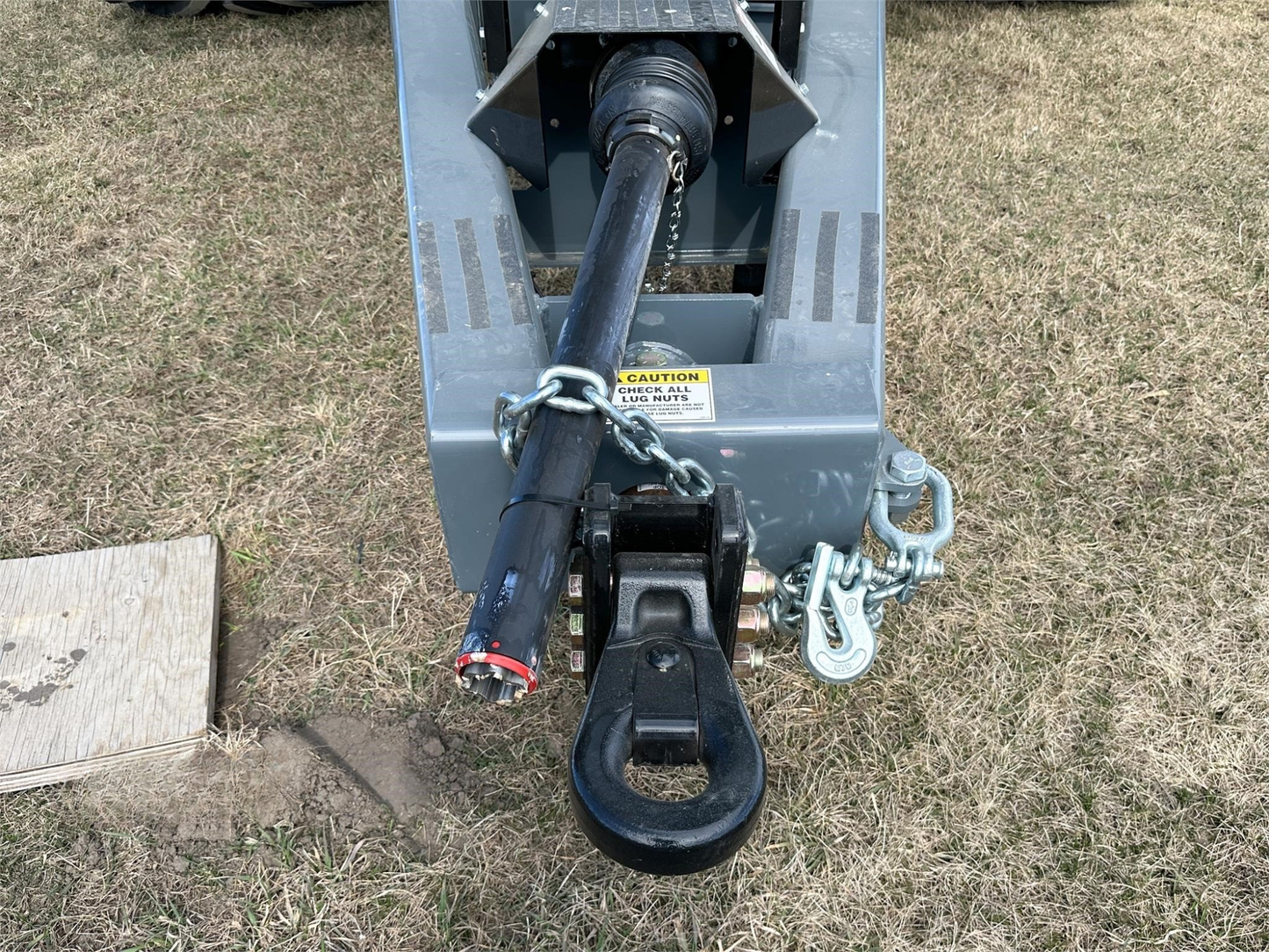

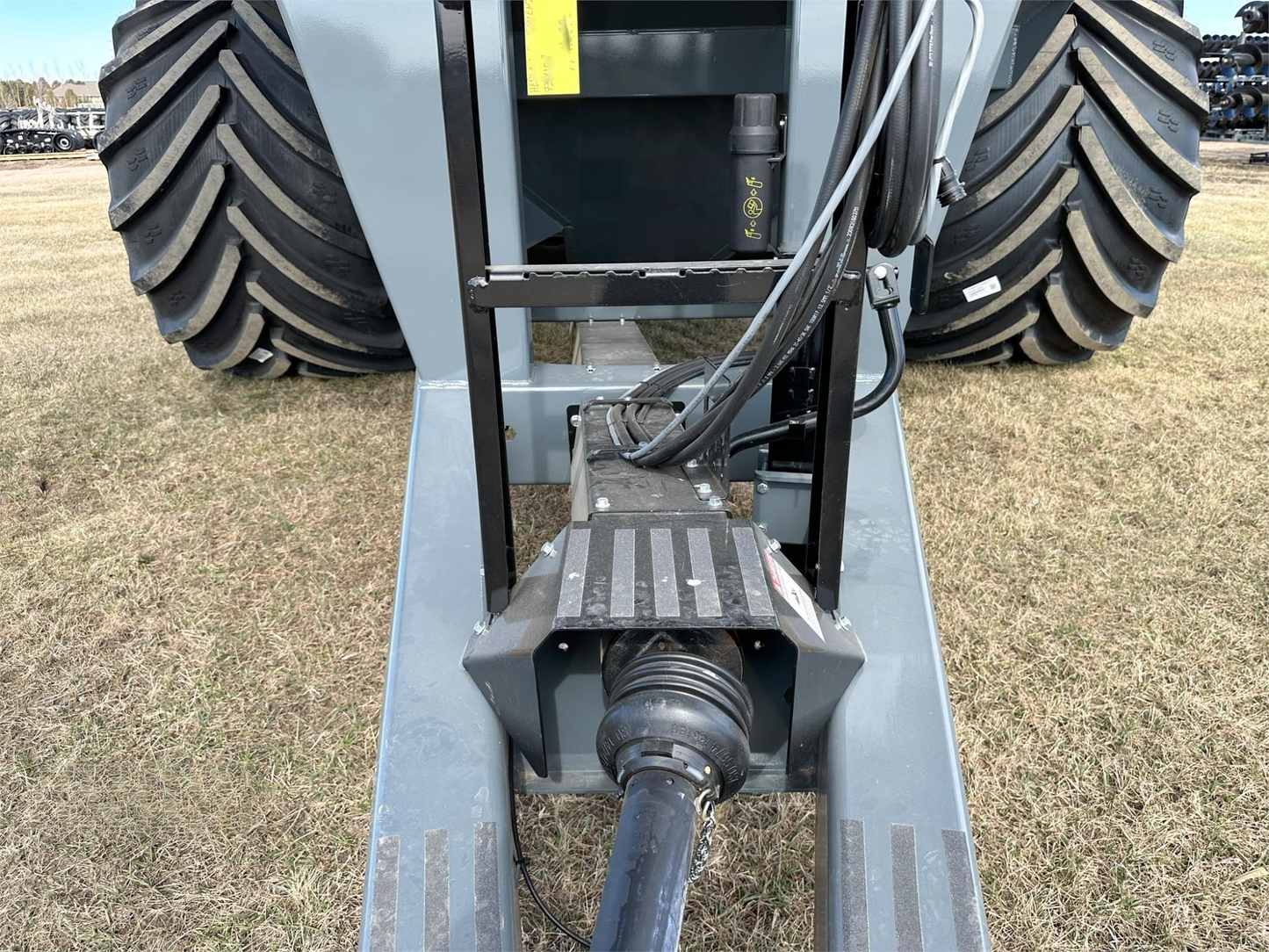

- Efficient PTO: 1-3/4 - 1000 RPM PTO for direct power transfer without belts.
- Protective Clutch: Automatic reset "cut-out" clutch safeguards auger and PTO.
- Enhanced Visibility: Reflective decals and LED lights ensure safe nighttime operations.
- Heavy Duty Construction: Welded box construction and silicone-sealed seams for corrosion resistance.
- Advanced Auger Design: 20” diameter auger with Posi-Drive and 3/8” Ultraflyte auger flighting.
Detailed Specifications
| Specification | Details |
|---|---|
| Capacity | 1300+ Bu. (1300 Bushel), 1500+ Bu. (1500 Bushel) |
| Auger Size | 20" (both models) |
| Unloading Time (bu/min.) | 530 (both models) |
| Spindle Size | D=4 1/2", S=5 1/2" (both models) |
| Tractor HP Required | 200+ (both models) |
| Hub Size | 10 bolt - 13.19" (1300 Bushel), 20 bolt (1500 Bushel) |
| Tread Width (Standard) | 112" (1300 Bushel), 193" (1500 Bushel) |
| Tread Width (Optional) | N/A (both models) |
| Tongue Frame | 4"x10" (both models) |
| Tongue Weight (Empty) | 1,450 lbs. (1300 Bushel), 1,500 lbs. (1500 Bushel) |
| Tongue Weight (Loaded) | 6,000 lbs. (1300 Bushel), 6,200 lbs. (1500 Bushel) |
| Weight (Wheels & Tires) | 16,100 lbs. (1300 Bushel), 16,500 lbs. (1500 Bushel) |
| Auger Extends to Side | 8'11" (1300 Bushel), 8' (1500 Bushel) |
| Box Width (Transport) | w/1250s: 15'10" (1300 Bushel), w/1250s: 16'1" (1500 Bushel) |
| Height (Low Side) | 12' (1300 Bushel), 12'3" (1500 Bushel) |
| Ground Clearance | 16" (both models) |
| Box Length | 25'9" (both models) |
| Box Height (High Side) | 13'1" (1300 Bushel), 13'5" (1500 Bushel) |
| Total Length | 29' (both models) |
| Axle to Tongue Length | 16'10" (both models) |
| Auger Clearance Height | 13'9" (both models) |
In Package
- Demco Single Auger Grain Cart (Model 1300 or 1500)
- 20” Balanced Auger with Ultraflyte Auger Flighting
- LED Tail, Flasher/Turn Signal Lights, and Auger Spotlight
Available Options
- 5-Point Scale System
- Heavy-Duty Tire and Wheel Upgrades
- Custom Paint Options
