Demco | Standard Combine Header Transport Trailer | Model HT28 | Trailer Length 28 feet | GVW 11,200 lbs | 1" Hitch Pin | Horsepower 400 To 500 HP | For Tractor

DESCRIPTION

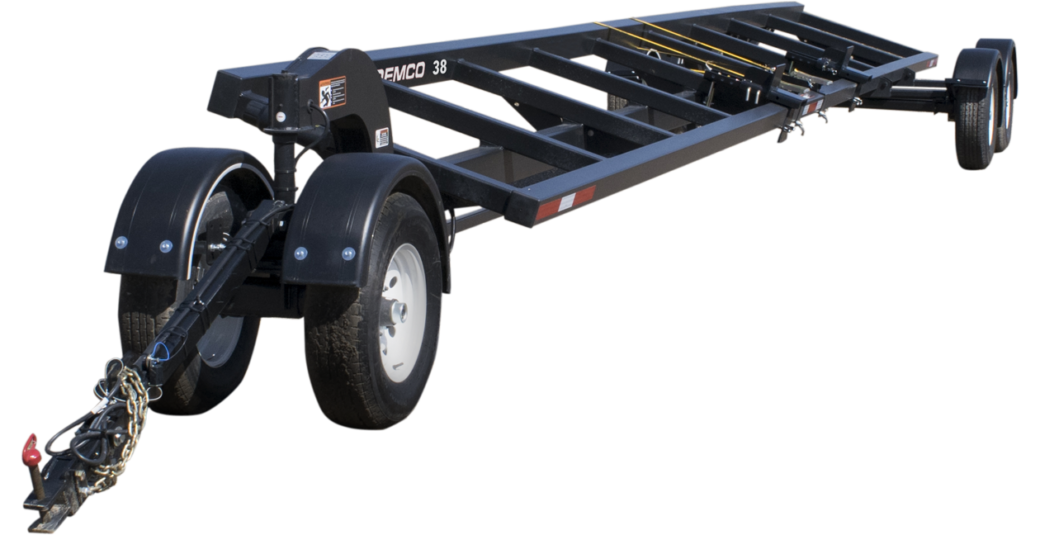

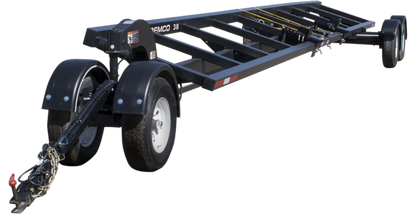

The Demco Standard Combine Header Transport Trailer Model HT28 is designed to offer dependable and efficient transport for combine headers. Built for tractors, this trailer includes four adjustable slider brackets for secure attachment, ensuring stable and versatile header transport. The robust construction and convenient features make it ideal for both short and long-distance hauls.

With a torsion flex tricycle front axle, single rear torsion flex axle, and black rubberized undercoating, the HT28 model is built to withstand rugged use while maintaining stability. The trailer includes LED lighting with a 7-pole RV plug for enhanced visibility, along with adjustable tie-downs and a telescoping tongue equipped with a clevis and 1” hitch pin, providing easy, secure connections.

Key Features

  • 28' Standard Steel Frame with 11,200 lbs GVW.
  • Compatible with 400 To 500 HP tractors and towing vehicles.
  • Torsion Flex Tricycle Front Axle for smooth steering and field maneuverability.
  • Single Rear Torsion Flex Axle for stable transport and reduced vibration.
  • DOT-approved sealed LED lighting system with 7-pole RV plug.
  • Telescoping tongue with clevis and 1" hitch pin for secure connection.

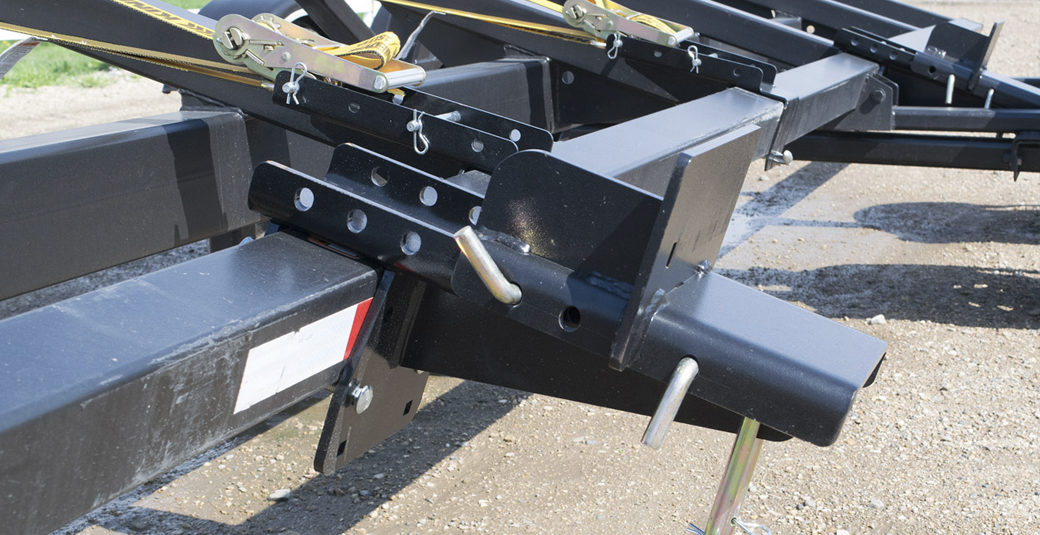

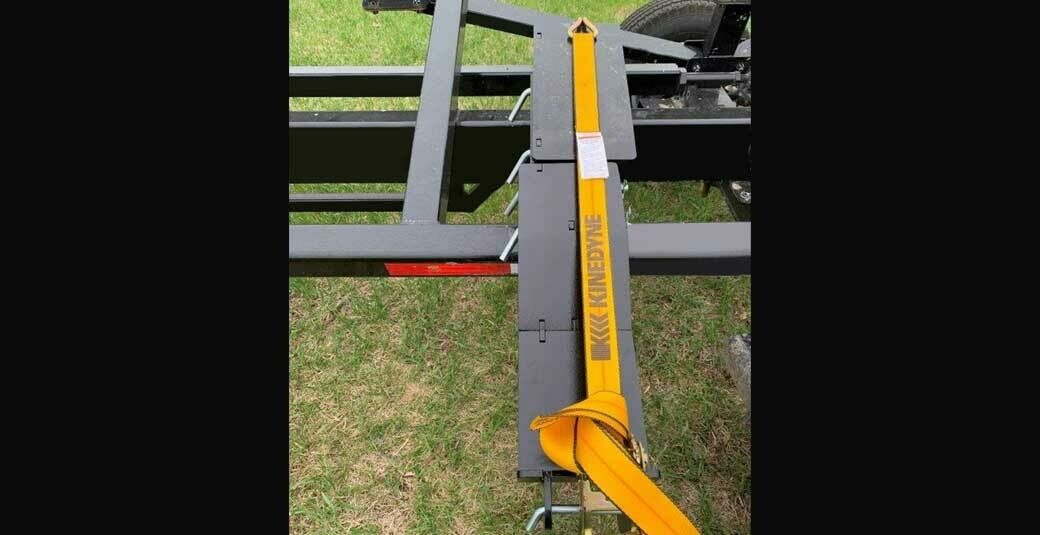

  • Two adjustable slider brackets for multi-header compatibility.

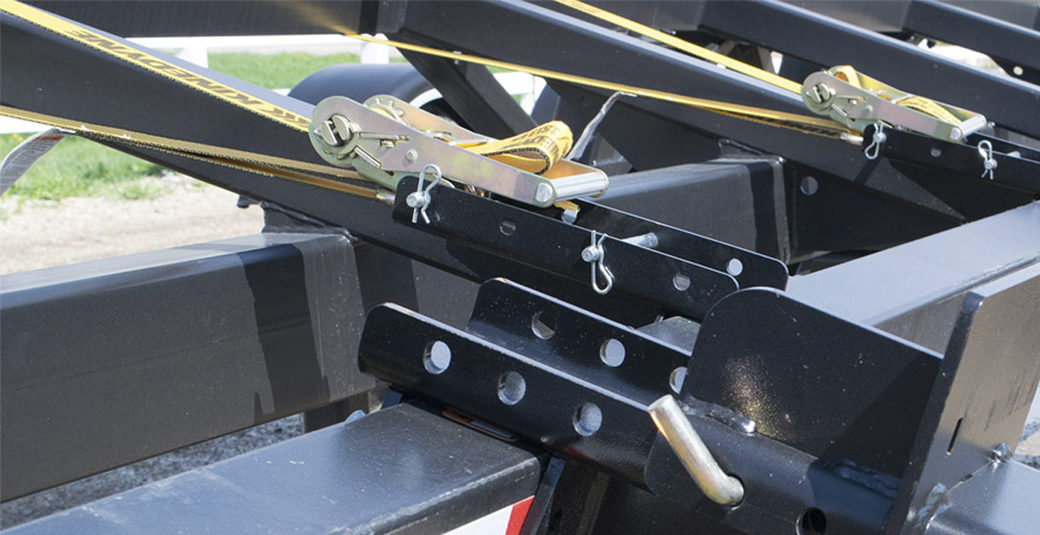

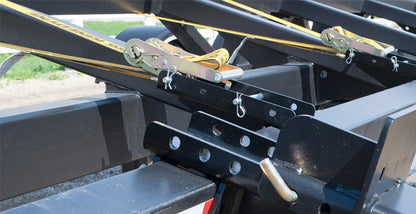

  • Two ratcheting tie-down straps for secure header transport.
  • Finished with black rubberized undercoating for corrosion resistance.
  • 225/75R15 Load Range E import tires for reliable road performance.
  • Front and rear fender package available for added protection.
  • Ground clearance designed for safe travel over uneven terrain.

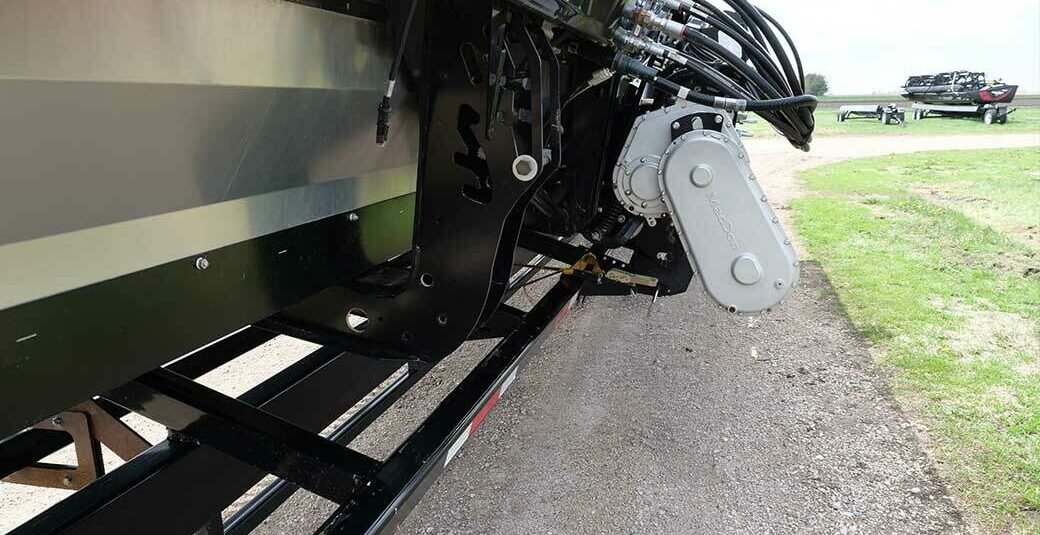

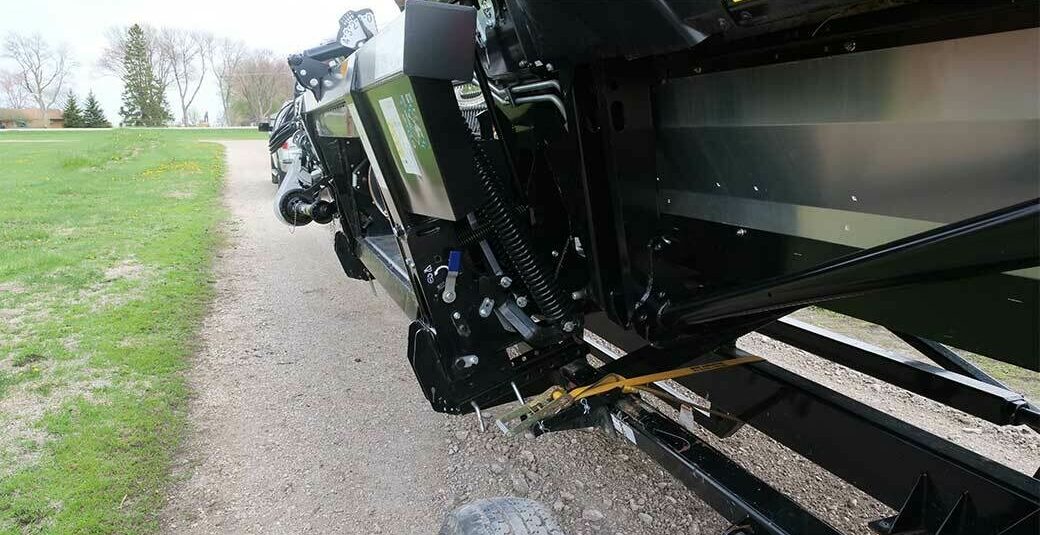

  • Compatible with JD Hinged Draper, MacDon FD200, and other major header brands.
  • Upgrade options include electric brakes, ball coupler, pintle eye, and stalk brackets.
  • Ideal for small to mid-size farms needing reliable, affordable header transport.

Detailed Specifications

Category Specification
Model HT28
Trailer Type Standard Combine Header Transport Trailer
Overall Length 28 feet
Overall Width 102 inches
Gross Vehicle Weight (GVW) 11,200 lbs
Axle Configuration Torsion Flex Tricycle Front Axle + Single Rear Torsion Flex Axle
Axle Rating 6,000 lbs torsion axles
Suspension Type Torsion Flex Suspension
Braking System Optional Electric Brakes with Breakaway Kit
Lighting DOT-Approved LED Lights with 7-Pole RV Plug
Tires 225/75R15 Load Range E Import Tires
Wheel Hubs 5-bolt hubs
Paint Finish Black Paint with Rubberized Undercoating
Tongue Type 46" Telescoping Tongue with Clevis & 1" Hitch Pin
Coupler Options 2-5/16” Ball Coupler or 3” Pintle Eye (Upgrade Options Available)
Tie-Downs 2 Adjustable Ratcheting Tie-Down Straps
Slider Brackets 2 Adjustable Slider Brackets (Standard)
Header Compatibility JD Hinged Draper, MacDon FD200, Shelbourne, and other major header brands
Top Rail Extender Kits Available for 20', 24', and 28' configurations
Fender Options Front Fender Package, Rear Fender Package (Single Axle)
Spare Tire Mount Optional Spare Tire with Carrier

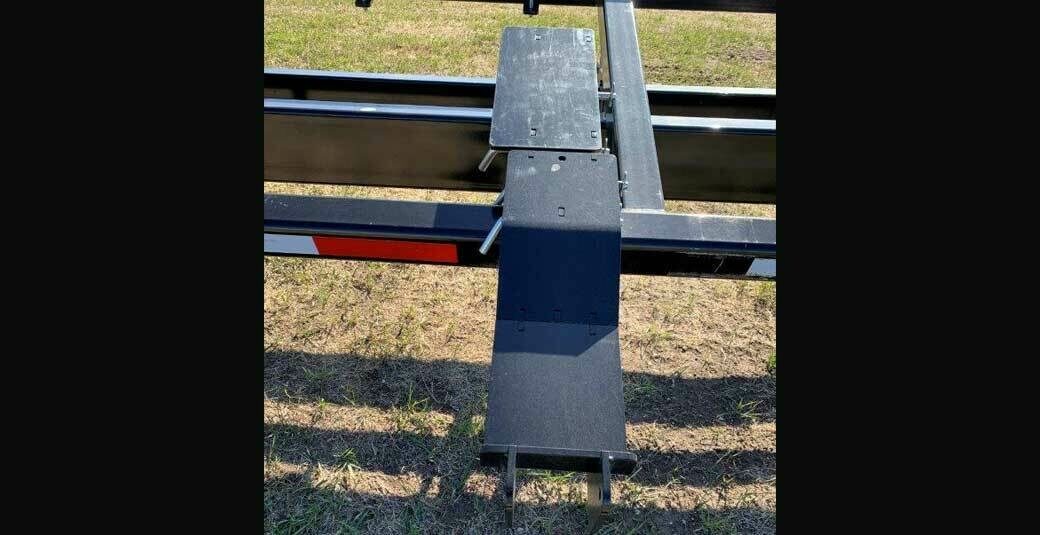

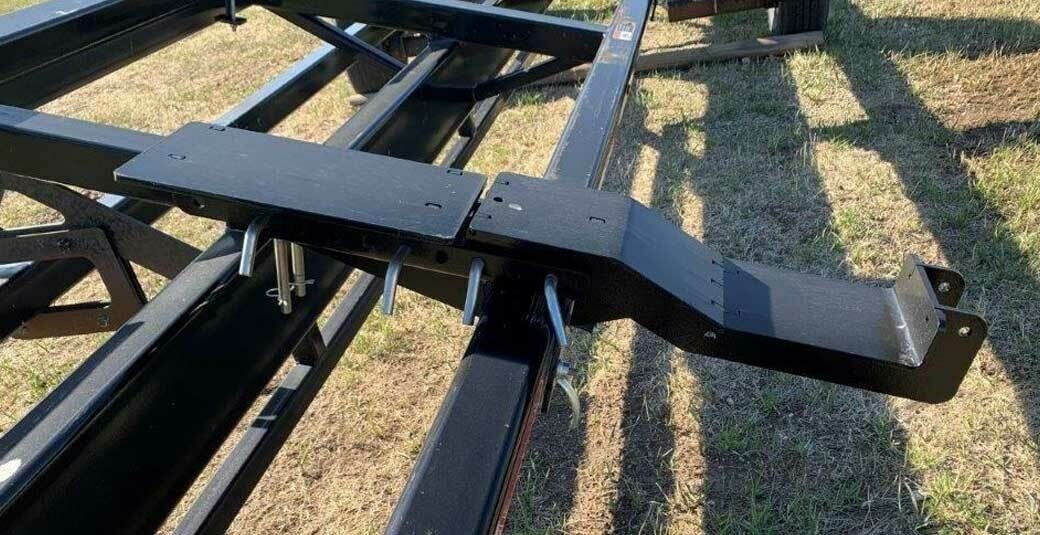

Additional Brackets Draper Head Brackets, Adjustable Slider Stalk Brackets, Shelbourne Brackets
Horsepower Compatibility 400–500 HP tractors or towing vehicles
Manufacture Statement of Origin (MSO) Available upon request
