Product Description

Demco | Steel Hopper Bottom Grain Trailer | Model Length 24' | Capacity 810 Cubic Feet | Weight (Air-Ride) 6,840 lbs | Horsepower 250–280 HP | For Tractor

DESCRIPTION

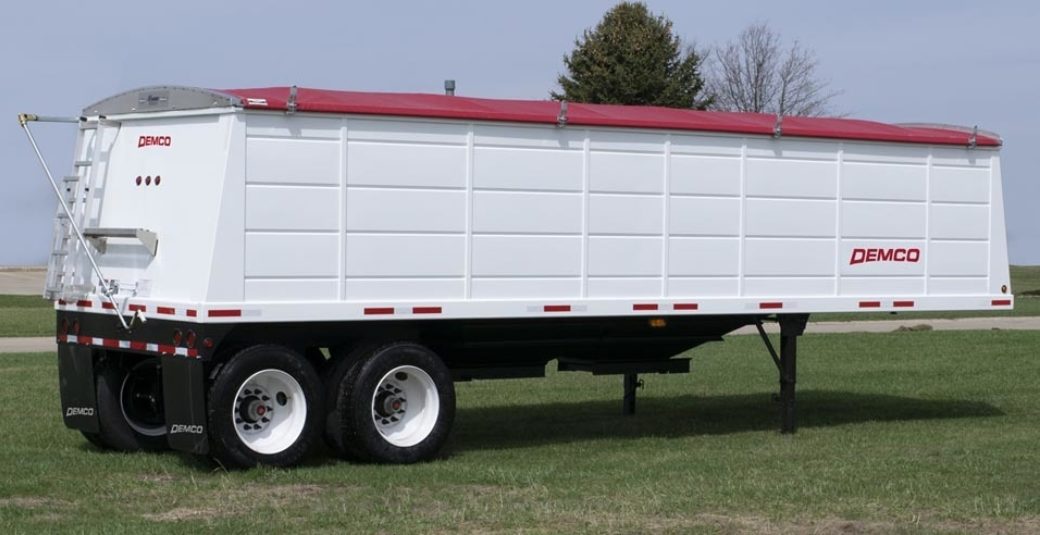

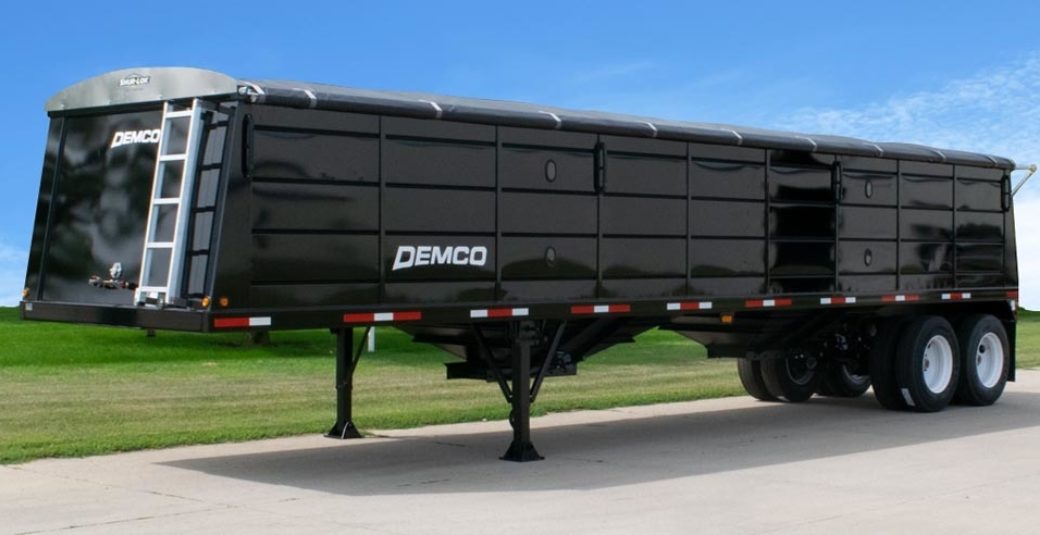

The Demco 24' Hopper Bottom Trailer is an essential asset in agricultural transport, built for efficient handling of grain and bulk materials. Featuring a compact, open-top design, this trailer allows for quick loading while the Shur-Co manual roll tarp secures the contents during transit. Equipped with a single hopper and crank-operated sliding plate, the trailer enables straightforward unloading, streamlining the transportation of grain from field to storage or local elevators with ease.

Constructed with a robust 3” x 6” tubular steel frame and high-quality 14-gauge steel walls, the Demco Hopper Bottom Trailer offers durability and resistance to wear in demanding agricultural environments. Additional safety features, such as LED lighting, DOT-compliant reflective tape, and aluminum ladders with interior rungs, enhance functionality and ensure safe operation.

Key Features

• 810 cubic feet hauling capacity enables efficient transport of up to 740 bushels heaped, ideal for mid-sized grain operations.
• Designed for tractors with 250–280 HP, ensuring optimal towing performance and compatibility with most modern ag equipment.
• Heavy-duty 14-gauge steel hopper and walls reinforced with 3" x 6" tubular steel frame provide long-lasting durability in rugged field conditions.
• Gravity-fed hopper system with 30" x 20" discharge opening and 25" clearance allows fast, clog-free unloading at bins or elevators.
• 3-leaf Hutch 9700 spring suspension delivers a smooth ride over uneven terrain, reducing wear on both trailer and tractor.
• Single 22.5K Arvin Meritor axle with Wabco ABS brakes and 10-bolt hub-piloted steel rims ensures safe, stable towing under heavy loads.
• Shur-Co manual roll tarp protects grain from weather and road debris, with optional electric tarp upgrade for added convenience.
• Rubber-mounted LED lighting and DOT-approved reflective tape enhance visibility and safety during early morning or nighttime hauling.
• Aluminum ladders at both front and rear, plus interior rungs, offer safe and easy access for inspection and maintenance.
• Diamond Vogel polyurethane primer and XRC2001 synthetic rubber undercoating resist corrosion and extend trailer lifespan.
• 66" sidewalls provide clear visibility into the hopper from the combine cab, simplifying loading and reducing overfill risk.
• 11R 22.5 LRG radial tires (import or domestic) offer reliable traction and load-bearing capacity across varied terrain.
• Hopper slope of 28° ensures smooth grain flow, minimizing residue and reducing clean-out time between loads.
• Customization options include electric hopper, side discharge chute, stainless steel corners, and custom paint colors to match fleet or farm branding.
• Compact 24' length and 6,840 lb air-ride weight make it easy to maneuver in tight farmyards or narrow rural roads.

Detailed Specifications

Manuals & Documents

• Product Brochure
• Operator Manual - 8G000003 - All Grain Trailer Models
• Demco Grain Trailers Brochure - MK11001
