Demco Steel Hopper Bottom Trailers | Length 38' ft | Weight 10,700 Lbs | King Pin Setting 15" | Horsepower 255+ HP | For Tractors

Demco Steel Hopper Bottom Trailers | Length 38' ft | Weight 10,700 Lbs | King Pin Setting 15" | Horsepower 255+ HP | For Tractors

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Trailer Length: 38' for efficient bulk grain hauling.
  • Heavy-Duty Build: 14 ga steel skins and 3" x 6" tubular frame resist twisting and wear
  • Operator Visibility: 66" side walls and interior ladder rungs for easy access and inspection
  • Road-Ready Setup: Hutch 9700 suspension, ABS axles, and LED lighting—tows smooth with 255 HP tractor
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Demco Steel Hopper Bottom Trailers | Length 38' ft | Weight 10,700 Lbs | King Pin Setting 15" | Horsepower 255+ HP | For Tractors

DESCRIPTION

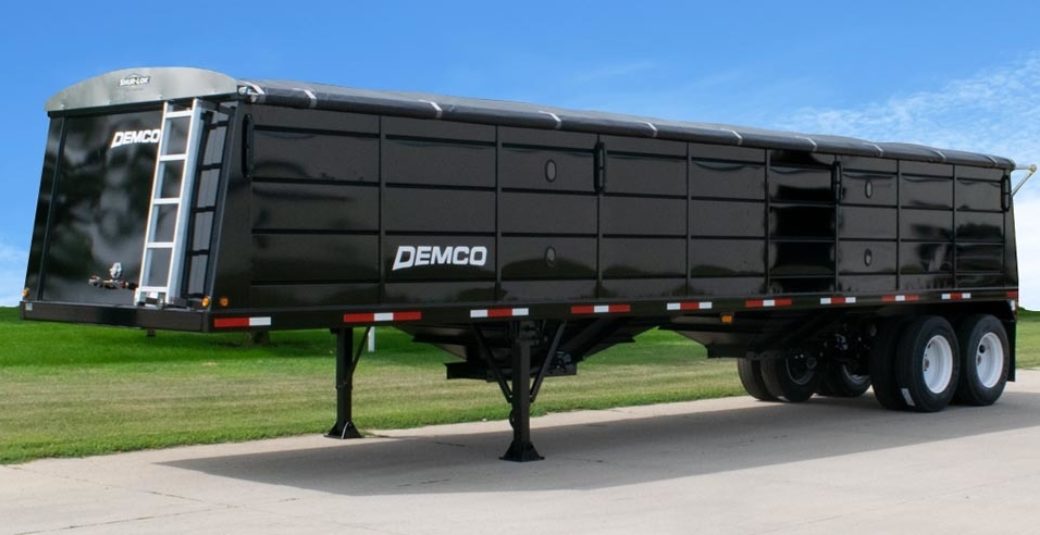

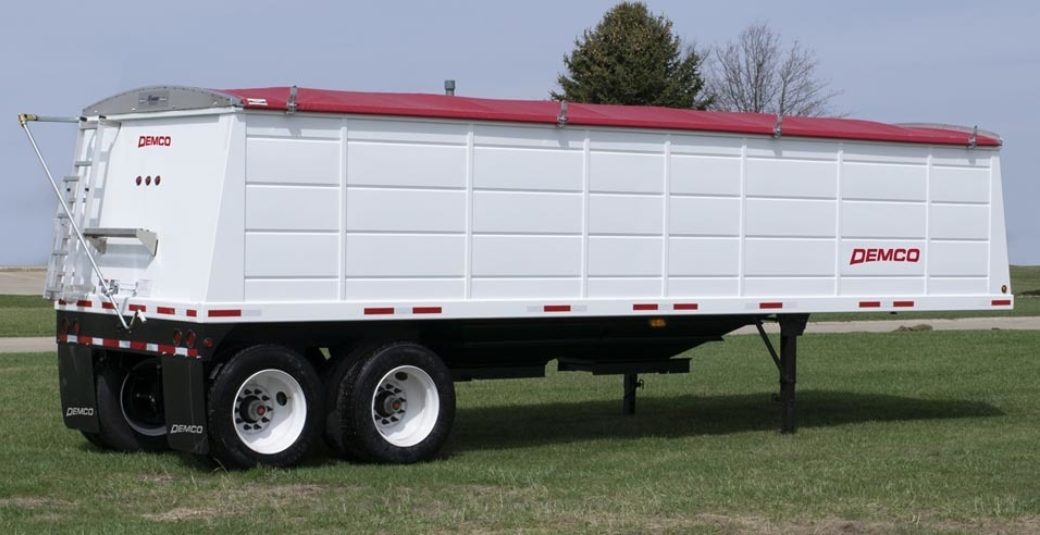

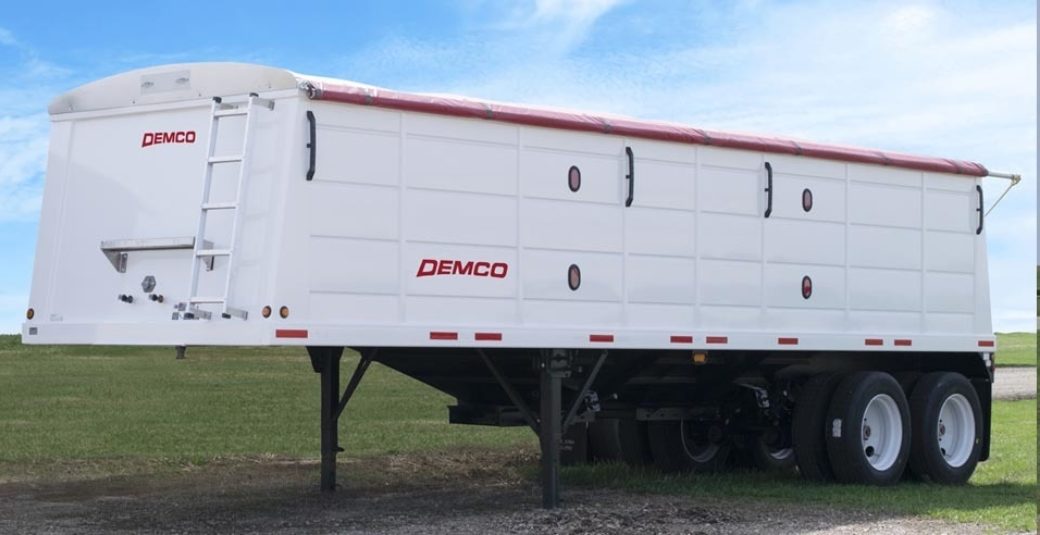

The Demco 38' Hopper Bottom Trailer is a vital tool in the agricultural transport process, specifically designed for efficient loading and unloading of grain and other materials. Its open-top design allows for quick filling, while a Shur-Co manual roll tarp secures the load during transit. This trailer features two hoppers with crank-operated sliding plates, enabling easy, one-person unloading from each end.

Constructed with durability in mind, the Demco Hopper Bottom Trailer includes a robust 3” x 6” tubular steel frame, inverted horizontal ribs to reduce rock chipping, and a 35-degree hopper slope for efficient material flow. This trailer offers seamless integration with grain carts and combines, streamlining the journey from field to storage facilities or grain elevators with minimal effort.

Key Features

  • Dual Hopper Design: Separates loads for faster unloading and better weight distribution
  • Heavy-Duty Axles: Equipped with two 22.5K Arvin Meritor axles and Wabco ABS brakes for reliable stopping power
  • Spring Suspension: Hutch 9700 3-leaf system ensures a stable ride over rough terrain
  • Full Center Divider: Reinforces trailer structure and keeps hopper loads secure
  • High Side Walls: 66" walls offer clear visibility into hoppers from combine cab
  • Inverted Ribs: Horizontal rib design reduces rock chipping and improves pulling efficiency
  • Reinforced Frame: 3" x 6" x ¼" tubular steel resists twisting under heavy loads
  • Durable Steel Construction: 14 ga hopper and wall skins built for long-term field use
  • LED Lighting System: Rubber-mounted lights with sealed wiring and Truck-Lite™ 7-way receptacle
  • Manual Roll Tarp: Shur-Co tarp available in multiple colors with easy-off stops and roll tube deflectors
  • Safe Access: Aluminum ladders front and rear plus interior rungs for hopper entry
  • Branded Finish: Demco vinyl graphics, anti-sail mudflaps, and D.O.T. conspicuity tape included
  • Corrosion Protection: Undercoated with XRC2001 synthetic rubber for extended service life
  • Premium Paint: Diamond Vogel polyurethane primer and white topcoat for lasting gloss and durability
  • Towing Power Requirement: Minimum 255 HP tractor recommended for optimal performance

Detailed Specifications

Category Specification
Trailer Length 38'
Number of Hoppers 2
Axles Two 22,500 lb Arvin Meritor axles with Wabco ABS
Suspension Hutch 9700 3-leaf heavy-duty spring (standard)
Cubic Capacity 1,255 cu ft
Leveled Bushels (Approx.) 1,010 bu
Heaped Bushels (Approx.) 1,100 bu
King Pin to Landing Leg 107" clearance
King Pin Setting 15"
Floor Slope 35°
Weight (Air-Ride) 10,940 lb
Weight (Spring Ride) 10,700 lb
Recommended Towing HP 255 HP (minimum)
Side Wall Height 66" — full view from combine cab
Overall Width 98"
Height (Ground to Top Rail) 9.6'
Hopper Opening 30" x 20"
Hopper Clearance 25"
Hopper Slope 35°
Divider Full center divider (dual hopper configuration)
