Product Description

Demco | Tandem Axle Steel Drop Deck Trailer | Model DD43-5 & DD48-5 | Width 102" | GVWR 68,000–80,000 lbs | 5' Beaver Tail with Twin Ramps | Horsepower 400 To 700 HP | For Tractor

DESCRIPTION

The Demco Tandem Axle Drop Deck Trailers with a 5-foot beaver tail and twin ramps are designed for efficient and safe loading of heavy equipment. These trailers, available in 43' and 48' lengths, feature a sloped beaver tail extension with twin spring-assist ramps, making them ideal for maneuvering vehicles and equipment. Built with a robust steel frame and 3-leaf heavy-duty SAF Holland spring suspension, these trailers ensure stability and reliability on the road.

With a maximum GVWR of 68,000 to 83,500 lbs depending on axle configuration, Demco drop deck trailers meet the demands of high-capacity hauling. Standard features like color-coded air lines, a sealed wiring system, LED lighting, and DOT-approved conspicuity tape enhance safety and visibility. The addition of 1-1/8” x 7” Apitong flooring and a steel rub rail ensures durability, making these trailers a reliable choice for agricultural and industrial needs.

Key Features

• Trailer Lengths: Available in 43' (DD43-5) and 48' (DD48-5) with an additional 5' beaver tail extension for easy loading and unloading of heavy equipment.
• Compatibility: Perfect for use with semi tractors Horsepower 400 To 700 HP x, offering excellent adaptability for various types of hauling jobs.
• GVWR: Rated for up to 68,000 lbs in closed tandem configuration and up to 80,000 lbs in spread axle configuration, making it ideal for carrying substantial loads.
• Suspension System: Equipped with a 3-leaf heavy-duty SAF Holland spring suspension for smooth, stable hauling, even under heavy loads.
• Axles: Features 22.5K Arvin Meritor axles with Wabco ABS brakes on a single axle as standard, ensuring enhanced safety and durability during transport.
• Deck Height: The low 40-¾" deck height combined with a 19.5" transition drop provides superior stability, making loading and unloading safer and smoother.
• Upper Deck Length: 11' upper deck length gives you ample space for transporting a variety of machinery, vehicles, and other large loads.
• Flooring: Built with 1-1/8" x 7" Apitong hardwood flooring, known for its superior strength and durability to withstand heavy wear and tear.
• Lighting System: Includes rubber-mounted LED lights and a sealed Truck-Lite™ wiring system for long-lasting and weather-resistant performance, ensuring safe transport in any conditions.
• Paint Finish: The trailer is finished with Diamond Vogel polyurethane primer and paint (black), providing superior adhesion and protection against corrosion.
• Safety Features: Features midship turn signals, color-coded air lines, and D.O.T. approved conspicuity tape, offering increased visibility and ensuring safe operation in all conditions.
• Load Support: Designed with stake pockets and pipe spooling at 9” intervals, plus a winch track on the driver’s side, providing flexibility for securing loads of various sizes and shapes.
• Kingpin Setting: The trailer comes with a 24” standard kingpin setting, with an optional 18” setting available to cater to different types of semi tractors.

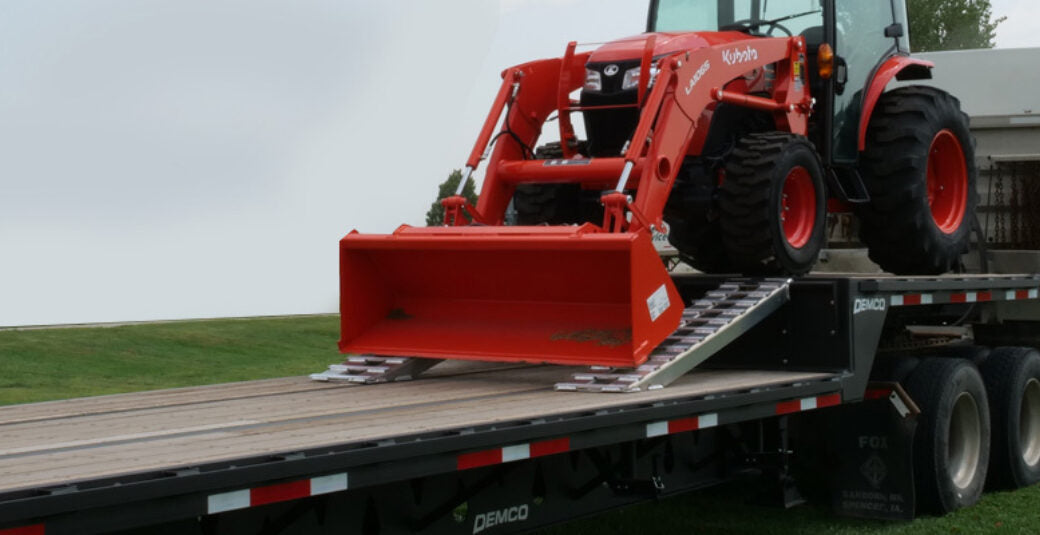

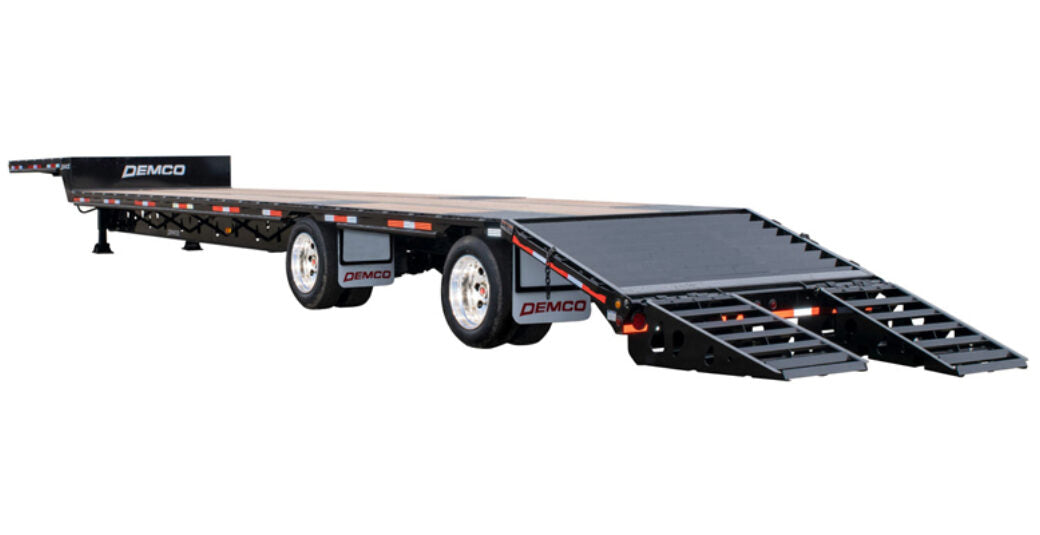

• Ramps: Equipped with twin spring-assisted ramps for smooth loading and unloading; an optional 3rd ramp is available for additional versatility.
• Customizable Options: A variety of options are available, including air ride suspension, polished aluminum rims, and custom paint colors (Red, Grey, White, Blue), allowing you to tailor the trailer to your specific needs.

Detailed Specifications

Manuals & Documents

Manuals

• Product Brochure

• Operator Manual - 8D000003 - All Drop Deck Models

Brochures

• Demco Drop Deck Brochure - TP0003
